Behringer RD-9 Classic Analog Drum Machine
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Amazing drum machine with authentic analog/digital sound engine to create classic sound performance
- 11 original drum sounds with additional parameters and global accent capability
- Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
- 10 independent analog outputs for external processing or recording your rhythms as multi-track audio
- Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
- Live recording, editing and playback of analog filter cutoff via automation
- Storage of up to 16 songs and 256 patterns, all of which can be imported/exported during playback for unlimited songs and patterns
- Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part
- Song Mode allows chaining songs together for live sets and expanded compositions
- Unique Auto Scroll feature enables improvisation in all modes
- Comprehensive MIDI In/Out/ Thru plus USB implementation for synchronization and connection to external devices
- Sync options include USB, MIDI, Clock and Internal for maximum versatility
- Encoder for editing parameters such as Tempo, Swing, Probability, Flam and Random
- High-visibility LED display for easy editing of program parameters
- Powerful headphone and main outputs on 1/4" connectors
DESCRIPTION

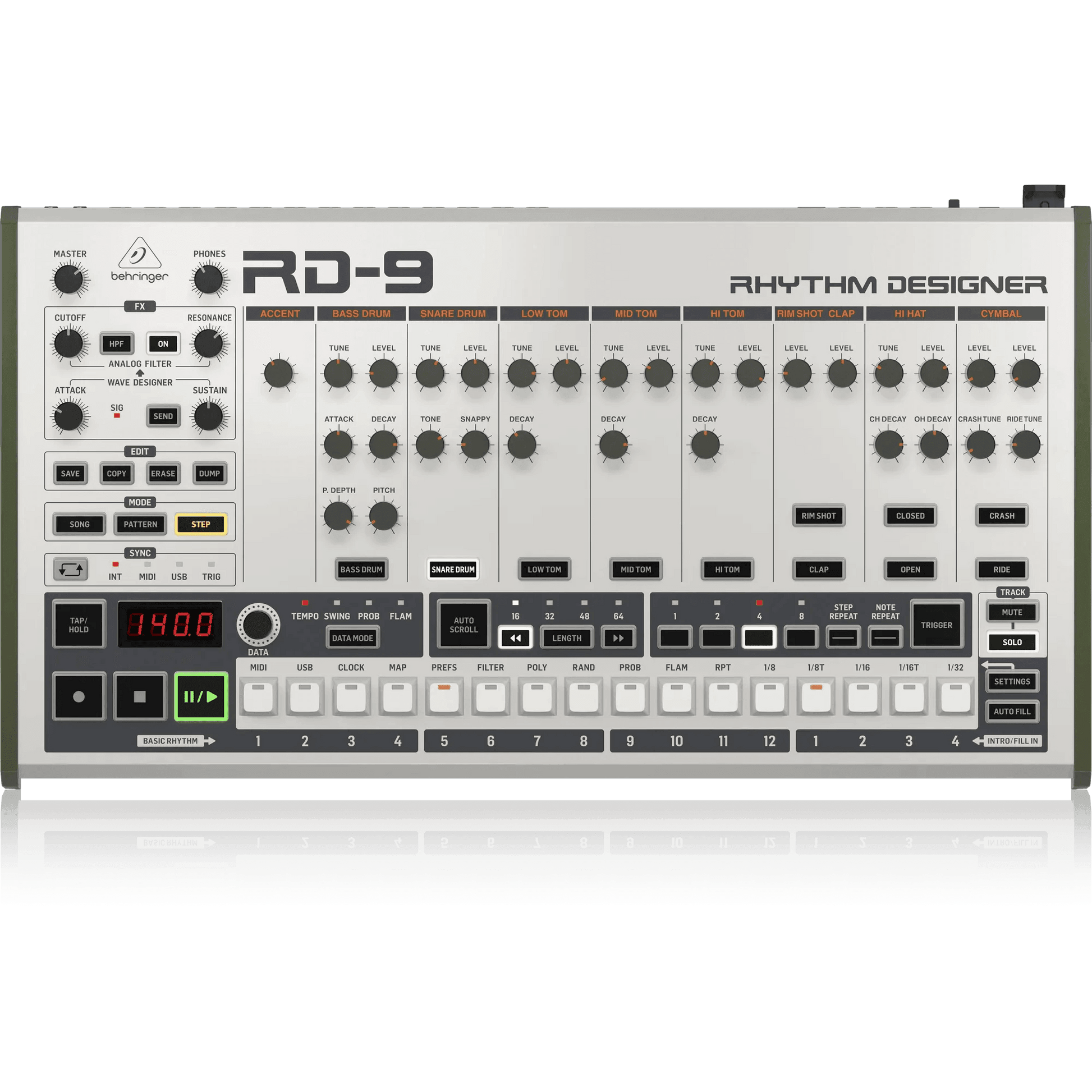

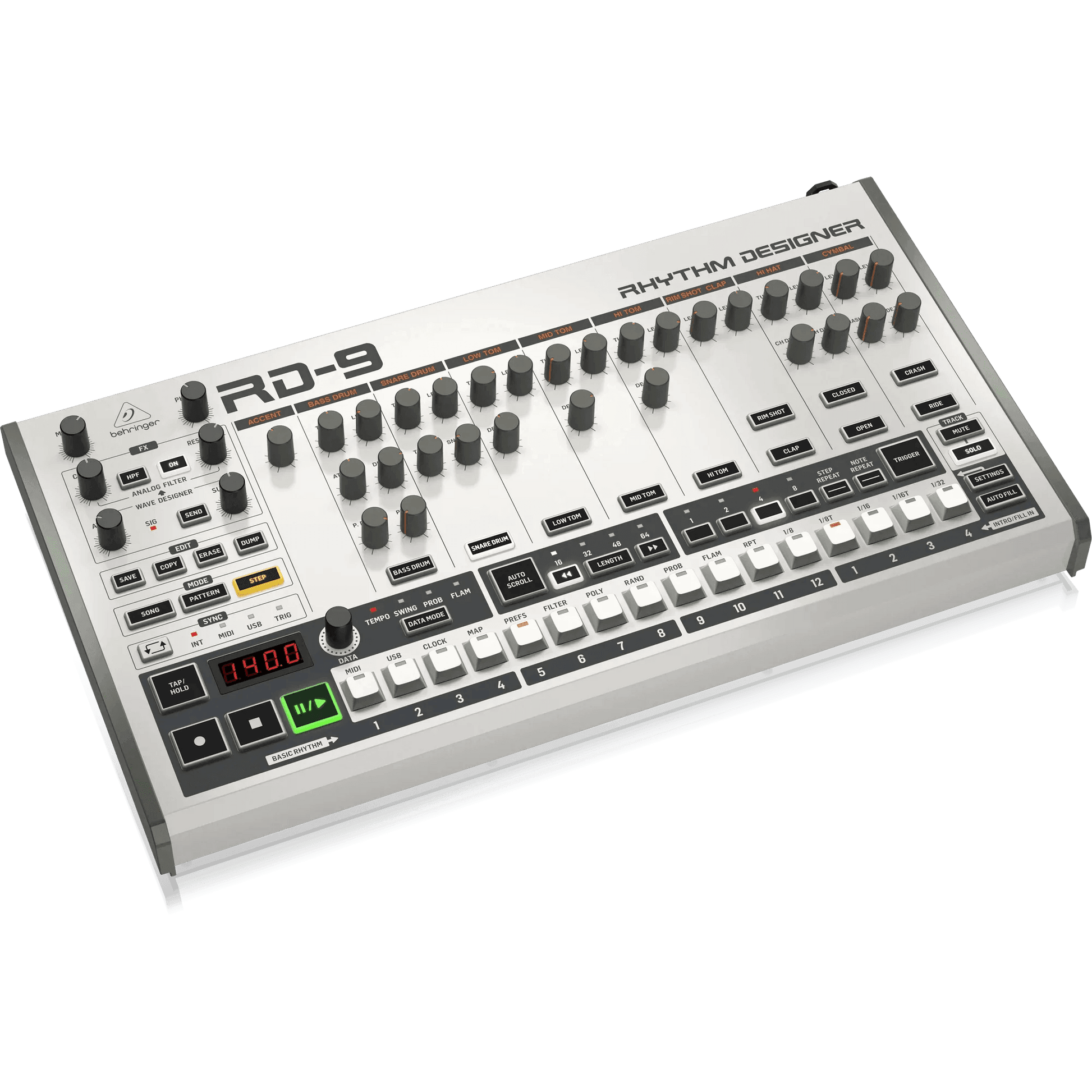

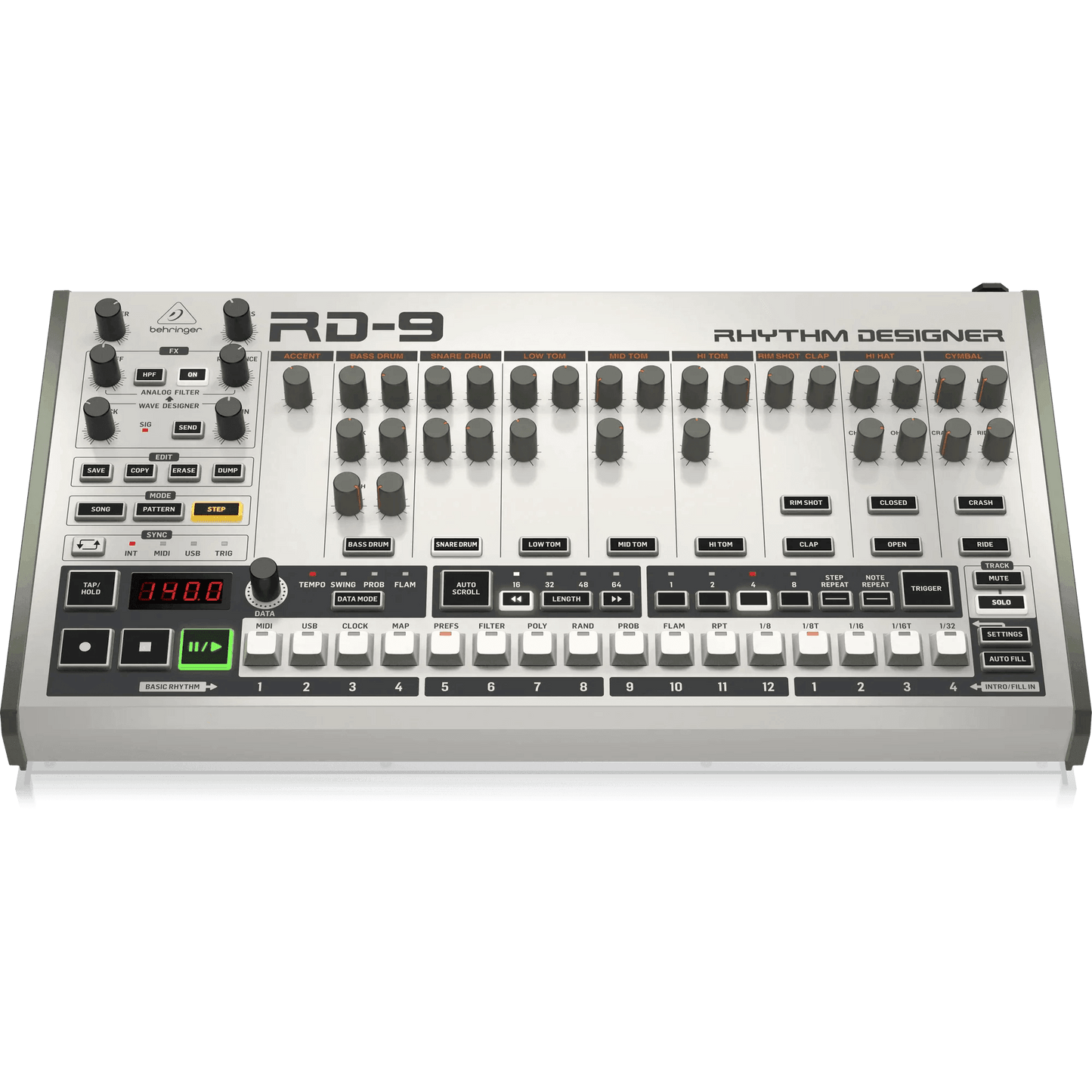

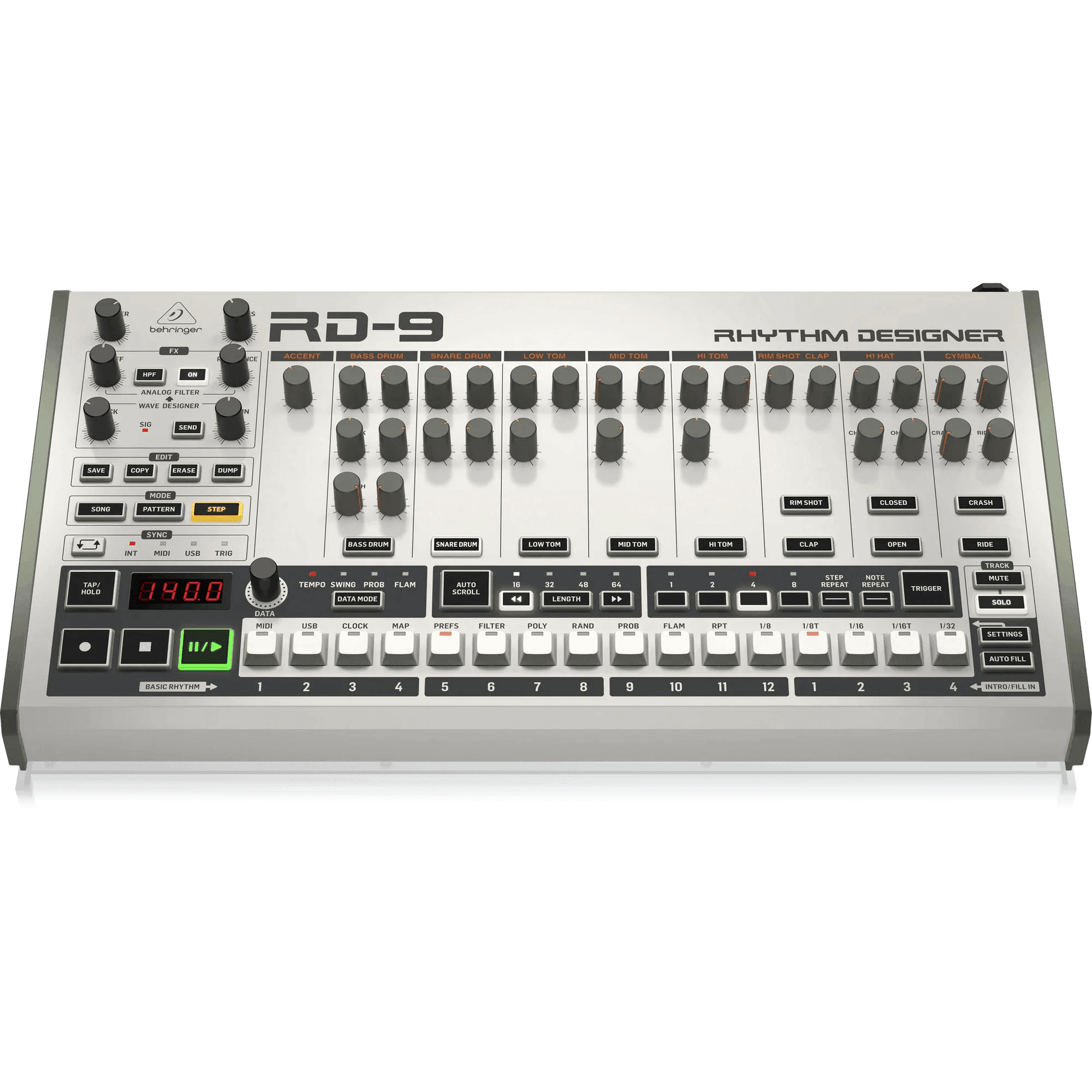

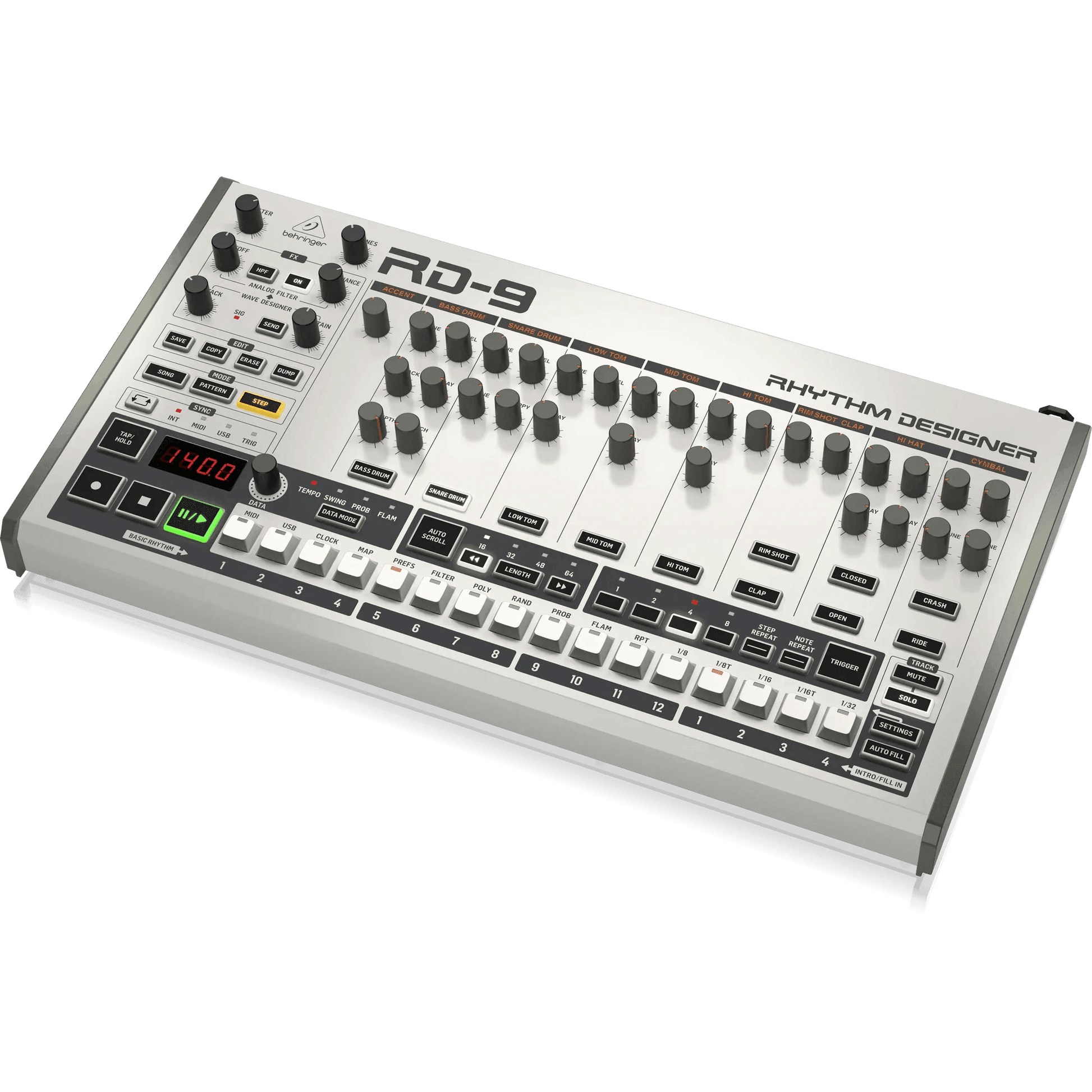

The RHYTHM DESIGNER RD-9 provides all the tools you need to become a master beat-maker, including: 11 drum voices; a 64-step sequencer; wave designer and dual-mode filter – for a full-fledged drum machine that’ll shake the house! Whether you’re new to drum programming or a seasoned pro looking to upgrade your setup, the RD-9 has everything you need to step up to the big leagues.
SPECIFICATIONSVoices
Number of sounds
11
Type
Analog
Bass drum, Snare drum, Low tom, Mid tom, Hi tom, Rim shot, Clap
Digital (Sampling)
Closed hat, Open hat , Crash, Ride
Number of simultaneous voices
10
Sound controls
Accent
Level
Bass drum
Tune, level, attack, decay, pitch, pitch depth
Snare drum
Tune, level, tone, snappy
Low, mid, hi tom
Level, tuning, decay
Rim shot / clap
Level
Hi hat
Tune, level, ch decay, oh decay
Cymbal
Crash level, ride level, crash tune, ride tune
Select buttons
11 Voice select buttons

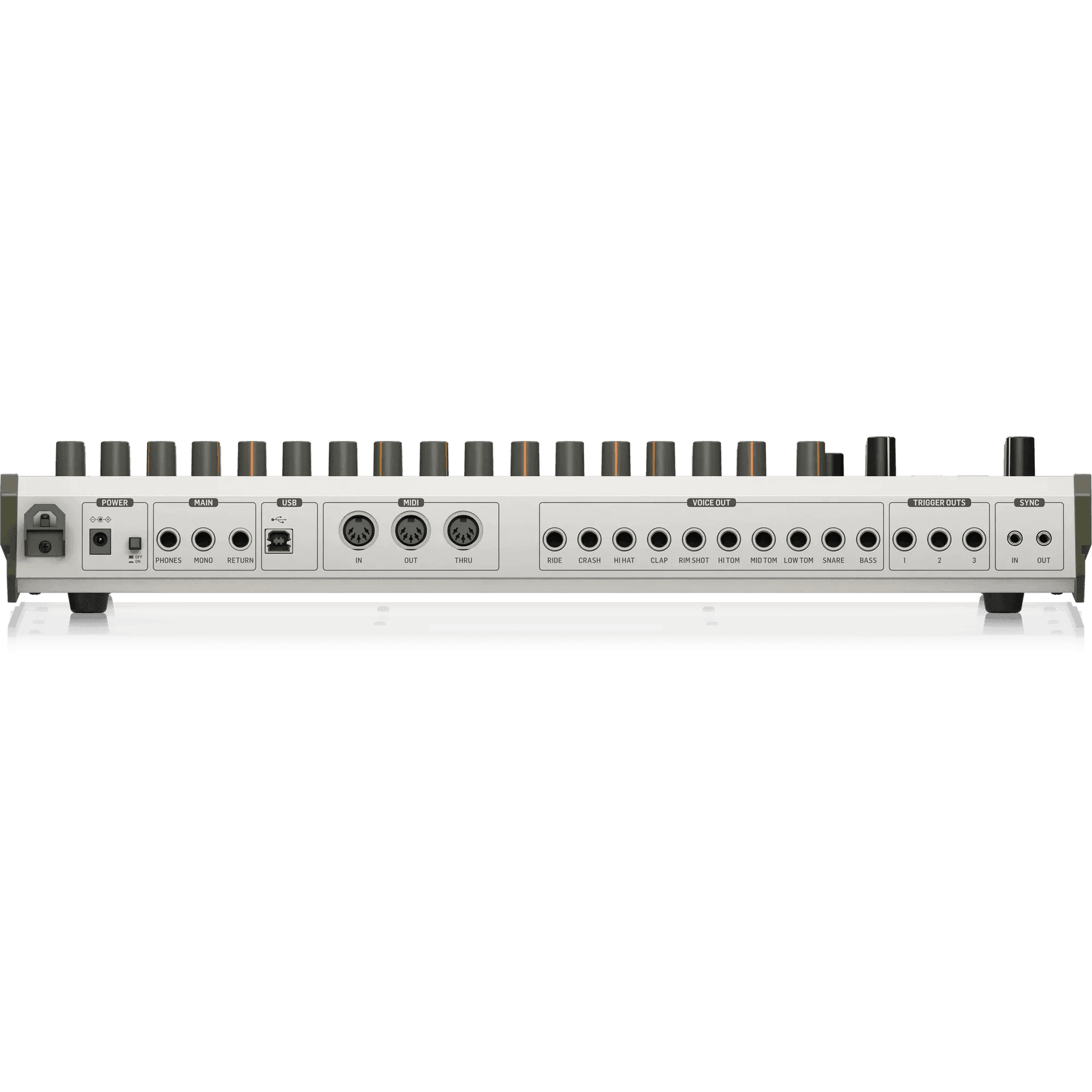

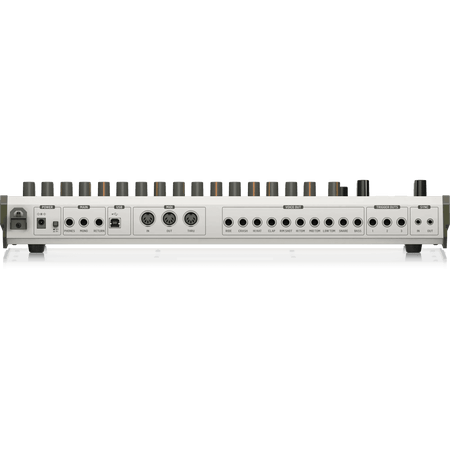

Connectivity
Outputs
Phones
1 x 1/4" TRS, stereo, 8 Ω impedance
Mono
1 x 1/4" TRS, servo-balanced
Voice out
10 x 1/4" TS, unbalanced
MIDI In, Out & Thru
3 x 5-pin DIN
Trigger outs
3 x +5 V, 2 ms pulse
Sync in / out
2 x 1/8" TRS (Tip is clock and Ring is the start message)
USB
Class compliant USB 2.0, type B
Supported operating systems
Windows 7 or higher Mac OS X 10.6.8 or higher
Volume controls
Master, phones
Return (Input)
1 x 1/4" TRS, balanced
