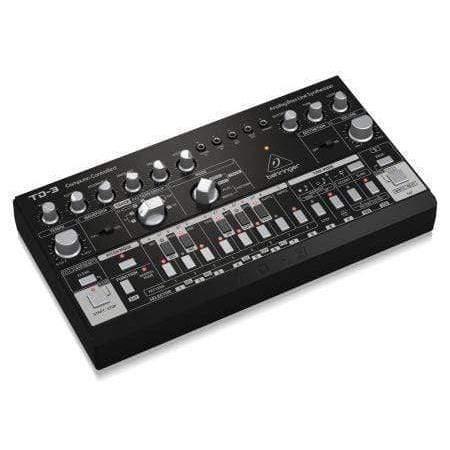

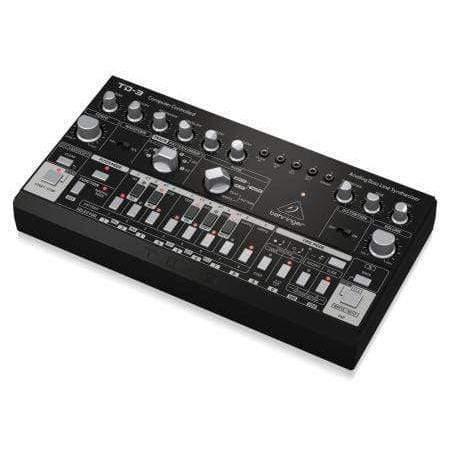

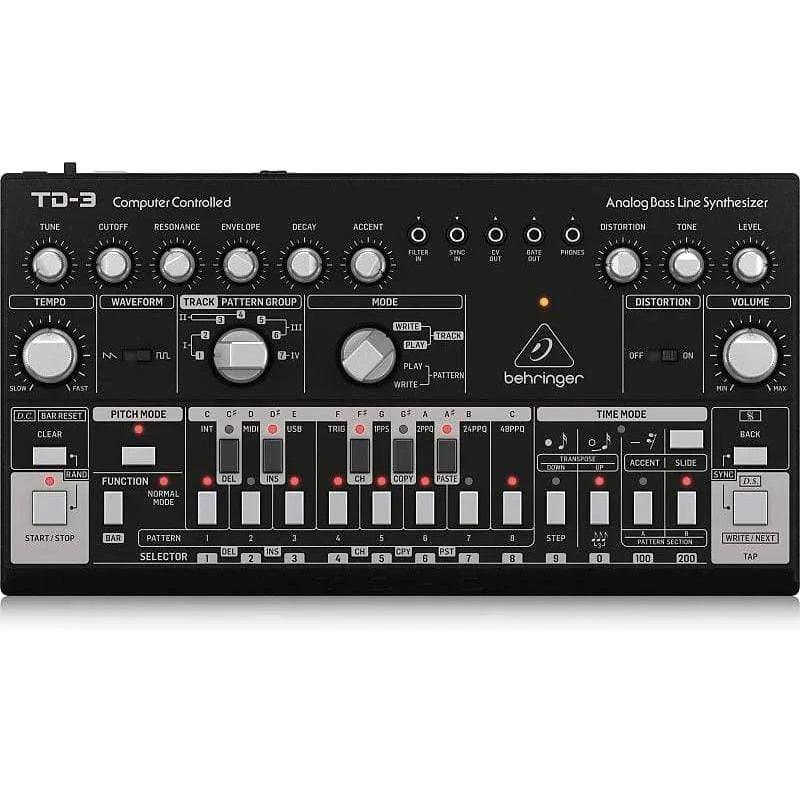

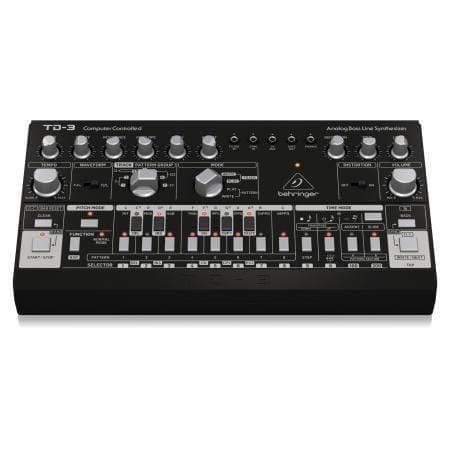

Behringer TD-3 Analog Bass Line Synthesizer
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Analog Bass Line Synthesizer with VCO, VCF, 16-Step Sequencer, Distortion Effects and 16-Voice Poly Chain
Features:
-
Amazing Bass Line synthesizer with true analog circuitry for bass and groove sounds
-
Authentic reproduction of original circuitry with matched transistors
-
Pure analog signal path based on legendary VCO, VCF, and VCA designs
-
Sawtooth and square waveform VCO with transistor wave-shaping circuitry
-
Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
-
Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
-
Arpeggiator with wide patterns for great sound effects
-
Distortion circuitry modeled after the DS-1* adds insane spice and edge to your sounds
-
16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
-
11 controls and 28 switches to give you direct and real-time access to all important parameters
-
MIDI and USB implementation with MIDI channel and Voice Priority selection
Tech Specs:
Type: Desktop Bass Synthesizer Analog/Digital Analog Type of Keys 13 x Key Buttons Polyphony Monophonic, 16-voice Poly Chain Oscillators 1 x VCO Waveforms Reverse Sawtooth, Pulse Envelope Generator 1 x EG ; Decay Control Filter 4-pole Lowpass Resonant Filter Effects Types Distortion Arpeggiator Yes Sequencer 16-step, 7-track, 250 User Patterns Analog Inputs 1 x 1/8" TS (filter in) Analog Outputs 1 x 1/4" TS (line out) Headphones 1 x 1/8" MIDI I/O In, Out/Thru, USB Other I/O CV out, Gate out, Sync in USB 1 x Type B Software Behringer Synth Tool App OS Requirements - Mac OS X 10.8.5 or later OS Requirements - PC Windows 7 SP1 or later Power Supply 9V DC power supply (included) -
