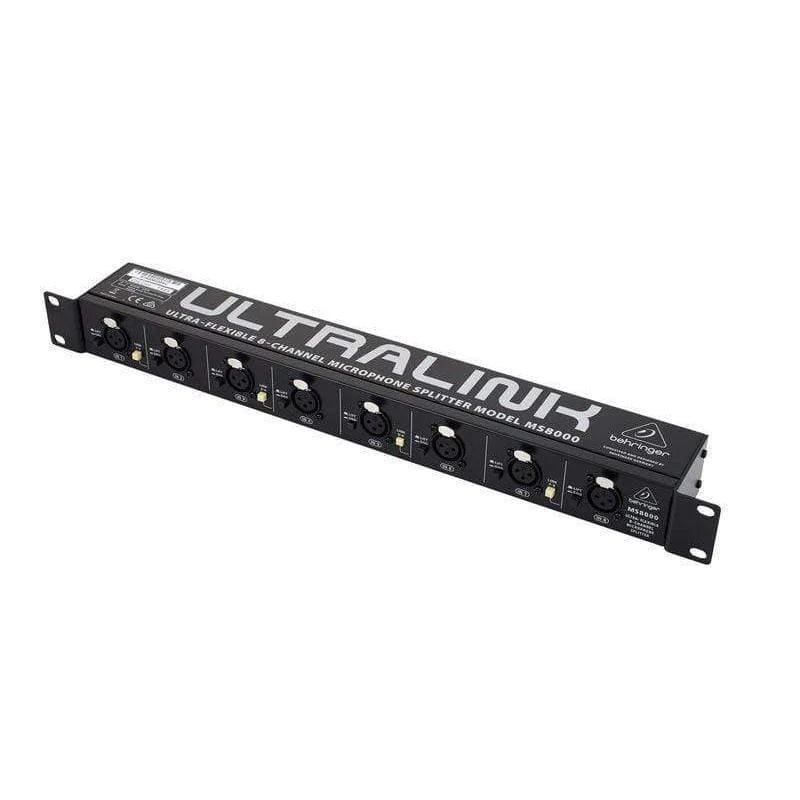

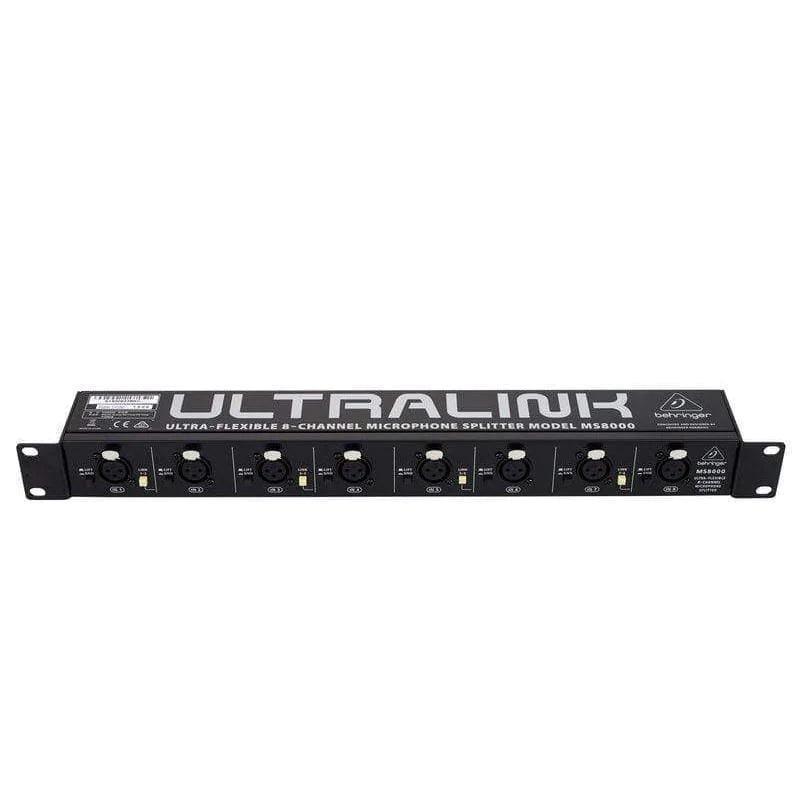

Ultra-Flexible 8-Channel Microphone Splitter
The ULTRALINK MS8000 from Behringer is an eight-channel microphone splitter suitable for recording consoles, monitoring systems, interfaces, and more. It features eight XLR inputs and sixteen XLR outputs, with each input automatically split into two outputs—one pre-transformer and one post-transformer—in order to feed different types of gear. Press any link button on the front panel and one input will be routed into four outputs, allowing you to send a vocal mic to the FOH console, a recording interface, in-ear monitors, and a broadcast truck, all at the same time. Furthermore, this unit features ground lift switches to eliminate hum on every channel, as well as phantom power on eight of the sixteen outputs.
Ultra-low noise 8 in/16 out microphone splitter
Each channel features Direct and Link outputs
Output ground lift switch per channel
Flexible input link switches
Phantom power link to Direct Output
Analog Audio Inputs
|
Connectors |
8x XLR inputs |
|
Impedance |
1 kOhm, balanced |
|
Maximum Input Level |
30 dBu at 1 kHz |
|
Controls |
4x Link |
Analog Audio Outputs
|
Connectors |
Link: 8x XLR outputs, parallel to inputs |
|
Voltage Transformation Ratio |
1:1.12 |
|
Impedance |
2.7 kOhms, balanced |
|
Maximum Output Level |
38 dBu at 1 kHz |
System
|
Frequency Response |
30 Hz to 30 kHz (±0.5 dB at +4 dBu) |
|
THD+N |
0.02% at 1 kHz, input level +4 dBu |
|
Signal to Noise Ratio |
104 dBu |
|
CMRR |
>80 dB, typical |
|
Insertion Loss |
+8 dB at 100 kOhms |
|
Power Requirement |
Passive |
Dimensions & Weight
|
Dimensions (H x W x D) |
1.7 x 19.0 x 2.6" / 44 x 483 x 65 mm |
|
Weight |
2.4 lb / 1.1 kg |
Packaging Info
|
Package Weight |
3.2 lb |
|
Box Dimensions (LxWxH) |
21 x 4.5 x 3.5" |
