List price. Trade accounts get better pricing: ask us for a B2B quote. Contact us
Ask an AV specialist

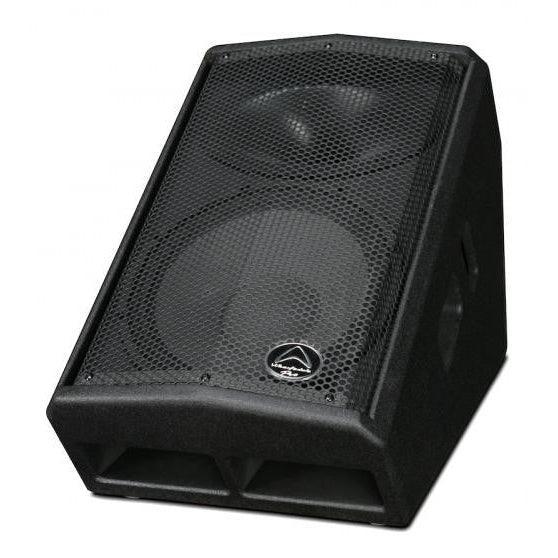

The DVP-X12M is a passive 2-way floor monitor with a 12" low-frequency driver (2.5" voice coil) and a titanium-diaphragm compression driver with a 1.75" voice coil. It is rated 300 W continuous, 600 W programme and 1200 W peak, with a maximum SPL of 129 dB at 1 m. The MDF cabinet has a black Rhino paint finish and a black steel grille.
| Active or Passive | Passive |
|---|---|
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Programme Power | 600 W |
| System Peak Power | 1200 W |
| Max SPL @ 1m | 129 dB |
| Freq Response (+/-3 dB) | 60 Hz -18 kHz |
| Freq Range (-10 dB) | 55 Hz -20 kHz |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x 4 Pole Speaker Connector + 1/4″ Jack Combo |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Rhino Paint |
| Handles | 2 |
| Deployment | Ground |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.2 KHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| Transformer (T) | No |
| Transformer Taps (70 V) | No |
| Transformer Taps (100 V) | No |
| Input Connectors (T) | No |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 428 |
|---|---|
| Unpacked - Width Front (mm) | 359 |
| Unpacked - Width Rear (mm) | 359 |
| Unpacked - Depth (mm) | 537 |
| Packed - Height (mm) | 620 |
| Packed - Width Front (mm) | 450 |
| Packed - Width Rear (mm) | 450 |
| Packed - Depth (mm) | 575 |
| Weight - Nett (kg) | 17.4 |
| Weight - Gross (kg) | 20.5 |
System continuous power is 300 W, programme power 600 W and peak power 1200 W.
The input connector is listed as 2 x 4-pole speaker connector + 1/4" jack combo.
Deployment is listed as ground. Rigging is listed as No and no brackets are included.
