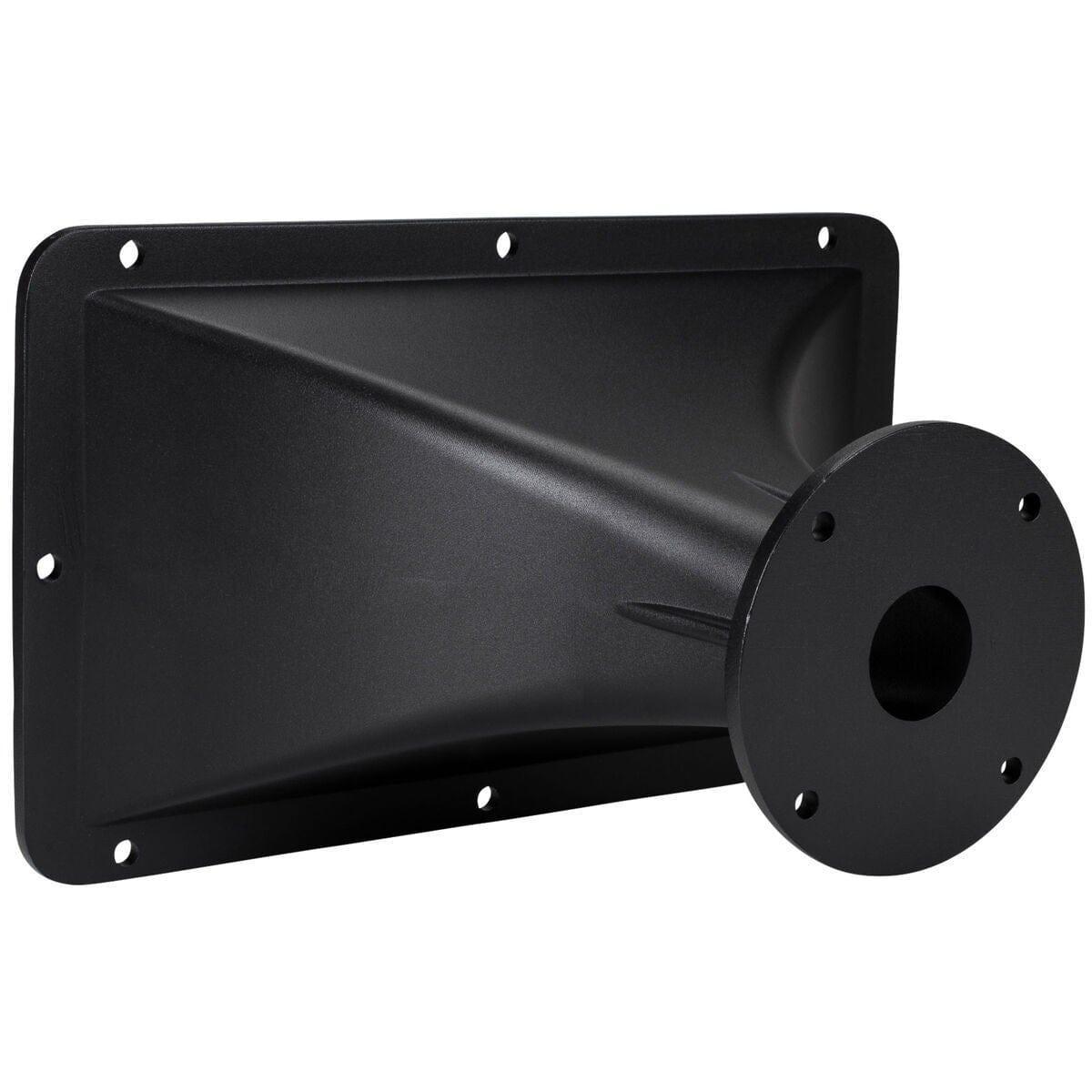

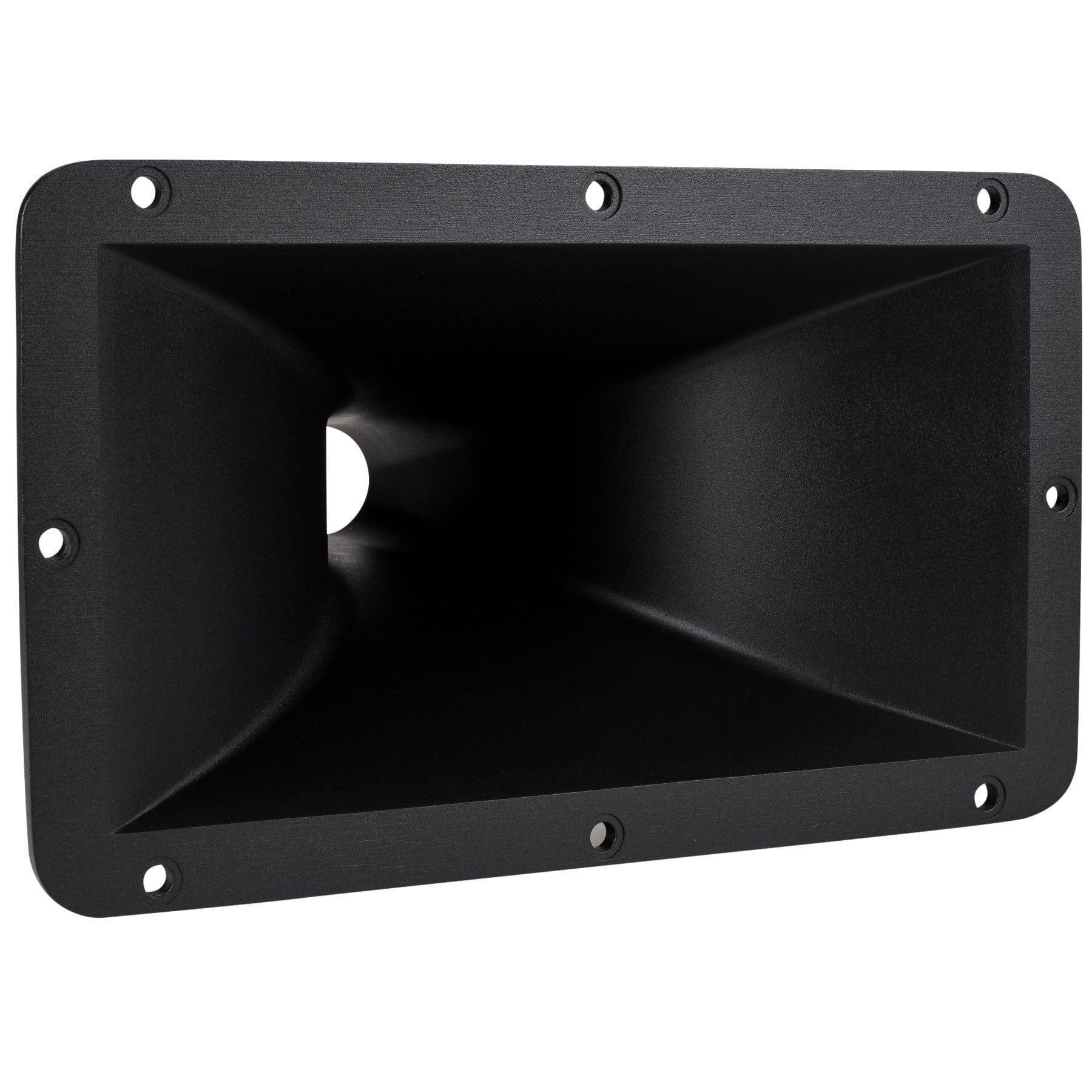

Eminence H14EA 1.4" Cast Aluminium Exponential Horn
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- FEA-optimized aluminum design is durable and hi-fi sounding
- High gain design is ideal for long throw applications
- Controlled dispersion reduces interactions between adjacent loudspeakers
- Heat sink property provides additional cooling to hardworking high frequency drivers
- Industry standard 1.4" throat, 4-bolt mounting for large format HF drivers
DESCRIPTION
The Eminence H14EA is a rugged, cast aluminum 1.4" throat horn. The H14EA incorporates an exponential flare for optimized acoustic loading and energy transfer, resulting in a smooth and natural frequency response. Its compact size makes it ideal for sound reproduction in virtually any venue.
The Eminence assortment of horns has been engineered to provide the perfect complement to Eminence HF drivers. Each horn is manufactured from the highest quality materials to obtain a balance of strength, durability, and weight savings.SPECIFICATIONS
Type
Exponential Material Aluminium Throat Size 1.4", 35.6mm Attachment Method Bolt-on Dispersion 60 X 40 Low Rec. Crossover 600 Hz WxHxD (in) 12.6" x 7.5" x 7.9" ; 320mm x 190.5mm x 200.7mm Cut Out 11.3 x 6.1", 287 x 155mm Weight 4.8lbs, 2.18g
