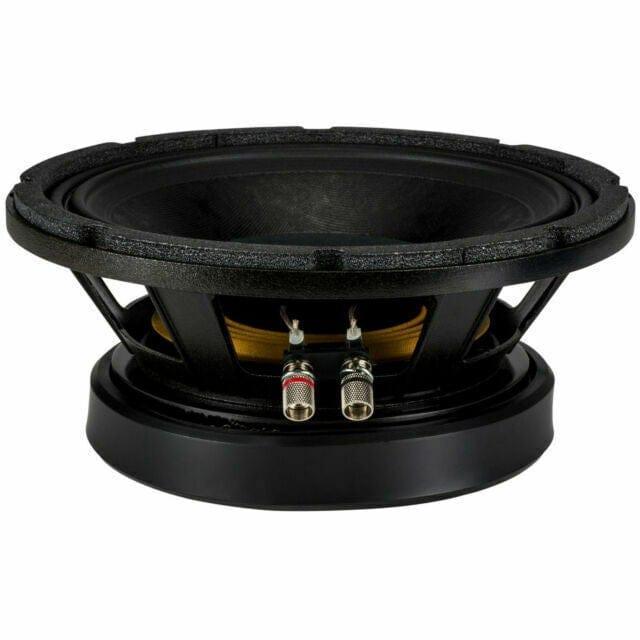

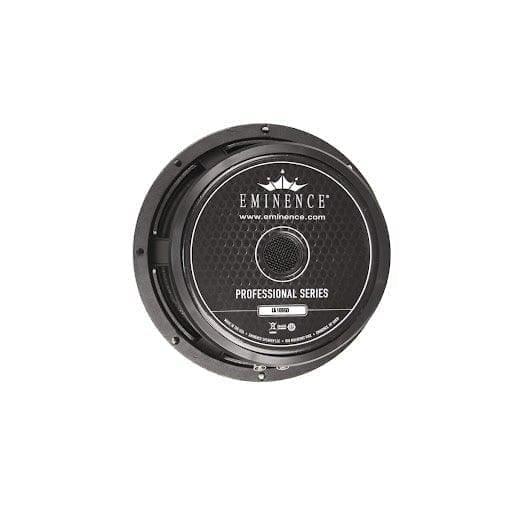

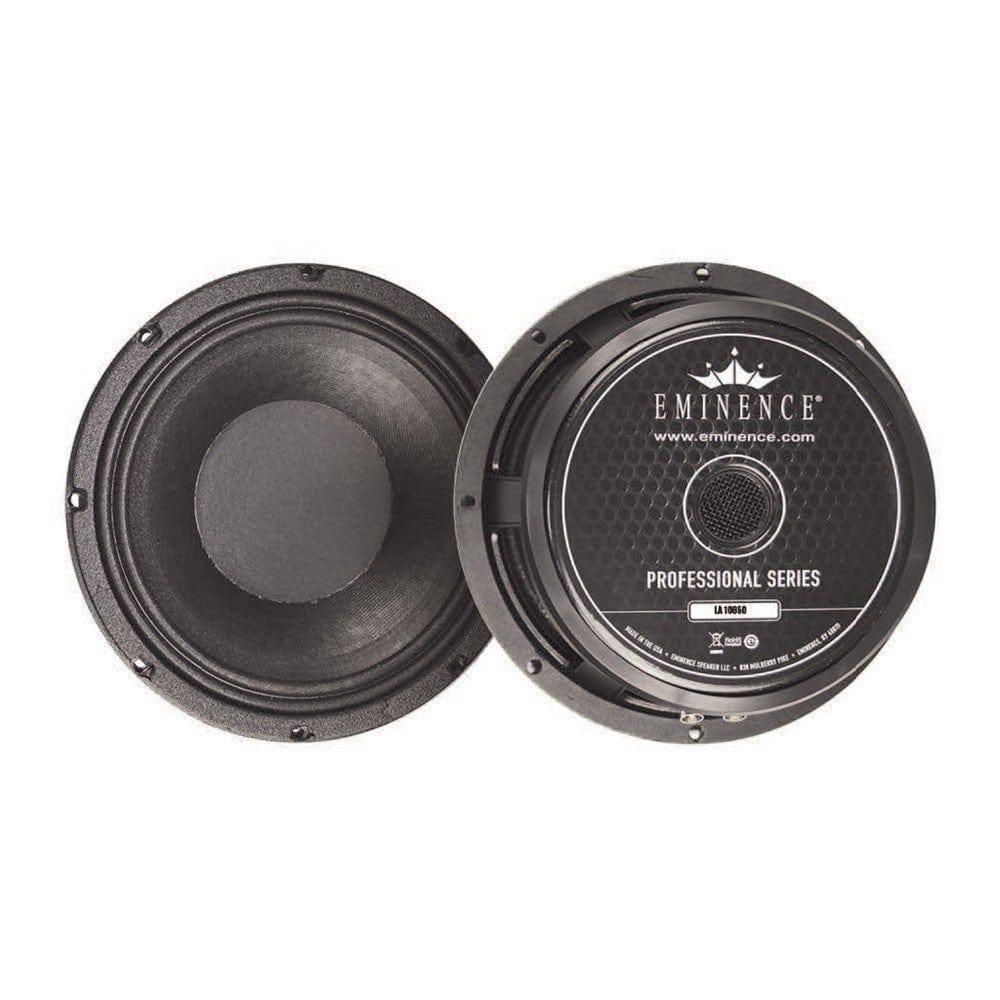

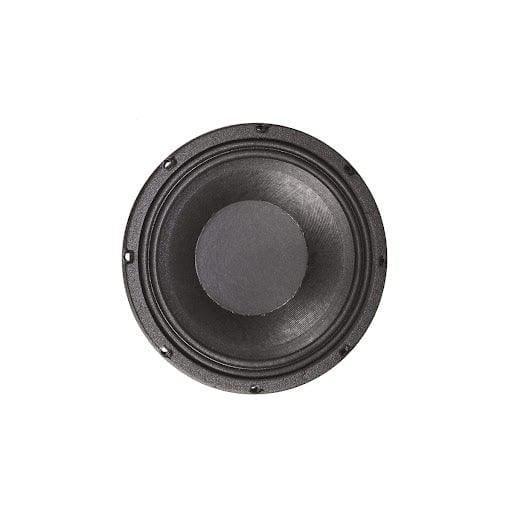

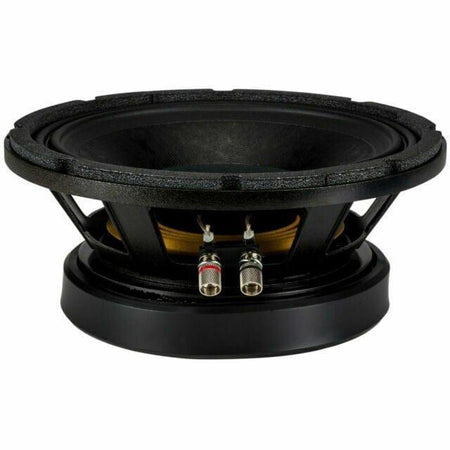

Eminence LA10850 10" Professional Midrange Driver
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Only 4-1/2" mounting depth
- 3" voice coil for 350 watts RMS power handling
- Inverted dust cap for close placement to phase plugs
- Designed for horn loaded enclosures
DESCRIPTION
Eminence's shallow, cast frame LA10850 packs a lot of power into tight spaces. It's designed to provide high output in space-limited horn loaded applications.
A mere 4.5” deep, the Eminence LA10850 10” high power midrange woofer driver features a 3” voice coil, powerful ceramic motor assembly, and inverted dust cap for close placement to phase plugs used in many horn loaded designs.
Rated at 350 watts, the LA10850 can also be used in small conventional vented enclosures when you need a high power midbass driver, or in very compact sealed enclosures when a true high-power midrange driver is needed.
SPECIFICATIONS
Nominal Diameter
10" Bolt Circle Diameter 9.75 Moving Mass Of Diaphragm (Mmd) 26 Power Handling (RMS) 350 Watts Power Handling (MAX) 700 Watts Impedance 8Ω Frequency Response 120 to 4,300Hz Sensitivity 98.7dB 2.83V/1m Voice Coil Diameter 3"
