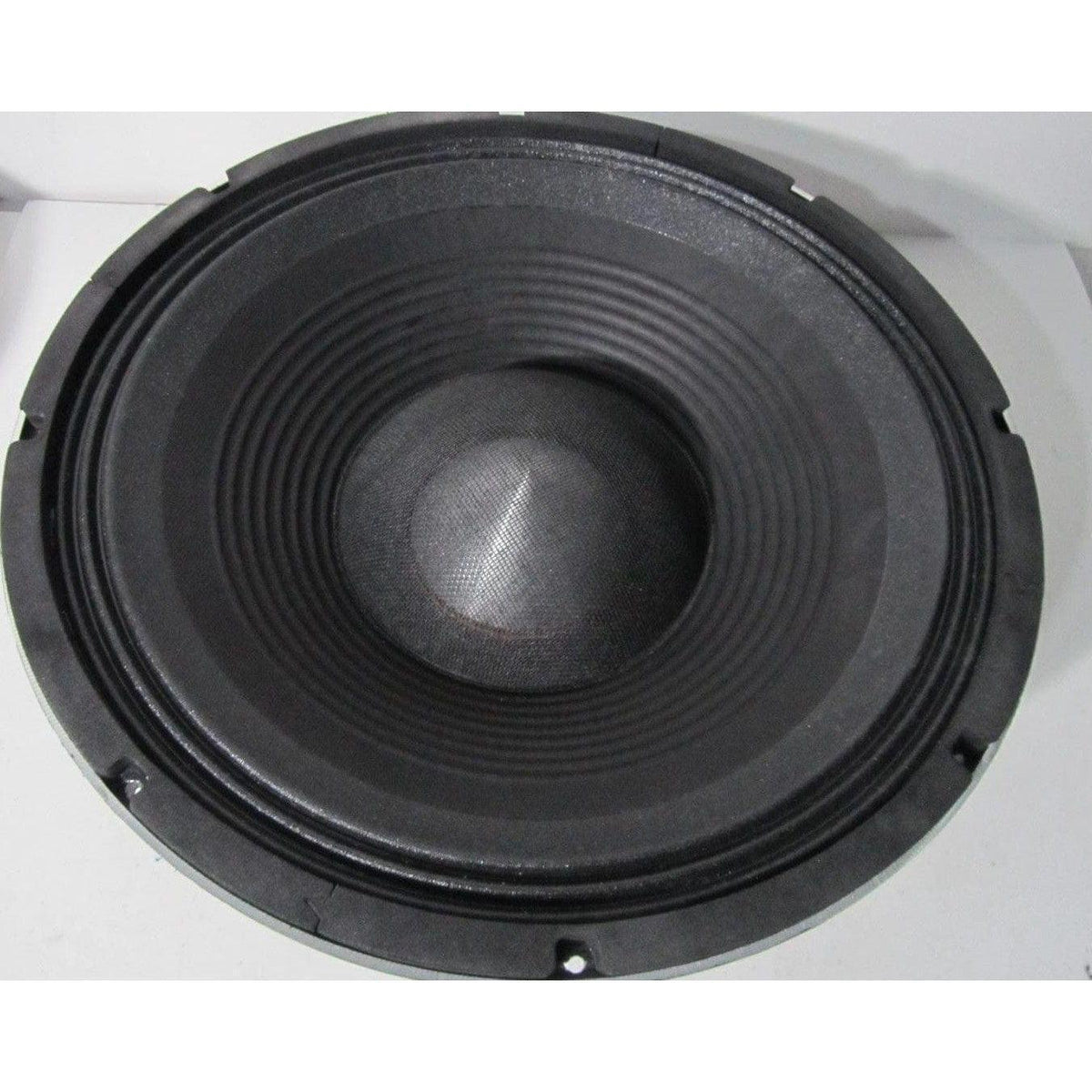

Eminence Magnum15LF Low Frequency Driver

KEY FEATURES

• Kapton coil former for increased rigidity and thermal protection
• Polyamide-imide coated copper voice coil for durability and power handling
• Diecast aluminium basket for rigidity
• Aluminium phasor/heatsink to transfer heat from the motor structure and smooth response
• Copper shorting ring to minimize distortion
• Screened cloth dust cap for enhanced cooling
• Paper cone/cloth cone edge with deep sinusoid corrugations for extended travel
• Ferrite magnet

DESCRIPTION

For all high-power bass applications where a fine balance of extended low frequency, high output, improved transient response, and lower distortion are required in a 3 to 6 cu. ft. enclosure. The 15LF is ideal for use as the subwoofer in professional sound systems, club systems, DJ systems, houses of worship, and cinemas.

Enclosure manufacturers, touring sound engineers, musicians and venue owners are on a constant mission to minimize the amount of space and equipment required to produce maximum sound. Traditionally, the bass transducers have dictated the size and weight of enclosures - and have required designs that are very large.

Large speaker cabinets have always plagued venues and presented touring companies with a logistical nightmare. For issues of power compression, efficiency, enclosure volume and distortion Eminence designers have created the mighty MAGNUM series of transducers.

SPECIFICATIONS
