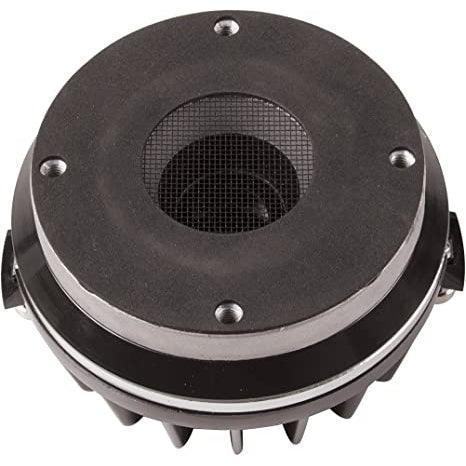

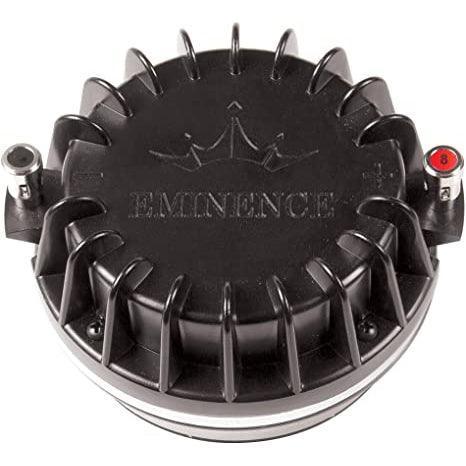

Eminence N314T8 Speaker Driver
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
DESCRIPTION
The 1.4 in. exit N314T-8 sets a new standard in compression drivers from Eminence. Featuring D3 technology (Damped Diametric Drive), a 3 in. voice coil, and lightweight neodymium ring magnet with copper shorting ring, the N314T-8 offers an ultra-clean sound and low crossover point.
SPECIFICATIONS
Throat Size
1.4", 35.6mm Nominal Impedance 8Ω Minimum Impedance 6.7 ohm @ 3.7 kHz Power Rating 100 W (AES) Resonance 0.55kHz Usable Frequency Range 800Hz-20kHz Recommended Crossover 800 Hz / 12 dBkHz Sensitivity 110.9 Magnet Material Neodymium Magnet Weight 11oz, 0.31kg Voice Coil Diameter 3" / 76.2mm
