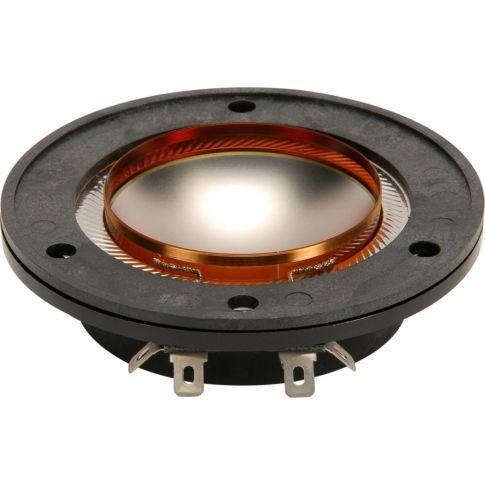

Eminence PSD20028DIA Throat Size HF Device Diaphragm Driver
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Throat Size: 1"
- Nominal Impedance: 8 ohms
- Power Rating: 80W @ 1.2kHz
- Free Air Resonance: 0.54kHz
- Usable Frequency Range: 1.2kHz-20kHz
- Sensitivity: 106.1dB (1W/1m across 1.2kHz-20kHz)
- Magnet Weight: 34oz
- Voice Coil Diameter: 2"
- DC Resistance (Re): 6.1
- Coil Inductance (Le): 1.6mH
- Overall Diameter: 5.25"
- Mounting Thread: 1-3/8" 18 NEF ext.
- Depth: 2.2"
- Weight: 5.76 lbs
- Diaphragm Material: Titanium
- Magnet Composition: Ferrite
DESCRIPTION
Developed for totally loaded Eminence cabinets, or as upgrades to an existing device, Eminence HF drivers achieve extraordinary levels of audio performance with the same unrivaled durability you demand from Eminence bass and midrange transducers.
SPECIFICATIONS
34 oz.Application PA Size 1" Impedance 8 ohms Power Handling 80W Frequency Range 1.2kHz-20kHz Magnet Type Ferrite Magnet Weight 34 oz.
