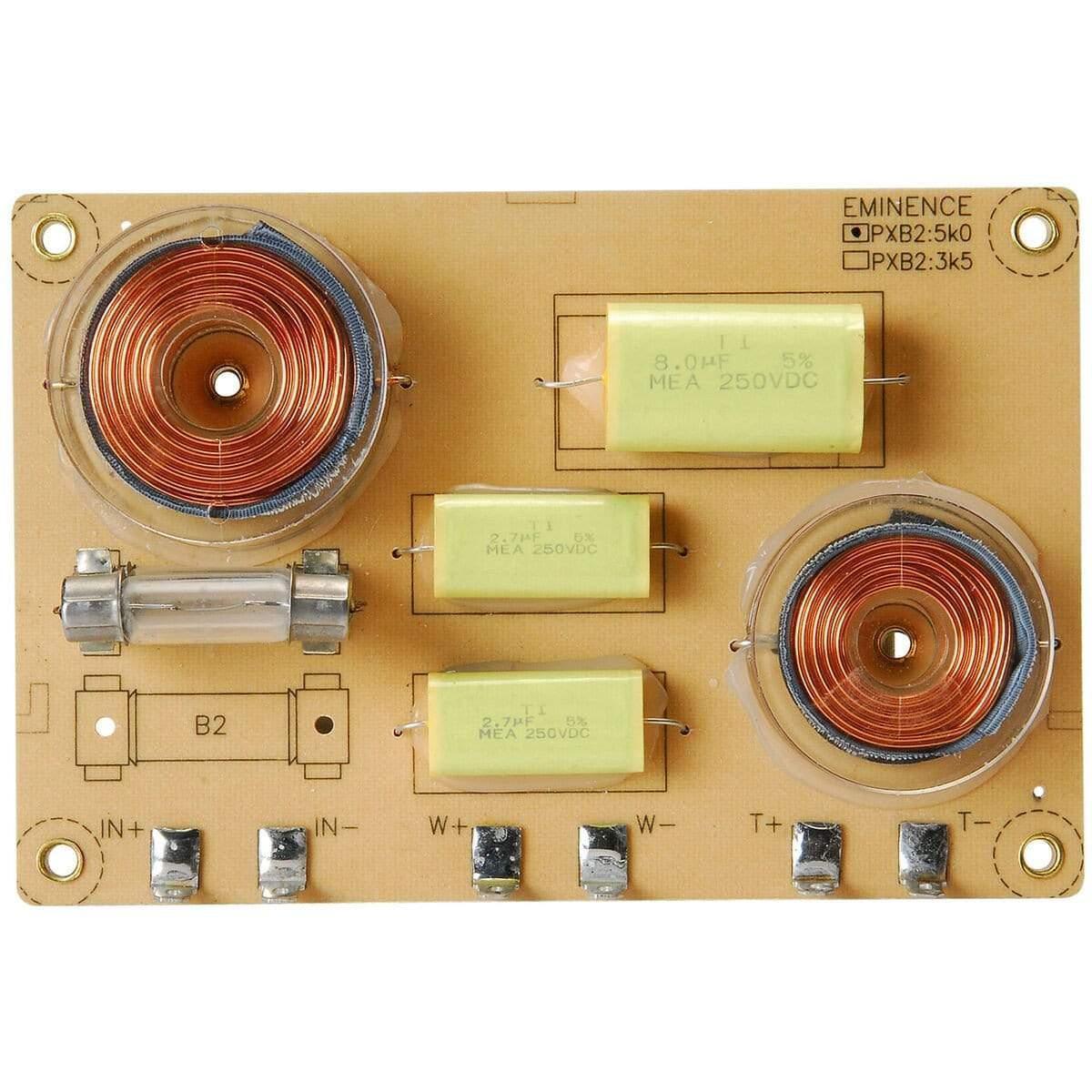

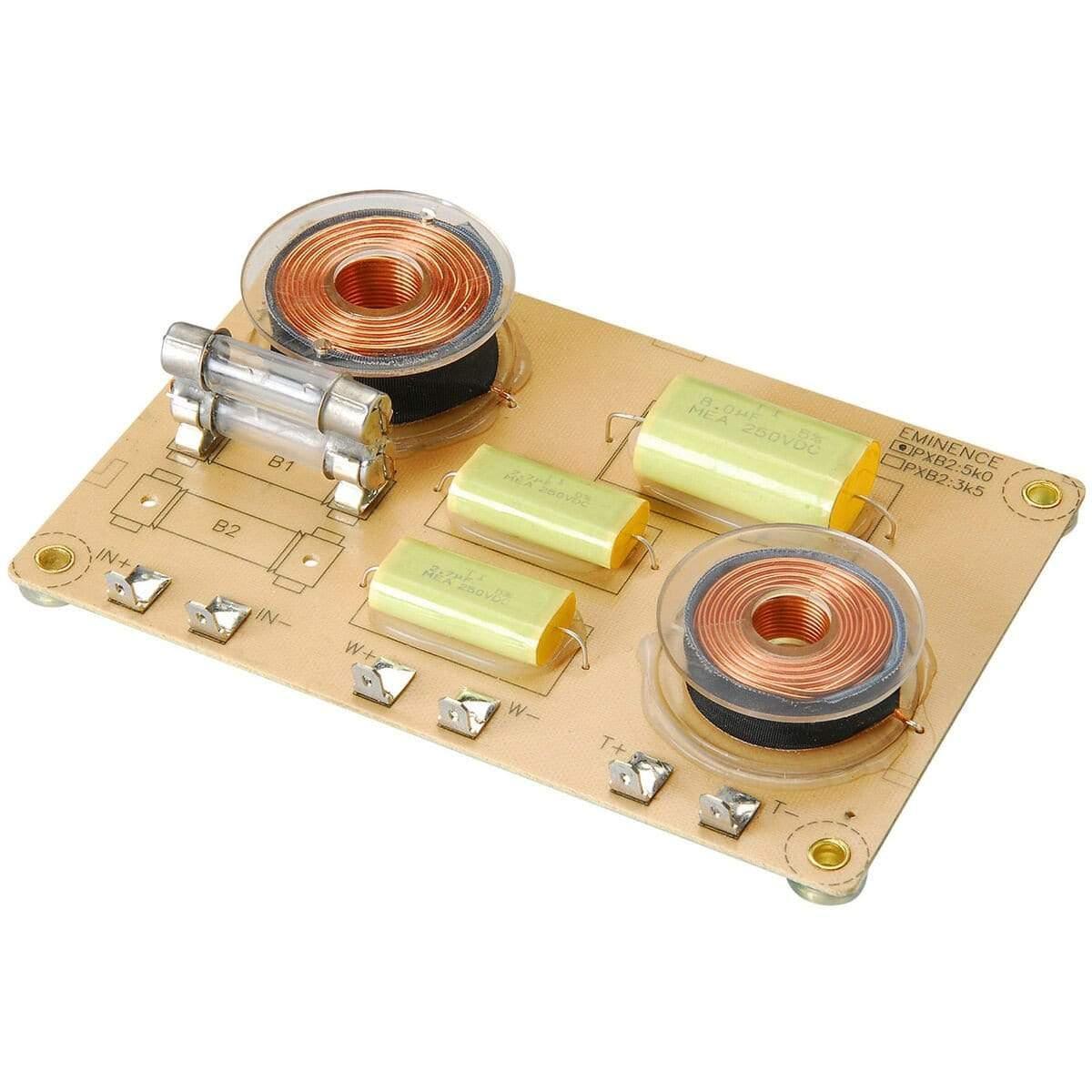

Eminence PXB2x5KO 2 Way Crossover Board

DESCRIPTION

The Eminence PXB2 5K0 is a Designed to work in high-power cabinets, px crossovers are technically superior passive filters available as board-only or complete with fitted hardware for a smart, economical `factory-fit` finish.

In px crossovers, current is limited when the hf level control is set to ” 0″ on its scale (max. -9dB attenuation). A secondary benefit of the design is to form a voltage divider across the HF driver. The High-Pass Protection uses custom-built aerospace lamps as positive temperature coefficient series varistors.

The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the HF driver without introducing distortion. This circuitry provides smooth 3:1 analog compression during input overload conditions over 250Wrms. At full drive level approaching clipping, the electrical attenuation to the protected HF driver is -4.5dB.* In every way, Eminence px crossovers are a technically superior product.

SPECIFICATIONS
