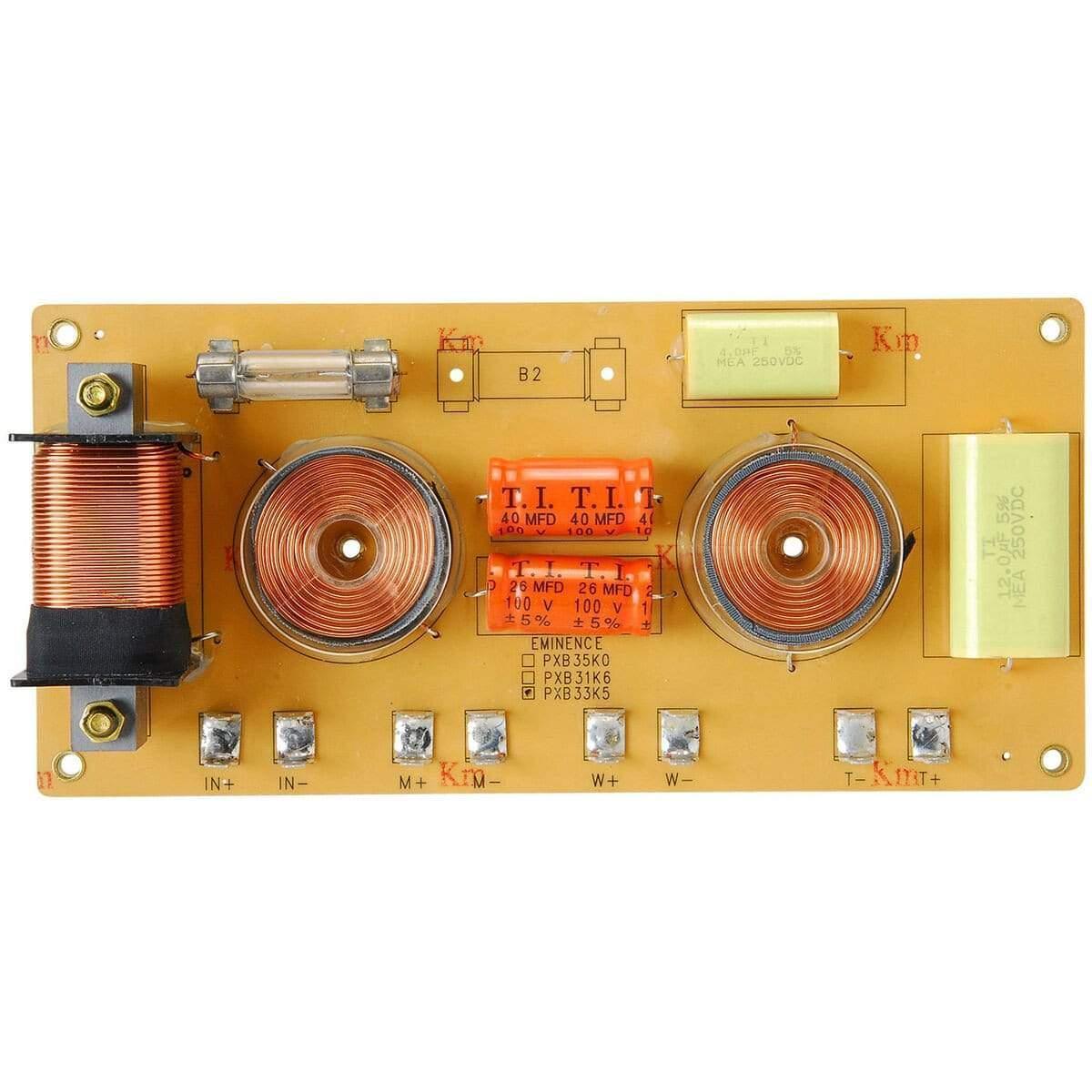

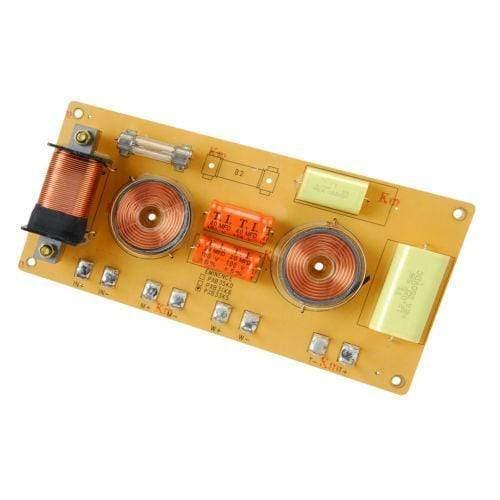

Eminence PXB3x3K5 3 Way Crossover Board

KEY FEATURES

• Crossover type: Three-way, board only
• Crossover frequencies: 500 Hz / 3.5 kHz
• Crossover slopes: 12 dB/octave LP, 6 dB/octave MP, 18 dB/octave HP
• Power handling: 400 watts RMS

DESCRIPTION

Eminence PXB board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models. They feature advanced circuit design to both preserve the crossover and your drivers. A benefit of the design is to form a voltage divider across the high frequency driver.

The high-pass protection uses custom-built aerospace lamps. The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the high frequency driver without introducing distortion. This circuitry provides smooth 3:1 analog compression during input overload conditions over 250 watts RMS. At full drive level approaching clipping, the electrical attenuation to the protected high frequency driver is -4.5 dB. In every way, Eminence pxb crossovers are a technically superior product. For use with 8 ohm drivers.
