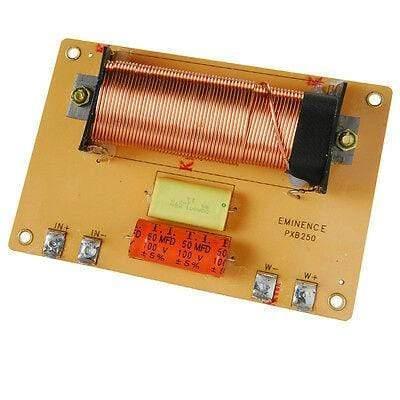

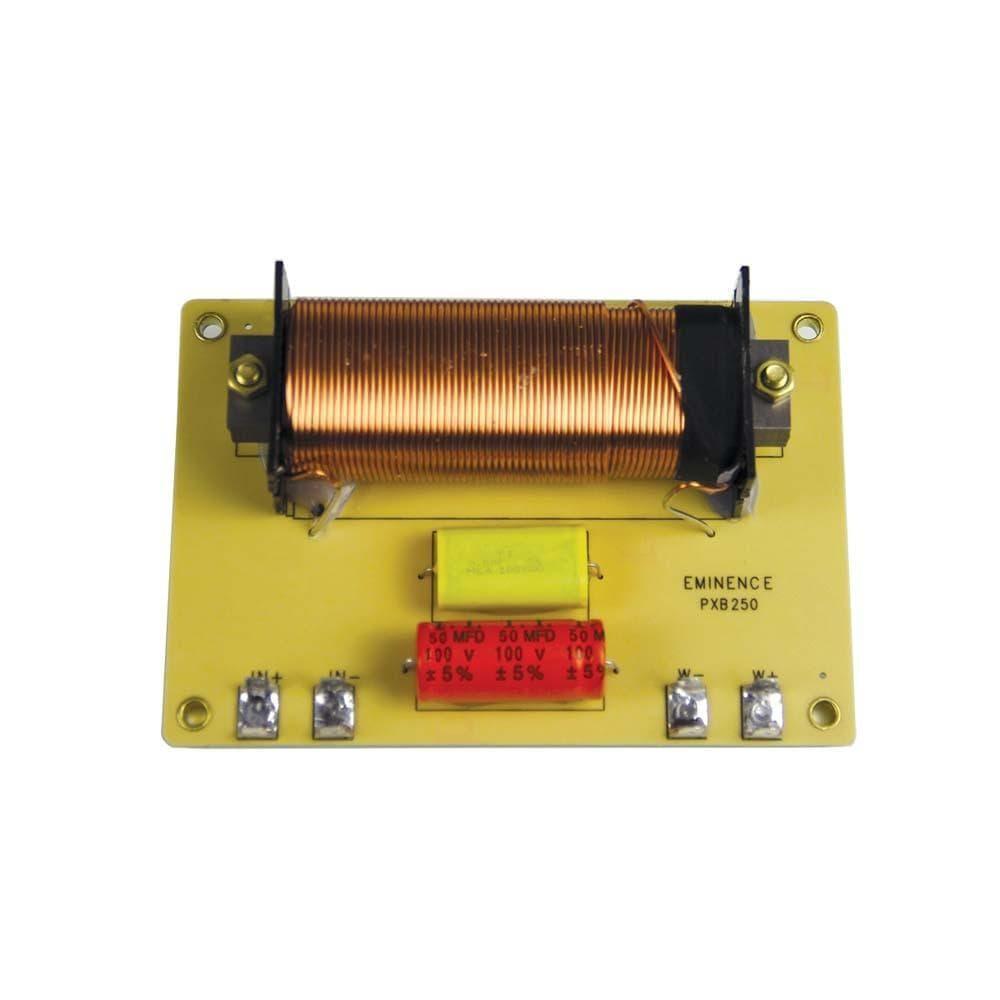

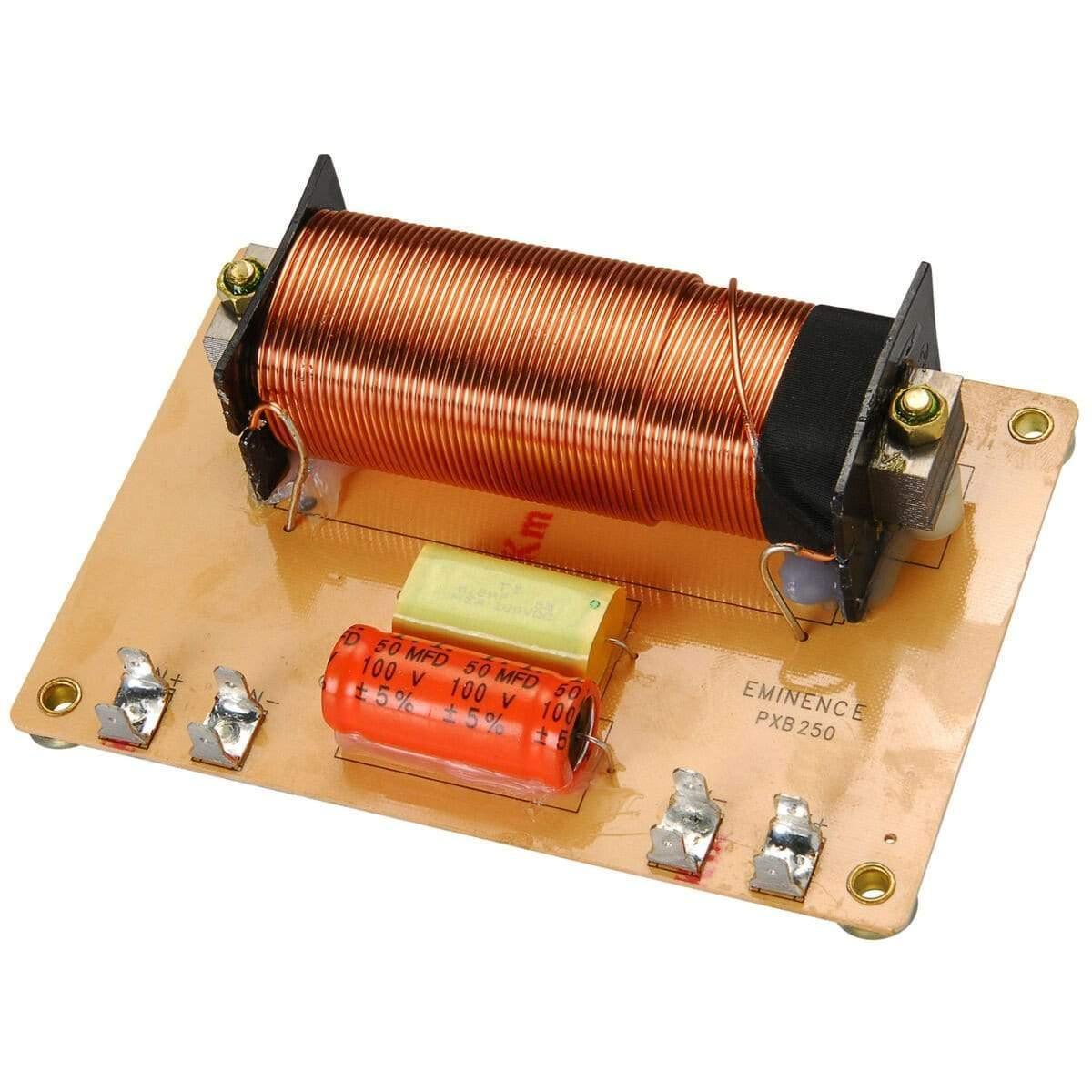

Eminence PXBx250 Low Pass Crossover Board
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Crossover type: Low pass, board only
- Low pass frequency: 250 Hz, 12 dB/octave
- Power handling: 600 watts RMS
DESCRIPTION
Eminence PXB board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models.
They feature advanced circuit design to both preserve the crossover and your drivers. In every way, Eminence pxb crossovers are a technically superior product. The 250 Hz low pass frequency is based on an 8 ohm driver. With a 4 ohm driver, the crossover frequency will be approximately 125 Hz. Dimensions: 5-1/2" L x 3-3/4" W x 1-1/2" H.
SPECIFICATIONS
Type
Low-Pass Cabinet Ready No Crossover Frequency 250 Hz Slope 12dB/octave
ButterworthImpedance 8 ohms Power Handling 600W
