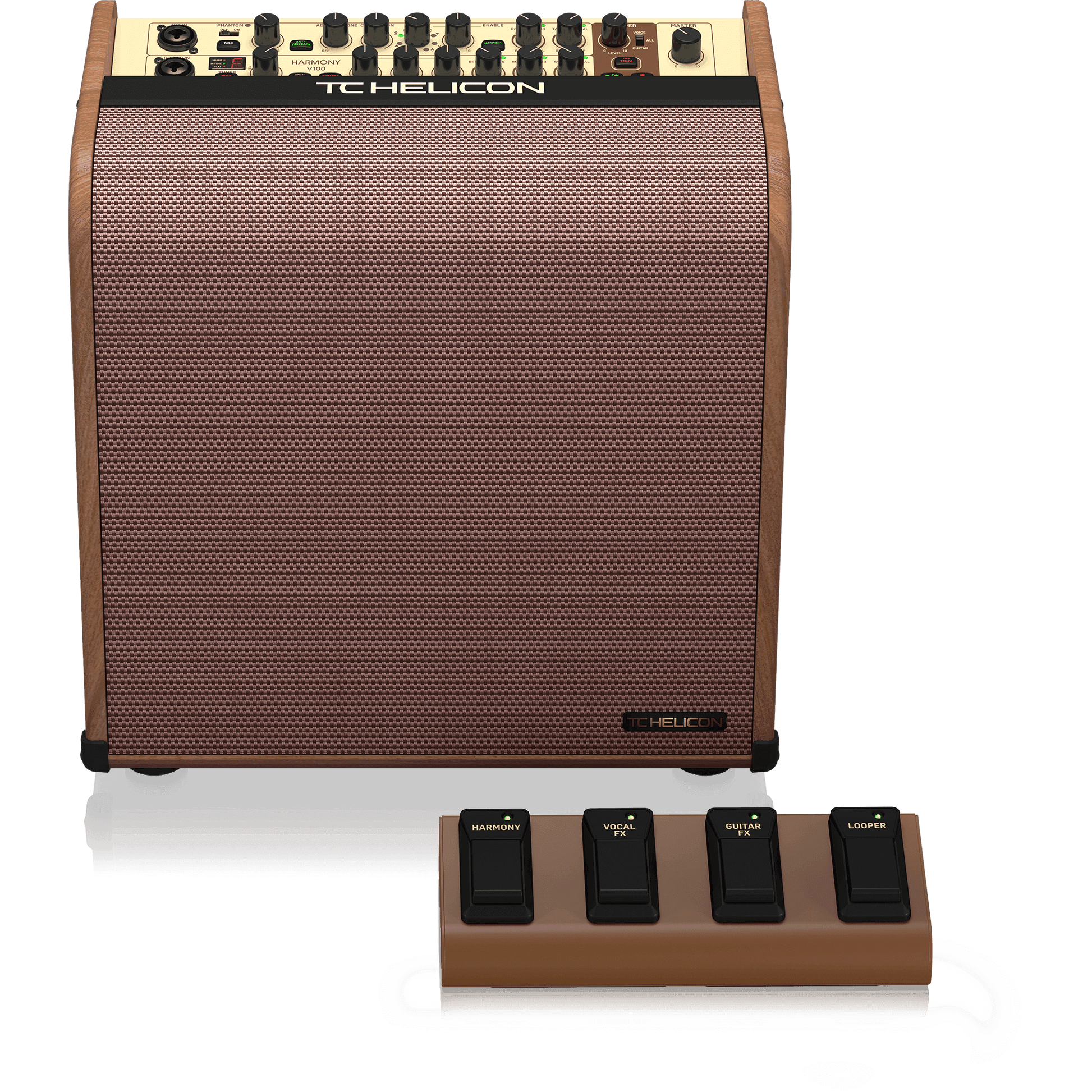

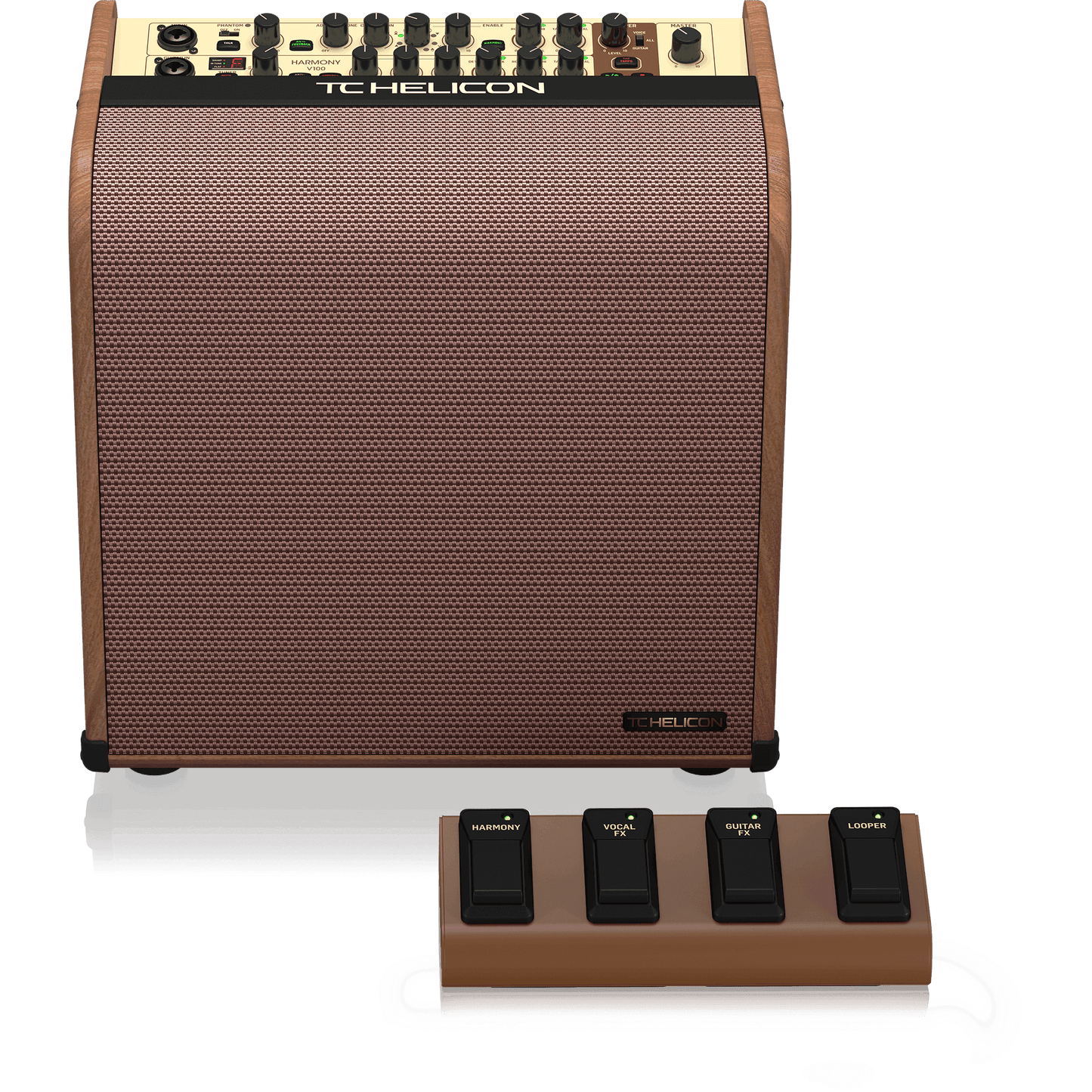

TC Helicon HARMONY V100
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- 100 Watt 2-channel acoustic amplifier with amazing vocal processing
- 10" TannoyTM Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience
- 4-button customizable footswitch to control looper, harmony and effects included
- Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay
DESCRIPTION
The Harmony V100 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.
SPECIFICATIONS
Guitar input
¼" TRS balanced/XLR combo
Input impedance
2 MΩ balanced/1 MΩ unbalanced
Microphone input
¼ " TRS balanced/XLR combo
Input impedance
XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced
Aux input
3.5 mm TRS stereo
Input impedance
19 kΩ
Guitar/right out and Mic/left out
XLR balanced, female
Output impedance
400 Ω
Max. output level
0 dBu
Switches
DI, FX, Mix
Headphones out
3.5 mm TRS stereo
Output impedance
10 Ω
Max. output level
8 dBu
Knobs
Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Reverb (off, room, club, hall) Echo (off, tape, digital, slap)
Switches
Phantom on/of Talk on/of Anti-feedback on/off
Harmony enable/disable
LEDs
Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections
Backlit switches
Talk (green), anti-feedback (green, or blue when operating), harmony (green)
Knobs
Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)
Switches
Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable
Display
Tuner note 8-segment, red
LEDs
Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red)
Backlit switches
Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections)
Microphone Section
Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/off
Guitar section
Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting
Looper section
Tap Tempo Play/record Stop
LEDs
Green when footswitch engaged, red when recording
Knobs
Level (0 to 10)
Switches
Voice/all/guitar Tap tempo Play/record Stop
Backlit switches
Tap tempo (flash red at tempo), play/record (green play, red record), stop (red)
Connections
AC input IEC USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm
Switches
AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio
Knobs
Aux input level (0-10)
Type
Class compliant USB 2.0, type B
Supported Operating Systems
Windows 7 or higher Mac OS X 10.6.8 or higher
Windows driver
Required driver is supplied
Audio input and output
2 channels, 24 bit, 48kHz
Mains Voltage
100-240 V~ 50/60 Hz
Power consumption
40 W
Mains connection
Standard IEC receptacle
Power Switch
Rocker, rear panel
Dimensions (H x W x D)
377 x 408 x 311 mm (14.8 x 16.1 x 12.2")
Weight
13.3 kg (29.3 lbs)
