KEY FEATURES
Legendary analog Spatial Sound Processor used by world famous artists
Authentic reproduction of original analog circuitry
Pure analog signal path based for highest signal integrity
Amazing sound effects based on authentic BBD (Bucket Brigade Delay) technology
Precise 10-segment LED meter for output level

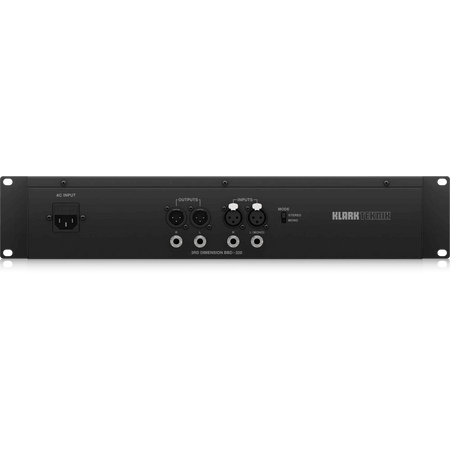

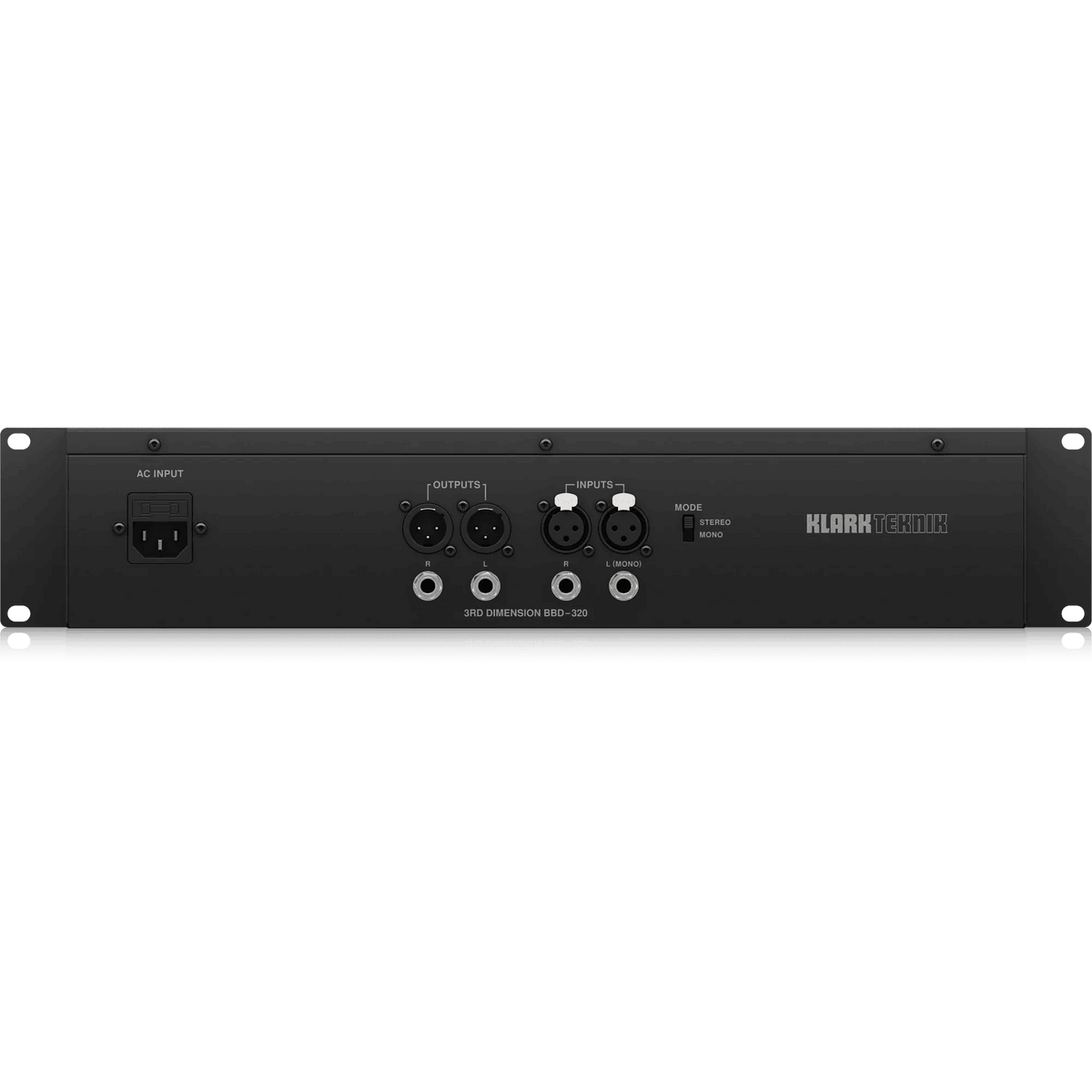

Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
Relay-controlled hard bypass switch with remote control and auto bypass function

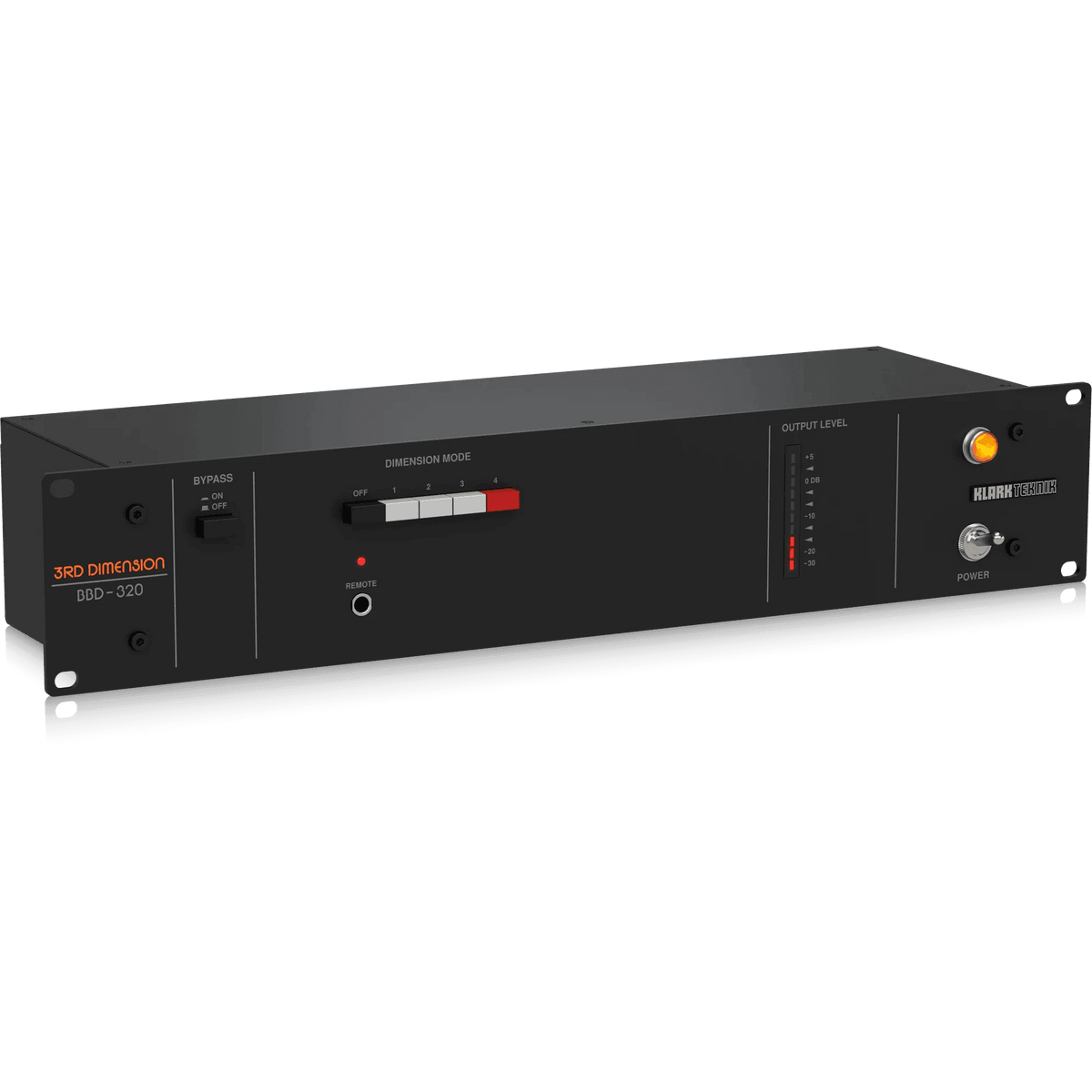

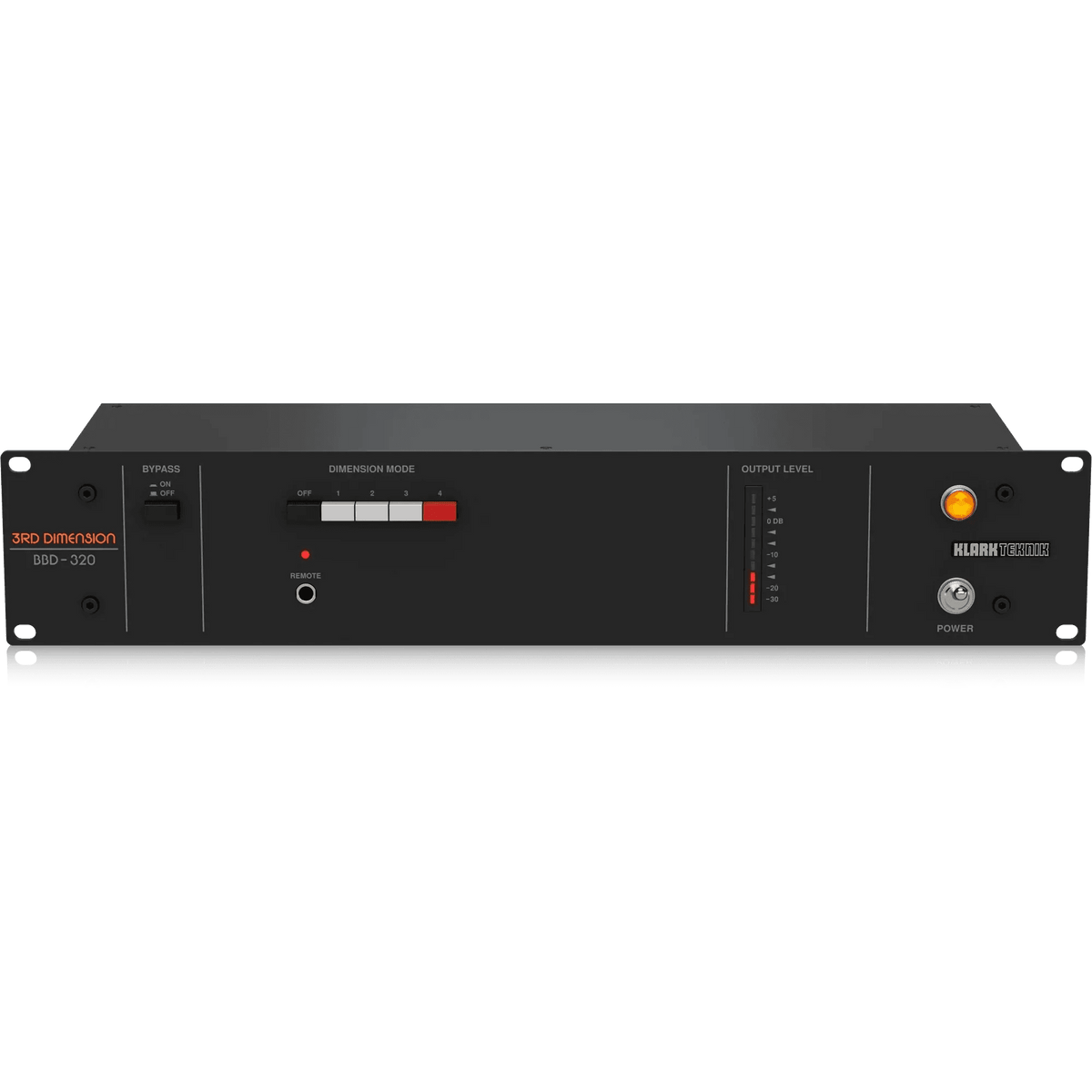

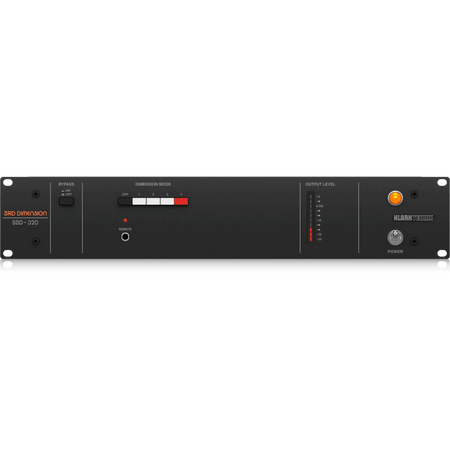

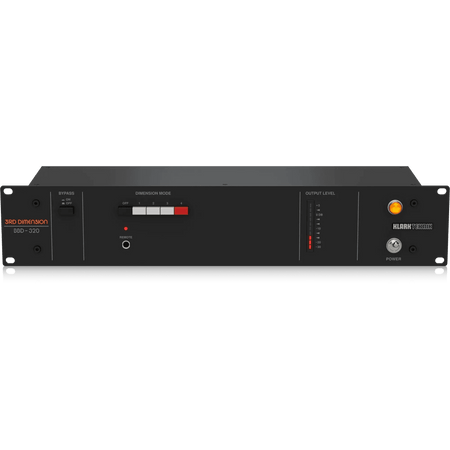

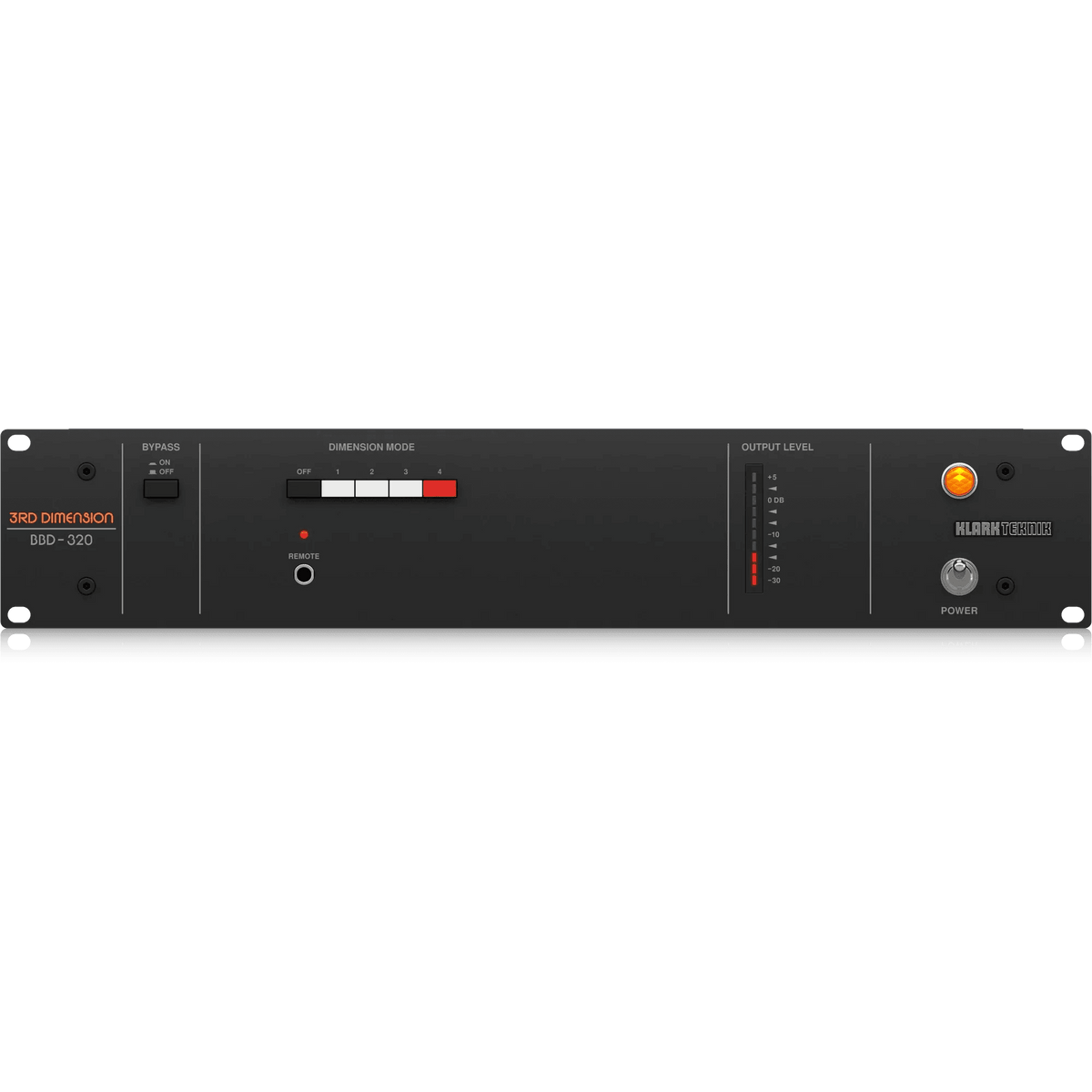

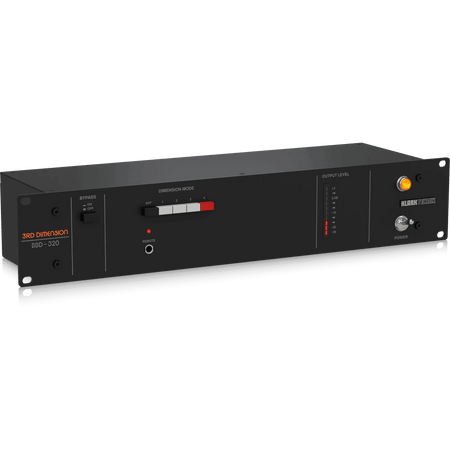

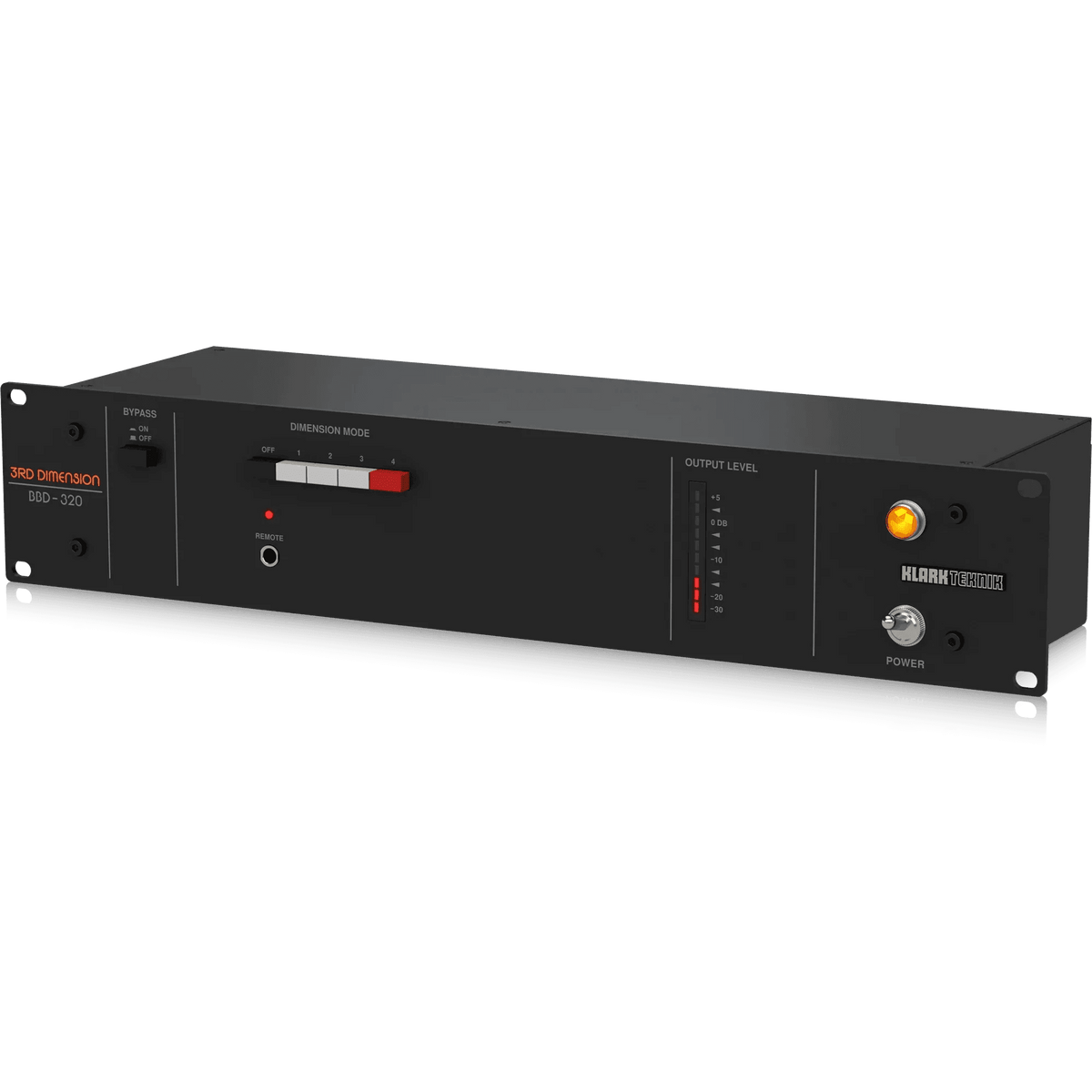

Rugged 2U rackmount chassis for durability in portable applications
DESCRIPTION
The chorus effect has been a studio mainstay since the ‘80s. With greats such as Brian Eno, Stevie Ray Vaughan, Peter Gabriel and so many more incorporating this effect into their recordings, the chorus has become legendary effect in the music industry. Now, that legend continues with the 3RD DIMENSION BBD-320, an amazingly affordable analog multi-dimensional signal processor that can recreate those classic tones that so many amazing artists have used in countless releases.
SPECIFICATIONS
|
Audio Input |
|
|
Type |
2 x XLR, 2 x 1/4" TRS balanced |
|
Impedance |
30 kΩ balanced, 15 kΩ unbalanced |
|
Maximum input level |
+21 dBu, balanced and unbalanced |
|
CMRR at 1 kHz |
Typically -50 dB |
|
Audio Output |
|
|
Type |
2 x XLR balanced, 2 x 1/4" TRS balanced |
|
Impedance |
50 Ω balanced and unbalanced |
|
Maximum output level |
+21 dBu, balanced and unbalanced |
|
System Specifications |
|
|
Frequency response, dimension mode off |
20 Hz to 20 kHz, +0/-3 dB |
|
Noise, dimension mode off |
< -90 dBu, unweighted, 20 Hz to 20 kHz |
|
Noise, dimension mode 1-3 enabled |
< -79 dBu, unweighted, 20 Hz to 20 kHz |
|
Distortion at unity gain, dimension mode off |
Typically <0.1% @ 1 kHz |
|
Chorus |
|
|
Dimension modes |
Off, 1-4 |
|
Bypass |
On/off |
|
Remote |
1/4" TS input |
|
Output level meter |
10 segment, -30 to +5 dB |
|
Stereo/mono mode |
Selectable |
|
Power Supply |
|
|
Mains voltage |
100 – 240 V~, 50/60 Hz |
|
Power consumption |
10 W |
|
Fuse |
T 1A H 250 V |
|
Mains connection |
Standard IEC receptacle |
