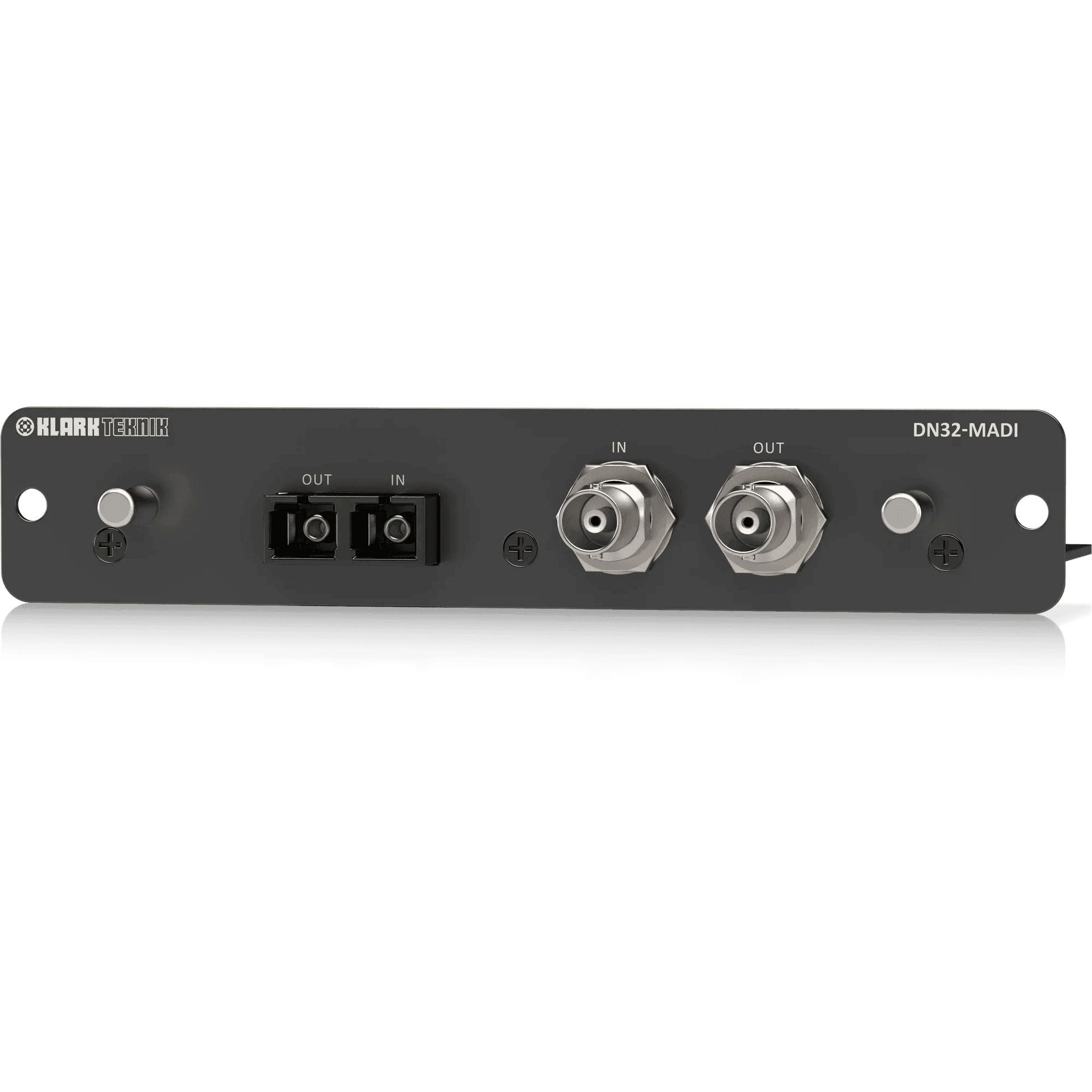

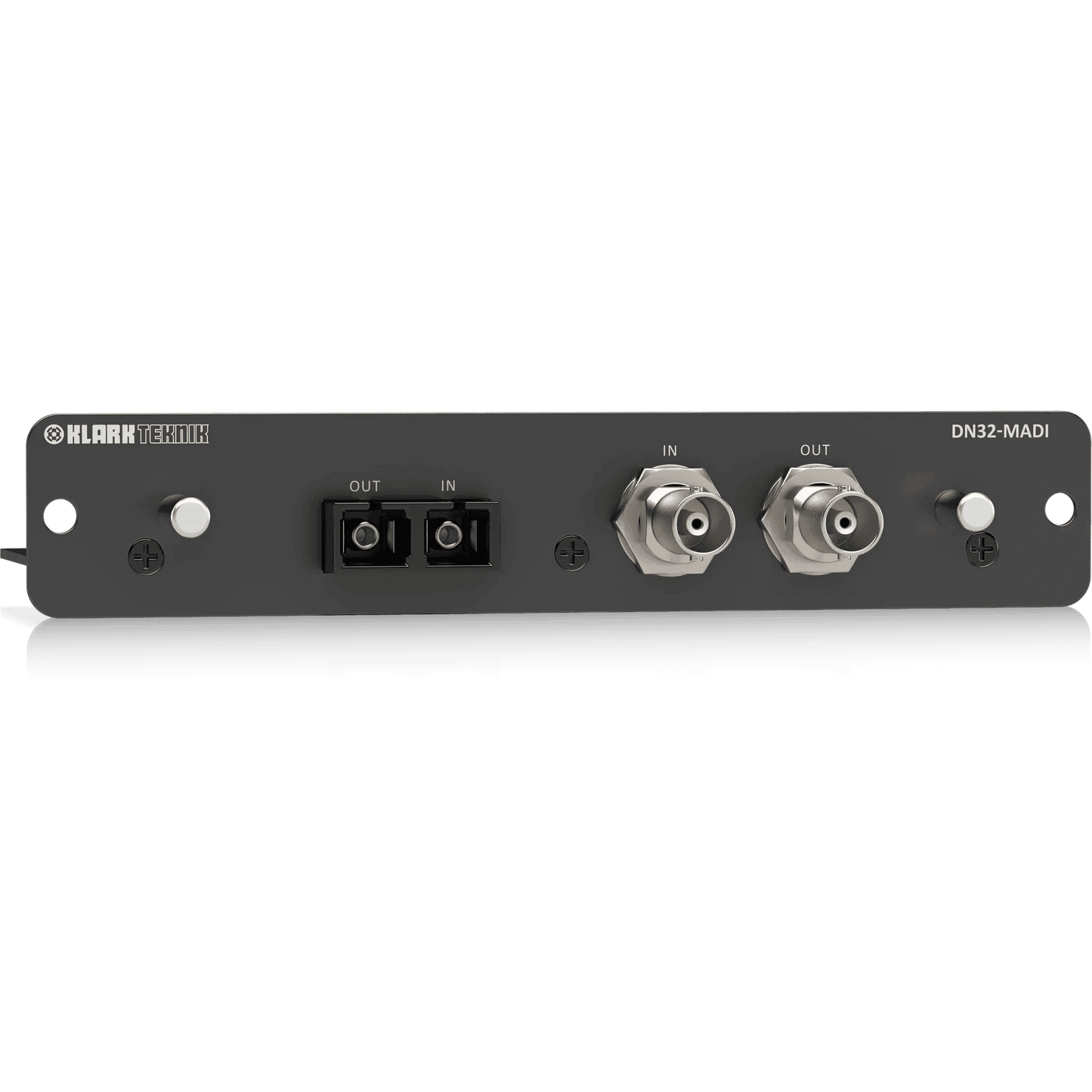

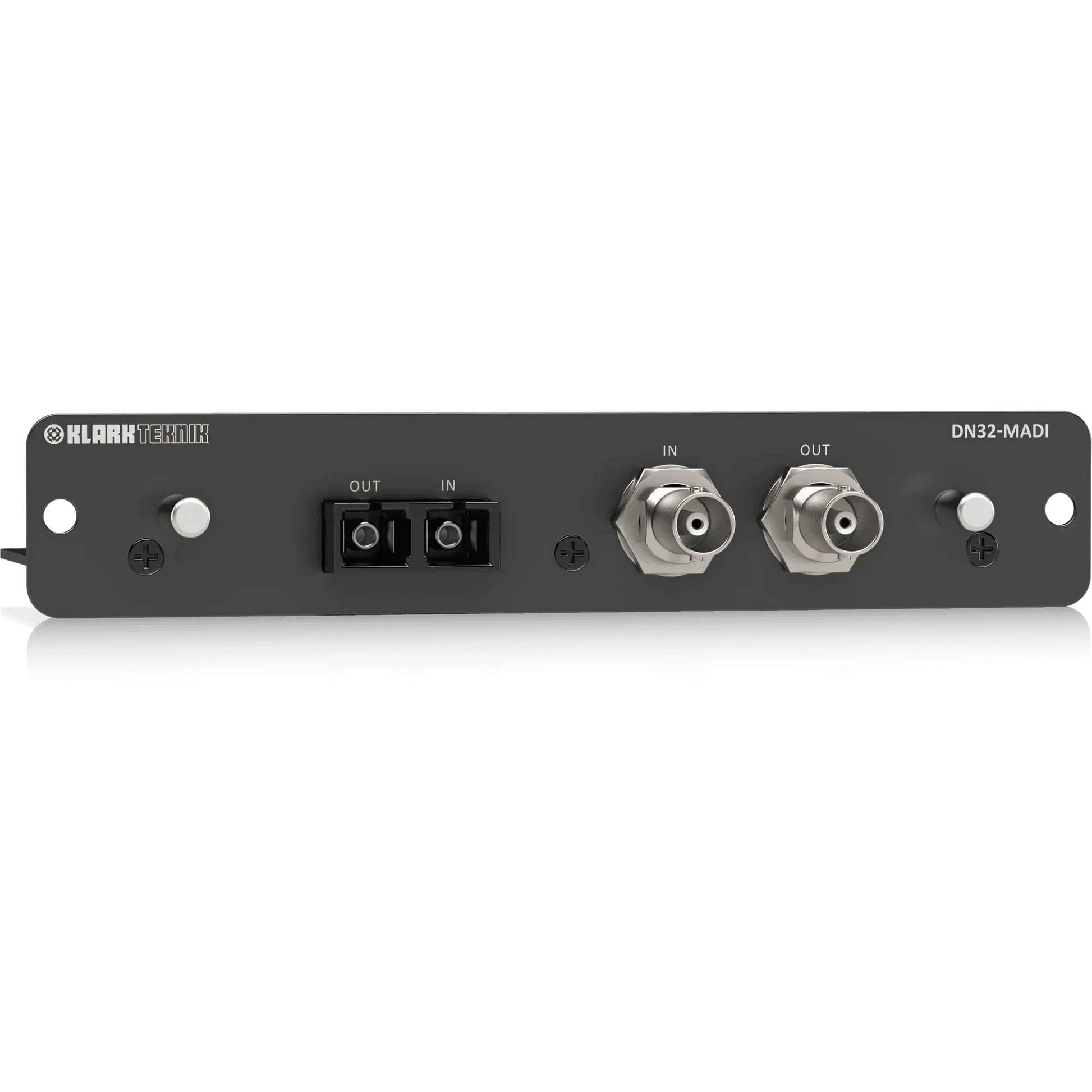

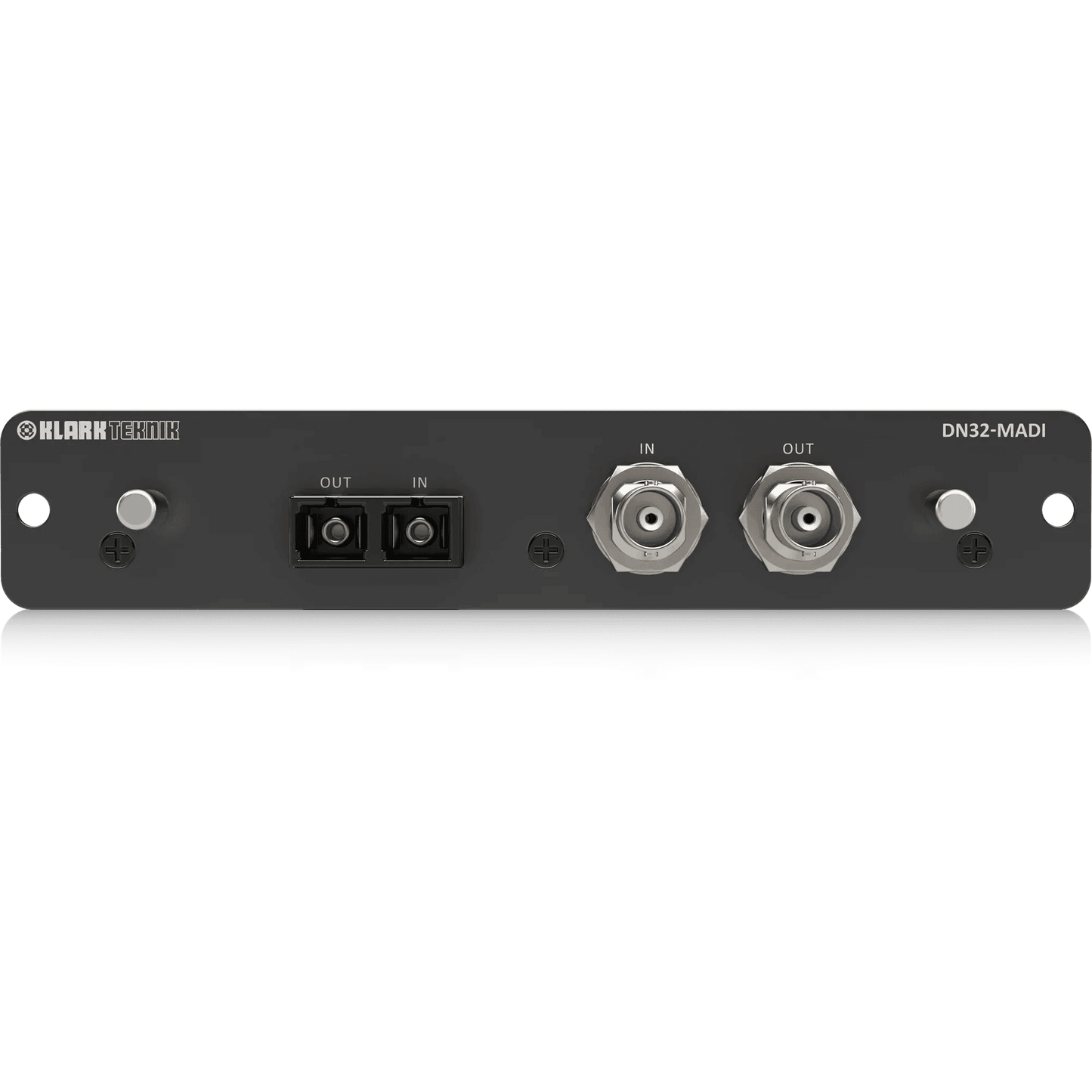

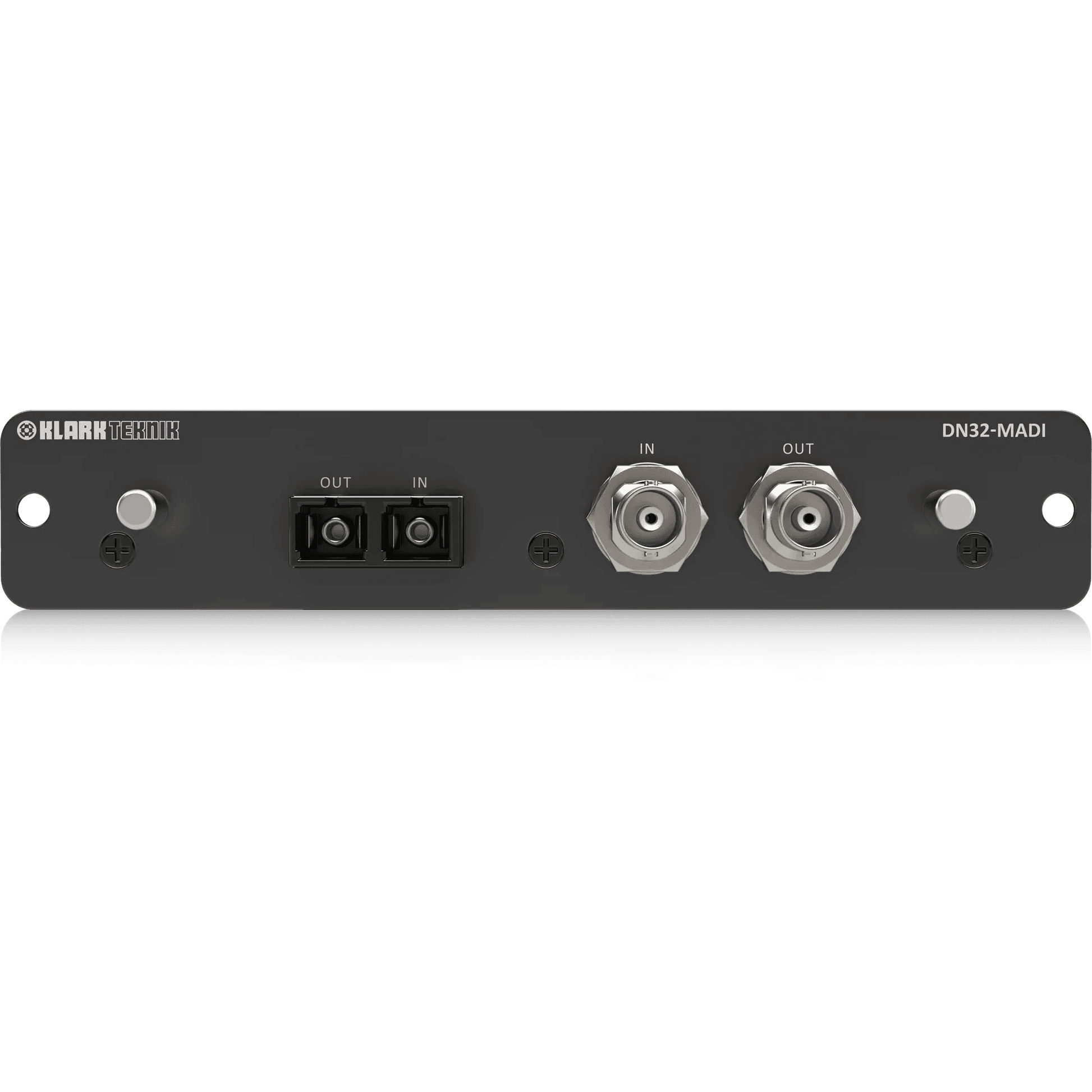

Klark Teknik DN32-MADI MADI Expansion Module

SKU: DN32MADI

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles

    • Up to 32 bidirectional channels @ 48 kHz sample rate

    • Operates up to 500 m over optical fibre link and 100 m over coaxial copper link

    • Optical transmission on SC-Duplex* connector

    • Copper transmission on 75 ohm coaxial BNC connectors

    • Dual-redundant operation with failover from optical to copper connections

    • Operates as either MADI clock master or MADI clock slave

    • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels


    DESCRIPTION

    MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.

    SPECIFICATIONS

    Connectors

    Duplex fibre-optic, SC-plug, IEC874-19

    1

    MADI (AES10) BNC INPUT

    1

    MADI (AES10) BNC OUTPUT

    1

    Input/Output Characteristics

    Channels of input/output to M32, max.

    32 / 32

    Channels of input/output to MADI (AES10-2003)

    64 / 64

    Sample rates

    44.1 kHz / 48 kHz

    Sample word length

    24 Bit

    Clock synchronisation selectable

    internal/Local or BNC clock input or fibre optic input

    Round-trip latency

    <150 μs

    Cable Length

    Fibre-optic, multimode cable, tested with

    (125 μm cladding, 50/62.5 μm core)

    500 m

    BNC, coaxial 75-Ohm, max

    100 m
