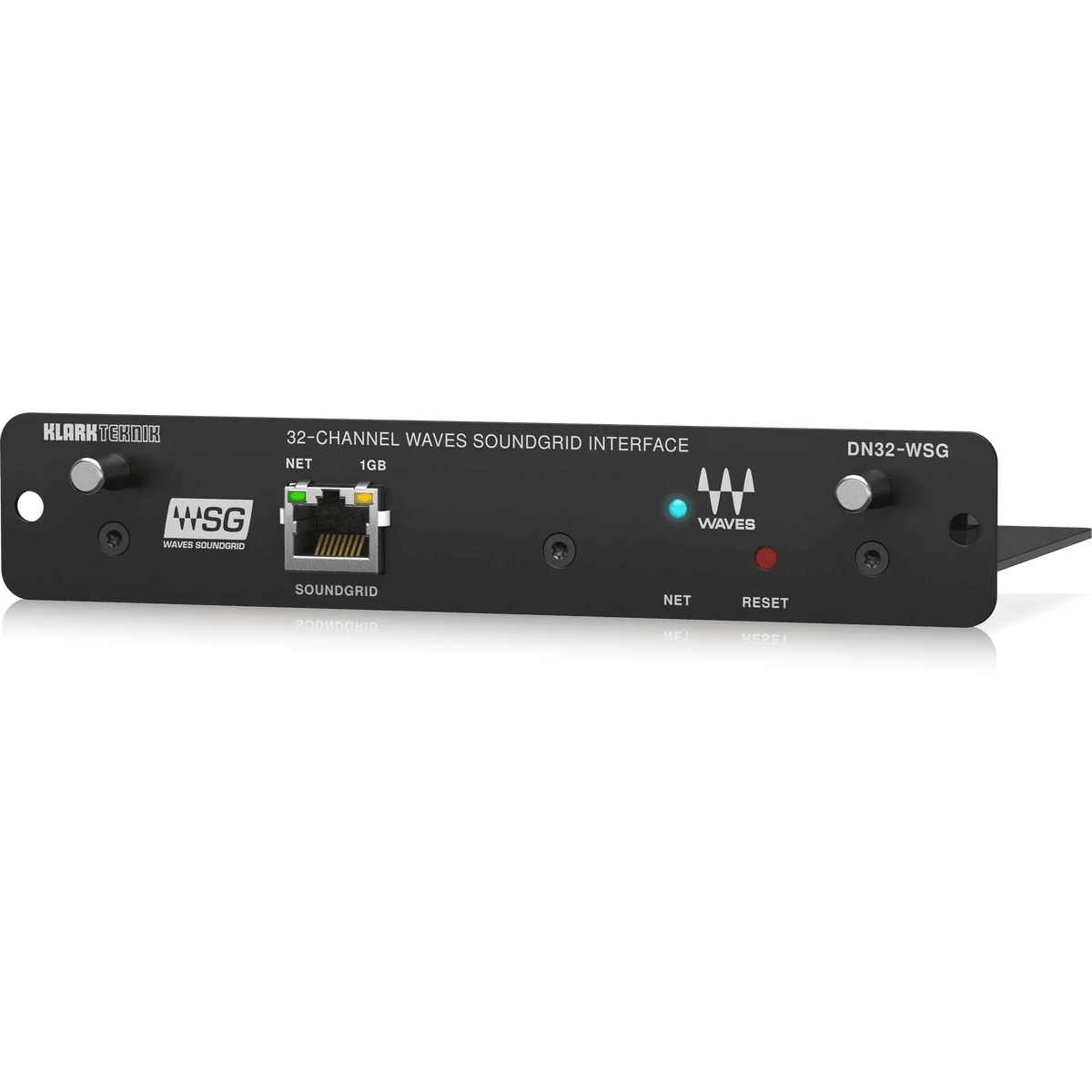

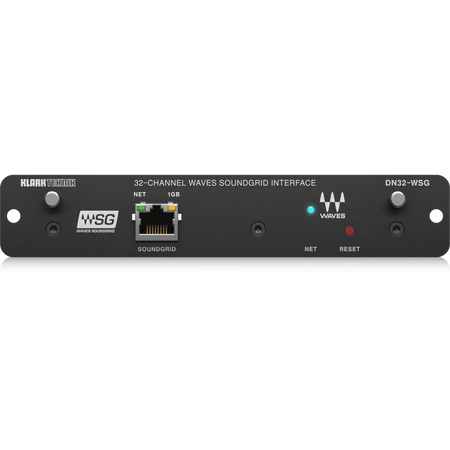

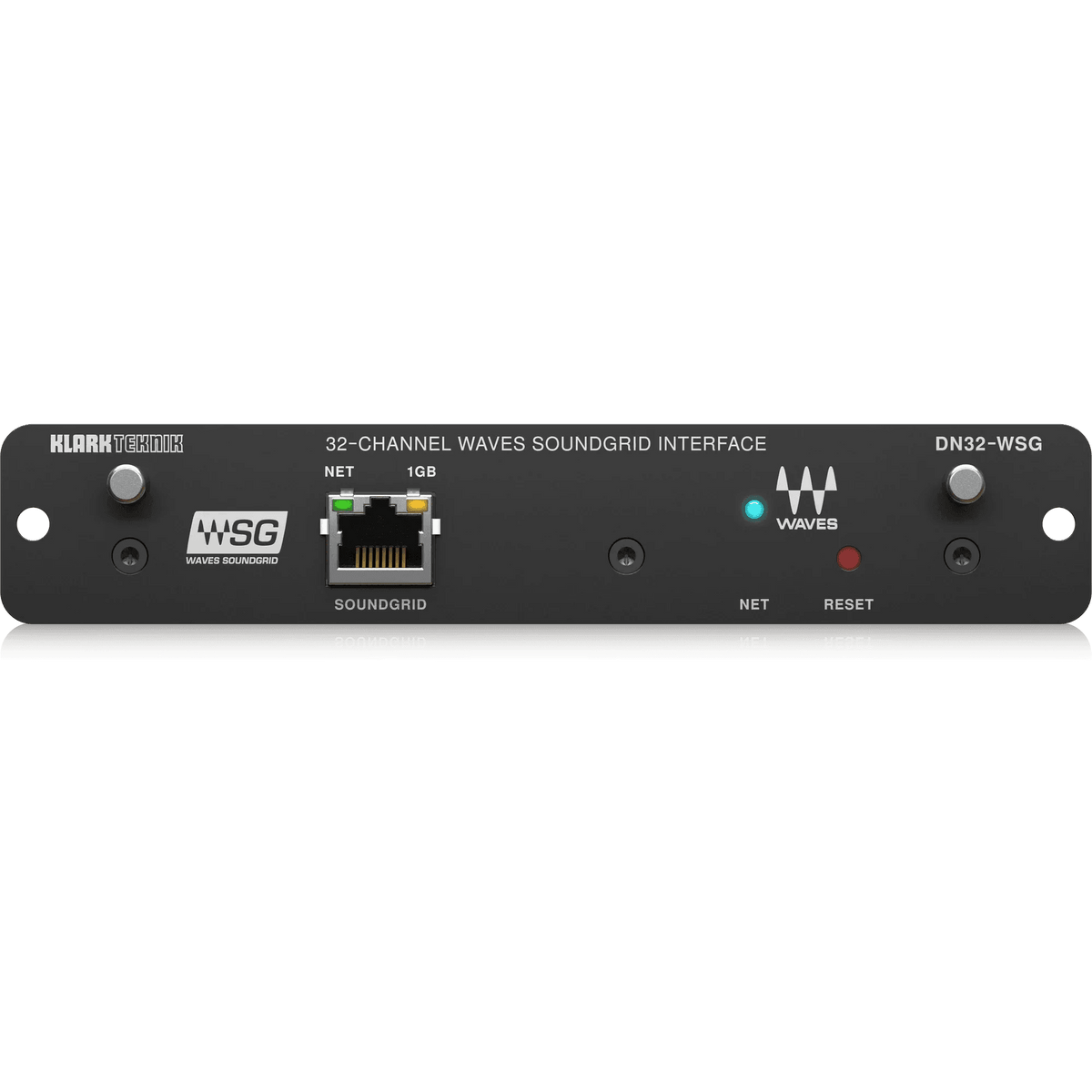

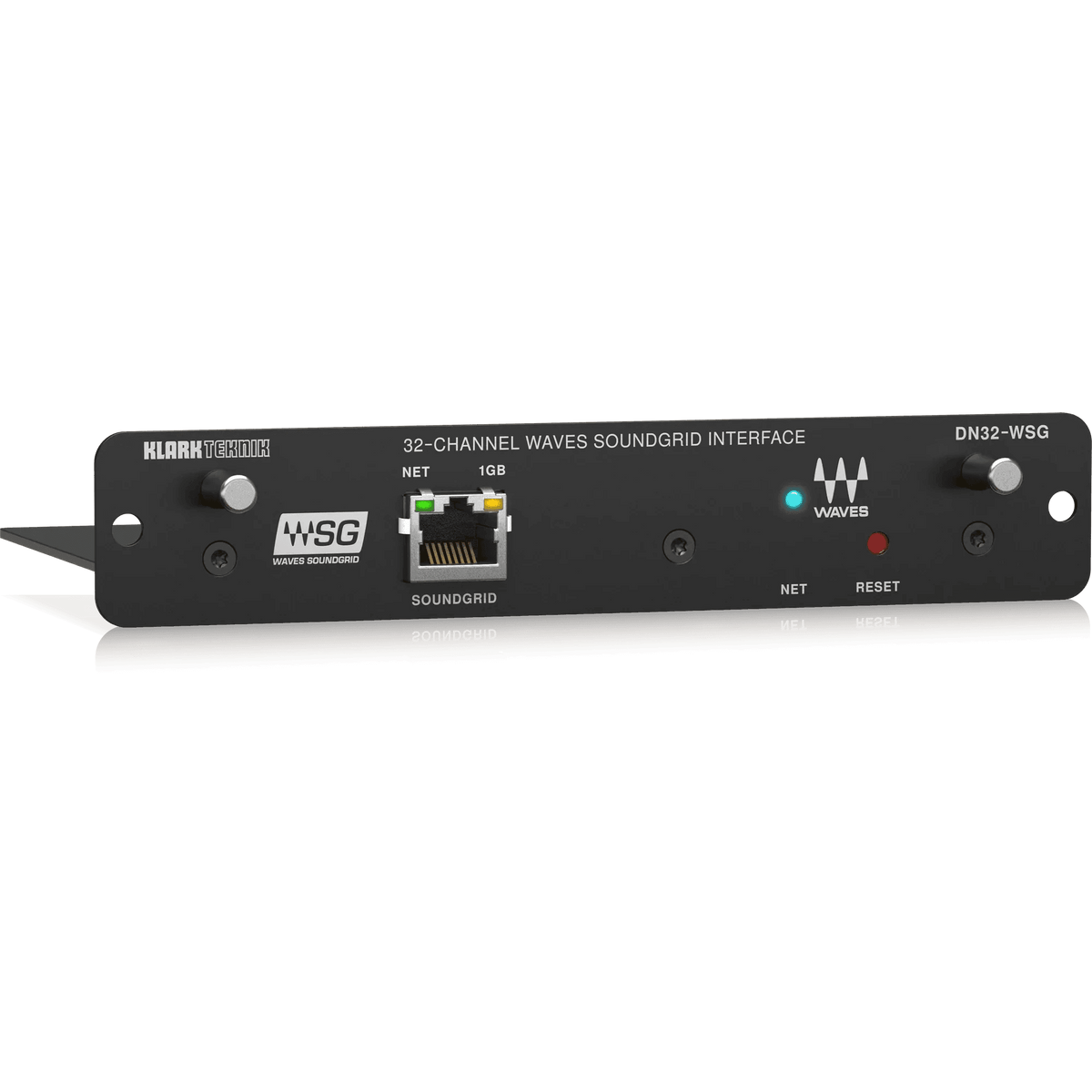

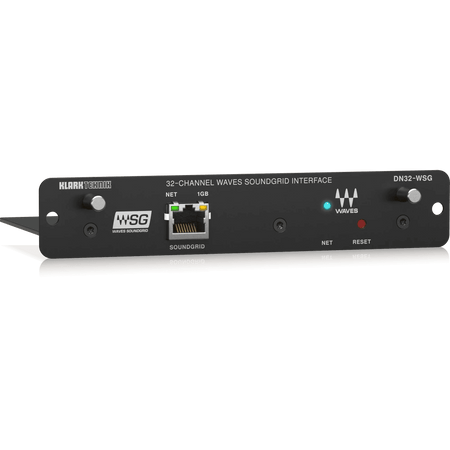

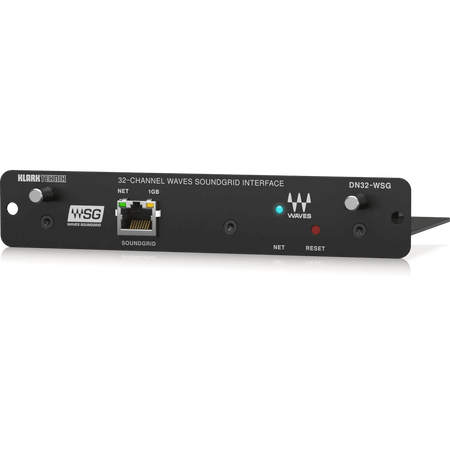

Klark Teknik DN32-WSG Expansion Card
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
WAVES SoundGrid network interface for Behringer X32 and Midas M32 mixing consoles
-
Mix, record and play back with SoundGrid-plugins in extremely low latency
-
32 input and output channels of audio over IP networks
-
44.1 and 48 kHz sample rates, 24-Bit resolution
-
Clock Sync-over-Ethernet (SoE) for digital splits and distributed audio processing
-
Redundancy and recovery options in networked audio
-
Connects your console to the plugin processing power of WAVES SoundGrid servers
-
Compatible with standard computers and network switches
-
TRACKS LIVE application for intuitive multitrack recording and playback - download from waves.com
-
SoundGrid Studio Application for ASIO*/Core Audio recording and playback - download from waves.com
DESCRIPTIONThe DN32-WSG expansion card allows M32 and X32 users to mix, record and play back multichannel audio with a plethora of plugins hosted on Waves SoundGrid servers in extremely low latency. Waves offers highest-fidelity audio plugins for basically every contemporary and vintage-emulated audio processing. DN32-WSG now allows you to use the very same industry-standard processing tool chain for live productions that you may use in your studio environment already.
SPECIFICATIONSConnectors
RJ45, Gigabit Ethernet 1 Gbit/s, 100 Mbit/s
1
Input/Output Characteristics
Input/Output channels
32 / 32
Sample rates
44.1 kHz / 48 kHz
Sample word length
24-bit PCM
Clock synchronization
Console sync-over-Ethernet (SoE)
Indicators
Ethernet link, LED in socket, flashes with network activity
Green
1 Gbit/s Ethernet link, LED in socket
Yellow
Network LED
RGB
System Requirements
CPU
Intel Core i5 / i7 / Xeon / AMD Quad-Core
Memory
8 GB RAM
8 GB free disk space on the system drive
Network
Wired Ethernet interface, 1 GB/s
Screen resolution
Minimum: 1280 x 768
Recommended: Full HD
Windows OS
Windows 10 64 bit
Mac OSX
10.11.6 - 10.14
Physical
Dimensions
30 x 165 x 138 mm (1.2 x 6.5 x 5.4")
Weight
0.14 kg (0.3 lbs)
-
