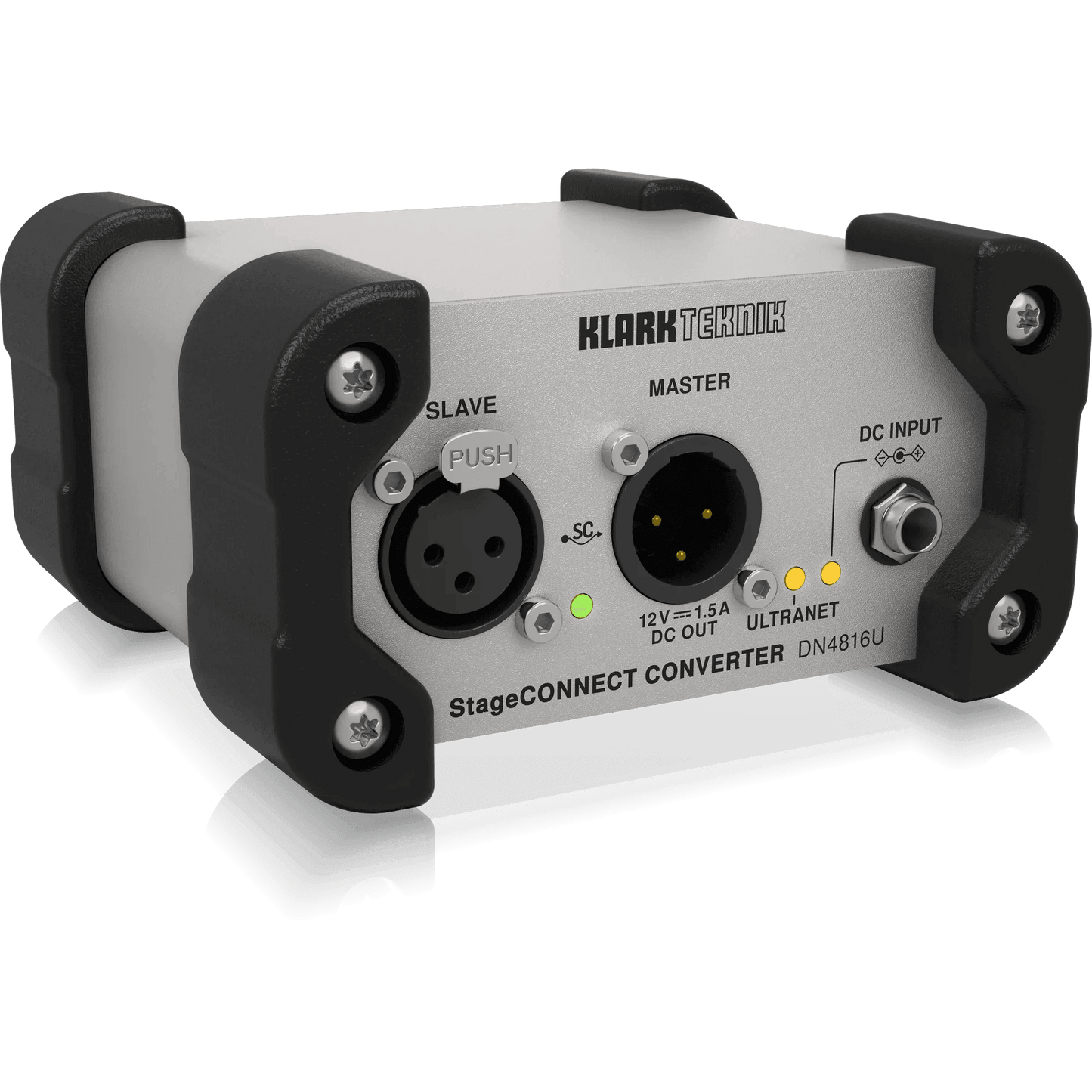

Klark Teknik DN4816U Bus-Powered StageConnect Interface Bridge
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- DI Box sized interface for connecting StageConnect devices to Behringer Ultranet systems and USB multi-channel audio
- StageConnect 32-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using standard XLR microphone or DMX cable
- Asynchronous 32-channel sample rate conversion allows connecting different clock domains and sample rates with 0.4 ms latency and 140 dB dynamic range
- Supports bi-directional audio configurations, with control data and 12 VDC/18 W remote power
DESCRIPTION
The Klark Teknik DN4816U is a universal and compact interface box for sharing 32 channels of audio between StageConnect devices, Behringer Ultranet and USB audio on your PC. There are countless applications: Send USB audio to Behringer P16 personal monitor mixers, use a Midas MR18 as 16 CH input box for Behringer WING or record 32 channels from WING directly in your DAW.
SC-Devices interconnect with a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will allocate the channels for their respective connectivity automatically.
SPECIFICATIONS
Processing
StageConnect bus capacity
32 ch, 24-Bit PCM audio
I/O latency
0.1 ms
Connectors

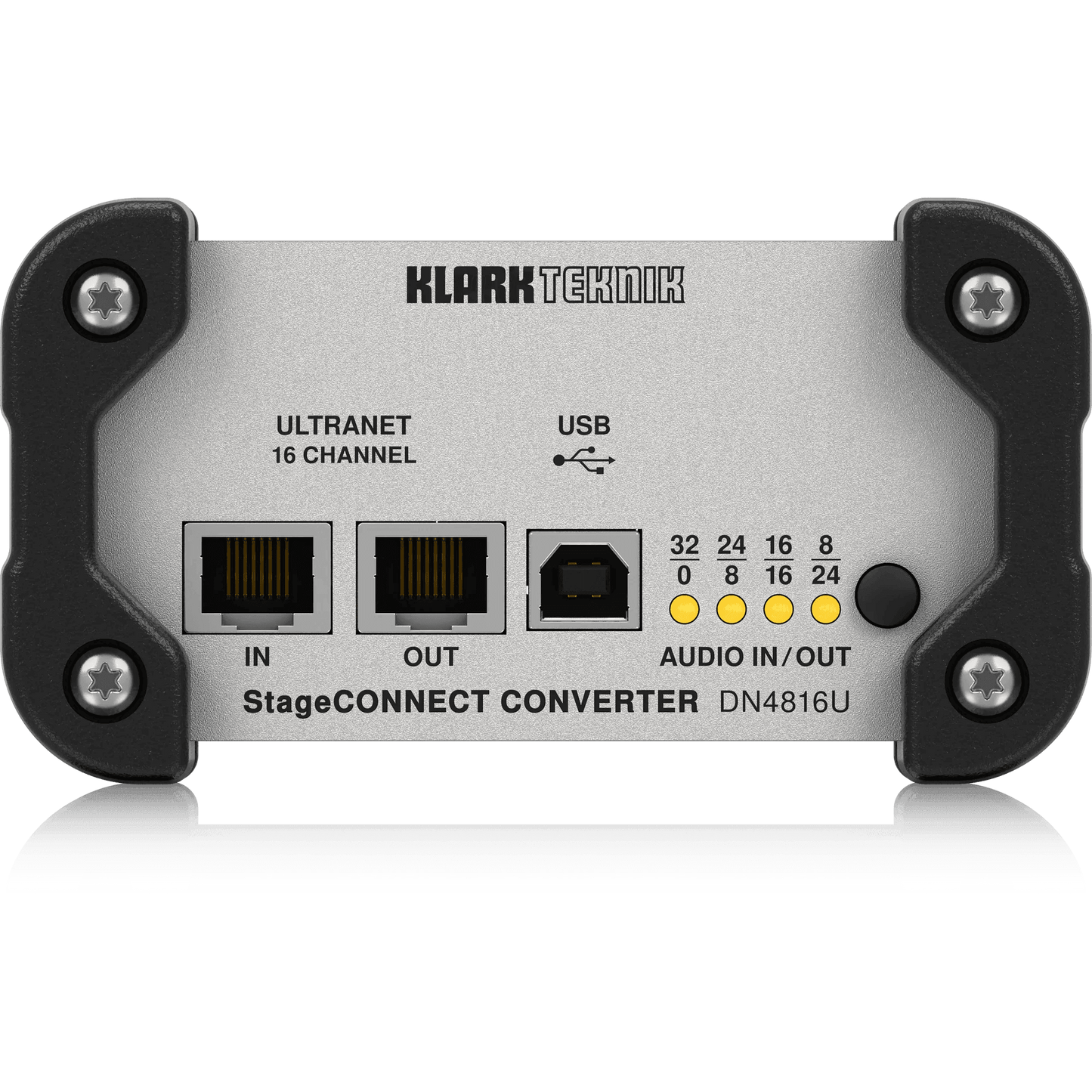

Ultranet
2 x RJ45
Shielded CAT5e cable max. length
75 m

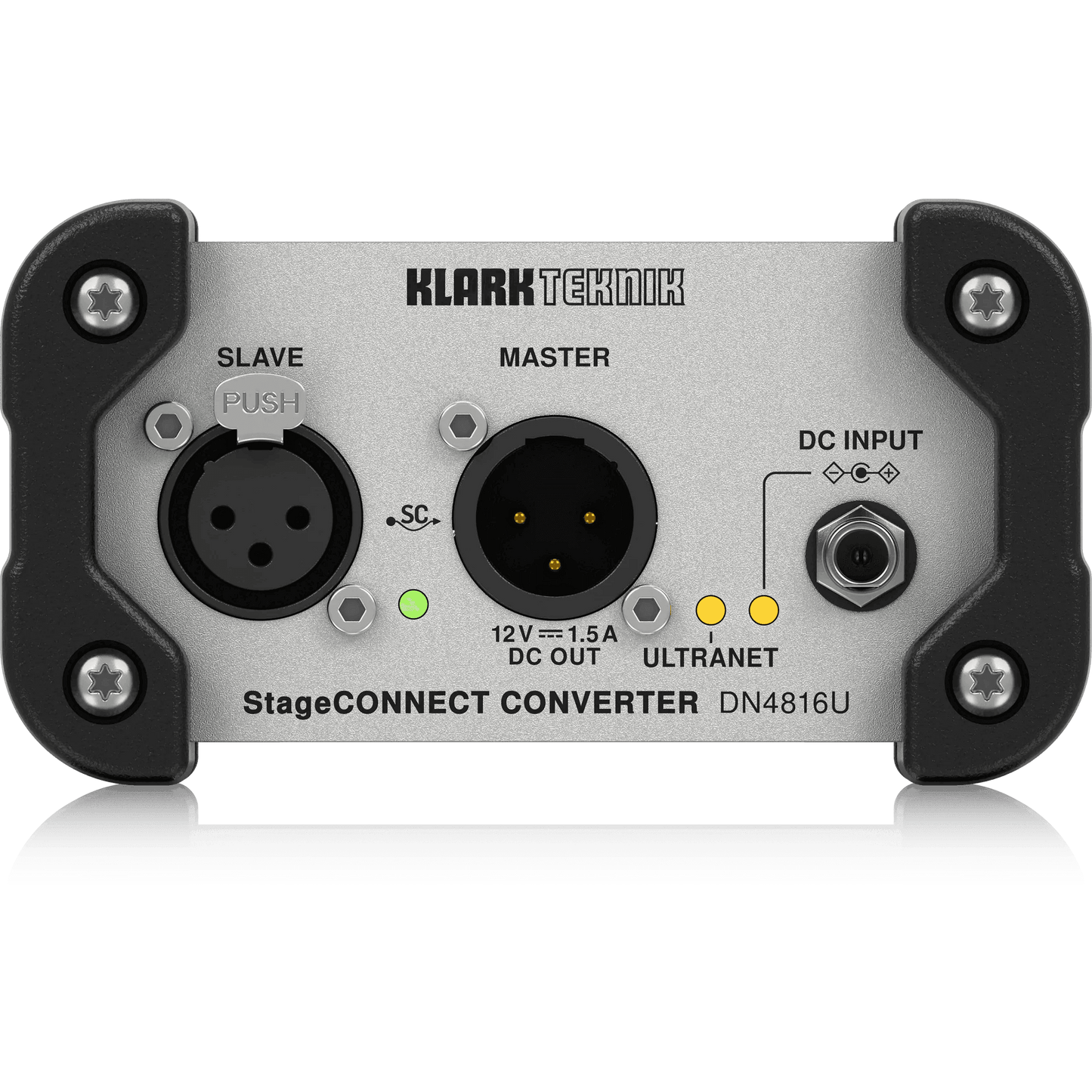

StageConnect
1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable
max. 40 m
USB
Type B
USB audio in / out configurations
32 / 0, 24 / 8, 16 / 16, 8 / 24 channels
USB audio class 2 compatible with OS
Win10 (ASIO/WDM), OSX (CoreAudio), Linux
Power
Power supply
12 V DC / 2.5 A, 30 W adapter included,
remote power input via Slave XLR (female),
remote power output via Master XLR (male)12 V DC / 1.5 A, 18 W
Power consumption
9 W
Physical
Standard operating temperature range
5° - 45° C (41° - 113° F)
Dimensions
118 x 63 x 112 mm (4.7 x 2.5 x 4.4")
Weight
0.71 kg (1.57 lbs)
