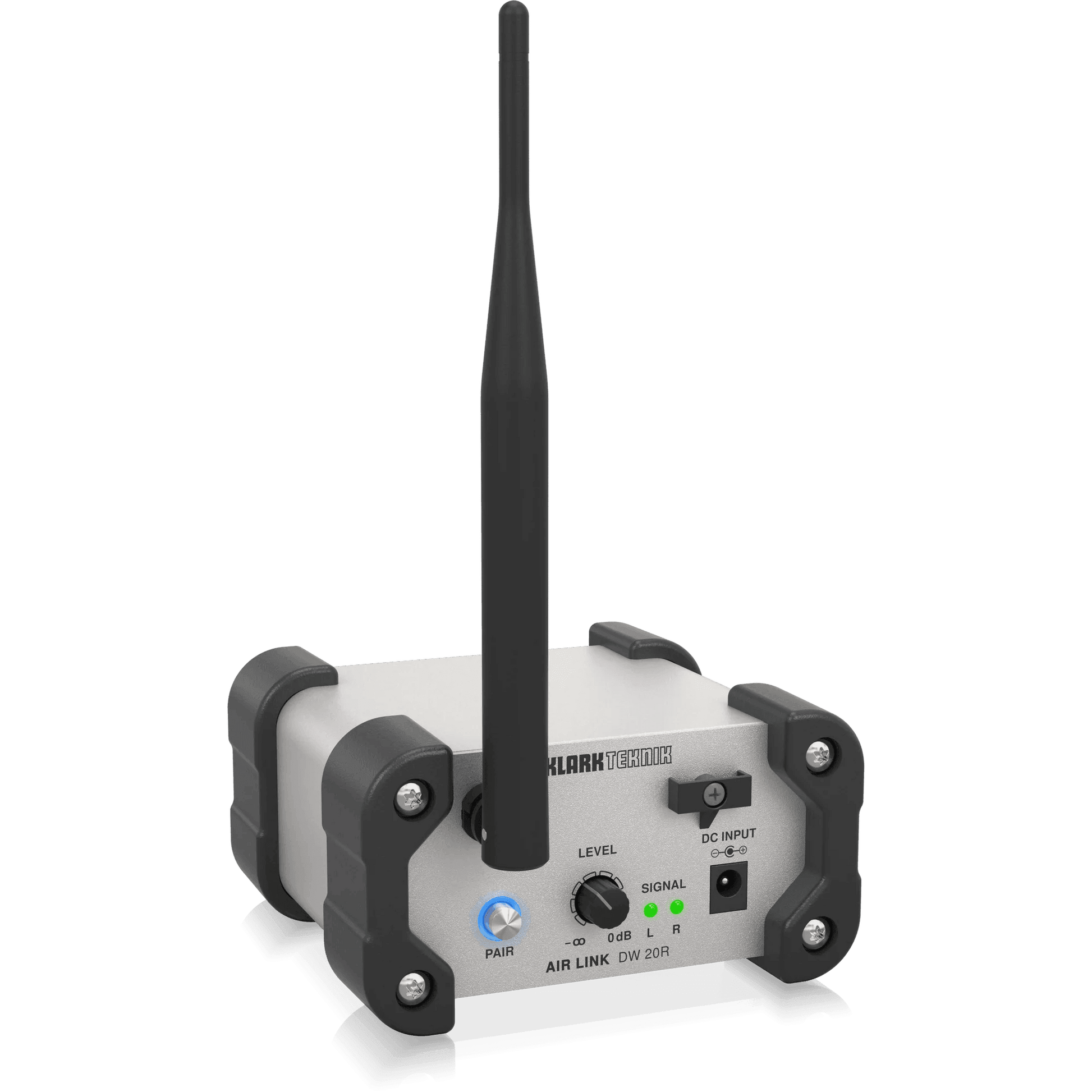

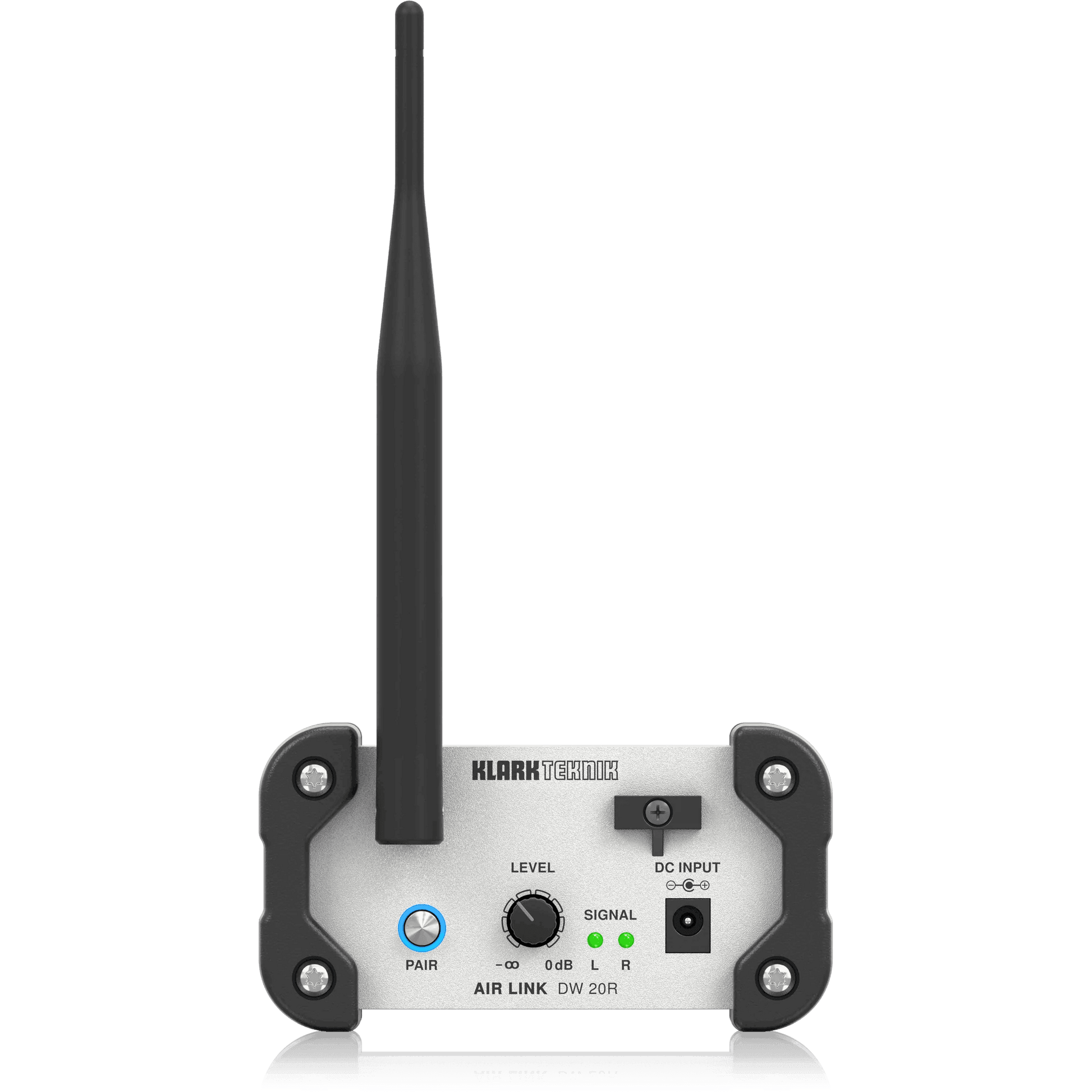

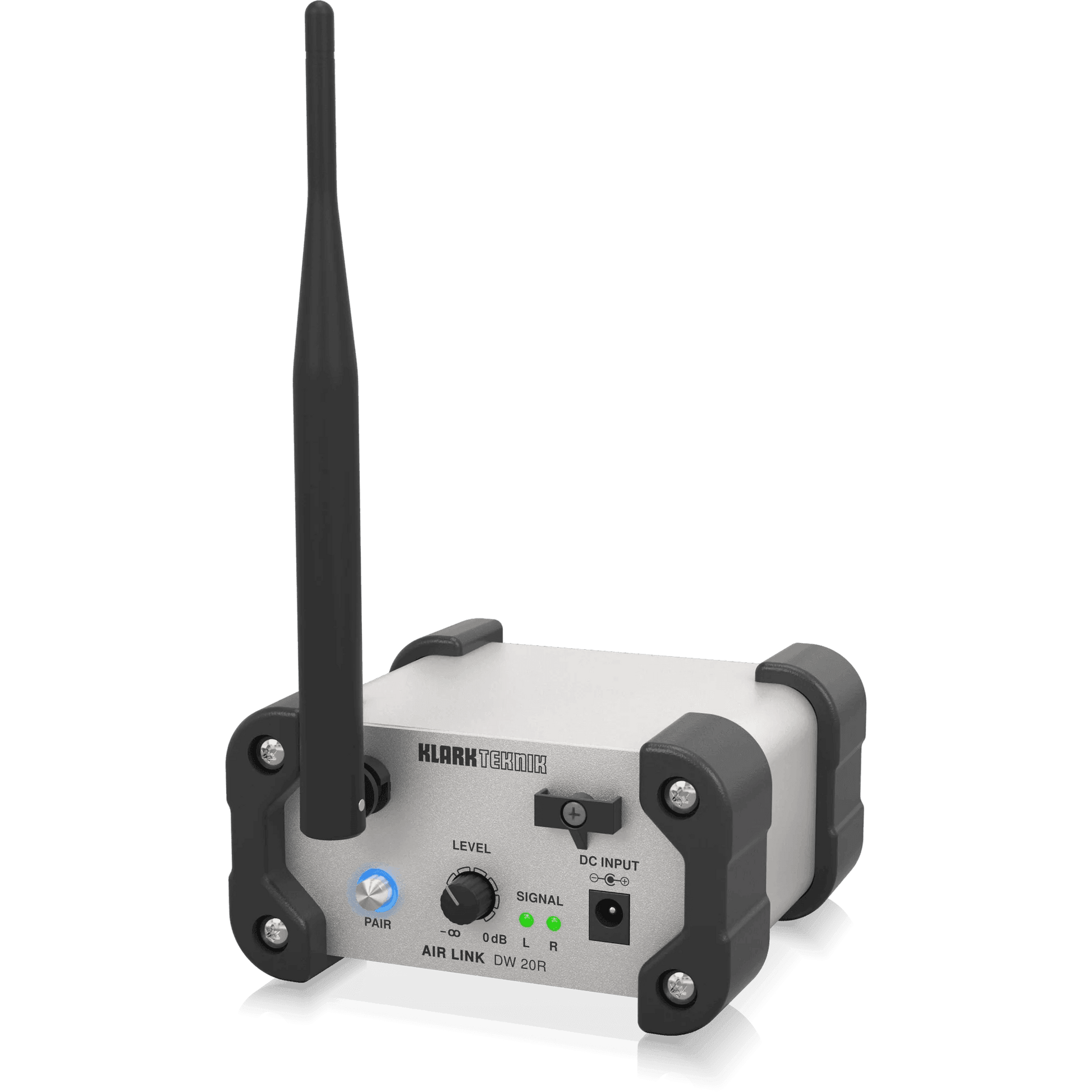

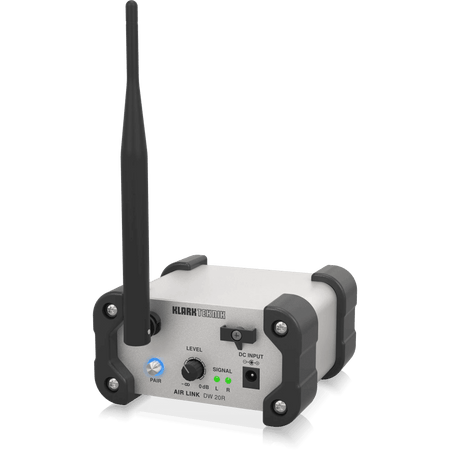

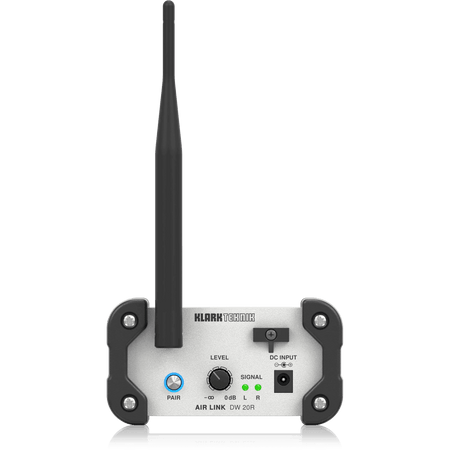

Klark Teknik DW 20R 2.4 GHz Wireless Stereo Receiver for High-Performance Stereo Audio Broadcasting

SKU: DW20R

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • Stereo receiver to wirelessly stream audio (together with separate DW 20T)

    • Perfect for hospitality and event spaces, retail and home audio, etc.

    • Apply multiple DW 20R units for larger coverage

    • Digital 2.4 GHz wireless connectivity offers superior sound quality

    • High headroom design offers superior sound quality

    • Maximum wireless range 100 feet (30 m)

    • External, articulating antenna ensures optimum transmission and reception

    • Aluminium extrusion casing with protective rubber corners

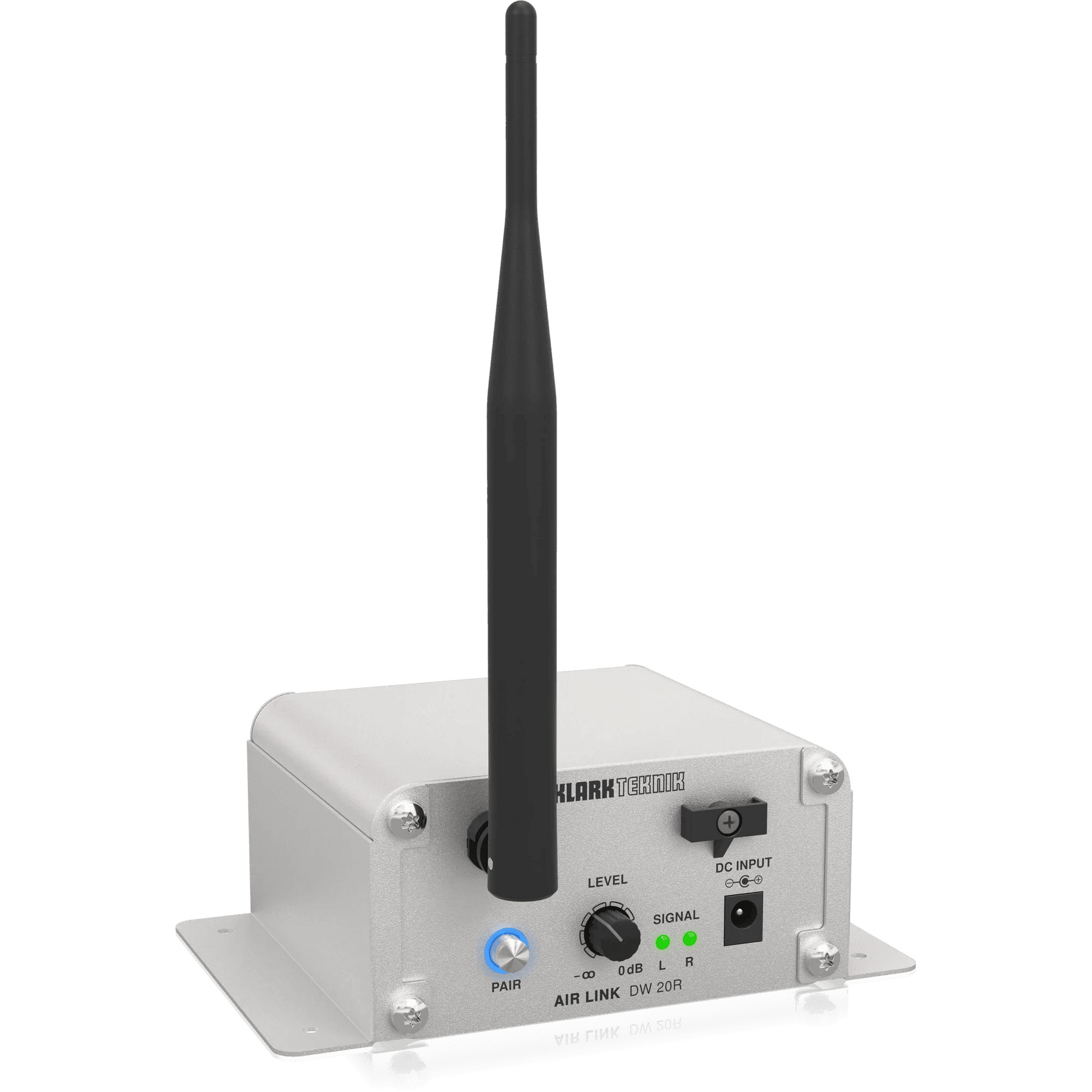

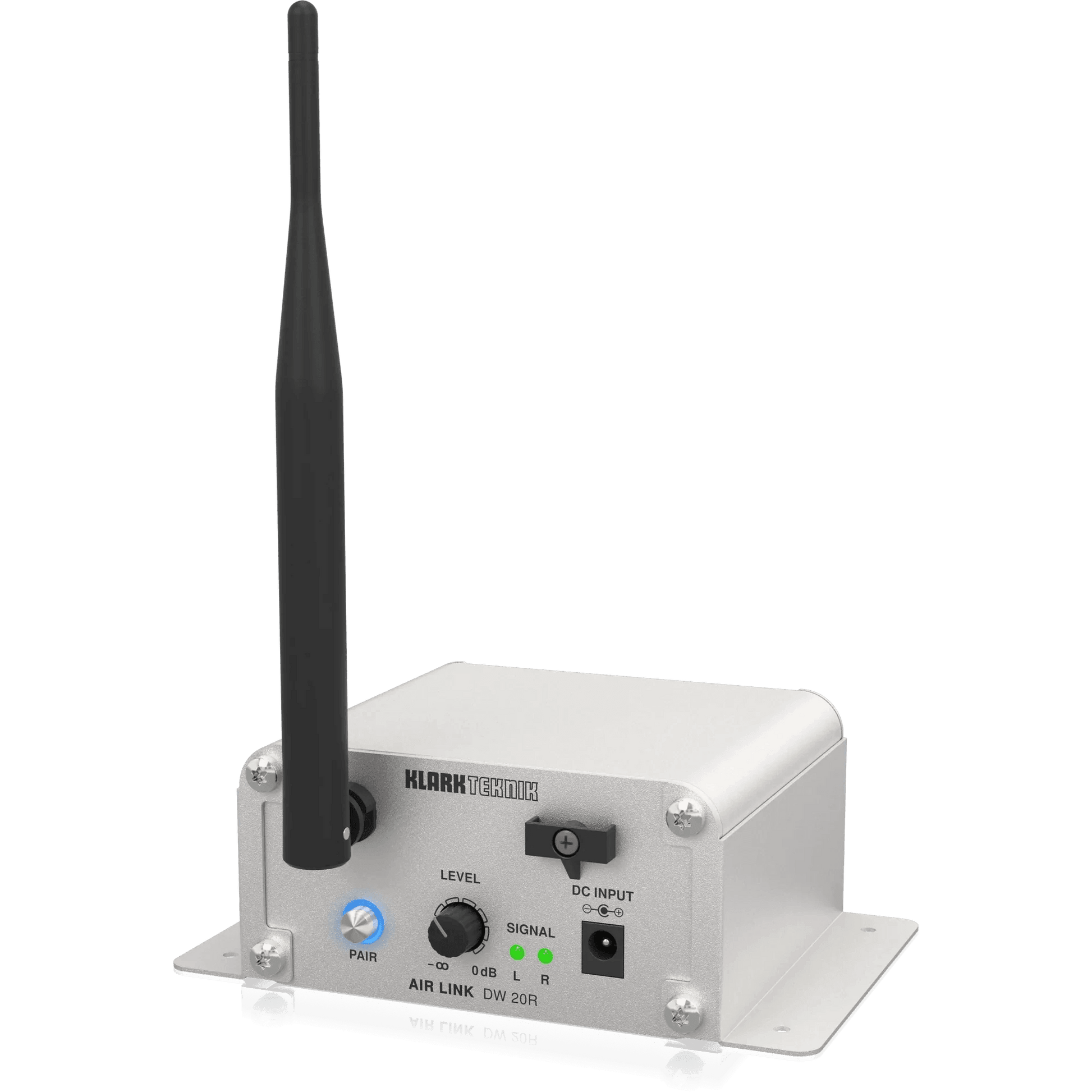

    • Floor and wall mount brackets for fixed installation (included)

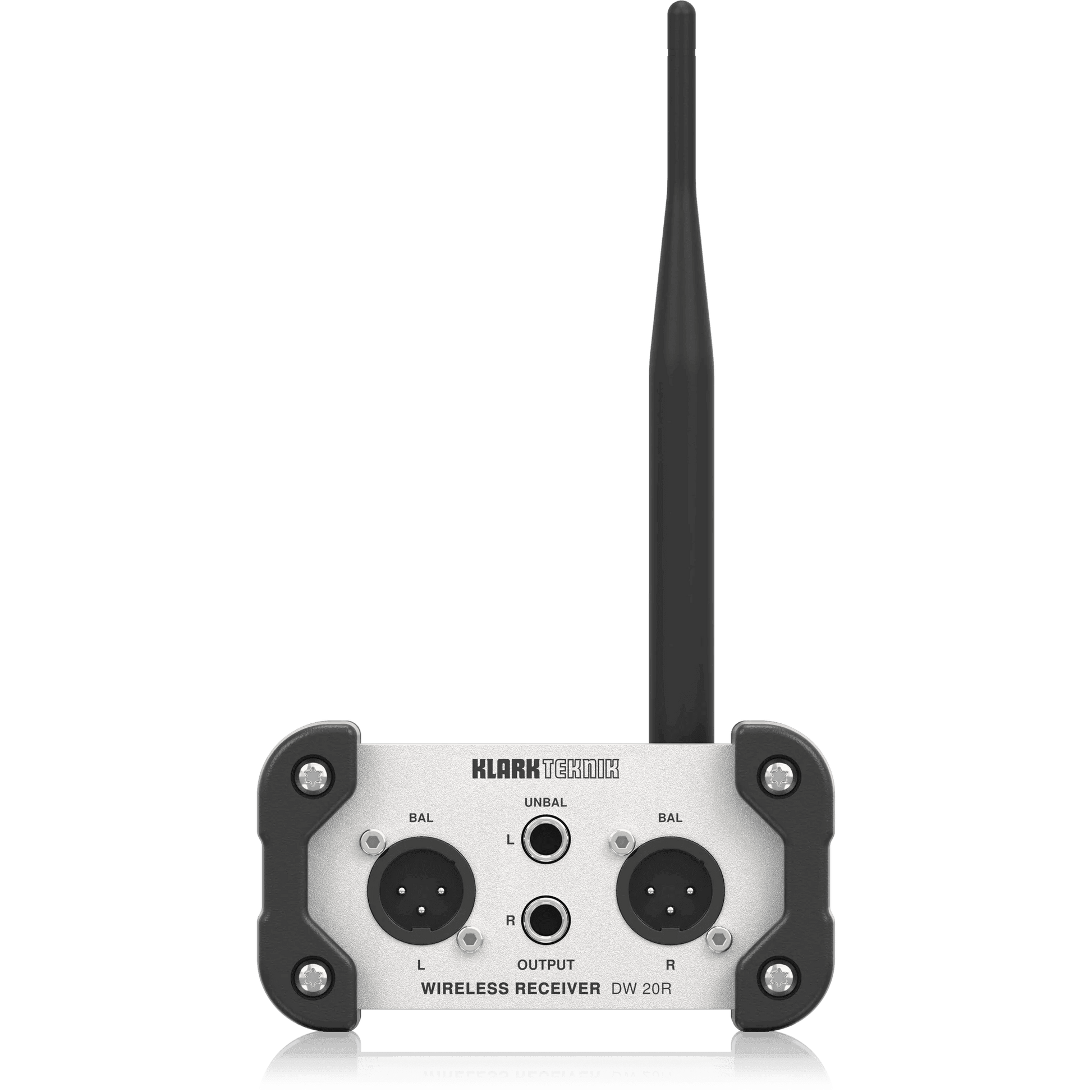

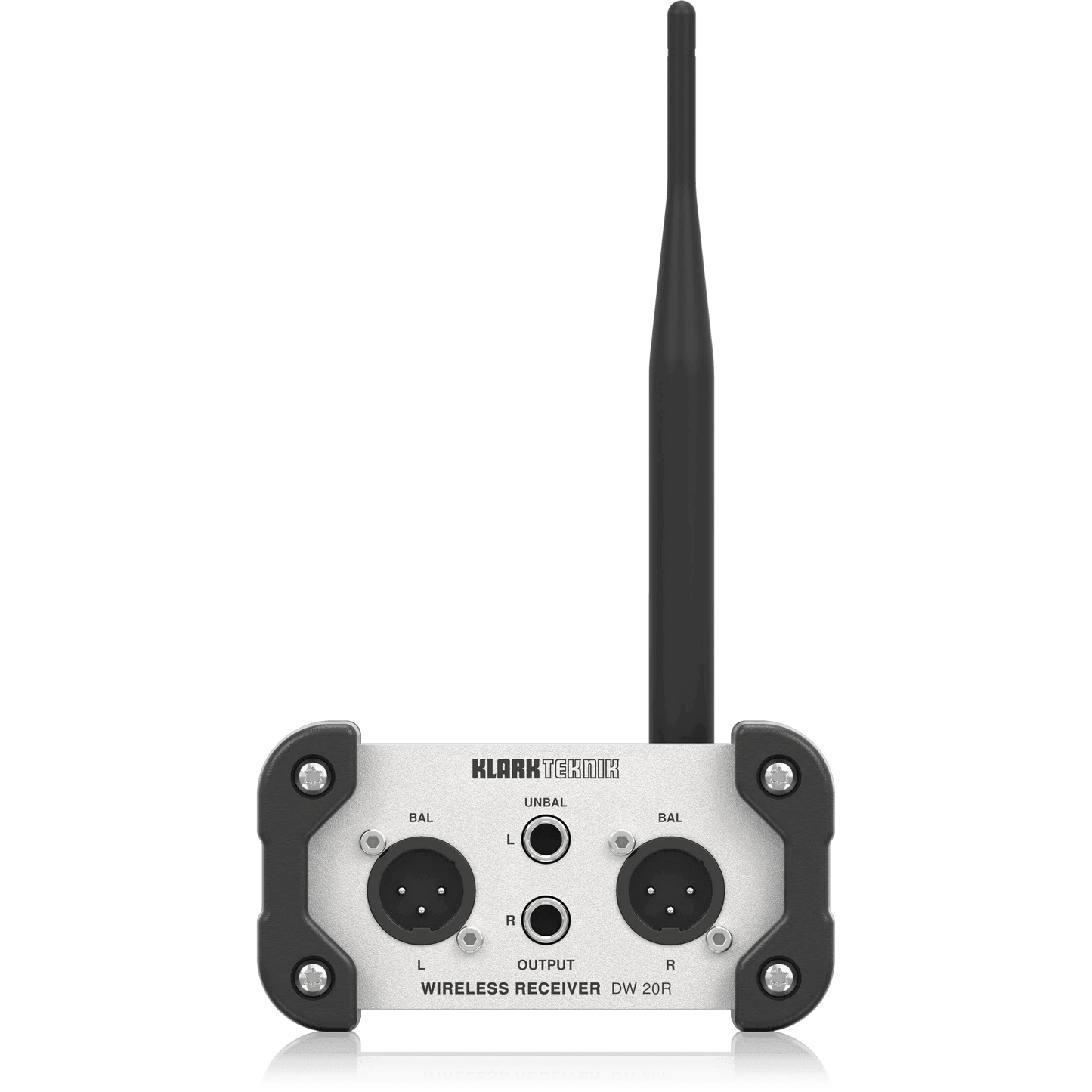

    • High quality Neutrik* XLR and 1/4" TRS connectors

    • 2.4 GHz ISM band operation allows license-free use on a worldwide basis

    • Compact and rugged design


    DESCRIPTION

    When used in conjunction with the DW 20T Wireless Transmitter, the AIR LINK DW 20R Wireless Stereo Receiver brings the convenience of high-performance audio-streaming to any installed or portable sound system, making it ideal for hospitality and event spaces, as well as retail, home audio, and much more. Featuring a maximum wireless range of 100 feet (30 m), DW 20R is easy to use and utilises premium-grade Neutrik balanced XLR and unbalanced 1/4" TRS connectors to cover a wide range of audio applications.

    SPECIFICATIONS



    DW 20R

    DW 20T

    Inputs

    Connectors

    —

    Balanced XLR, unbalanced 1/4"

    Impedance

    —

    10 kΩ balanced, 15 kΩ unbalanced

    Max. input level

    —

    10 dBu

    Outputs

    Connectors

    Balanced XLR, unbalanced 1/4"

    —

    Impedance

    240 Ω balanced, 120 Ω unbalanced

    —

    Max. output level

    15 dBu

    —

    Wireless

    Channels

    24

    Transmission frequency

    2.406 - 2.475 GHz

    Wireless range

    Up to 30 m (100 ft)

    Sensitivity

    -81 dBm @ 1% PER

    —

    Transmission power

    —

    12 dBm

    System

    Frequency response

    20 Hz to 20 kHz (±1 dB)

    THD + N (distortion)

    0.1% @ 1 kHz

    Signal-to-noise ratio

    >90 dB

    Power adaptor

    12 V DC, 400 mA, center positive

    Physical

    Dimensions (H x W x D)

    Without bumpers or antenna

    54 x 108 x 103 mm (2.1 x 4.3 x 4.1")

    With bumpers, without antenna

    63 x 118 x 112 mm (2.5 x 4.6 x 4.4")

    With bumpers, upright antenna

    212 x 118 x 126 mm (8.3 x 4.6 x
