Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURESDynamic mic booster adds extra gain to your sound
High-quality preamp provides up to +25 dB of gain
Phantom powered with no need for external power supply

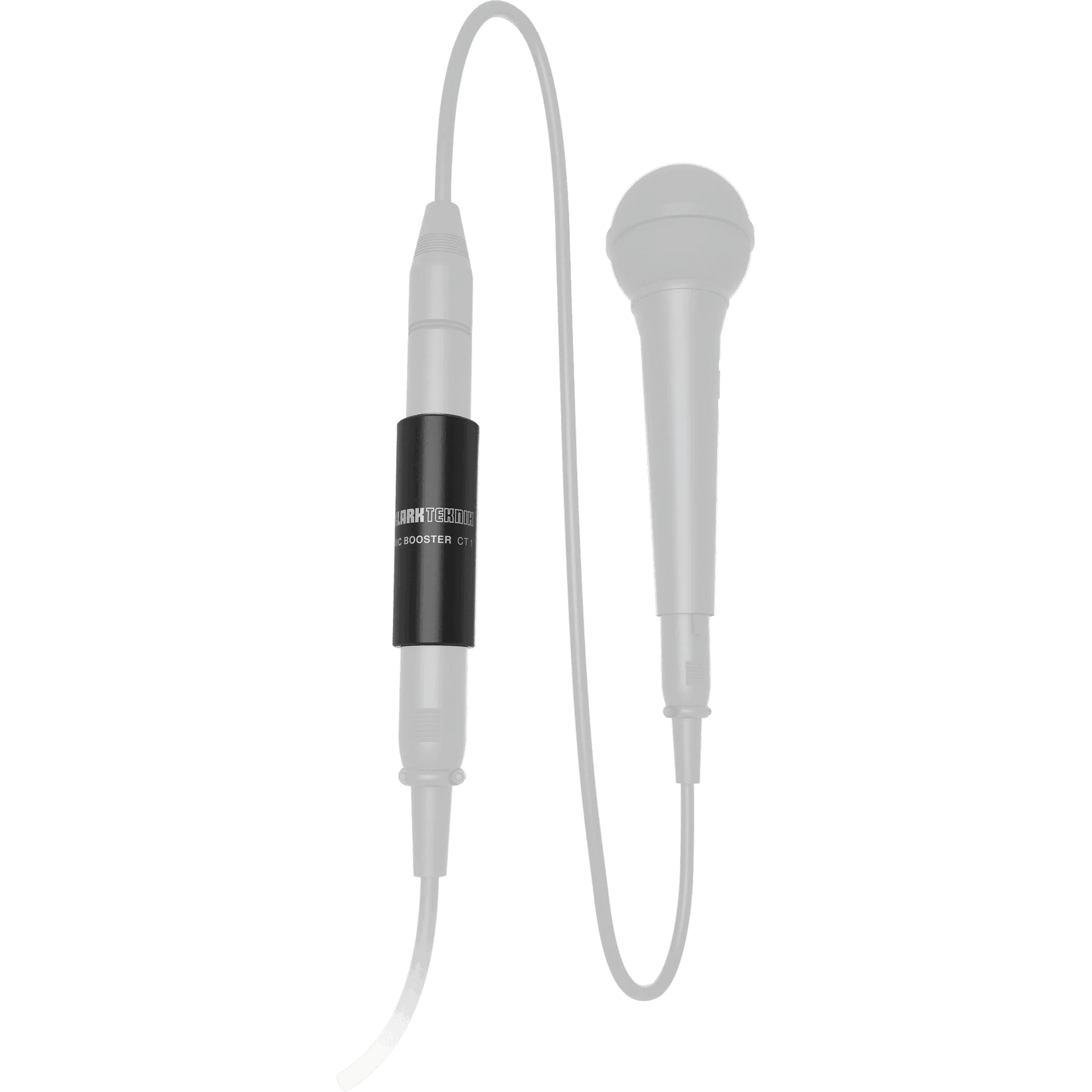

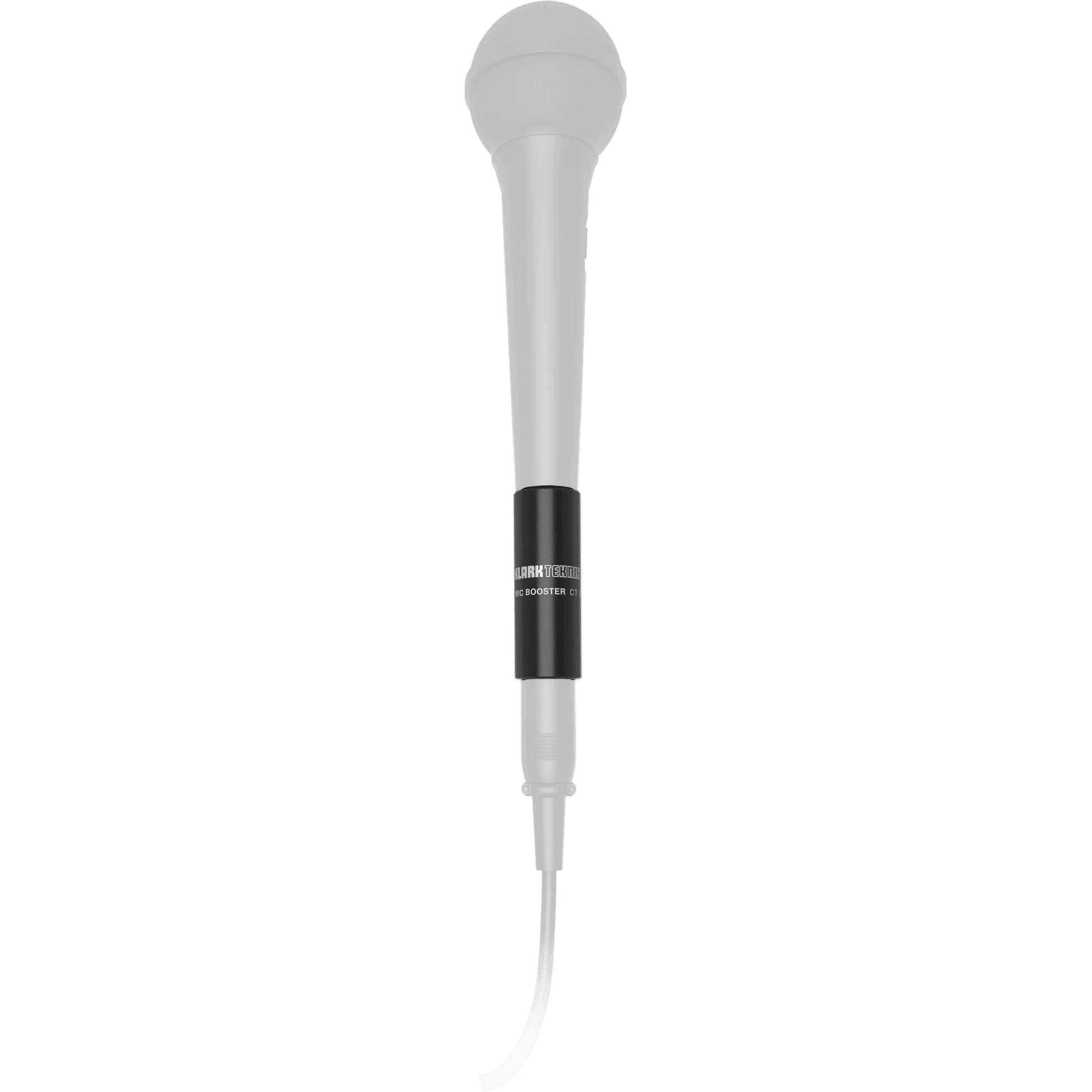

Works with almost any dynamic or passive ribbon microphone

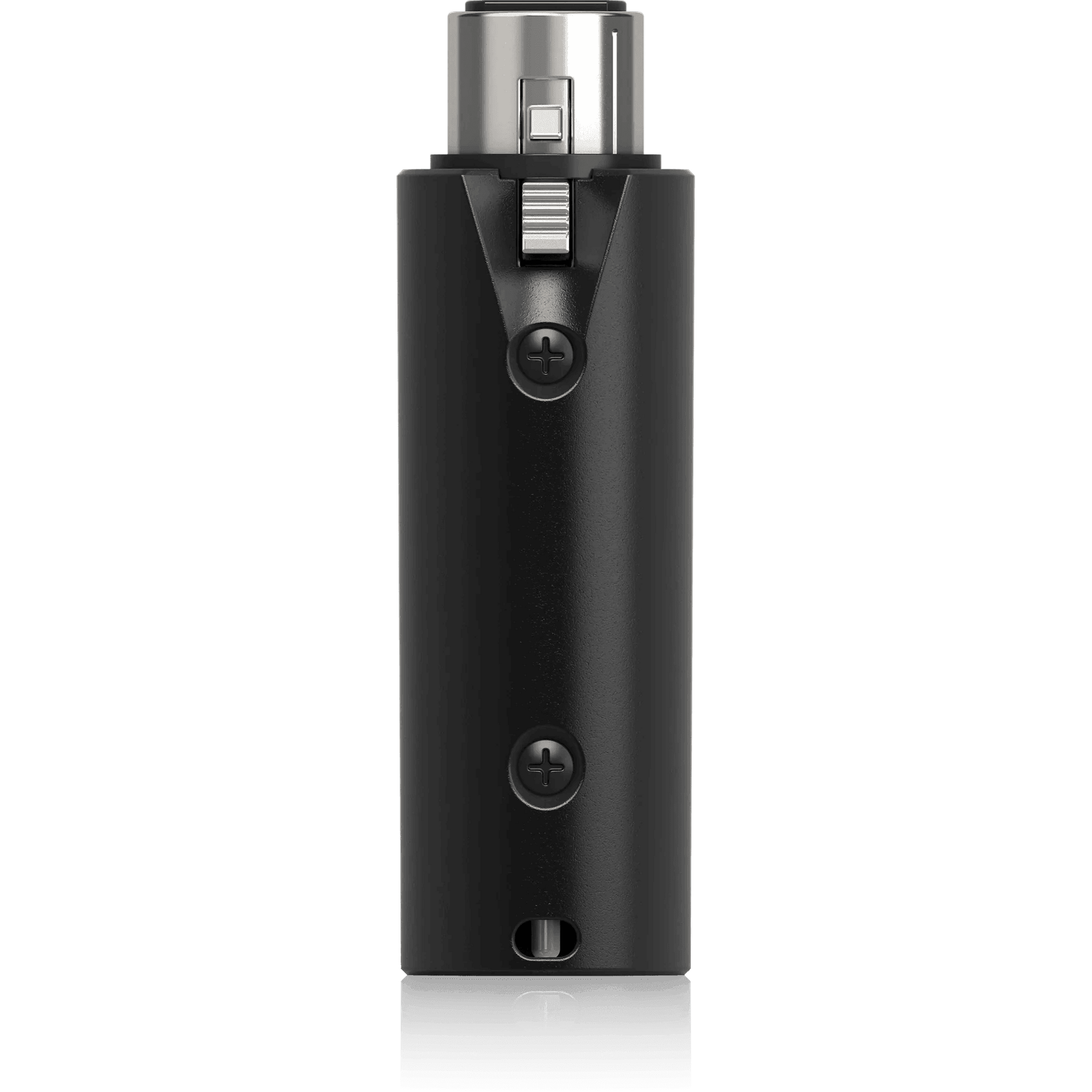

Rugged, road-worthy construction for years of dependable use
DESCRIPTION

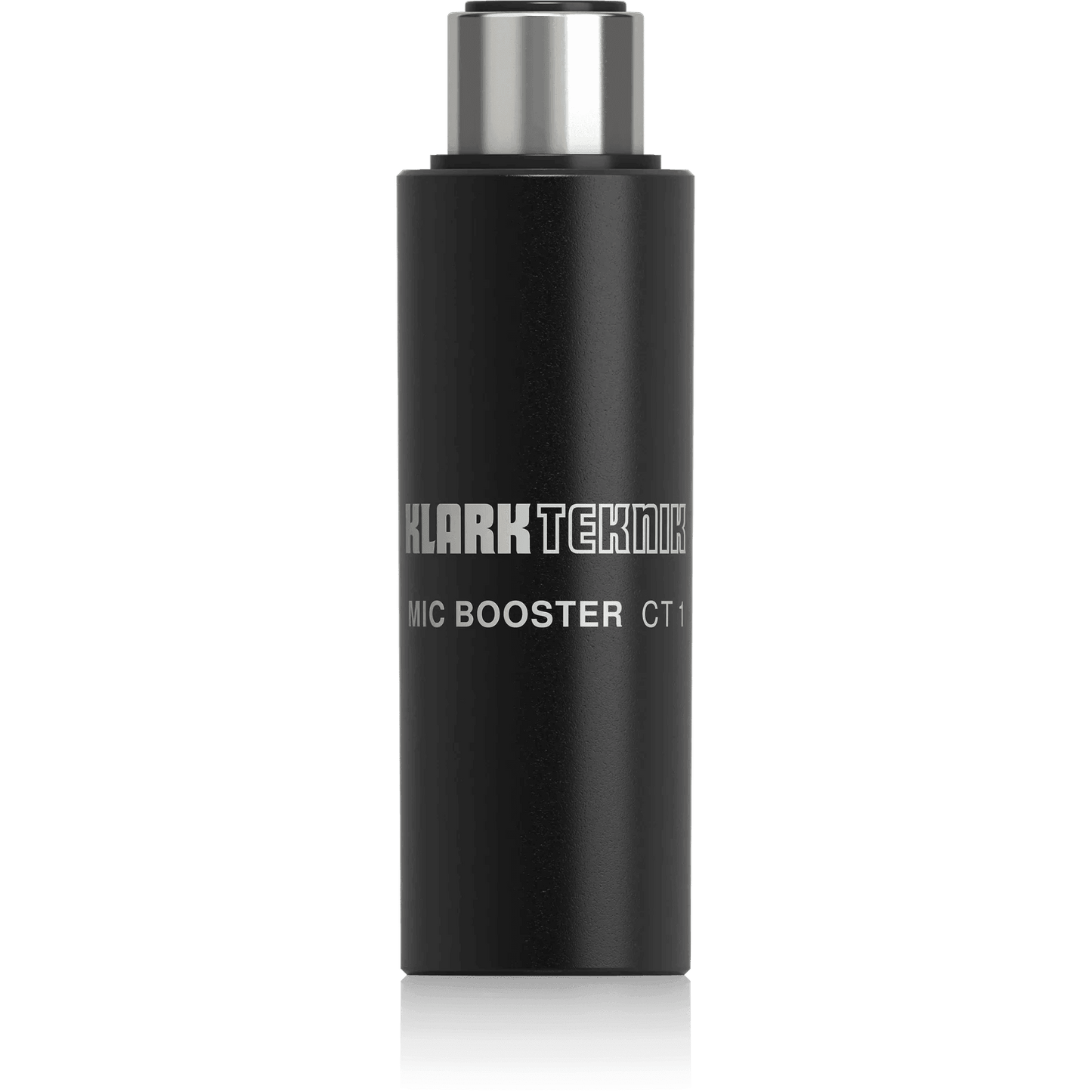

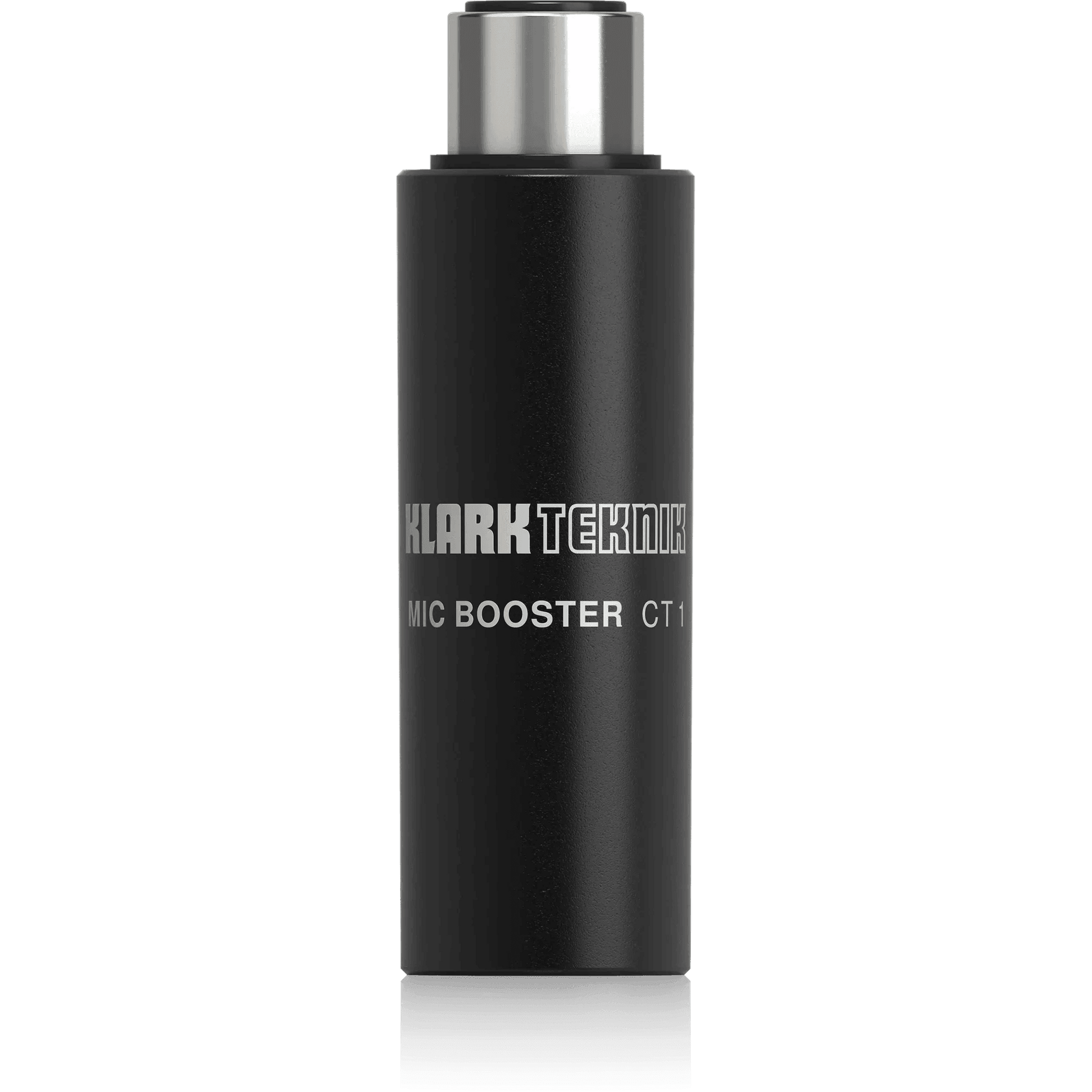

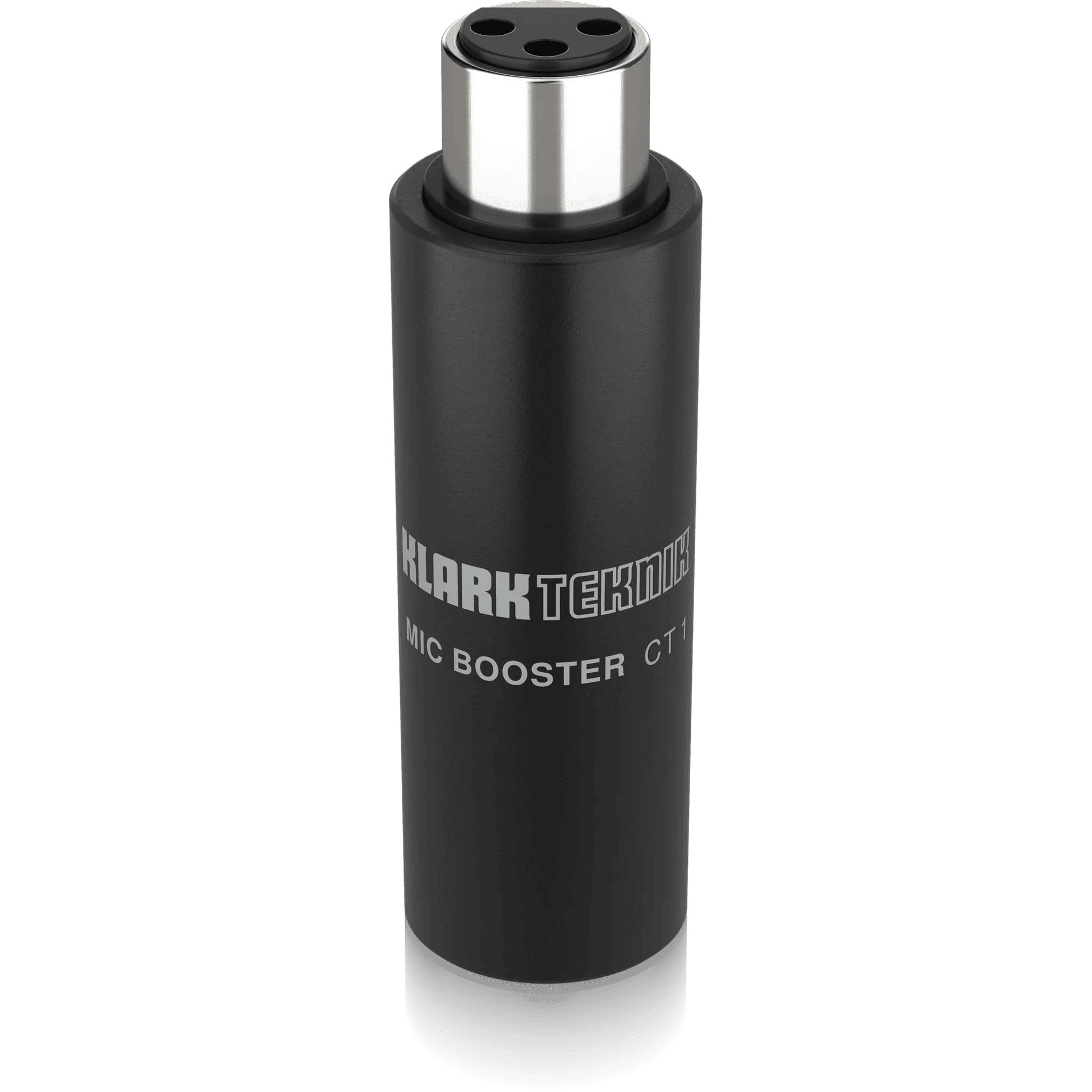

Whenever you need more headroom for any microphone in your podcast setup, recording studio or live rig, the MIC BOOSTER CT 1 is exactly the tool you need to get a crisp and clean microphone signal in a robust, compact and simple to use package.
SPECIFICATIONS
|
|
CT 1 |
CM-1 |
CM-2 |
|
Input |
|||
|
Connector |

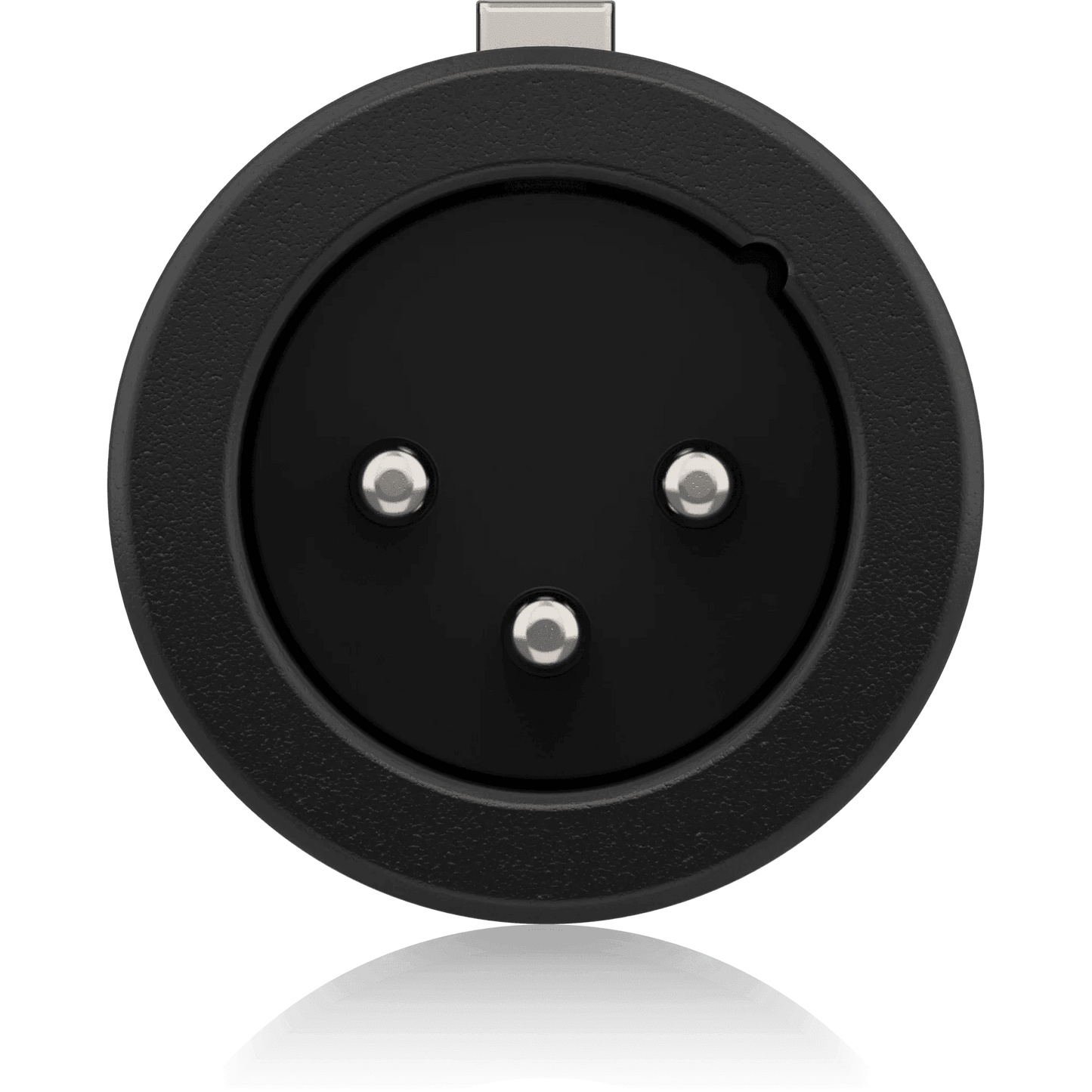

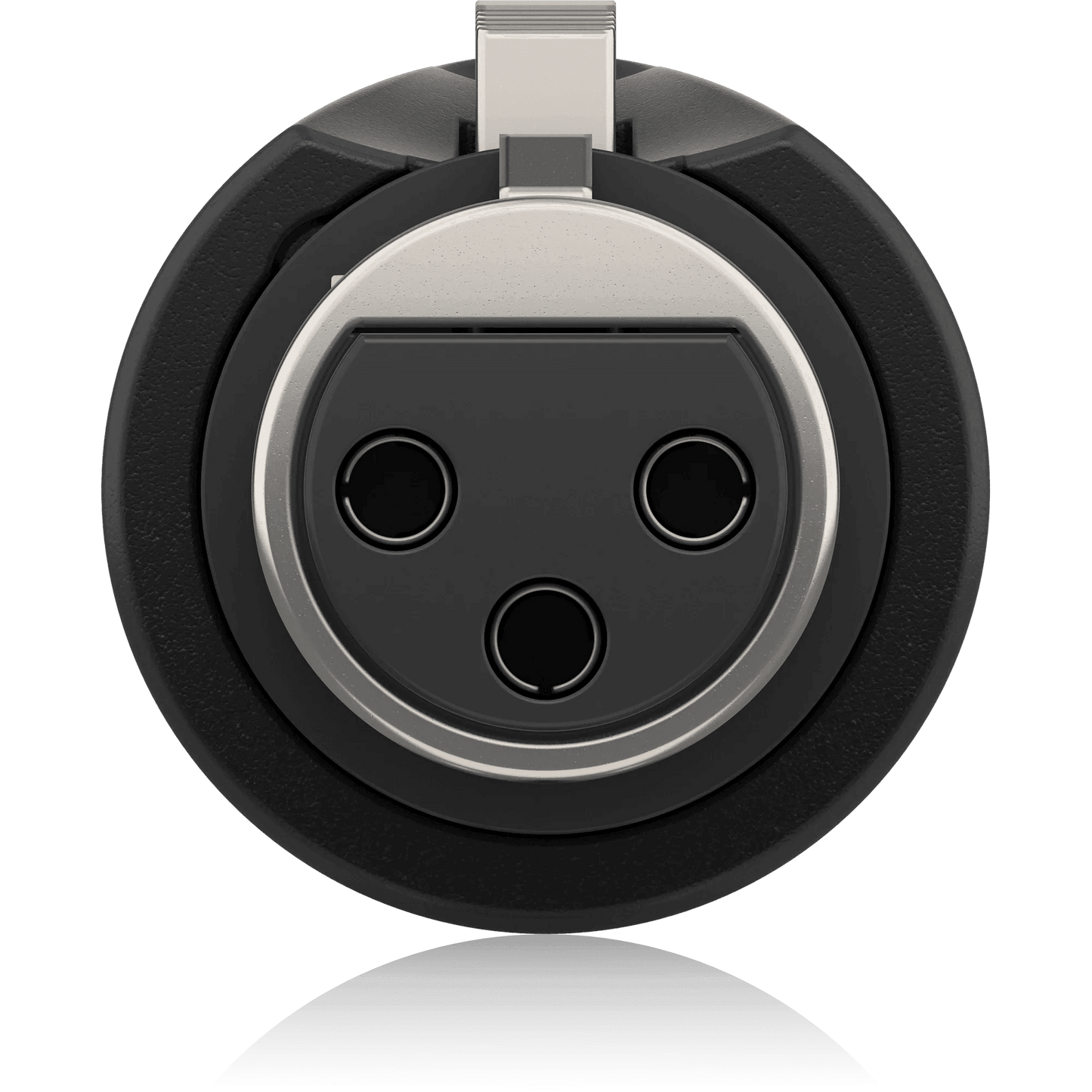

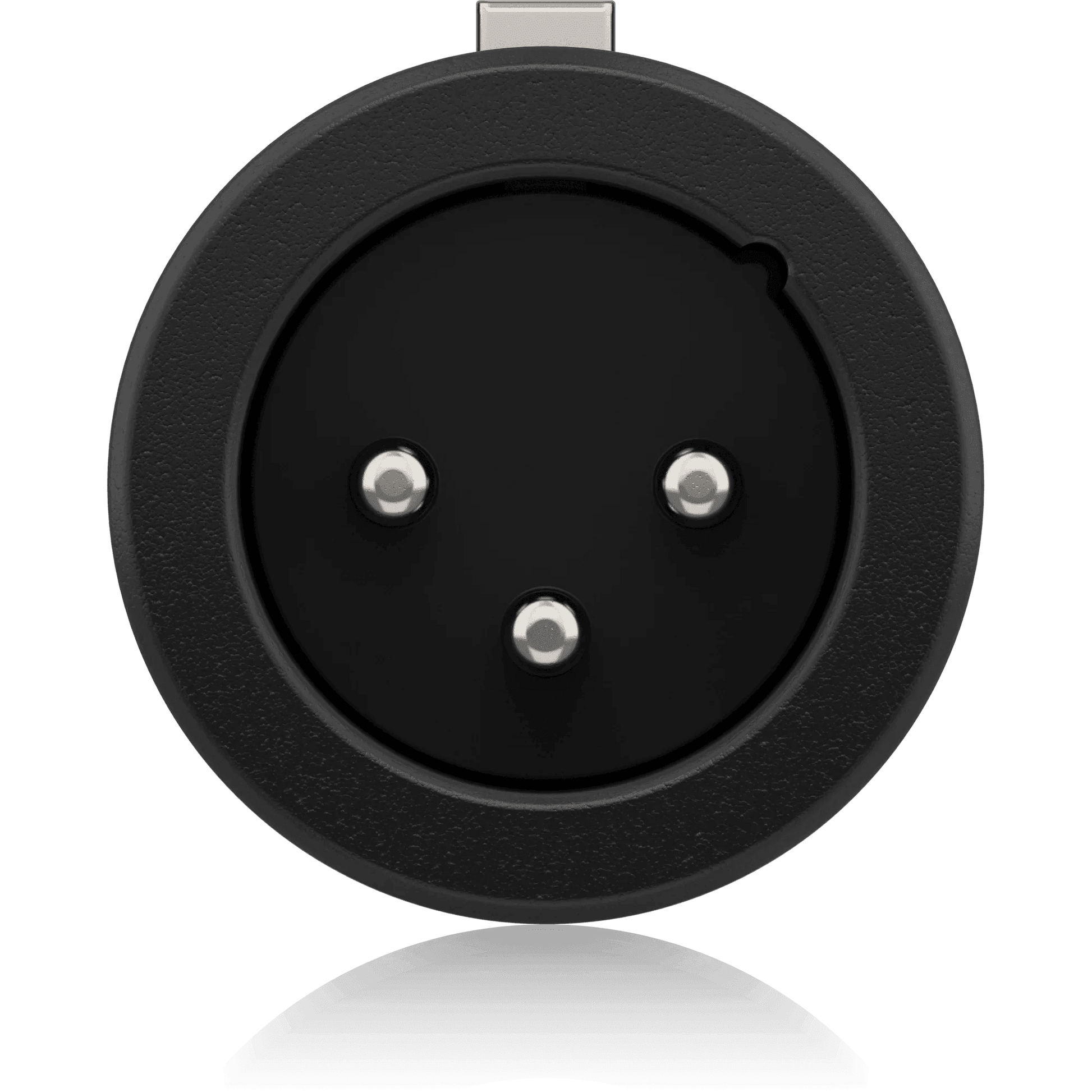

1 x XLR, balanced |
1 x XLR, balanced |
2 x XLR, balanced |
|
Impedance |
7 kΩ |
||
|
Maximum input level |
-15 dBu |
||
|
Output |
|||
|
Connector |
1 x XLR, balanced |
1 x XLR, balanced |
2 x XLR, balanced |
|
Impedance |
2 kΩ |
||
|
Maximum gain |
+25 dB, 10 kΩ load |
||
|
Maximum output level |
+10 dBu, 10 kΩ load |
||
|
System |
|||
|
Frequency response |
10 Hz to 20 kHz (± 1 dB) |
||
|
THD + N |
<0.02% @ 1 kHz, 0 dBu |
||
|
EIN noise @ +25 dB gain |
>120 dB, 22 Hz-22 kHz, unweighted |
||
|
Power requirements |
48 V phantom power |
||
|
Physical |
|||
|
Dimensions |
24 x 25 x 78 mm (0.9 x 1.0 x 3.1") |
38 x 39 x 85 mm (1.5 x 1.5 x 3.3") |
65 x 39 x 85 mm (2.6 x 1.5 x 3.3") |
|
Weight |
0.1 kg (0.22 lbs) |
0.17 kg (0.40 lbs) |
0.25 kg (0.55 lbs) |
