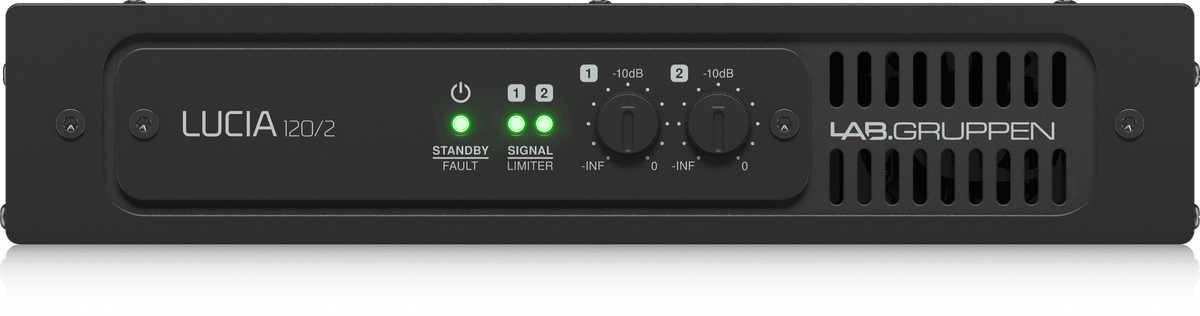

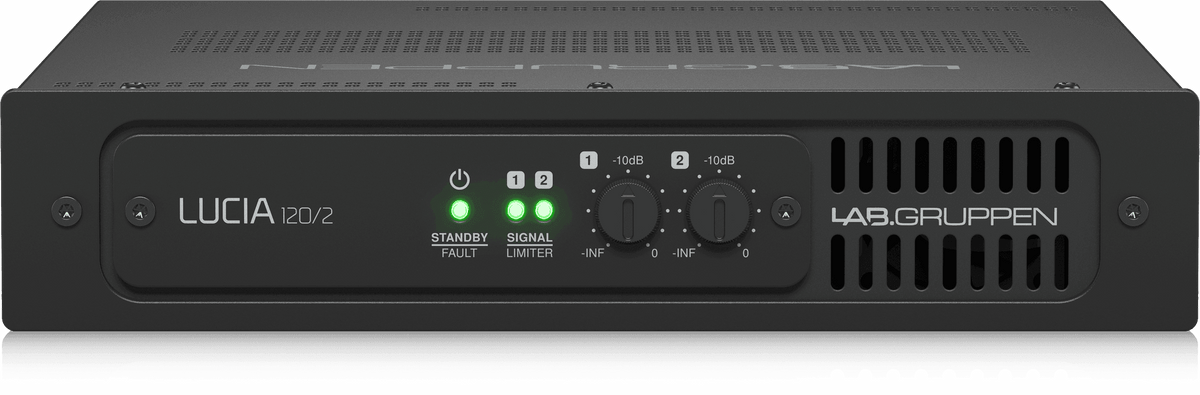

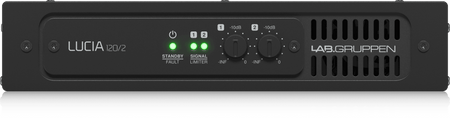

Lab Gruppen LUCIA 120/2
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Max. output power across range of loads – 2 × 60 W(LUCIA 120/2) or 2 × 120 W (LUCIA 240/2) into 8, 4 or 2 ohms
- Comprehensive DSP features - multiband compressor, look ahead limiter
- Default preset mode – Works out of the box for common applications with no configuration
- GPIO – Remote control (eg. Wall panel) for channel switching, level – integration with paging systems
- Compact form factor – Half-rack, 1U chassis and supplied bracket for discreet on-wall mounting (eg. behind display screens)
- Efficient patented Class D amplifier
- Auto Load Sense™ – Proprietary auto-set VPL™ (Voltage Peak Limiter) for optimum performance with connected load
- Fail-safe operation – Comprehensive short circuit, thermal, and under-voltage protection
- Balanced and unbalanced (RCA) inputs – Connects to any input source
- Universal power supply – Operates at 100 - 240V AC (50 or 60 Hz)
- ENERGY STAR® 3.0 compliant – Conforms to green building standards
- Auto standby and wake-up – Standby power consumption less than 1 W
- Intelligent fan control – Silent operation in idle and at lower output levels
- Sturdy metal chassis – Protection for long-term durability
DESCRIPTION

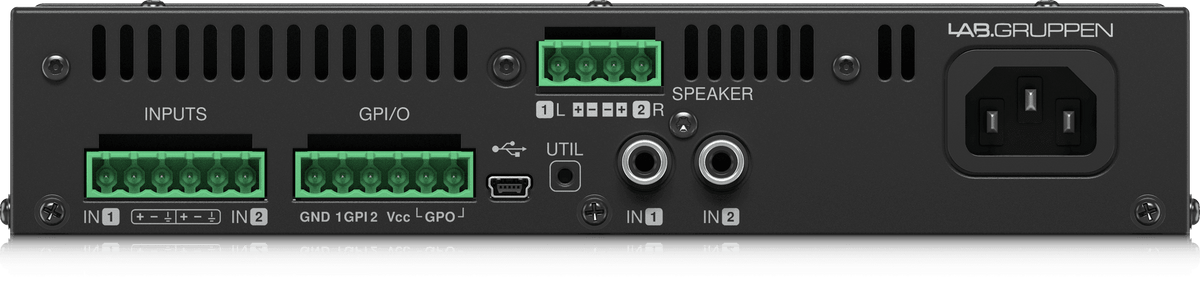

LUCIA 120/2 has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace – whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.
LUCIA 120/2 Incorporates Ease of Install with 2 X 60 W of Decentralized Power in a Compact Energy Star Compliant Amplifier.
SPECIFICATIONS
Number of amplifier channels:
2
Max total output all channels driven:
120W
Max output current per channel:
5.5 arms
Input impedance:
10 kOhm
Frequency Response:
5 Hz - 22 kHz
Input connectors (ch. 1 & 2):
Unbalanced RCA type
Dimensions:
W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”)
Weight:
1.9 kg (4.2 lbs)
