Lab Gruppen LUCIA 120/2M

KEY FEATURES

• Integrated Mix Matrix and DSP (LUCIA ’M’ models only): The versatile 4 × 4 Mix Matrix and comprehensive DSP features including Automatic Dynamic Loudness Contouring (ADLC™), featured on the LUCIA240/2M and 120/2M eliminate the need for external mixers and processors in many applications, saving time and money. A software wizard facilitates fast setup, while the advanced editor allows offline configuration of common presets that can be quickly downloaded to multiple units via USB.
• Green credentials: All LUCIA models are EnergyStar® qualified, making them an ideal choice for installation in projects seeking energy-efficient certifications. The amplifier automatically enters standby mode after 20 minutes of no signal input, consuming less than 1 watt.Automatic power-up requires less than two seconds of input signal presence.
• 2-Channel LUCIA: Extremely compact and versatile Energy Star qualified Class D amplifier platform. Combining innovative low-impedance electronics with cutting-edge processing from the world of high-end broadcast audio, LUCIA delivers consistently great sound at any listening level.
• LUCIA provides industry-renowned amplification, innovative auto-configuring DSP, flexible input and routing control (M-models only) in one quiet-running device. It does all the hard work, providing better sounding results ‘out-of-the-box’, preventing audible clipping – even when subject to demanding operating conditions (eg. overdriven). LUCIA always sounds great.
• Max. output power across range of loads – 2 × 60 W(LUCIA 120/2) or 2 × 120 W (LUCIA 240/2) into 8, 4 or 2 ohms
• Comprehensive DSP features - multiband compressor, look ahead limiter
• Default preset mode – Works out of the box for common applications with no configuration
• GPIO – Remote control (eg. Wall panel) for channel switching, level – integration with paging systems
• Compact form factor – Half-rack, 1U chassis and supplied bracket for discreet on-wall mounting (eg. behind display screens)
• Efficient patented Class D amplifier
• Auto Load Sense™ – Proprietary auto-set VPL™ (Voltage Peak Limiter) for optimum performance with connected load
• Fail-safe operation – Comprehensive short circuit, thermal, and under-voltage protection

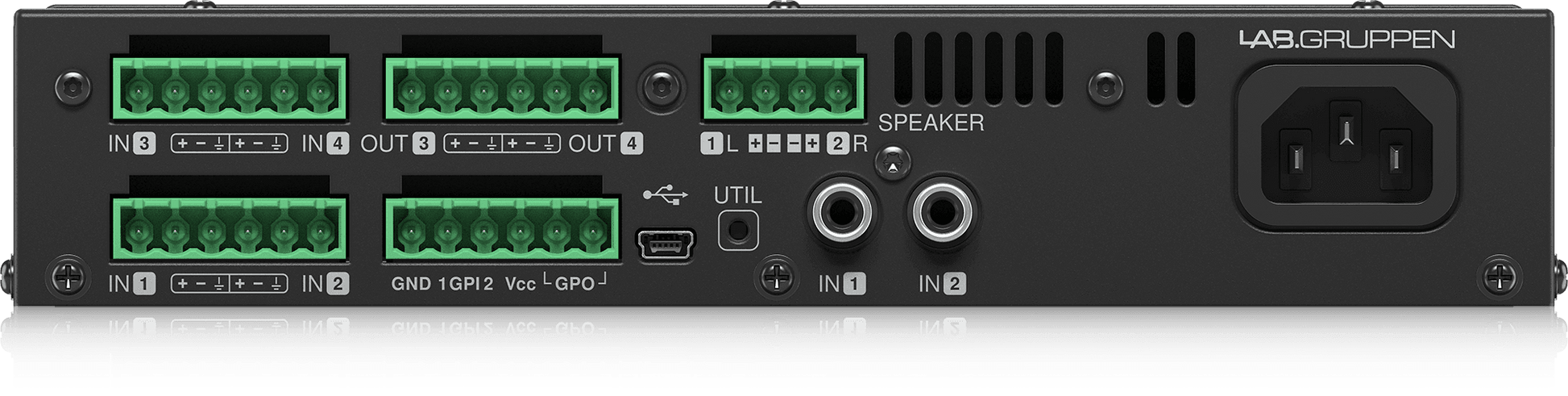

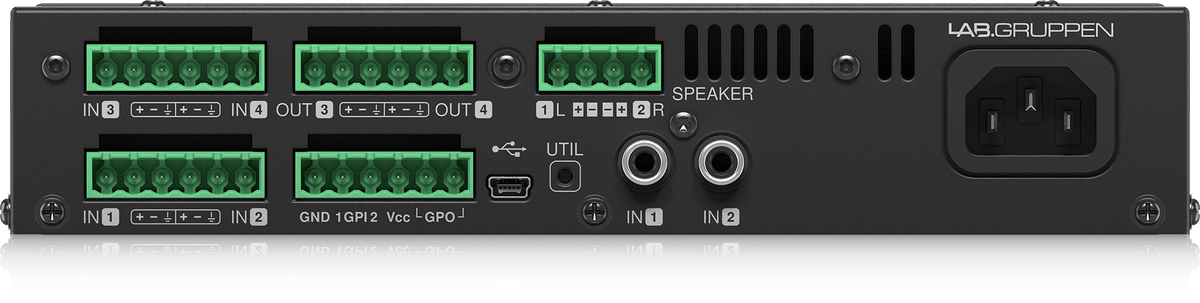

• Balanced and unbalanced (RCA) inputs – Connects to any input source
• Universal power supply – Operates at 100 - 240V AC (50 or 60 Hz)
• ENERGY STAR® 3.0 compliant – Conforms to green building standards
• Auto standby and wake-up – Standby power consumption less than 1 W
• Intelligent fan control – Silent operation in idle and at lower output levels
• Sturdy metal chassis – Protection for long-term durability
• CE, CSA, CCC and PSE approvals: – Conforms to building codes worldwide

DESCRIPTION

LUCIA 120/2M Incorporates Ease of Install with 2 X 60 W of Decentralized Power in a Compact, Energy Star Compliant Amplifier.

Lab Gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. Power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab Gruppen output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.

SPECIFICATIONS
