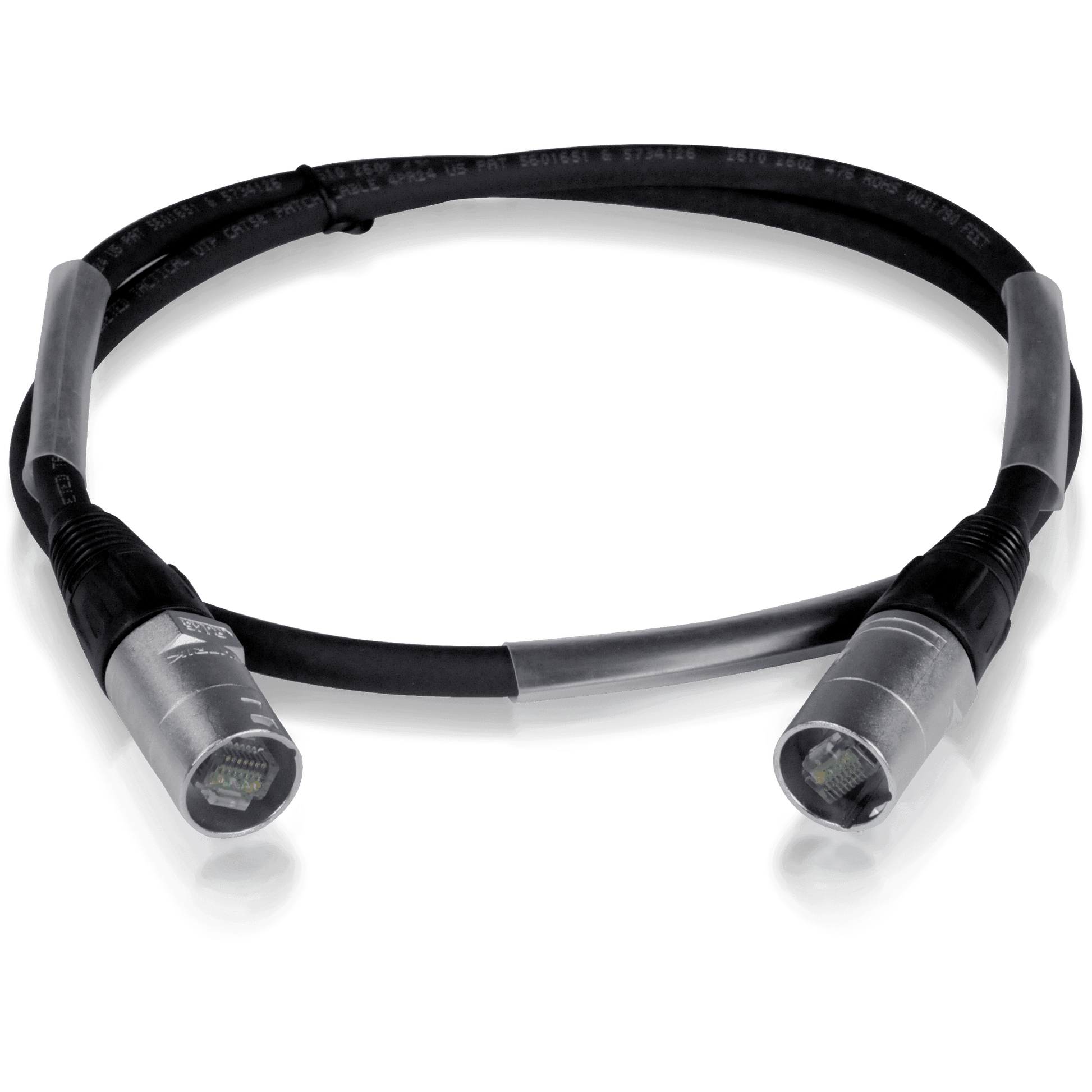

Midas CAT5E-1M Ruggedised Cat5e UTP Network Cable
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Ruggedised Cat5e UTP network cable with Neutrik etherCON* connectors
- Length 1 metre
DESCRIPTION
The CAT5E-1M ruggedised Cat5e cable provides a bidirectional digital audio network data link and features Neutrik etherCON NE8MC-1 connectors with an integral O-ring gasket to achieve IP54 water protection for high reliability, especially desirable in concert touring and festival applications. When used with Midas PRO and M Series and Klark Teknik products equipped with HyperMAC and copper snake interfaces, the CAT5E-1M cable can transmit up to 192 bidirectional channels of 24 bit digital audio at 96 kHz sample rate. CAT5E-1M also supports 24 bidirectional channels and 48 bidirectional channels at 96 kHz and 48 kHz sample rates respectively for AES50 connections. CAT5E-1M can also be used for standard Ethernet applications, and is suitable for both 100 Mbit/s and Gigabit networks.
SPECIFICATIONS
Cable specification
Cat5e
Cable length
1 metre
Cable type
Belden 1305A
Connector carrier type
Neutrik NE8MC-1
Cable diameter
7.6 mm (nominal)
Maximum tensile load
196 N
Minimum bend radius
76 mm
Operating temperature
-20°C to +60°C
Connector carrier protection
IP54
