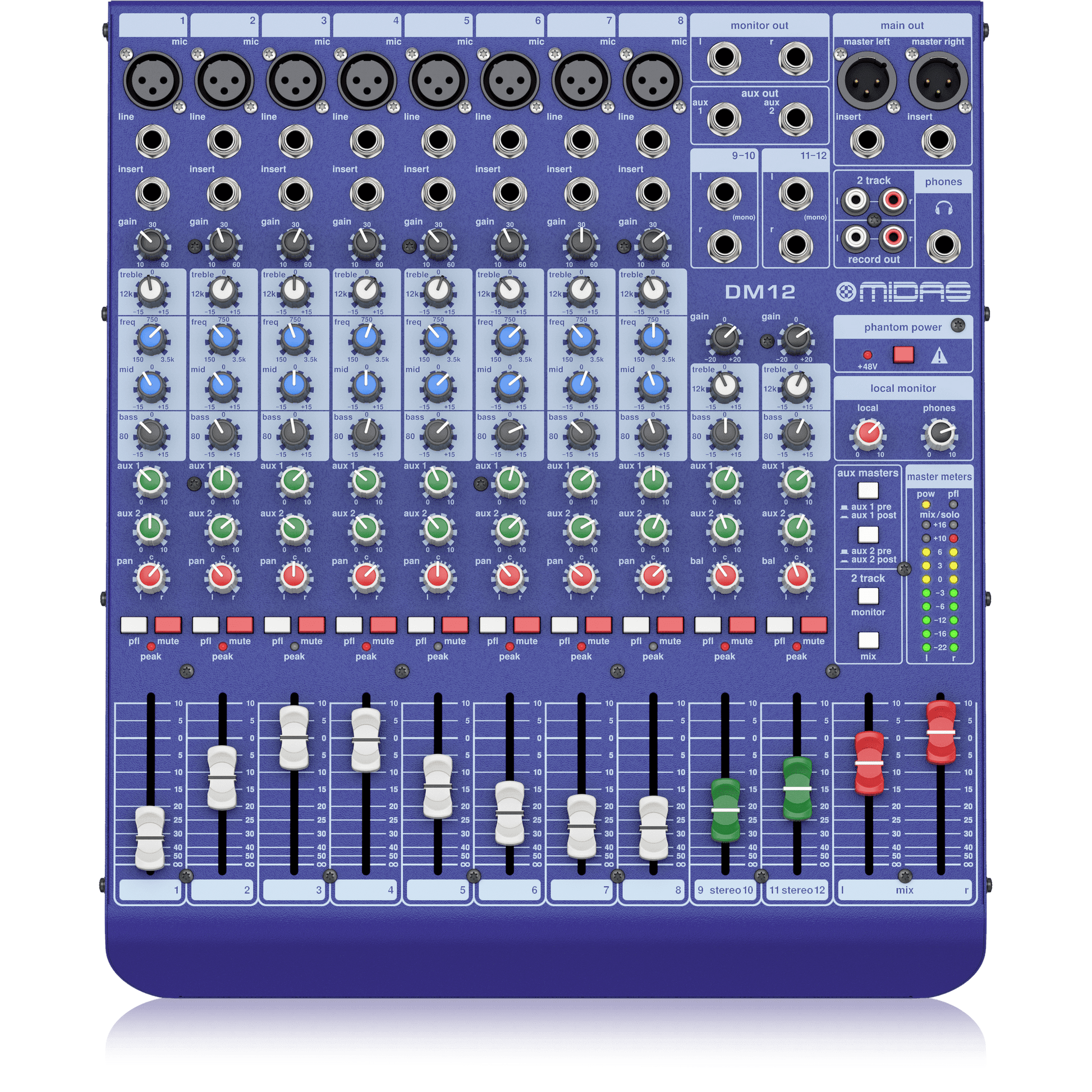

Midas DM12 12 Input Analogue Live and Studio Mixer with Midas Microphone Preamplifiers
Midas DM12 12 Input Analogue Live and Studio Mixer with Midas Microphone Preamplifiers
Midas
Authorised Distributor

Midas DM12 12 Input Analogue Live and Studio Mixer with Midas Microphone Preamplifiers

SKU: DM12

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • 12-channel analog mixer
    • 8 mono input channels and 2 stereo input channels, perfect for small bands and worship teams
    • 3-band EQ on each mono channel for sound shaping (2-band EQ on stereo channels)
    • 2 aux sends for monitor mixes or effects sends, switchable between pre- and post-fader operation
    • 8 low-noise, high-fidelity Midas mic preamps with phantom power
    • Robust chassis for long-term durability



    DESCRIPTION

    The Midas DDA DM12 analog mixer is a simple, great-sounding compact mixing solution. With eight mono inputs and two stereo input channels, you've got enough inputs for small bands or worship teams. You'll be impressed with the sound of the DDA DM12's eight Midas microphone preamps, with ultra-low noise and exceptional sonic detail. Two aux sends are available and can be switched between pre- and post-fader operation.

    Line channels 9/10 - 11/12 are dedicated stereo channels, making them ideal for stereo instruments, such as keyboards – and can also be used for mono signals thanks to a convenient balance control on each 2-channel grouping. These channels can also be used as return inputs for signals sent external effects processing equipment.

    SPECIFICATIONS

    Type Analog
    Channels 12 channels (including 2 stereo channels)
    Faders 12 x 60mm faders
    Equalizer

    Low : ±15 dB @ 80 Hz, shelving

    Mid (mono inputs only) : ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric

    High : ±15 dB @ 12 kHz, shelving
    Mono Inputs

    Mic Inputs (MIDAS mic preamp) : 8

    Type : XLR, balanced

    Impedance : 2 kO, balanced
    Line Input

    Type : ¼" TRS, balanced

    Impedance : 20 kO balanced / unbalanced
    Stereo Inputs

    Type : 4 x ¼" TRS connector, balanced

    Impedance : 20 kO balanced / unbalanced
    Channel Inserts

    Type : ¼" TRS connector, unbalanced
    AUX Sends

    Type : 2 x ¼" TRS connector, balanced

    Impedance : 240 O balanced, 120 O unbalanced
    Monitor Out

    Type : 2 x ¼" TRS connector, balanced

    Impedance : 240 O balanced, 120 O unbalanced
    Main Out

    Type : 2 x XLR, electronically balanced

    Impedance : 100 O balanced, 50 O unbalanced
    Main Out Inserts

    Type : 2 x ¼" TRS connector, unbalanced
    Phone Output

    Type : ¼" TRS connector, unbalanced
    2-Track Input

    Type : 2 x RCA, unbalanced
    Record Out

    Type : 2 x RCA, unbalanced

    Dimensions

    (H x W x D)

    95 x 328 x 370 mm (3.7 x 12.9 x 14.6")

    Weight

    3.9 kg (1.8 lbs)
