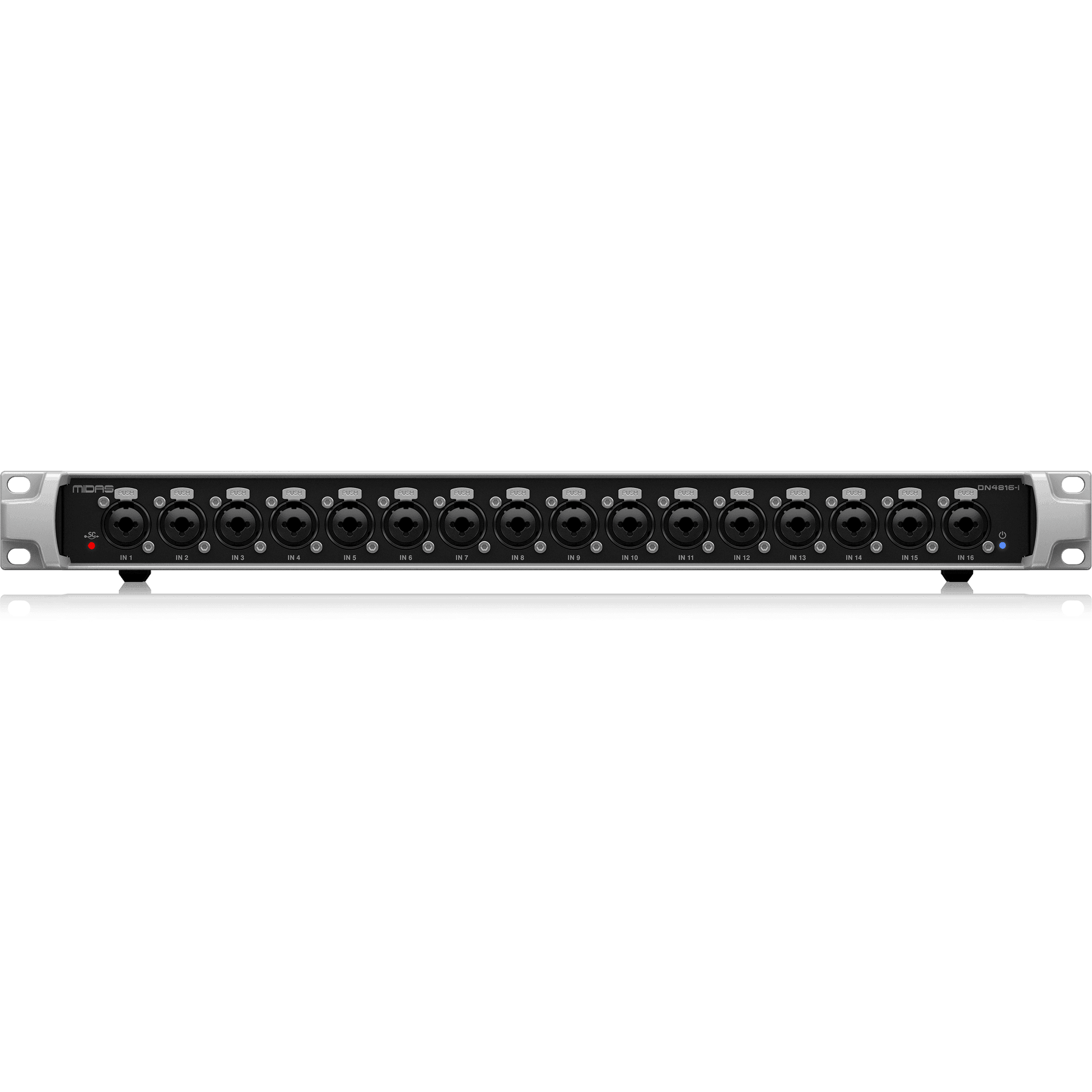

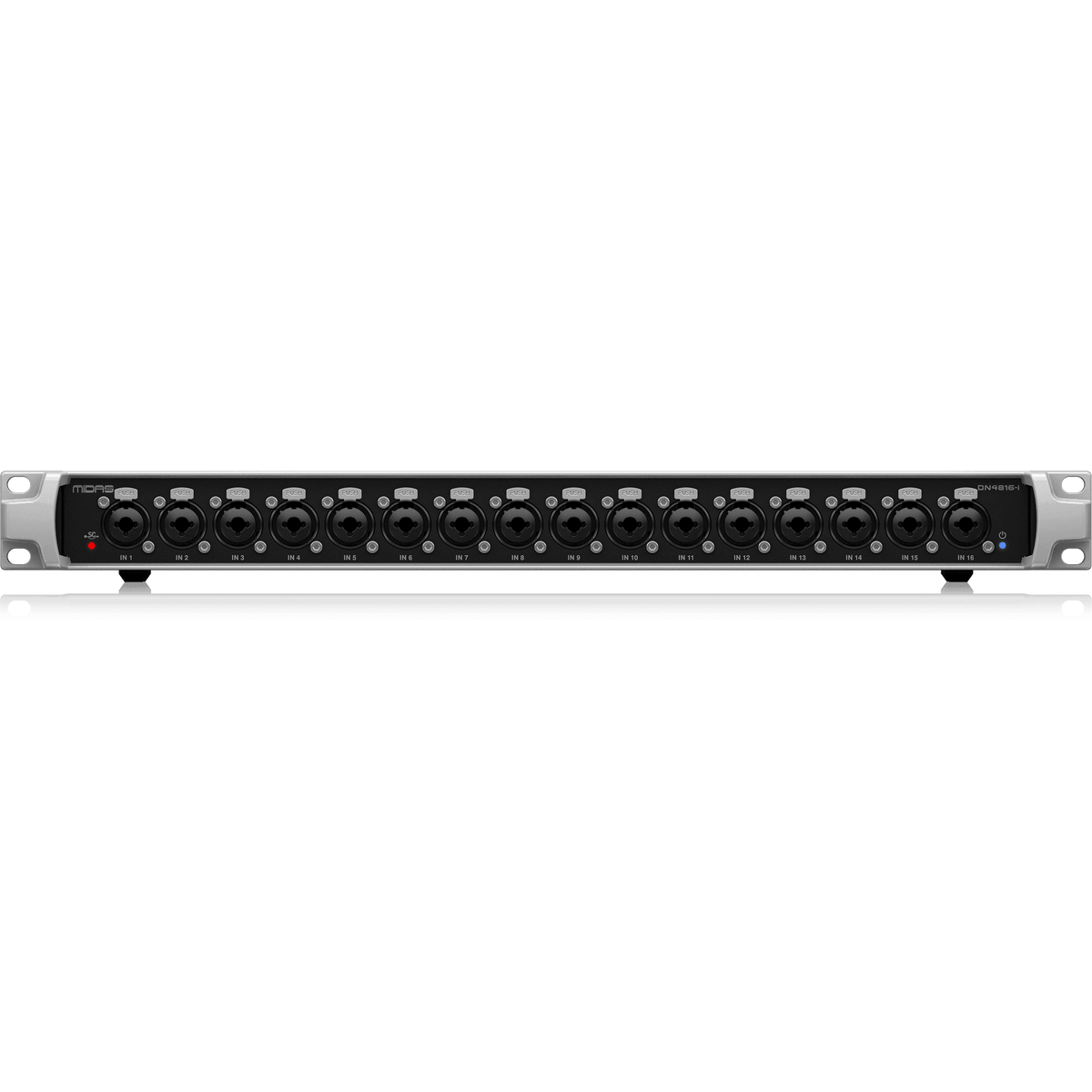

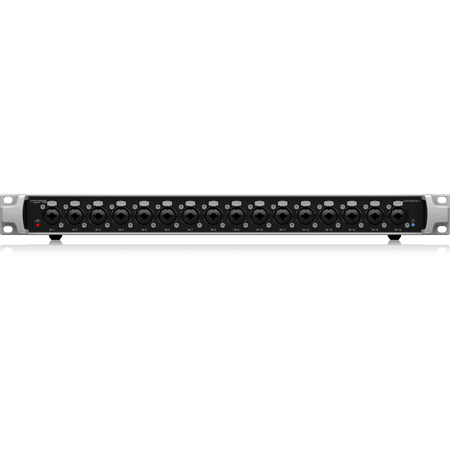

Midas DN4816-I StageConnect Interface
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Breakout box with 16 balanced XLR line inputs for StageConnect and Behringer Ultranet systems
- Can be used as analogue input box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers such as P16 personal monitoring mixers
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Two units can be cascaded for a total of 32 low-latency analogue line inputs feeding the StageConnect bus
DESCRIPTION
The DN4816-I is the perfect solution for connecting additional line inputs to your monitor or FOH console. It provides 16 analogue inputs to connect wireless receivers or other external audio players.
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
SPECIFICATIONS
Processing
D/A conversion
24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity
32 ch, 24-Bit PCM audio
I/O latency
≤0.05 ms
Connectors
Analog Inputs
16 x XLR female jacks, balanced
Impedance
20 kΩ unbalanced / 40 kΩ balanced
Max. input level
+21 dBu
Ultranet
2 x RJ45
Shielded CAT5e cable max. length
75 m
StageConnect
1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable
max. 40 m
USB
Type B
System
Frequency response
20 Hz - 20 kHz ±0.2 dB
Dynamic range
106 dB
Cross talk rejection @ 1 kHz, adjacent channel
106 dB
Noise (20 Hz - 20 kHz bandwidth)
-106 dBFS
Distortion
0.004% / 1 kHz / 0 dBu in
Power
Power supply
12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption
8.5 W
Physical
Standard operating temperature range
5° - 45° C (41° - 113° F)
Dimensions
49 x 483 x 169 mm (1.9 x 19.0 x 6.7")
Weight
2.2 kg (4.9 lbs)
