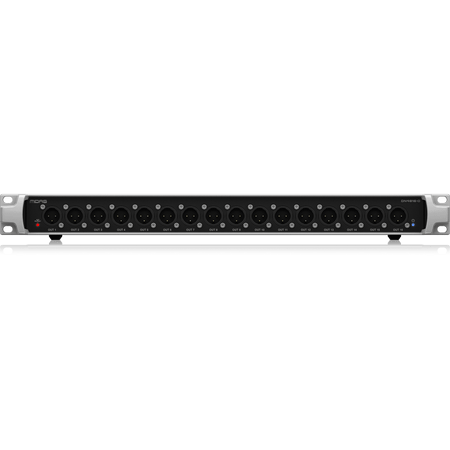

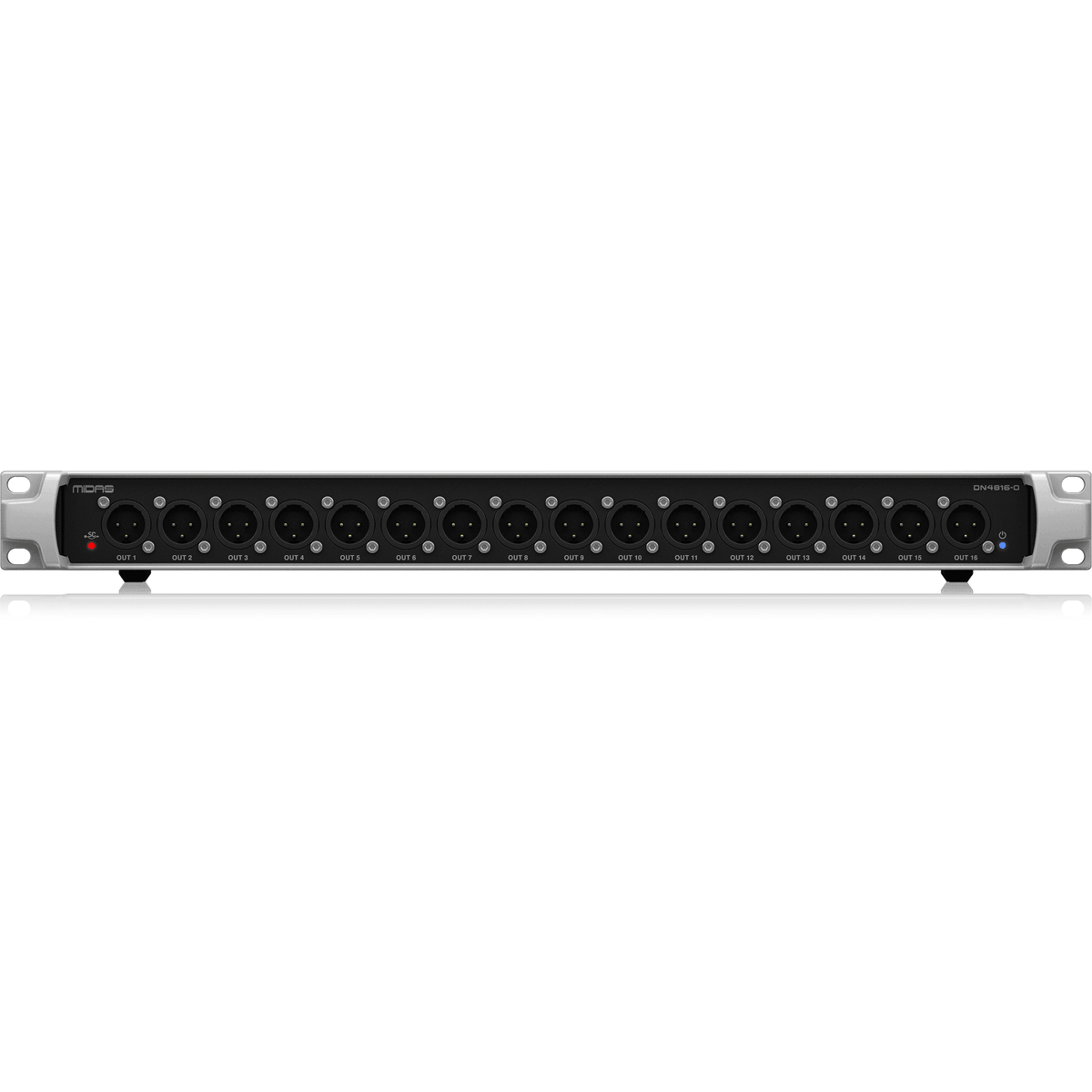

Midas DN4816-O StageConnect Interface
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Breakout box with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems
- Analog output box for other StageConnect devices, Midas HUB4 and Behringer WING or Ultranet transmitters such as Midas MR18/M32 and DL16/DL32 stageboxes
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Two units can be cascaded for a total of 32 low-latency analogue outputs fed from a single StageConnect source
DESCRIPTION
The DN4816-O is the perfect solution for connecting additional line outputs to your monitor or FOH console. It provides 16 analog outputs (e.g., to connect wireless transmitters for in-ear monitoring). Additionally, it provides an Ultranet input, that can be used to forward Signals from an AIR mixer via StageConnect.
The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
SPECIFICATIONS
Processing
D/A conversion
24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity
32 ch, 24-Bit PCM audio
I/O latency
≤0.05 ms
Connectors
Analog Inputs
16 x XLR female jacks, balanced
Impedance
100 Ω unbalanced / 200 Ω balanced
Max. input level
+21 dBu
Ultranet
2 x RJ45
Shielded CAT5e cable max. length
75 m
StageConnect
1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable
max. 40 m
USB
Type B
System
Frequency response
20 Hz - 20 kHz ±0.2 dB
Dynamic range
110 dB
Cross talk rejection @ 1 kHz, adjacent channel
110 dB
Noise (20 Hz - 20 kHz bandwidth)
-90 dBu
Distortion
0.004% / 1 kHz / 0 dBu in
Power
Power supply
12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption
9 W
Physical
Standard operating temperature range
5° - 45° C (41° - 113° F)
Dimensions
49 x 483 x 169 mm (1.9 x 19.0 x 6.7")
Weight
2.2 kg (4.9 lbs)
