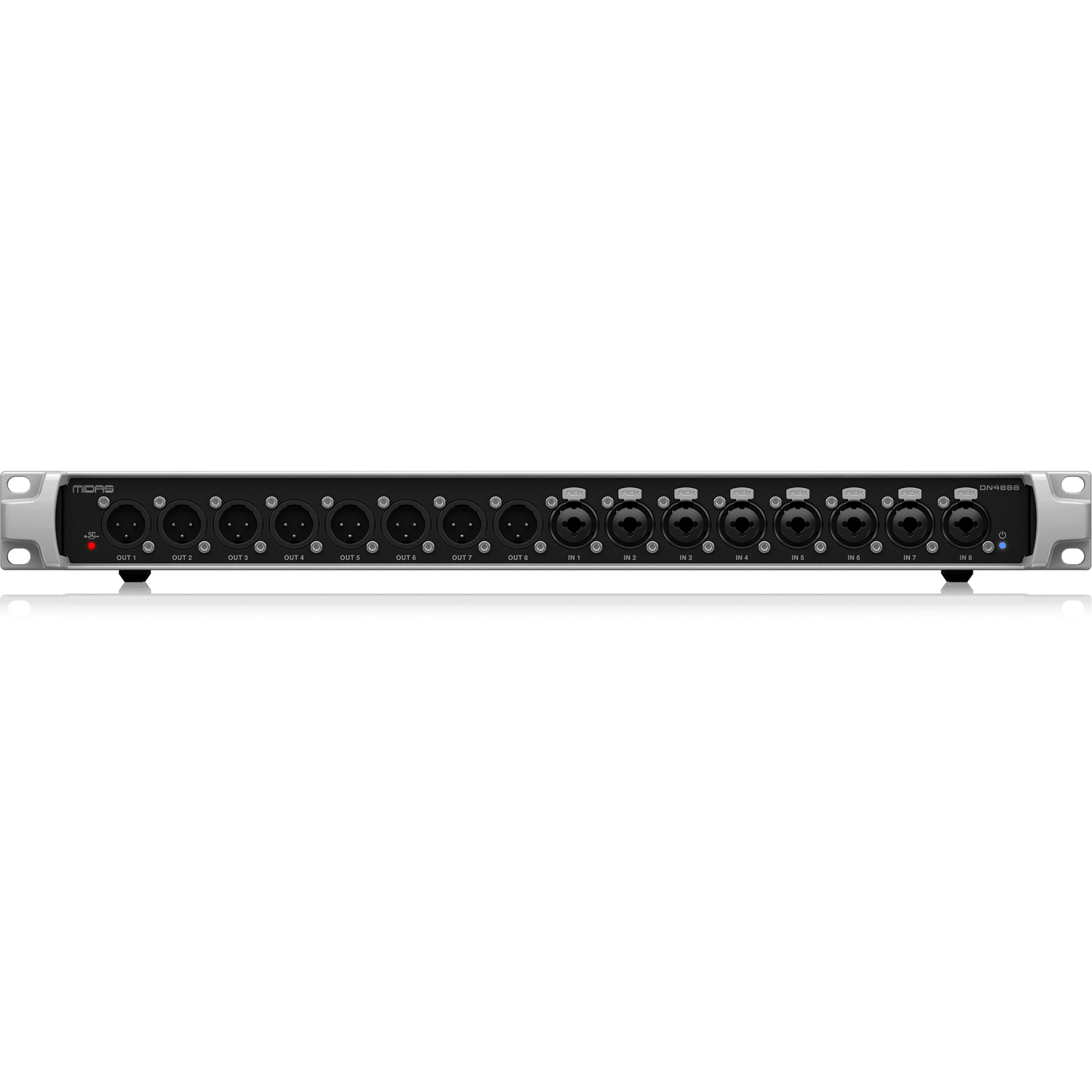

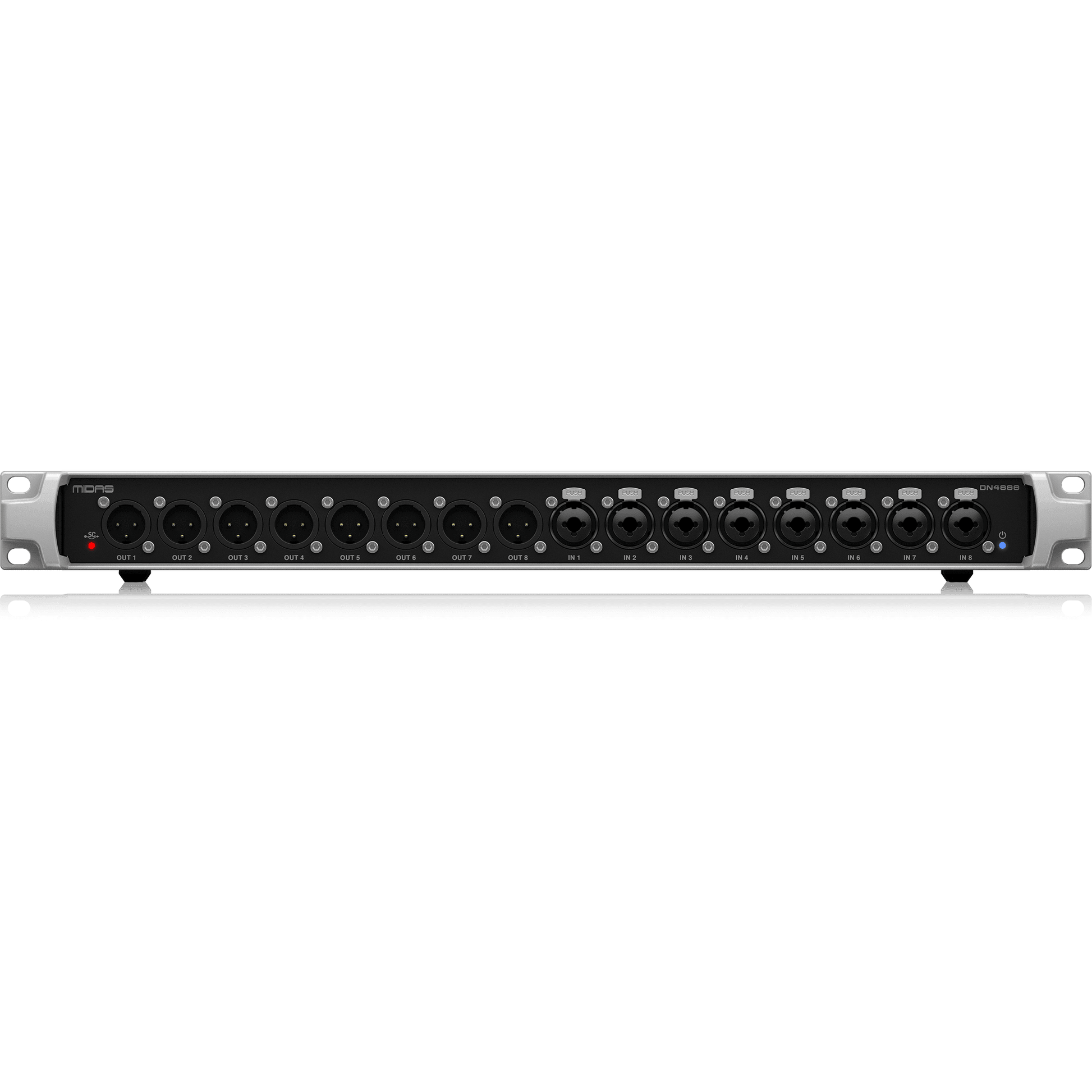

Midas DN4888 Bus-Powered StageConnect Interface
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Breakout box with 8 balanced XLR line in and 8 balanced XLR line out for StageConnect systems
- Can be used as analogue I/O box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers, such as P16 personal monitoring mixers
- StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
- Allows cascading with other StageConnect boxes, such as DN4816-I and DN4816-O for more analogue inputs and outputs
DESCRIPTION
The DN4888 is the perfect solution for connecting additional equipment to your monitor or FOH console. It provides 8 additional analogue in and outputs to enable for 8 analogue inserts or the connection to wireless devices, like 8 wireless microphones and 8 wireless in-ear systems.
SPECIFICATIONS
Processing
D/A conversion
24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity
32 ch, 24-Bit PCM audio
I/O latency
0.05
Connectors
Analog Inputs
8 x XLR female jacks, balanced
Impedance
20 kΩ unbalanced / 40 kΩ balanced
Max. output level
+21 dBu
Ultranet
2 x RJ45
Shielded CAT5e cable max. length
75 m
StageConnect
1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable
max. 40 m
USB
Type B
System
Frequency response
20 Hz - 20 kHz ±0.2 dB
Dynamic range
110 dB DA / 106 dB AD
Cross talk rejection @ 1 kHz, adjacent channel
110 dB DA / 104 dB AD
Noise (20 Hz - 20 kHz bandwidth)
-90 dBu DA / -106 dBFS AD
Distortion
0.004% / 1 kHz / 0 dBu in
Power
Power supply
12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption
8.5 W
Physical
Standard operating temperature range
5° - 45° C (41° - 113° F)
Dimensions
49 x 483 x 169 mm (1.9 x 19.0 x 6.7")
Weight
2.2 kg (4.9 lbs)
