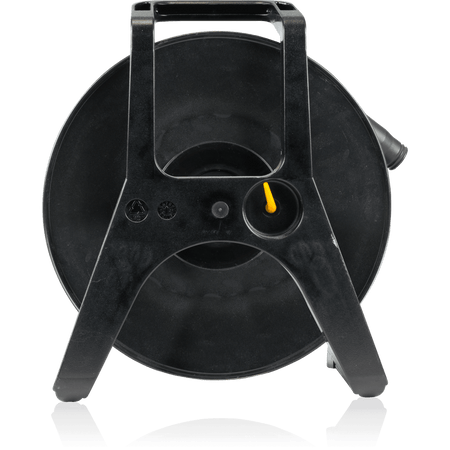

Midas FIBRE-150M Ruggedised Multimode Optical Fibre Cable (150 Meter Reel)

Midas FIBRE-150M Ruggedised Multimode Optical Fibre Cable (150 Meter Reel)

Regular price Dhs.5,793.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.5,793.00 AED
Sale Sold out

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES
  • Ruggedised multimode optical fibre cable with Neutrik opticalCON* DUO connectors

  • Length 150 metres

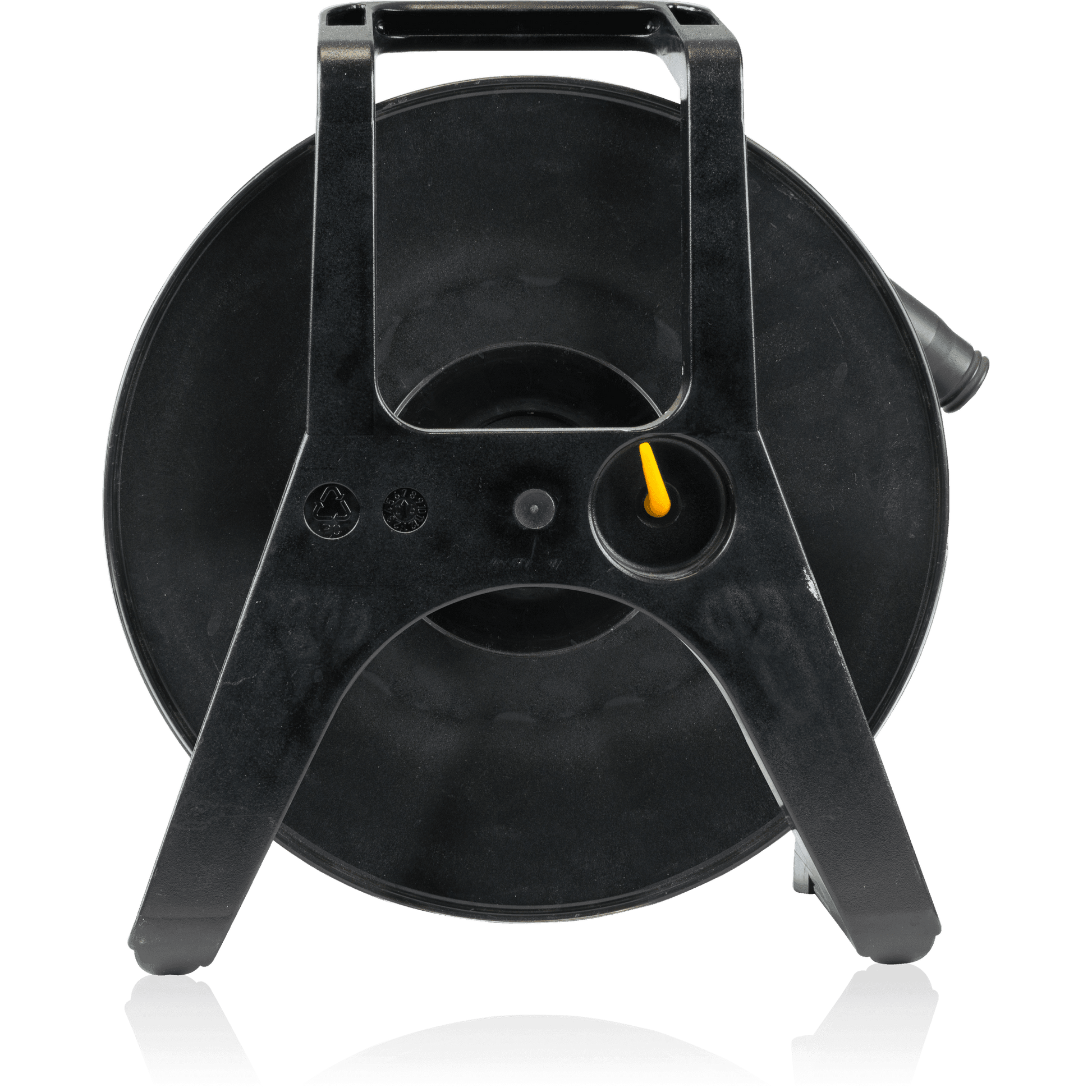

  • Supplied on Schill* GT310 drum with rubberised frame and integral carrying handle


DESCRIPTION



The FIBRE-150M ruggedised multimode optical fibre cable provides a bidirectional data link in a single 150 metre cable and features Neutrik opticalCON DUO connectors for high reliability, especially desirable in concert touring and festival applications where the optical connection needs to be protected against the ingress of dirt and dust. When used in conjunction with MIDAS and KLARK TEKNIK products equipped with optical snake interfaces, the FIBRE-150M cable can transmit 192 bidirectional channels of 24 bit digital audio at 96 kHz sample rate.

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedised and durable all-metal housing with a protective rubber coating. It features a spring loaded push-pull locking mechanism and the optical connection is protected by a lockable metal cap with an integral O-ring seal. FIBRE-150M meets the IP65 standard for environmental protection when fitted to its mating chassis connectors.

The 2M dual fi bre multimode optical cable has a nominal 5.4 mm diameter and features two 900 μm diameter optical fibres with both hard elastomeric and acrylate coatings and a 50 μm core diameter. Aramid yarn is used for internal strain relief and a UL94HB rated flame retardant polyurethane jacket provides overall protection. The FIBRE-150M cable is supplied on a Schill GT310 drum with rubberised frame and integral carrying handle for ease of transport, deployment and respooling.



SPECIFICATIONS

General Specifications

Neutrik Part Number

NKO2-A-2-150

Cable length

150 metres (Anti-kink to Anti-kink)

Connector type

opticalCON DUO NKO2-A

Optical fibre connection

LC-Duplex

Optical fibre type

2M multimode PC

Optical fibre standard

OM3

Optical fibre core diameter

50 Om

Optical fibre overall diameter

900 Om

Numerical aperture

0.2

Proof test level

100 kpsi

Wavelength

850 nm/1300 nm

Attenuation

3.0 dB/km (850 nm) 1.0 dB/km (1300 nm)

Insertion loss

< 0.5 dB per connection

Minimum return loss

45 dB

Cable diameter

5.4 ± 0.25 mm

Maximum tensile load

1800 N (Installation) 600 N (Operation)

Minimum bend radius

80 mm (Installation) 40 mm (Operation)

Cable reel

Schill GT310

Cable reel dimensions

310 mm diameter x 230 mm deep x 360 mm high (12.2" x 9.1" x 14.2")

Operating temperature

-25°C to +75°C

Flammability

UL94HB

Protection (when mated)

IP65

Net weight
