Midas HUB4 Monitor System Hub with 4 PoE Ports for Personal Mixers

Midas HUB4 Monitor System Hub with 4 PoE Ports for Personal Mixers

Dhs.5,061.00 AED
Dhs.0.00 AED Dhs.5,061.00 AED
Sale Sold out

KEY FEATURES

  • Supplies PoE (Power over Ethernet) for up to 4 DP48 personal mixers and compatible stage boxes
  • AES50 connectivity for daisy-chaining hubs or stage boxes with 48 bidirectional channels of 24-bit/48kHz audio
  • 16 analog outputs for sending personal stereo mixes to IEM transmitters
  • Receives channel names and group assignments from compatible consoles
  • Can also connect and power MIDAS stage boxes
  • Personal mix outputs can be monitored via AES50 upstream to connected consoles
  • Supports remote control forwarding of a personal mixer from another
  • StageCONNECT port outputs 32 channels of low-latency audio via a single XLR cable
  • Offers remote operation via Cat 5e cable
  • Universal switch-mode power supply allows you to use your gear anywhere in the world
  • Durable Neutrik etherCON ports, and a rugged, road-worthy chassis



DESCRIPTION

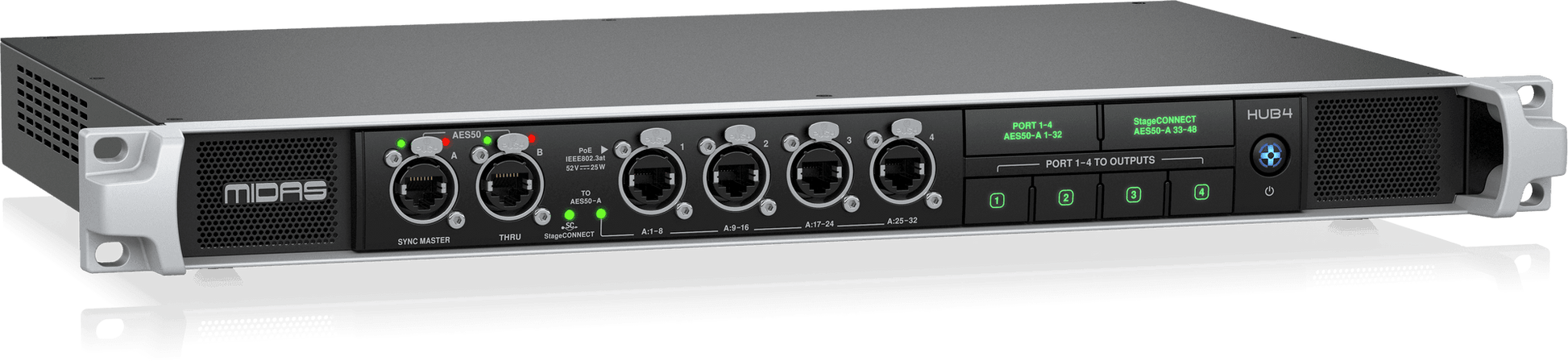

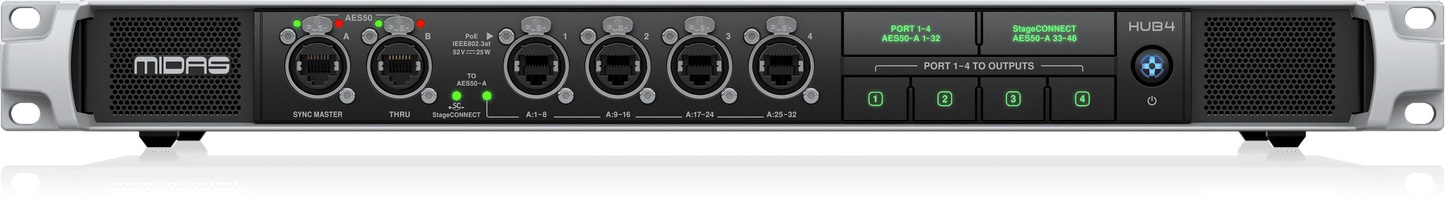

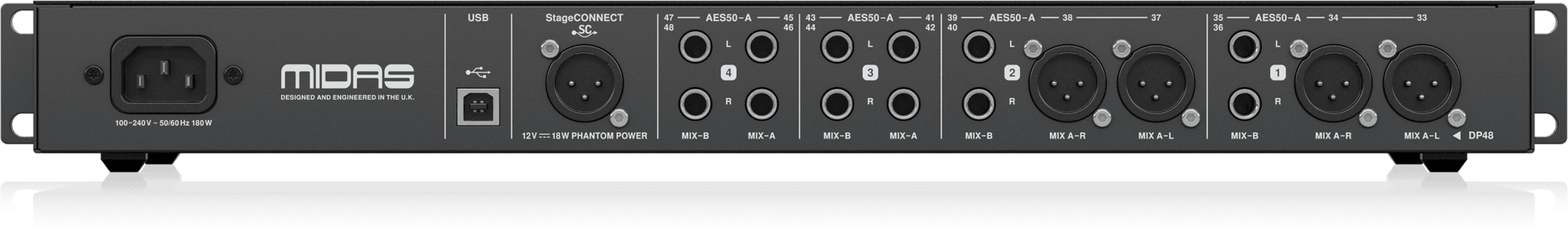

The MIDAS HUB4 supplies PoE remote power for up to four DP48 personal mixers and compatible stage boxes. This personal monitoring hub includes AES50 connectivity for daisy-chaining hubs or stage boxes with 48 bidirectional channels of 24-bit/48kHz audio, as well as 16 analog outputs for sending personal stereo mixes to IEM transmitters. The HUB4 can receive channel names and group assignments from compatible consoles. You can also connect and power MIDAS stage boxes, while personal mix outputs can be monitored via AES50 upstream to connected consoles. The HUB4 supports remote control forwarding of a personal mixer from another, while a StageCONNECT port outputs 32 channels of low-latency audio via a single XLR cable. The MIDAS HUB4 offers remote operation via Cat 5e cable, and features a universal switch-mode power supply, durable Neutrik etherCON ports, and a rugged, road-worthy chassis.



SPECIFICATIONS

Number of Ports:

4 x Link In, 1 x Sync, 1 x Thru

Connection Type:

Cat5e

Input Channels:

4

Analog Outputs:

1 x XLR (StageCONNECT), 4 x XLR (mix groups 1, 2), 12 x 1/4" (mix groups 1-4)

USB:

1 x Type B

Form Factor:

Rackmount

Rack Spaces:

1U

Power Source:

Standard IEC AC power cable

Height:

1.97"

Width:

18.98"

Depth:

11.46"

Weight:

8.72 lbs.
