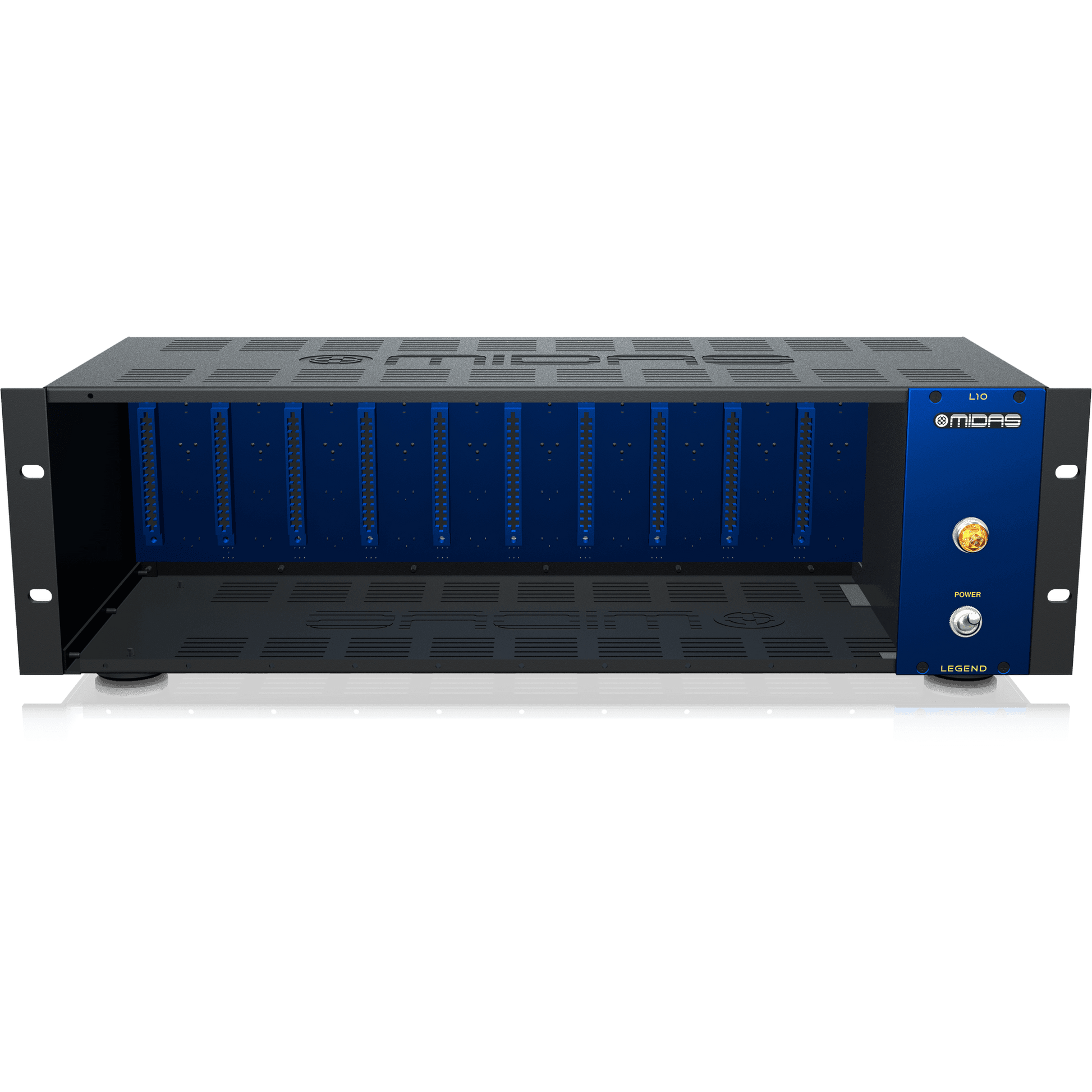

Midas L10 00 Series Rackmount Chassis for 10 Modules with Advanced Audio Routing

SKU: L10

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • 500 series rackmount chassis for 10 single-width modules

    • Advanced audio routing reduces cabling complexity

    • Audio output link switches provide cable-free daisy-chain connections between modules

    • Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking

    • Rugged 3U rackmount chassis for durability in portable applications

    • Earth lift switch eliminates any ground loop problems

    • High power auto-ranging universal switch-mode power supply for use worldwide

    • Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ +48 V

    • Main and auxiliary inputs and outputs per channel on Neutrik* XLR connectors

    • Premium quality components throughout for crystal-clear audiophile signal path


    DESCRIPTION

    The LEGEND L10 500 Series Rackmount Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 10 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L10 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.

    SPECIFICATIONS

    Controls

    Power

    Front panel switch and lamp

    Comp Bus

    Rear panel switches,1-2, 2-3, 3-4, 4-5, 5-6, 6-7, 7-8, 8-9, 9-10

    Audio link

    Rear panel switches,1-2, 2-3, 3-4, 4-5, 5-6, 6-7, 7-8, 8-9, 9-10

    Ground lift

    Rear panel switch

    Input and Output

    Input

    10 x balanced XLR

    Aux input

    10 x balanced XLR

    Output

    10 x balanced XLR

    Aux output

    10 x balanced XLR

    Power Requirements

    AC Input Voltage

    100-240 VAC, 50-60 Hz, IEC input

    Output Voltages

    3.2 A @ ±16 V, 300 mA @ +48 V (phantom power)

    Power consumption

    Typically 55 W

    Physical

    Dimensions (HxWxD)

    140 x 483 x 211 mm (5.5 x 19 x 8.3")

    Dimensions (HxWxD) without feet

    132 x 483 x 211 mm (5.2 x 19 x 8.3")

    Weight

    4.9 kg (10.8 lbs)
