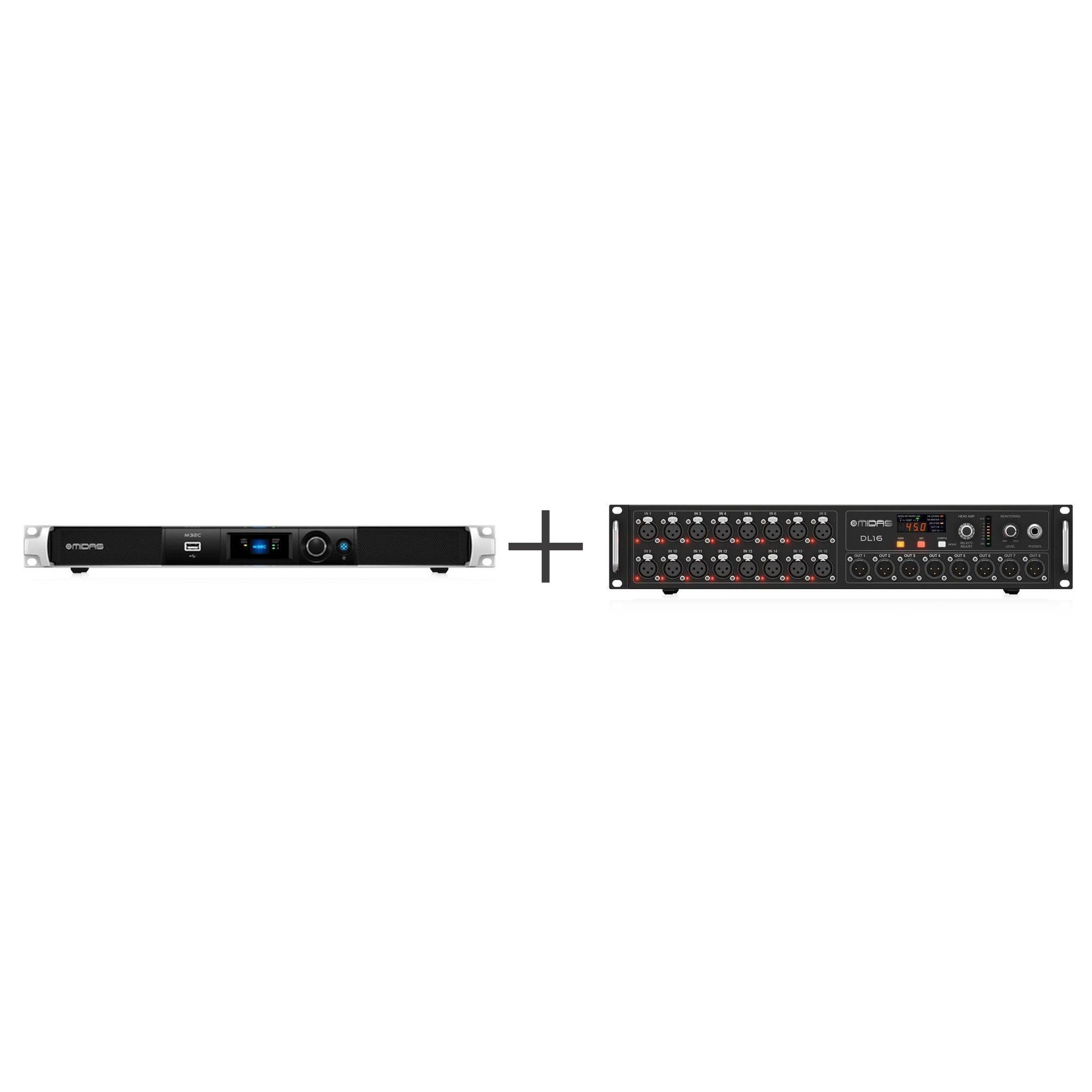

Midas M32C Bundle

M32C

The 40-input, 25-bus M32C takes the brain of the flagship M32 Digital Mixing Console and packs it all into a high-performance aluminium and steel 1U form factor. Combine the M32C with our DL16 or DL32 Stage Boxes to effortlessly run sound with high I/O counts in multiple remote locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by the M32C. All of this can be managed concurrently from various locations and instances via our free remote control software applications, M32-EDIT, M32-MIX, and M32-Q.

Above all, M32C is designed to put the power of digital in your hands, without compromise. Midas’ singular focus on a matchless value proposition means M32C integrates advanced features such as integrated personal monitor mixing and true high-speed digital audio networking as standard features.

• 40-input channel, 25-bus, 1U rackmountable digital mixing core for live and installed sound application
• 25 time-aligned and phase-coherent mix buses

• AES50 networking allows up to 96 inputs and 96 outputs
• High-performance aluminium and high-impact steel structure
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines

• 32 x 32 channel USB 2.0 audio interface
• Built-in expansion port for audio interface cards or digital networking bridges
• MIDI In/Out for remote scene recall or controlling other MIDI equipment
• Optional wireless remote control with Midas Apps for iPhone* and iPad*
• Auto-ranging universal switch-mode power supply

DL16

Digital mixing has revolutionized virtually everything in the live entertainment production work flow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to Behringer P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.

If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.

• 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 8 electronically balanced low impedance line level outputs

• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

• All settings programmable from front panel controls or console
• Status indicator LEDs on front panel
• Headphones output assignable to any of the inputs or outputs for on-stage monitoring
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports

• Rugged 2U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply

DL32

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

• 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes no merger or router required
• Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply

NCAT5E50M

 Built from highly-flexible Neutrik etherFLEX and utilizing ultra-rugged etherCON connectors, NCAT5E-50M cable lends itself well to medium and long runs of AES50, Dante, EtherSound, CobraNet, AVB audio networking, or general-purpose Ethernet. Dual-shielded and dual-jacketed, NCAT5E-50M cable protects you against EMI and ESD interference as well as damage and breakage.

• Ultra-rugged and highly-flexible Neutrik etherFLEX Cat 5e cable
• Tested for both AES50 and EtherSound audio networking
• Dual-shielded for protection against EMI and ESD interference
• Dual-jacketed with PUR and FRNC layers for enhanced cable resilience
• Shielded Hirose RJ45 protected by Neutrik etherCON connectors on both ends
