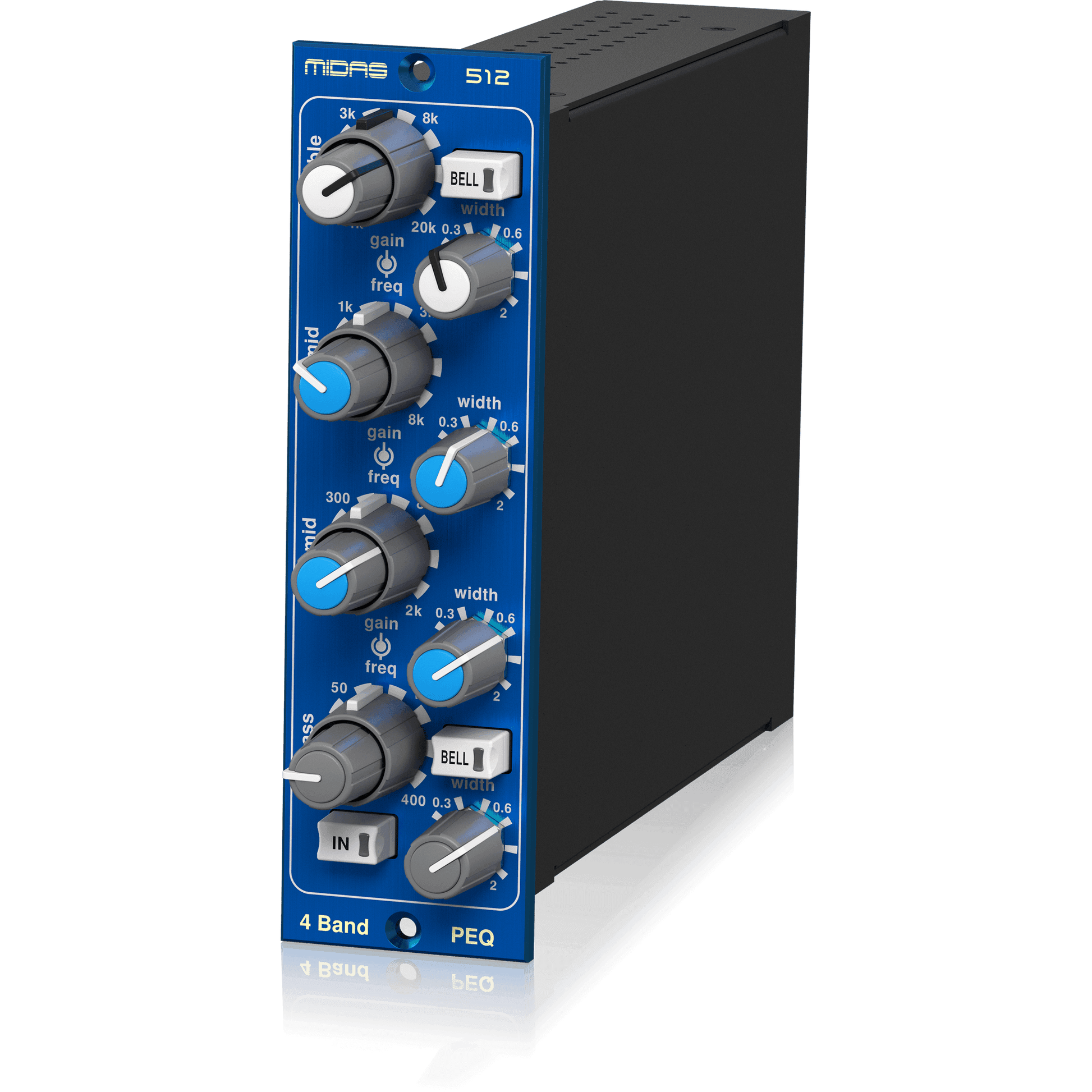

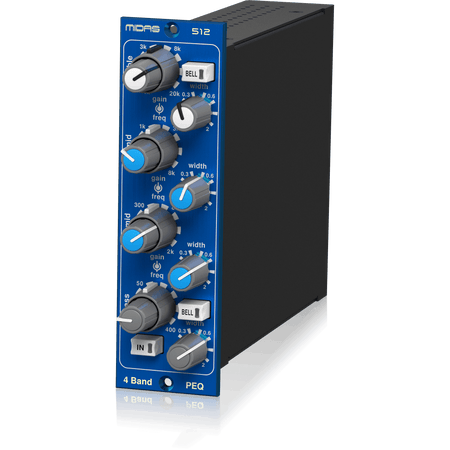

Midas PARAMETRIC EQUALISER 512 V2
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Compact 500 Series module with enhanced Midas HERITAGE 3000 four band fully parametric equaliser
-
Class leading equaliser acclaimed for it's warm and responsive character with fast easy setup
-
Precision dual concentric controls give instant access to fully variable gain and frequency settings
-
Bass and treble bands with selection switches for bell or shelving responses
-
Fully variable bandwidth controls on all four bands in bell mode
-
High power balanced output drives long audio cables with ease
-
High performance electronically balanced input stage with high common-mode rejection
-
Ultra low noise design using premium quality op-amps
-
True hardware bypass selection switch removes all circuitry from the signal path when equalisation is not required
-
Power up mute relays prevent switch on thumps
-
Advanced design with low power consumption gives extended component life
-
Premium quality components throughout for a crystal-clear audiophile signal path
DESCRIPTIONThe PARAMETRIC EQUALISER 512 is a compact 500 Series 4 band fully parametric equaliser based on channel strip originally provided in the legendary Midas HERITAGE 3000 mixing console. When used in conjunction with the LEGEND L10, L6, or other standard 500 Series rackmount chassis, the 512 provides the ideal EQ solution for users seeking Midas performance in a modular format that boasts upgraded, premium-quality performance.
SPECIFICATIONSControls
Treble
Dual freq/gain knobs, shelf/bell switch, width knob (bell mode)
Hi mid
Dual freq/gain knobs, width knob
Lo Mid
Dual freq/gain knobs, width knob
Bass
Dual freq/gain knobs, shelf/bell switch, width knob (bell mode)
EQ in
In/out switch
Input and Output
Input
Mono, balanced line
Output
Mono, electronically balanced
System
Noise at unity gain
-97 dBu (22 Hz - 22 kHz)
CMRR, unity gain, 1 kHz
-70 dB (typical)
Input impedance, 1 kHz
20 kΩ
Frequency response, unity gain (EQ set flat)
20 Hz - 20 kHz, +/- 1 dB
Distortion, unity gain, 1 kHz
0 dBu
<0.005%
+10 dBu
<0.005%
+20 dBu
<0.01%
Maximum input level, 1 kHz
+21 dBu
Maximum output level, 1kHz
+21 dBu
Output impedance, 1 kHz
50 Ω
EQ
Treble (shelf mode)
1 kHz to 20 kHz, +/- 15 dB cut/boost, slope = 4 dB per octave
Treble (bell mode)
1 kHz to 20 kHz, +/- 15 dB cut/boost, bandwidth 0.1 - 2 octaves
Hi mid (bell only)
400 Hz to 8 kHz, +/- 15 dB cut/boost, bandwidth 0.1 - 2 octaves
Lo mid (bell only)
100 Hz to 2 kHz, +/- 15 dB cut/boost, bandwidth 0.1 - 2 octaves
Bass (bell mode)
20 Hz to 400 Hz, +/- 15 dB cut/boost, bandwidth 0.1 - 2 octaves
Bass (shelf mode)
20 Hz to 400 Hz, +/- 15 dB cut/boost, slope = 4 dB per octave
Power Requirements
Voltage
+16 V and -16 V
Power consumption
100 mA, 3.2 W
Physical
Dimensions (H x W x D)
132 x 38 x 184 mm (5.2 x 1.5 x 7.2")
Weight
0.7 kg (1.5 lbs)
-
