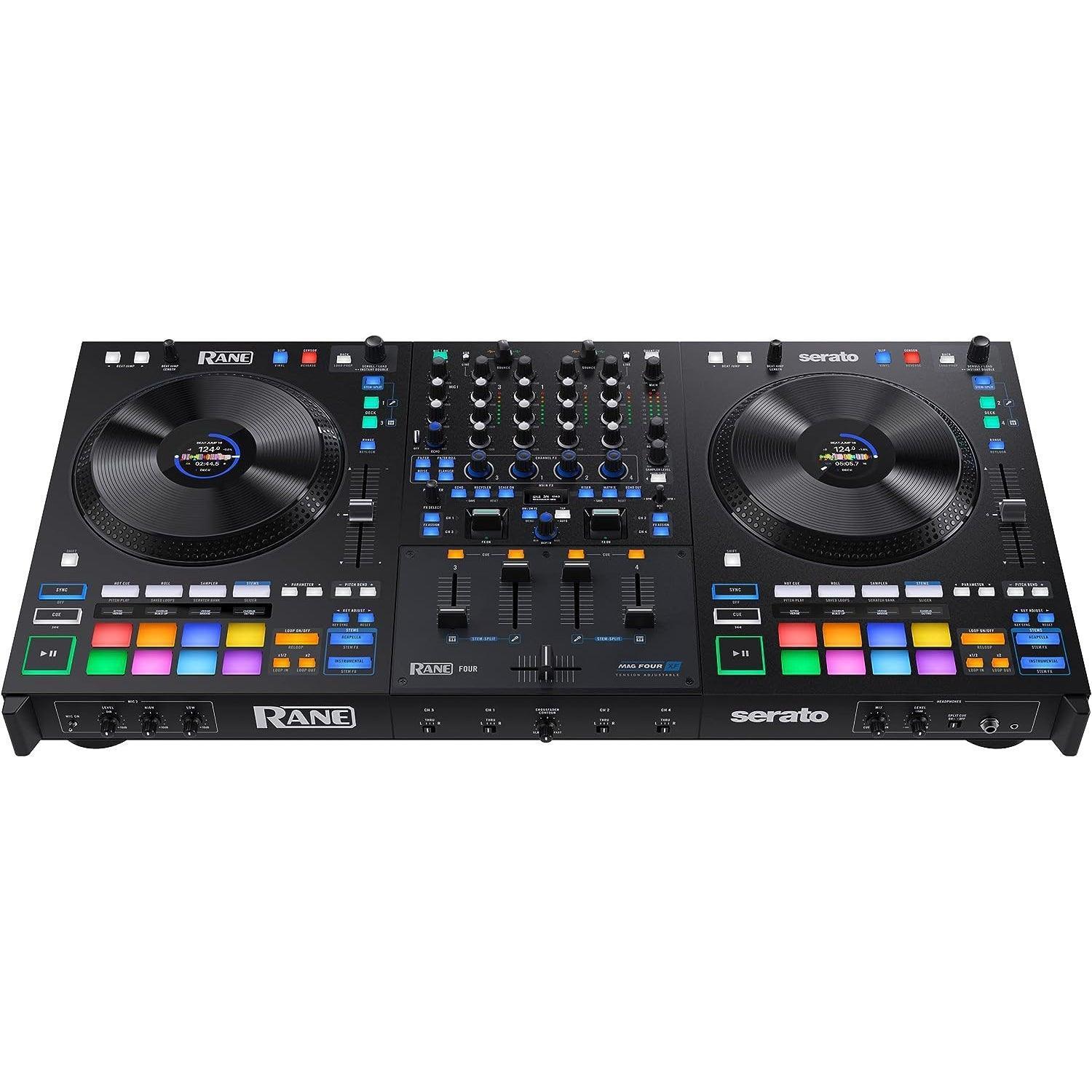

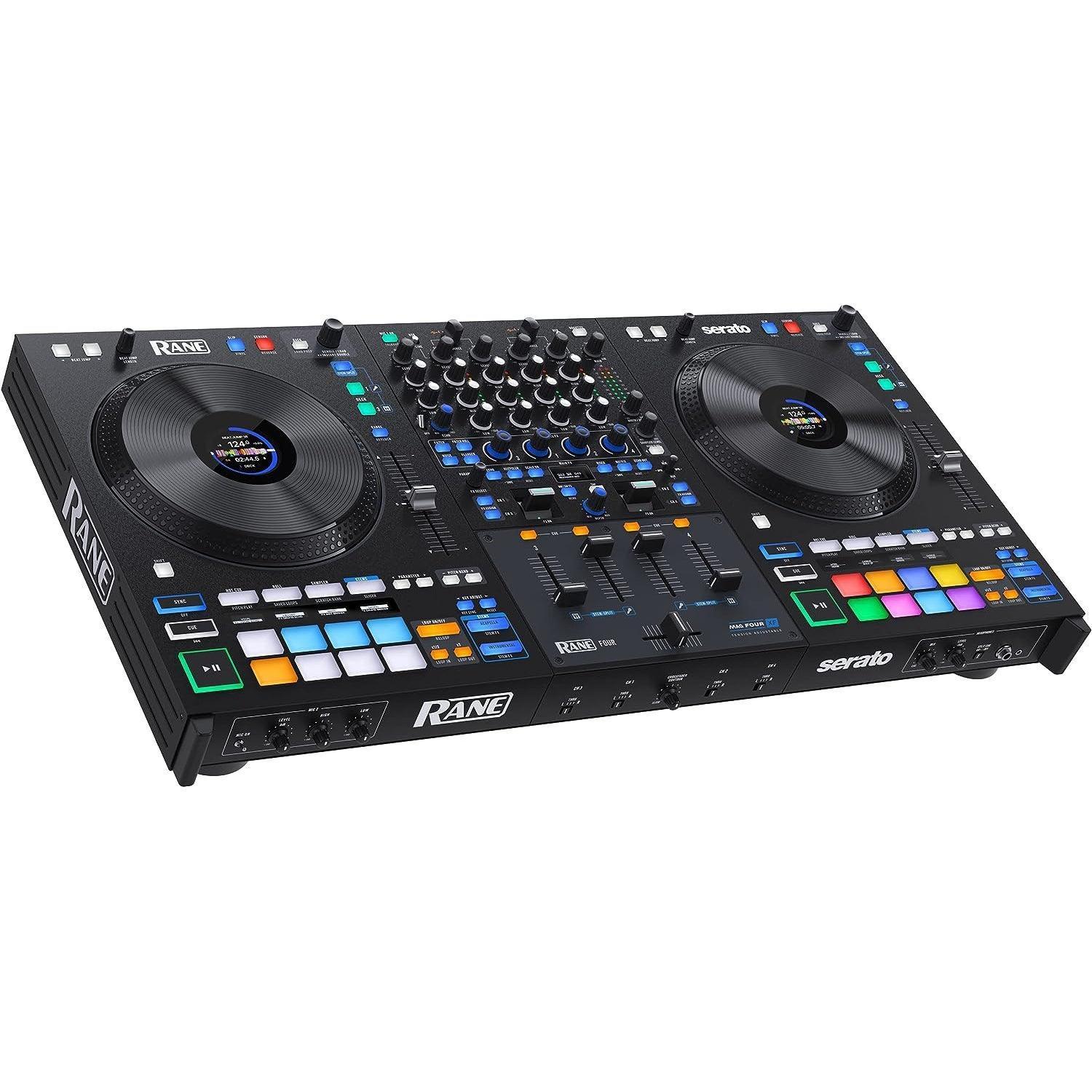

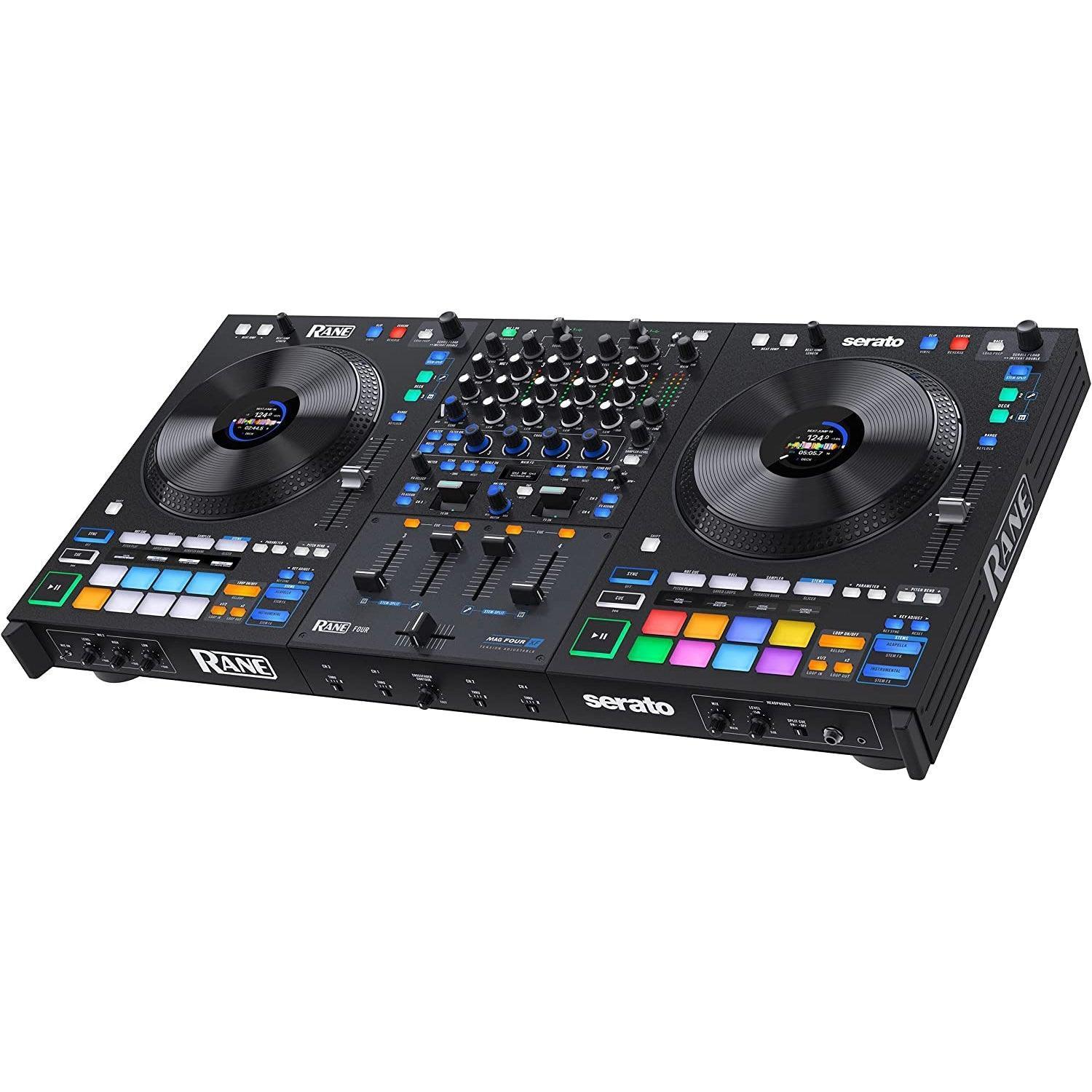

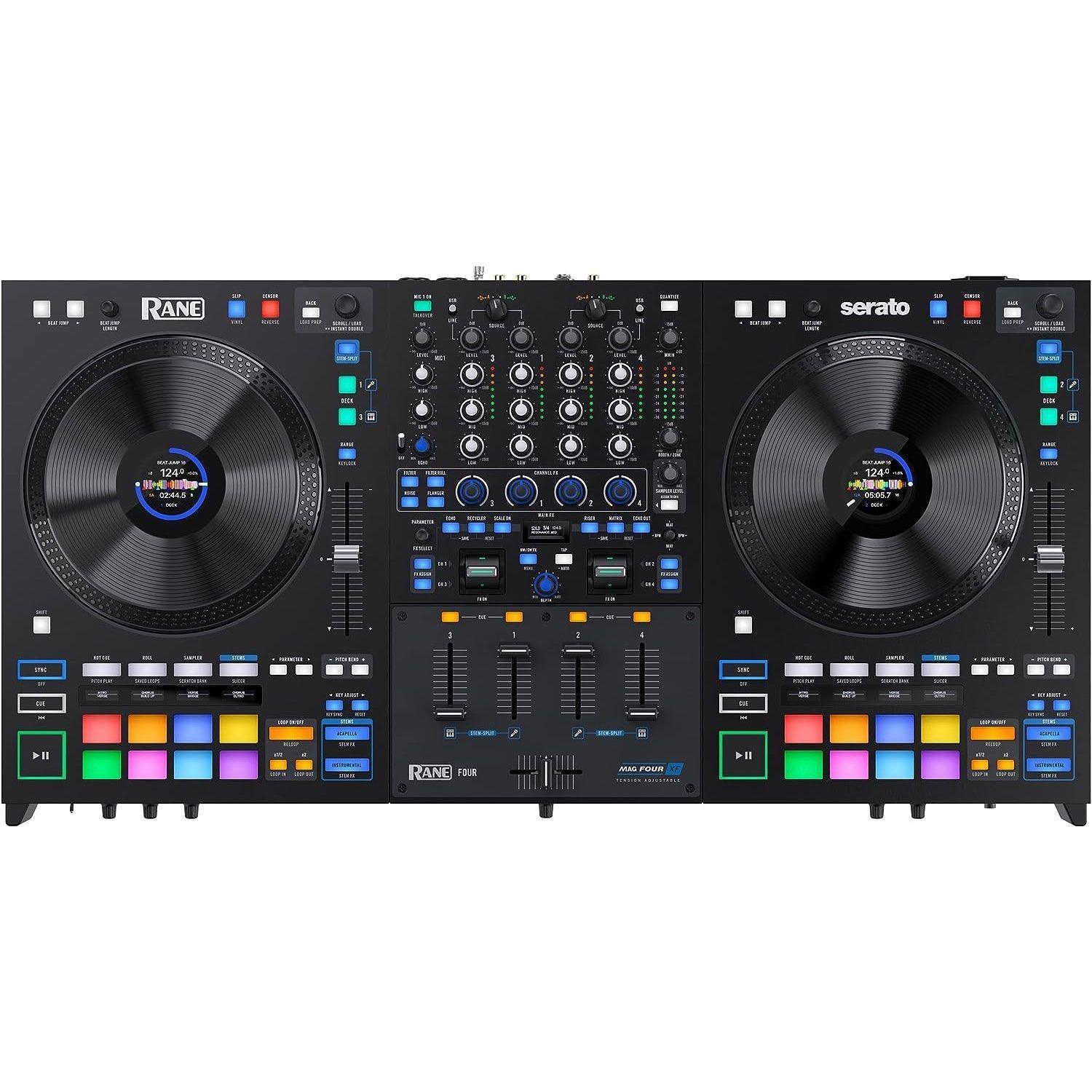

RANE FOUR DJ Controller
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- The 8 OLED displays above the 16 Performance Pads offer visual feedback for all pad modes. See Cue, Loop, Sample names, Roll and Loop lengths, beat divisions, Pitch Play tuning, Stem elements and FX
- Add flavor to your individual Stems and tracks with the 22 hardware Main FX and 4 knob-controlled Channel FX like Reverb, Scale Down Echo, Recycler, Riser, Filter, Filter Roll, Noise, Flanger and more
- 4-Channel mixer with full EQ control, intuitive FX assignment, enhanced Sampler routing and quick-access jog wheel deck selection buttons and 2 external Line/Phono ins for external turntables or decks
- Access Serato DJ Pro with Pitch 'n Time. Complement your performance using the MAG FOUR tension-adjustable crossfader with contour control to adjust the slope of the crossfader curve
- Mix with 8.5" responsive jog wheels and 8 pads with Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer and Combo Pad mode enabling 2 modes at once - one for the top pads and one for the bottom ones
- From the main stage to the underground, Serato DJ Pro is the trusted DJ software app for the DJing elite. Renowned for its reliability and packed with features to empower outstanding performances
DESCRIPTION
RANE has produced the ultimate DJ setup, in collaboration with Serato, providing superior Stems control.
Fusing the renowned industrial-grade build and sound quality of RANE hardware with the powerful new Stems capabilities of Serato DJ software, ensures the RANE FOUR will always be by your side, no matter the battle.
SPECIFICATIONS
Digital Audio - Converters: Cirrus Logic, 24-bit PCM, 48 kHz
- Digital Signal Processing: 32-bit, Floating Point, Double precisio
- Dynamic Range (A-weighted, unity gain):
- ADC: 113 dB
- DAC: 113 dB
- CD Input to Analog Output: 110 dB
- CD Input to USB Output: 113 dB
- USB Input to Analog Output: 113 dB
Inputs - Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
- Analog Gain: 25 dB
- Maximum Input: 110 mV
- Gain Trim: Off to +26 dB (unity at center)
- Tone Control: 2-band
- Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
- Line: Line
- Maximum Input: 4 Vrms
- Gain Trim: Off to +12 dB
- Tone Control: 3-band, full-cut to +10 dB
- THD+N (20 kHz BW @ 1 kHz: 0.004%
- Phono: RIAA
- RIAA Curve: +/-0.25 dB
- Gain (@ 1 kHz): 31.5 dB
- Maximum Input (@ 1 kHz): 106 mV
- Dynamic Range (A-weighted): 102 dB
Outputs - Main Outputs (XLR):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
- Main Outputs (RCA stereo pair):
- Maximum Output: 4 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
- Booth Outputs (1/4”):
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat - 20-20kHz
- Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
- Maximum Output: 4 Vrms Voltage: (no load)
- Output Power: 50 mW (50 ohms)
- Dynamic Range (A-weighted): 108 dB
Pads - (16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays - (2) 320 x 240 Color LCD’s
Pad & FX Displays - (9) 128 x 32 Monochrome OLED’s
Faders - (1) MAG FOUR tension-adjustable crossfader with contour
- (4) Standard channel faders

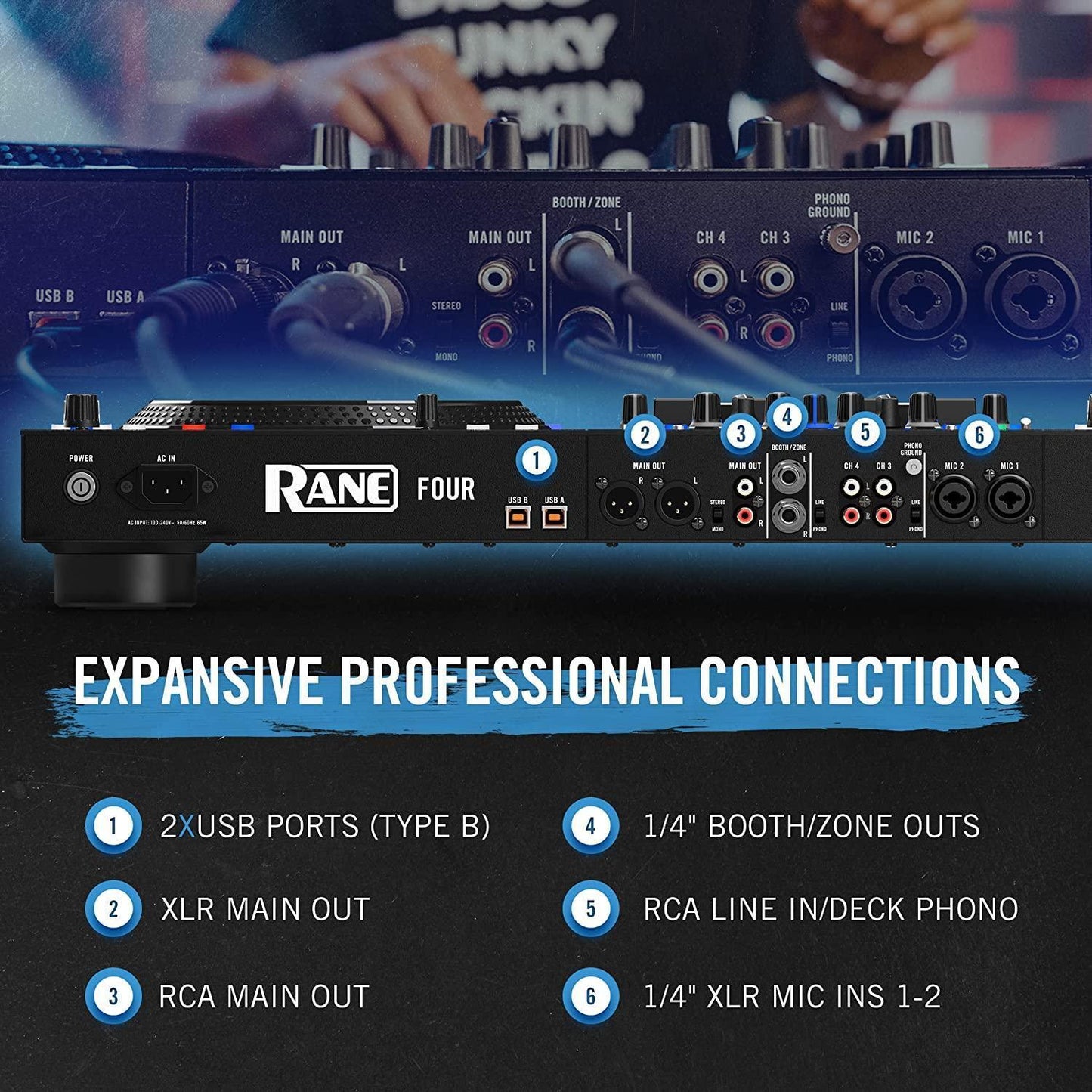

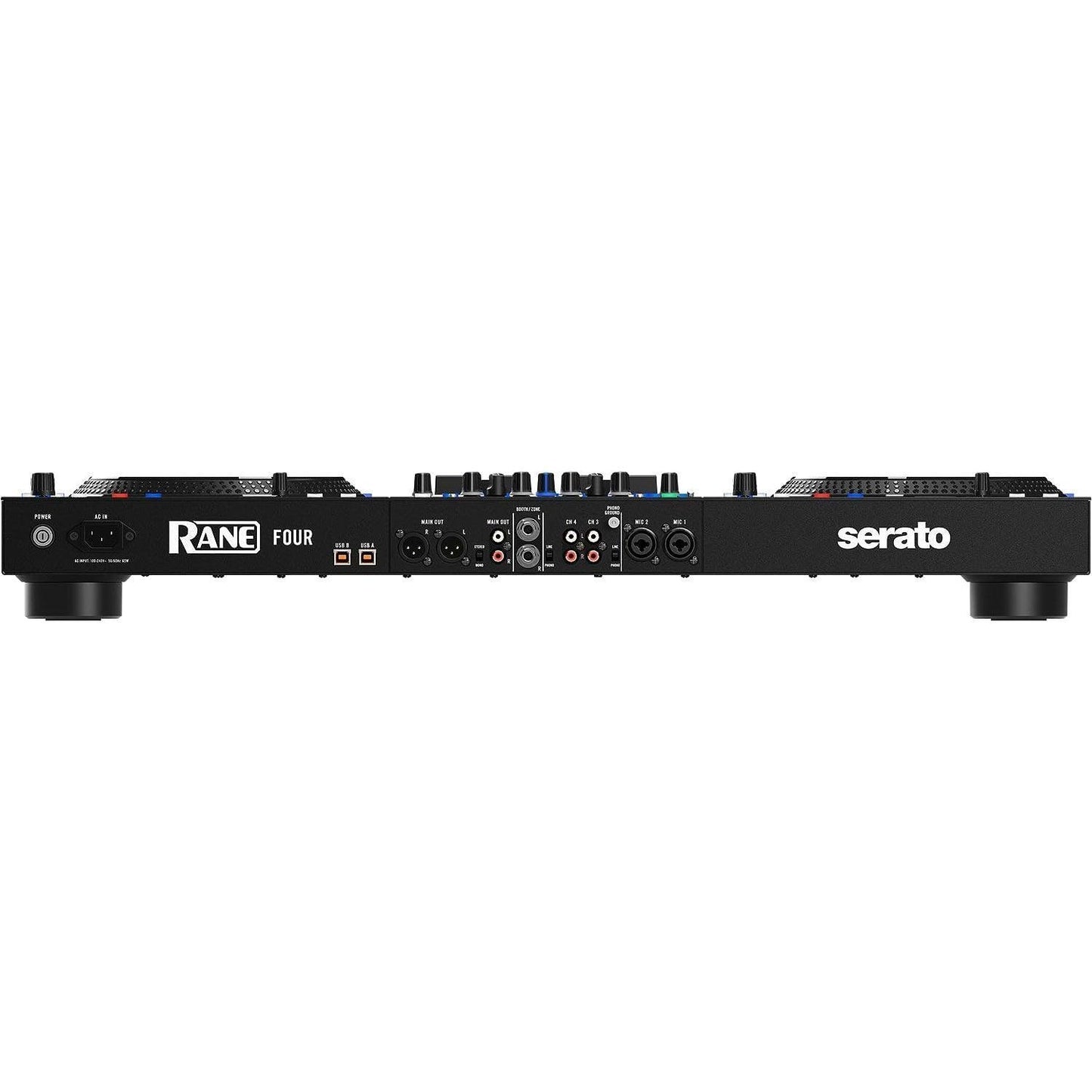

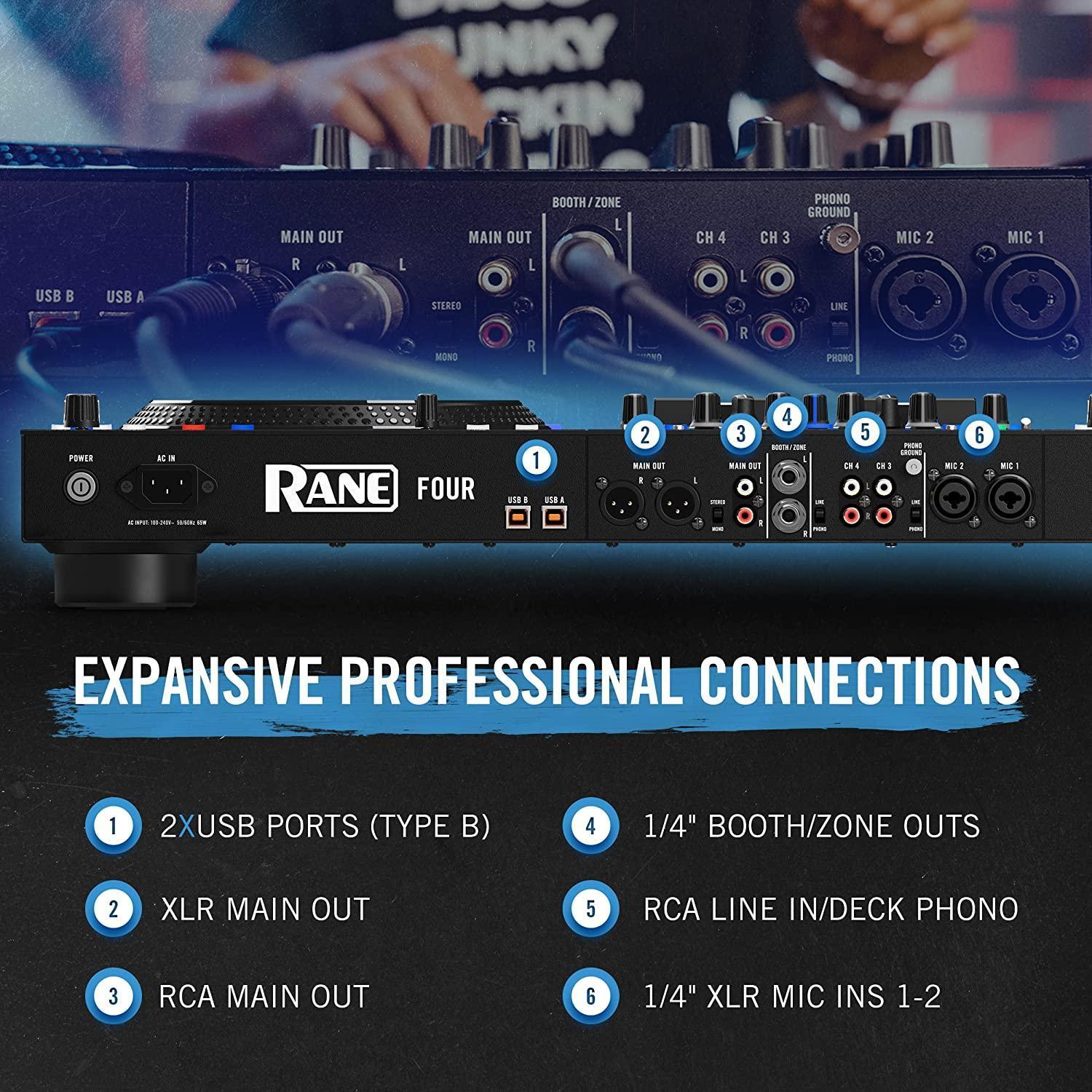

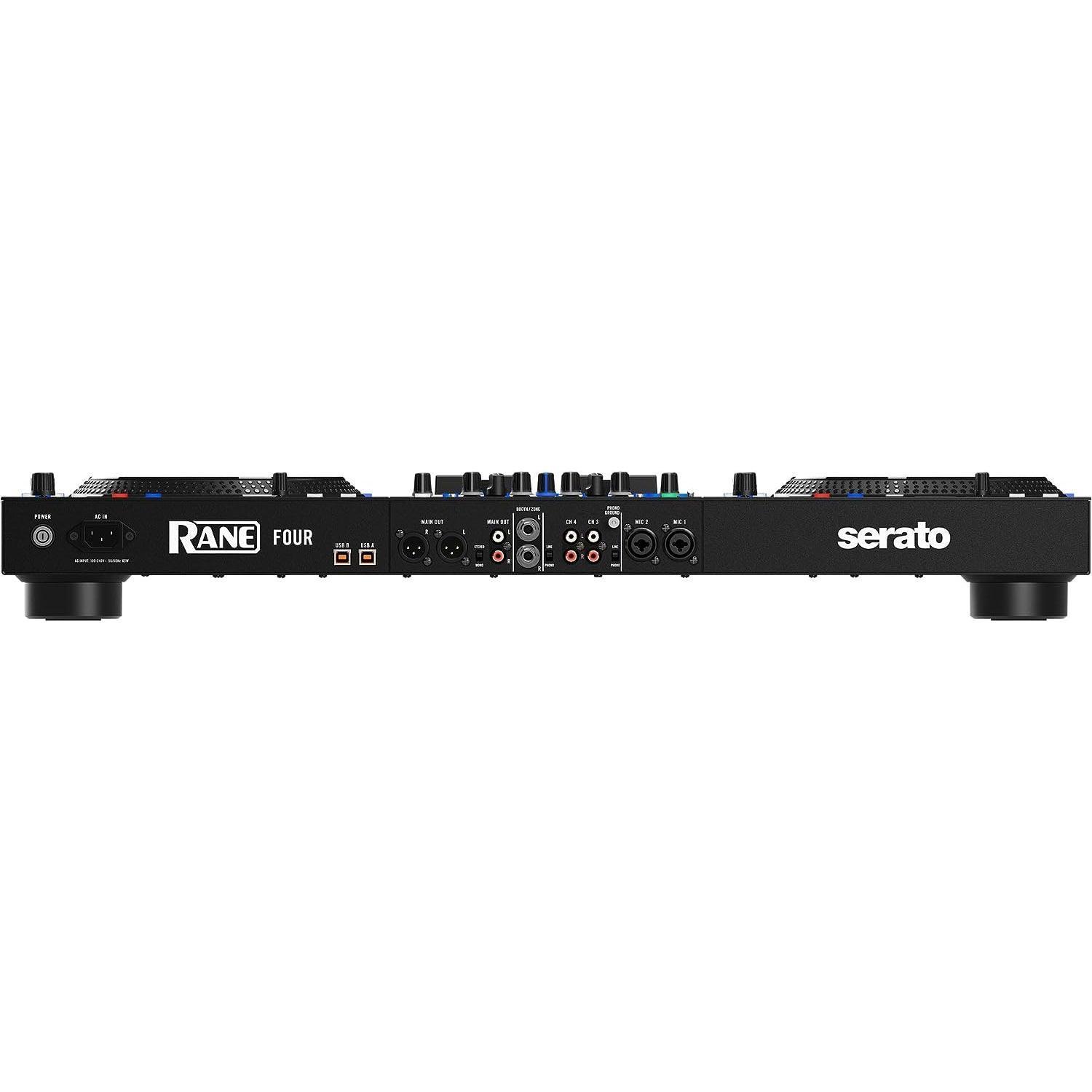

Connections - (2) XLR outputs (Main)
- (2) 1/4” outputs (Booth)
- (1) RCA stereo output pair (Main)
- (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
- (2) RCA stereo input pairs (Deck 3-4)
- (1) 1/4” (6.35 mm) TRS output (Headphones)
- (1) 1/8” (3.5 mm) TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
Power - Connection: IEC
- Voltage: 100–240 V, 50/60 Hz
- Consumption: 20 W
Dimensions - Dimensions (width x depth x height): 30.8” x 15.9” x 4.2”
782.32 x 403.8 x 106.6 mm
Weight (including platters) - 18.25 lbs.
8.27 kg
