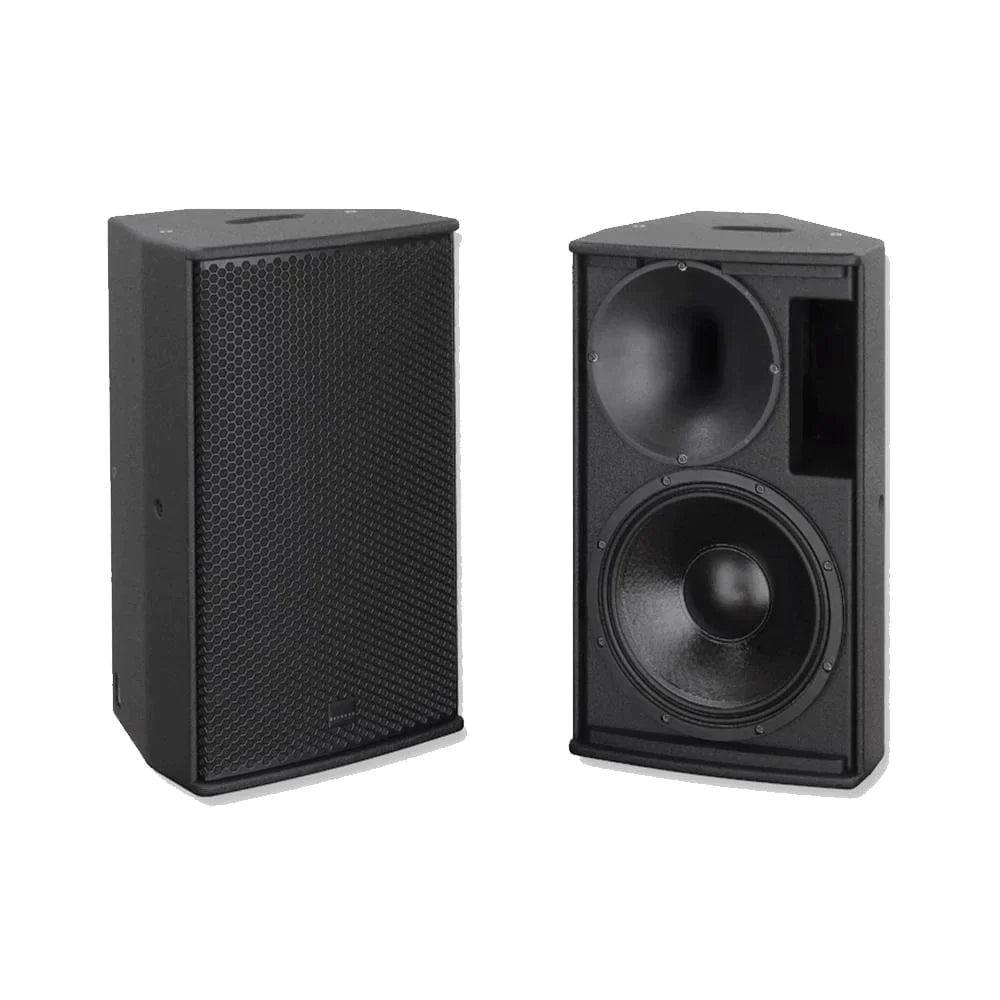

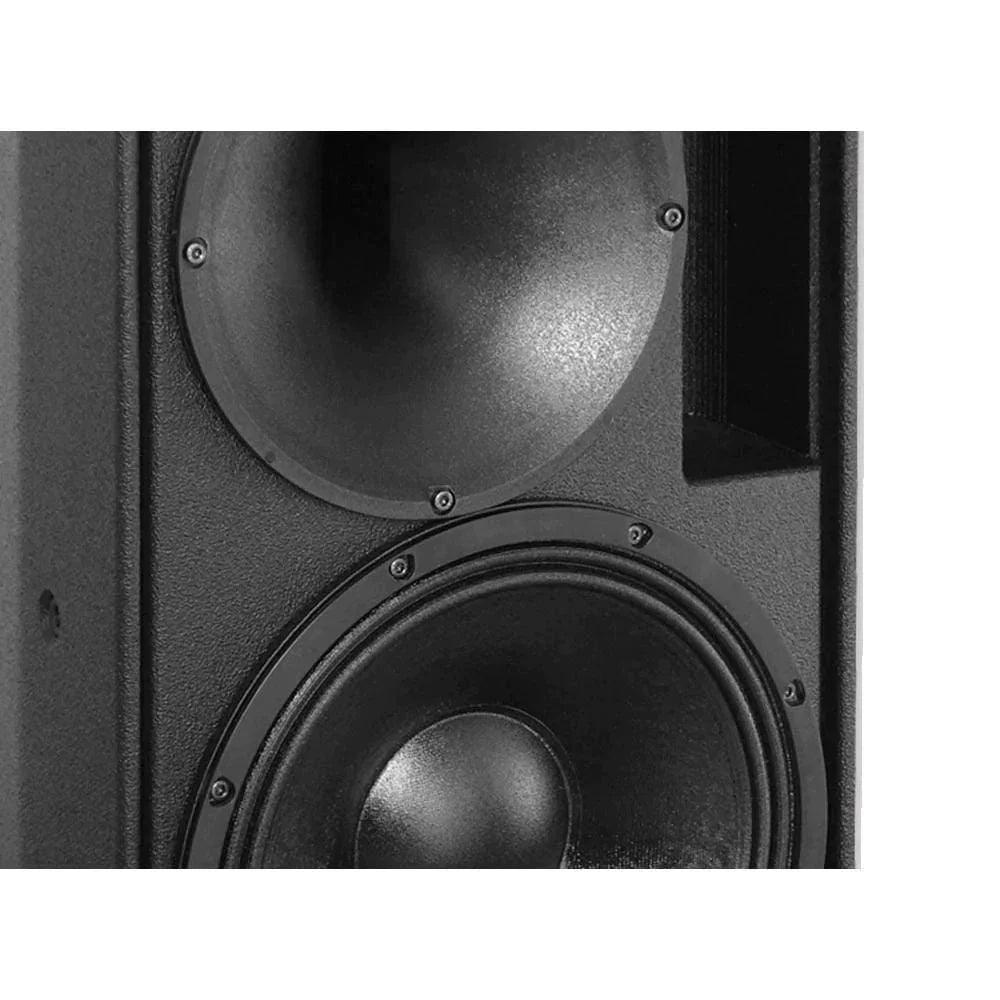

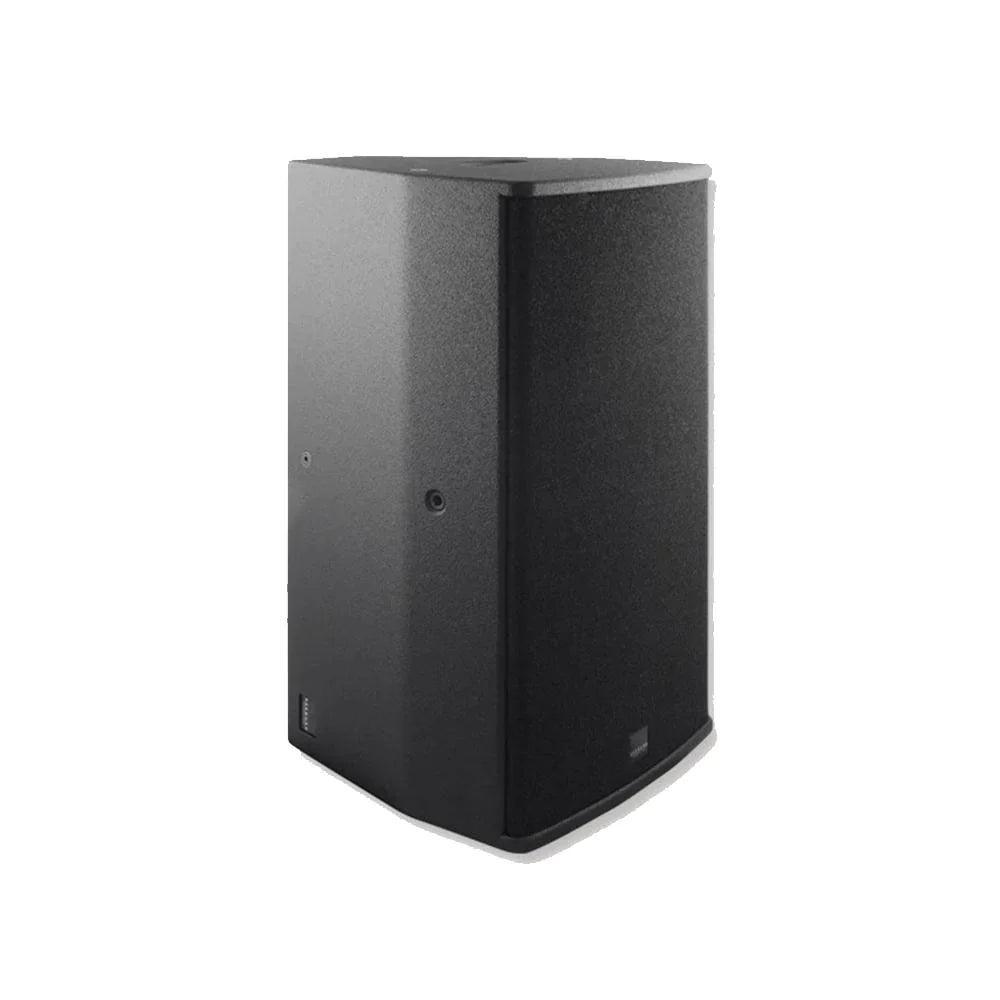

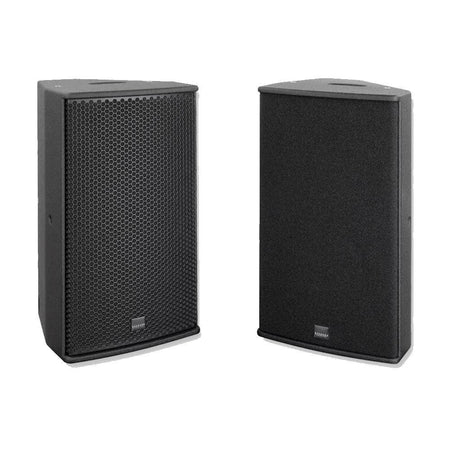

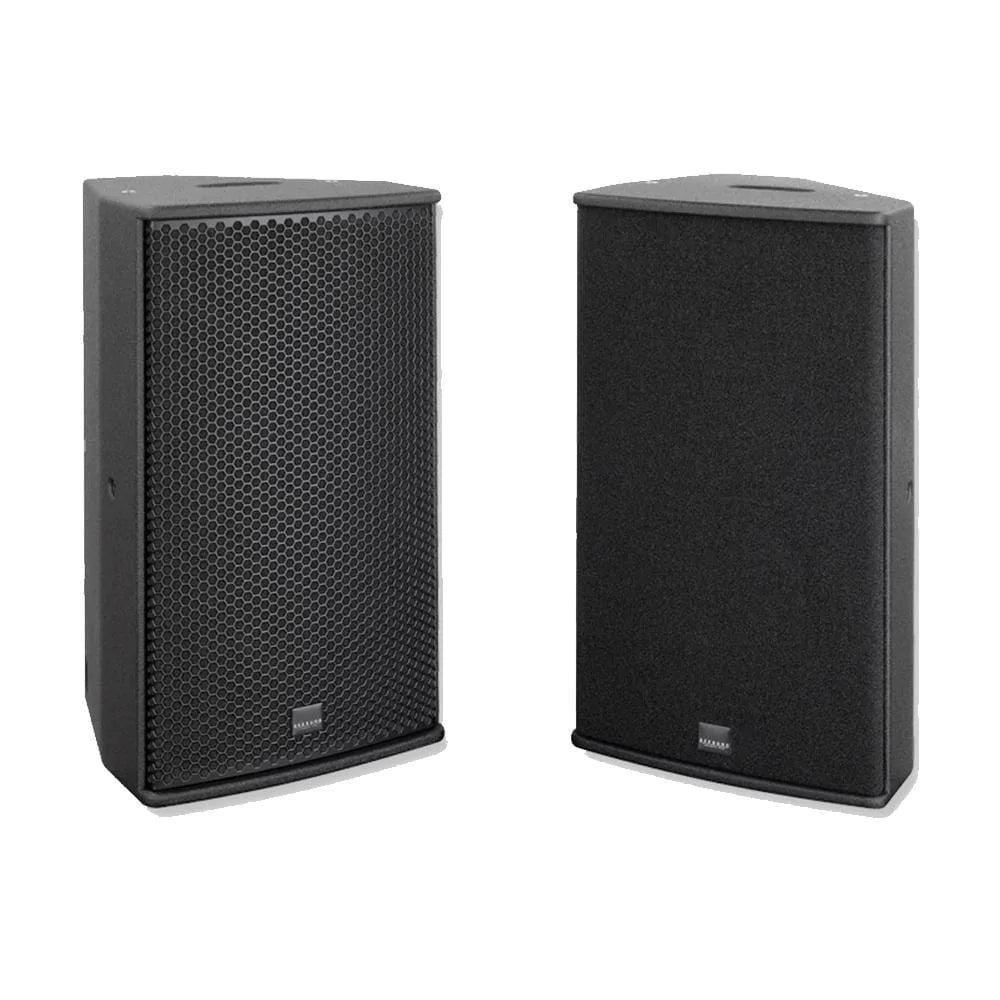

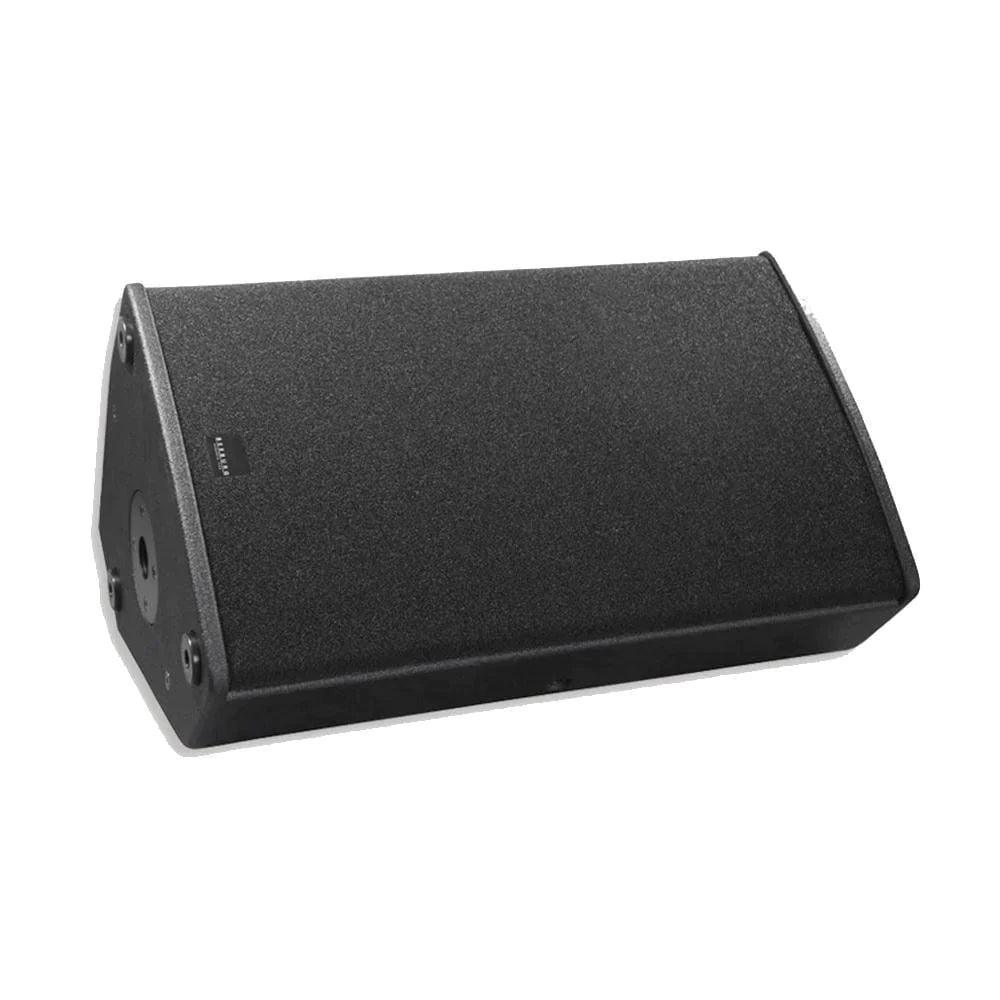

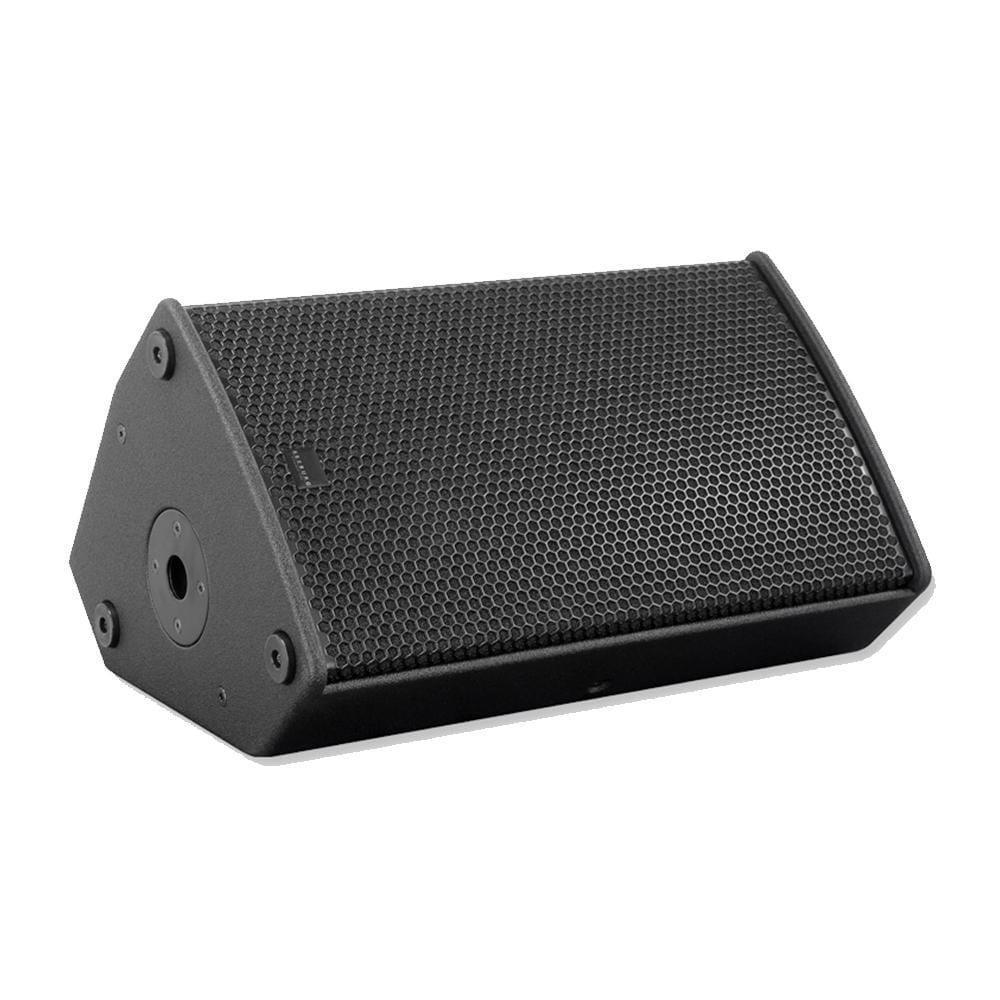

Seeburg Acoustic Line A6 Professional Multifunction Speaker

Multifunctional 12“ Nd / 1“ cabinet with very linear sound reproduction. Equally suited to use as a high-quality full-range / high - mid unit or in monitor applications. The rotatable 1” DPC (= Dual Pattern Control) horn maintains a constant 90° x 60° dispersion over a wide frequency range.
The A 6 is also available in the DP-version with an integrated, DSP controlled 2 x 500 Watt amplifier, and in the "AF 6" version optimised for permanent installation.

Tech Specs

Speaker Components 12“ Nd / 1“ Nd
Description Multi Purpose Sound System
Power AES / Peak - - -
Amp Power 2 x 500 W AES bi-amped / 110-230 V
Impedance nominal - - -
Rated Current 0,55 A @ 230 V
SPL 1 W / Peak @ 1 m - - -
SPL Peak @ 1 m 128 dB
Max. Input Signal 25 dBu
DSP HDLM FPGA Processing 32 bit floating point
AD / DA 24 bit / 96 kHz
Latency 0,8 ms (analog in to analog out)
Usable Range 50 Hz - 20 kHz (- 6 dB)
Tuning Frequency excursion minimum 60 Hz
X - Overpoint acoustical Depends on preset
Coverage horizontal / vertical 90° x 60° - rotatable
Max. Splay Angle - - -
Connectors Neutrik XLR in/out Neutrik PowerCon in/out
Handles 1 x
Rigging / Fittings 35 mm pole mount 2 x M10 / 7 x M8 35 mm pole mount
Weight 16 kg
Size height x width x depth 60,6 x 36,0 x 34,0 cm60,
