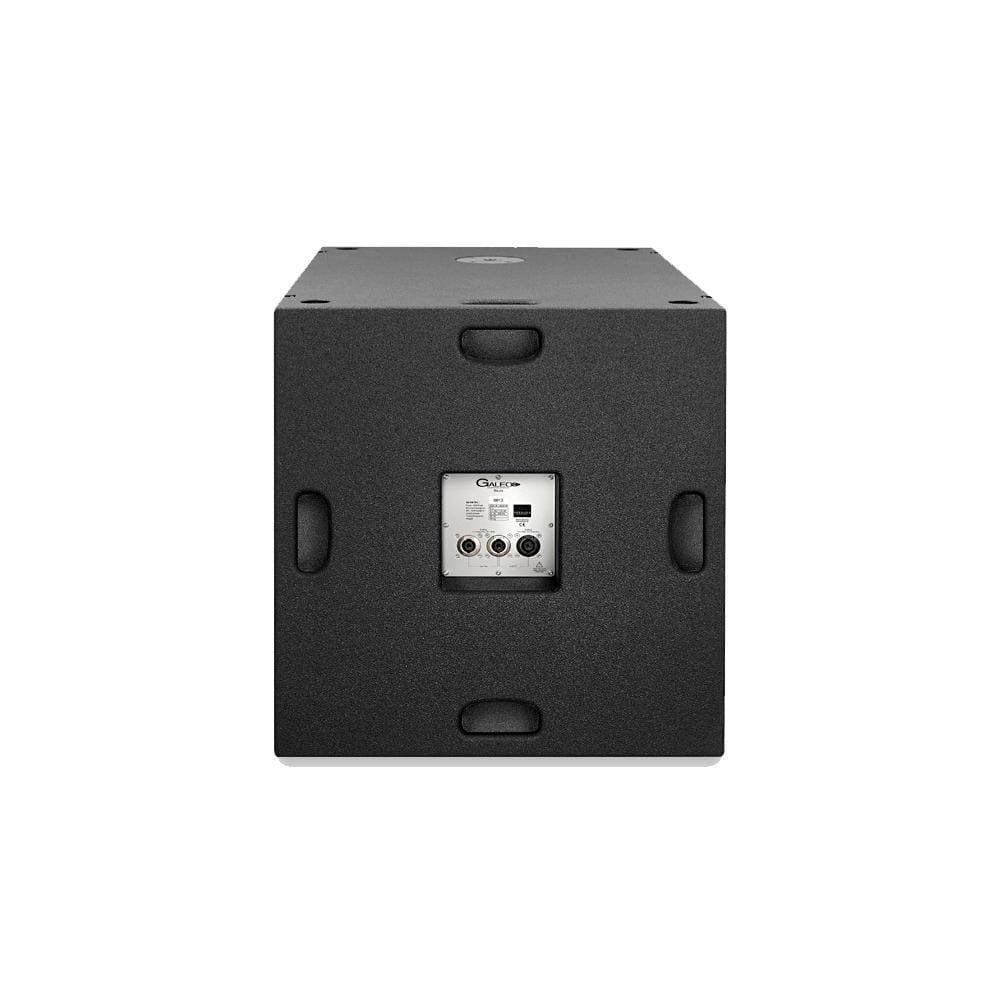

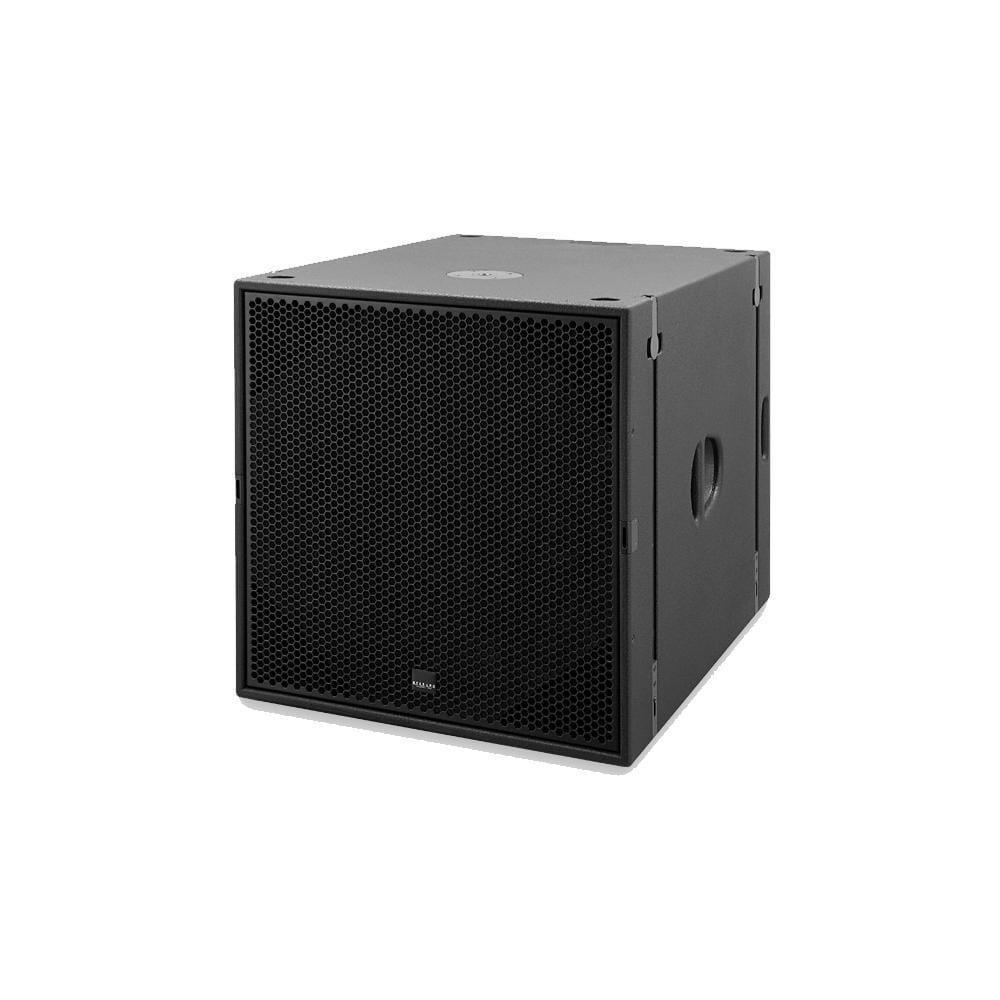

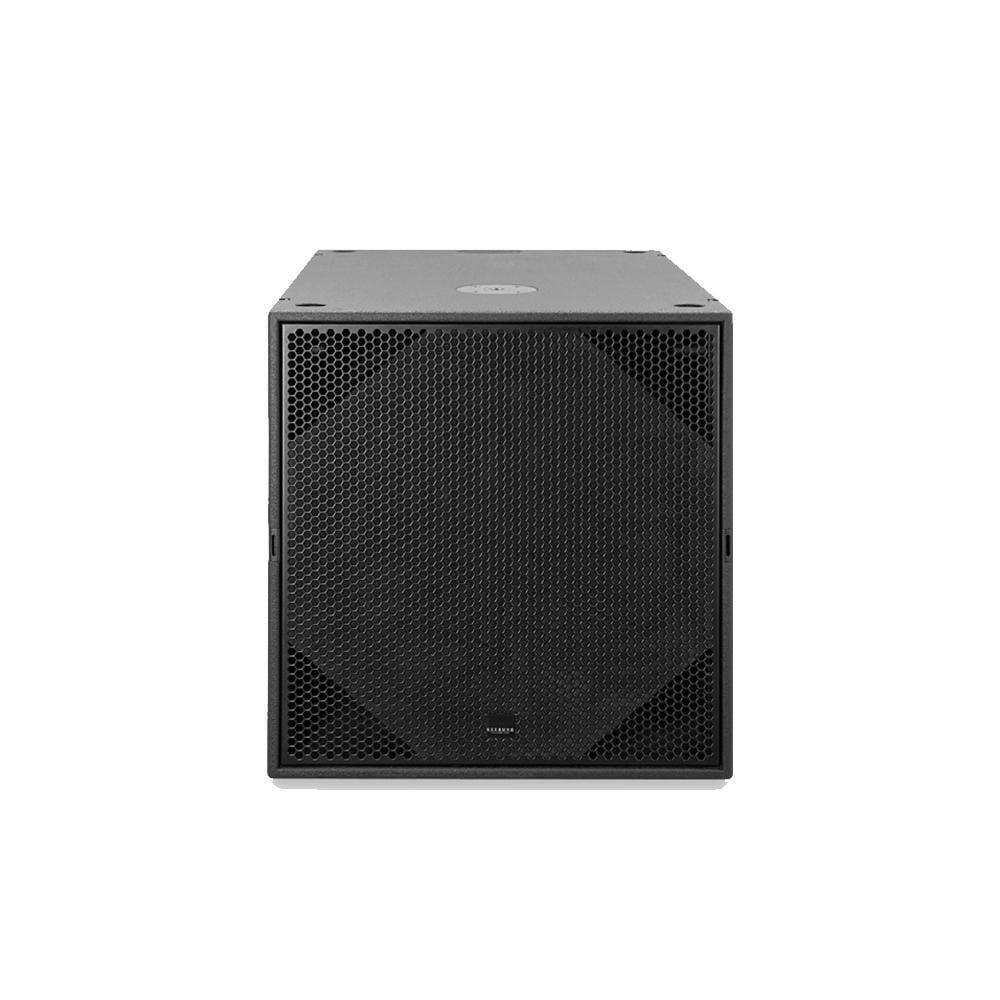

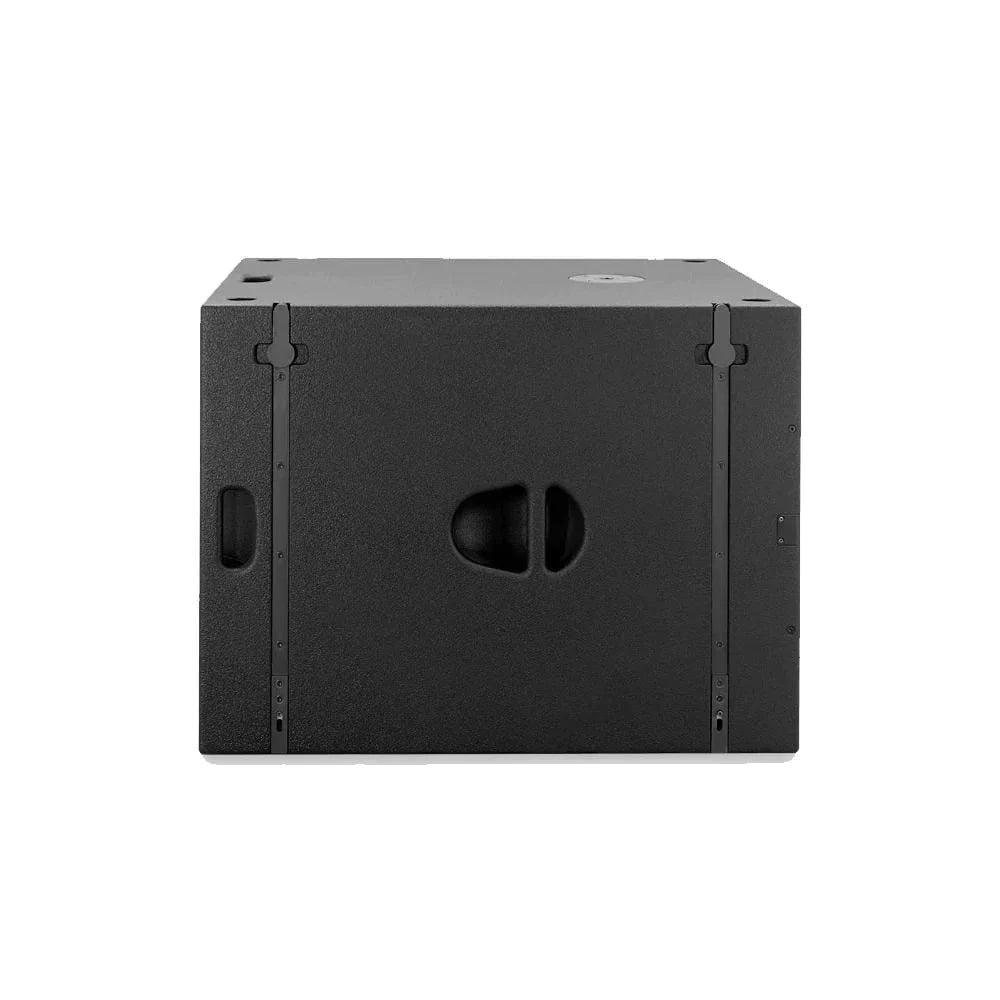

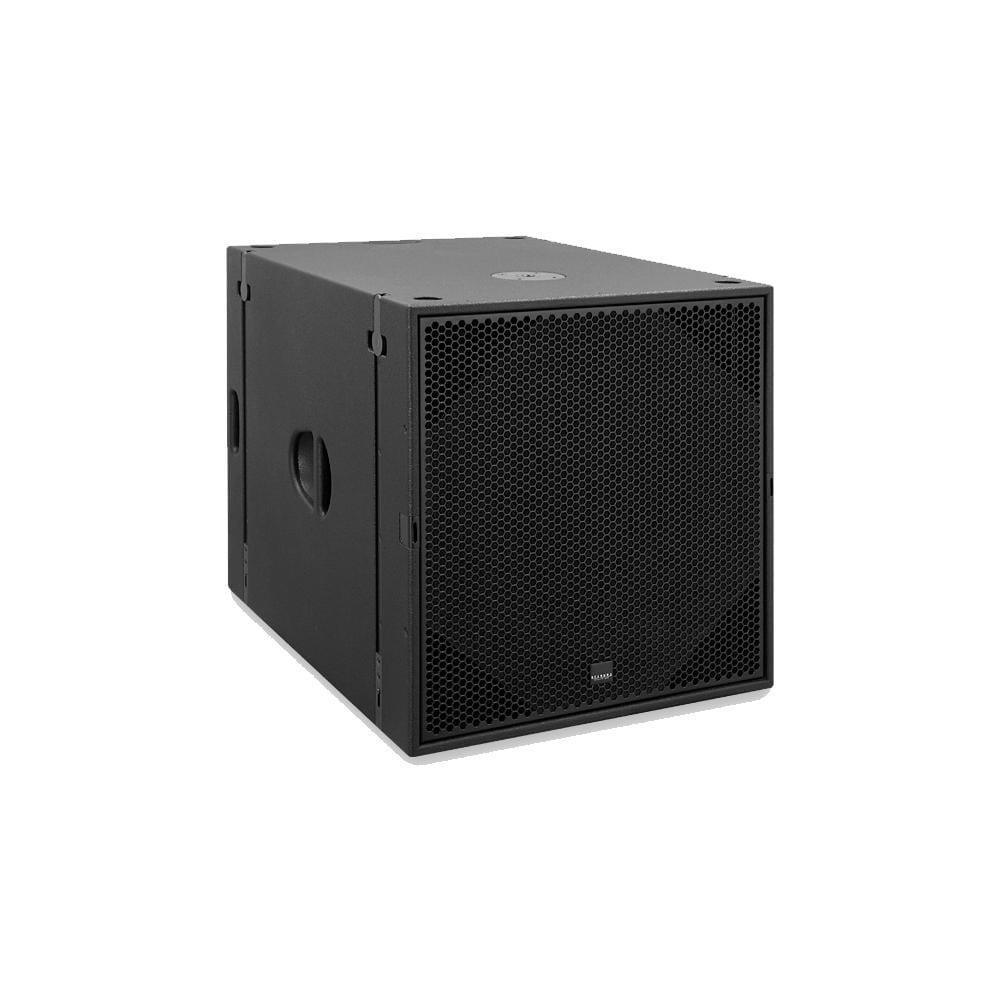

Bass extension for the Galeo C line array featuring integrated flying hardware for flown or ground-stacked applications. The classic bass-reflex design in combination with flow-optimised ports and the high power 18“ Nd driver provide accurate and precise bass reproduction even in the lowest frequency range.
Tech Specs
| Speaker Components | 18“ Nd (4,5“ VC) |
| Description | Passive Bass Extension |
| Power AES / Peak | 1500 W / 4500 W |
| Impedance nominal | 8 Ω |
| SPL 1 W / Peak @ | 1 m |
| 101 dB / 138 dB | |
| Usable Range | |
| 30 Hz - 200 Hz (-6 dB) | |
| Tuning Frequency excursion minimum | 36 Hz |
| Connectors | 3 x Neutrik Speakon NL4 in/out |
| Coding (2x): | 1+/- loop thru, 2+/- Sub |
| Coding (1x): | 1+/- Sub, 2+/- loop thru |
| Handles | 6 x |
| Rigging / Fittings | M20 on top |
| Wheelboard fittings | |
| Integrated flying hardware | |
| Weight | 49 kg |
| (+ 8 kg wheelboard) | |
| Size height x width x depth | 58,0 x 58,0 x 78,0 cm |
