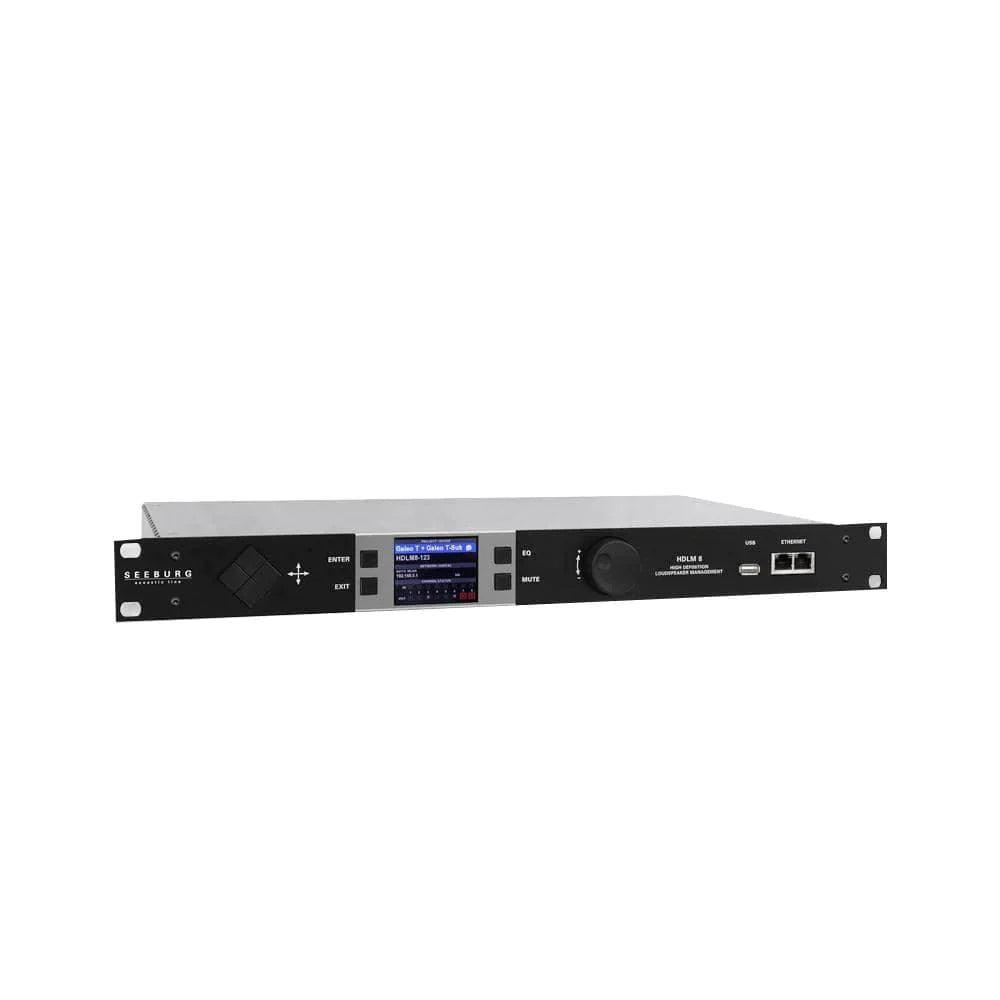

Seeburg Acoustic Line HDLM 8 High Definition Loudspeaker Management
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
The HDLM 8 Loudspeaker Management Controller is capable of managing more complex sound reinforcement systems. A web browser-based user interface with multi-client capability allows real-time access from a PC or a Mac to user-critical parameters for multiple users simultaneously. Excellent dynamics, a low distortion factor and filters with outstanding sound properties ensure first-class audio quality.

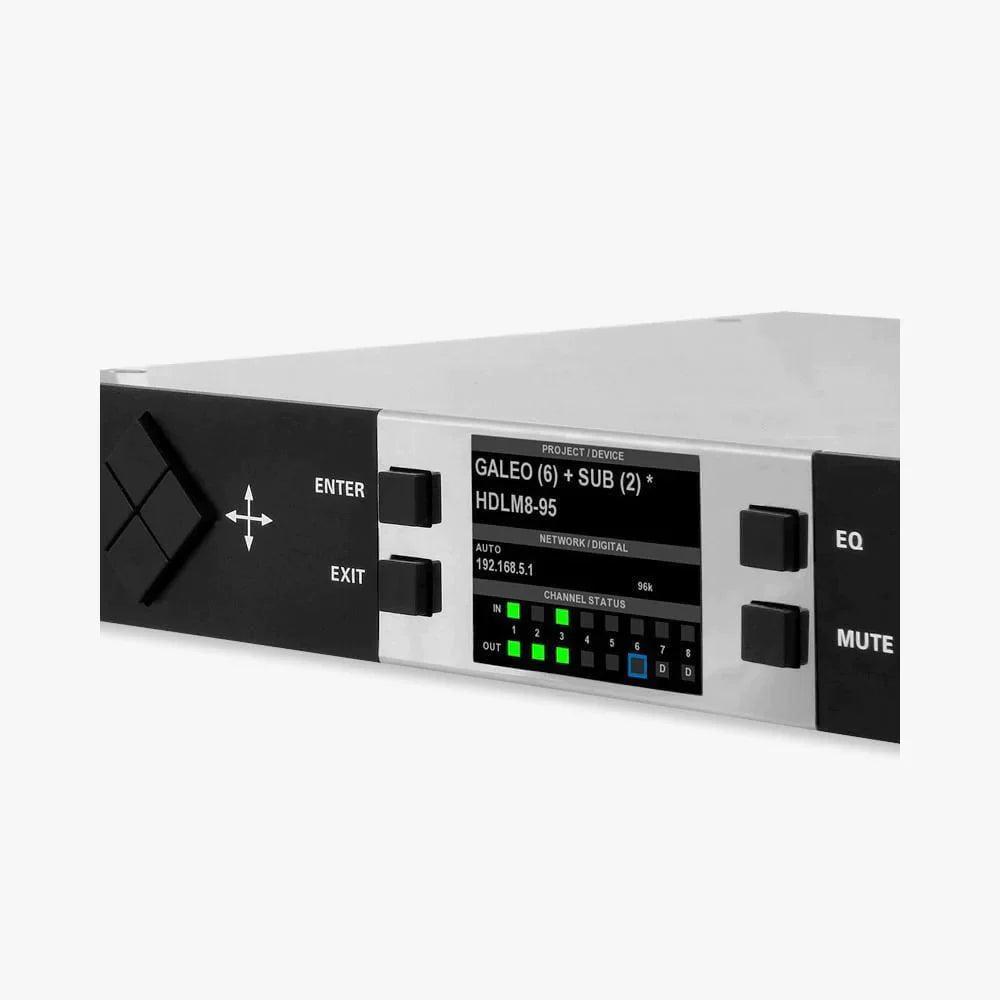

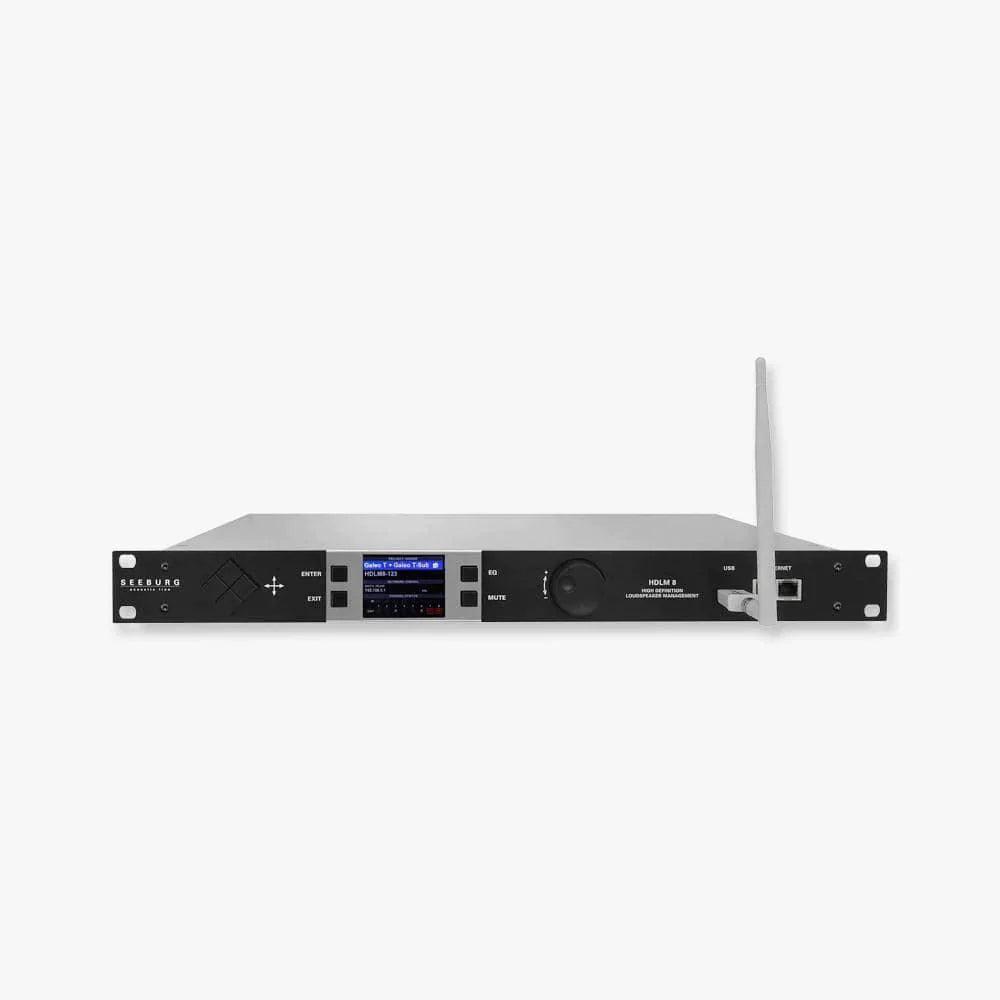

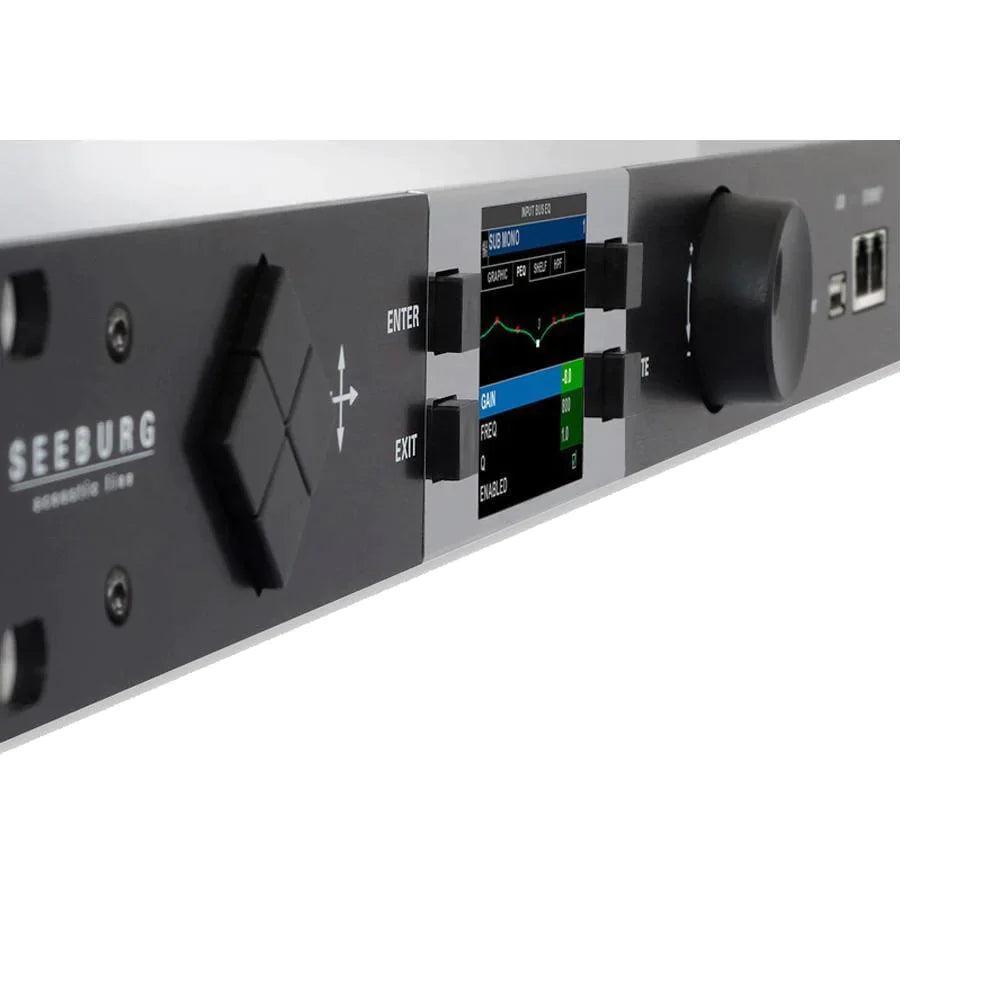

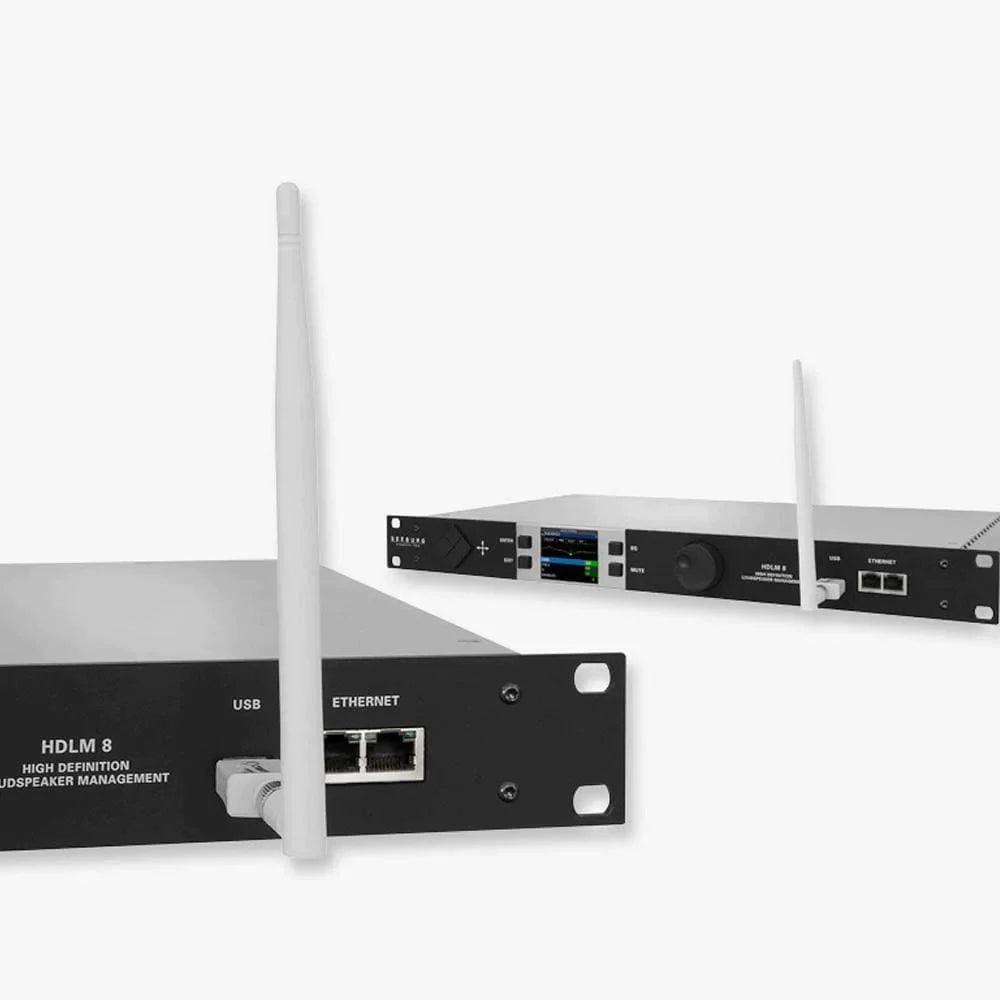

A large high-definition colour display, clearly assigned buttons for navigation and input screens, and the USB port, enable hassle-free adjustments directly on the controller. When combined with a WLAN-USB stick, all functions can be controlled with the smartphone app goHDLM. The Linux based operating system of the HDLM 8 can optionally be upgraded with a 1000 Mbit Ethernet interface.
The API (application programming interface) makes it possible for any C programmer to fully access the HDLM 8.This allows, for example, direct control of presets, or any other control values, via a Crestron or AMX touch screen controller.
Tech Specs
Model HDLM 8/III Description High Definition Loudspeaker Management Processors 2 x FPGA - based DSP, Linux driven host Analog Inputs 4 x balanced Analog outputs 8 x balanced Digital Inputs 2 x stereo AES / EBU Signal Structure 8 x input busses / 8 x output channels Input Bus EQs 12 to 24 dB HPF, 5 x parametric, high shelf, low shelf, 31 band graphic EQ Output Channel Features Gain, polarity, delay, loudspeaker assignment Output Channel EQs 12 to 24 dB HPF, 4 x parametric, high shelf, low shelf Loudspeaker Features 1 to 4 way, gain, polarity, peak limiter, thermal power limiter, offset delay Loudspeaker EQs 6 to 48 dB HPF / LPF, parametric EQs, 6 to 12 dB high / low shelf, 1st and 2nd order allpass filters Optional i/o ADAT, AVB audio video bridging Sample rate 96 kHz Filter Topology 480 x high precision lattice-ladder IIR Dynamic range 119 dB (lin) / 121 dB (A) typ Latency 0,76 ms (analog in -> analog out) 0,92 ms (digital in -> digital out) Cooling Passive (no fan) Origin Made in Germany Weight 3.5 kg Size width x height x depth 483 (19") x 44 (1 HE) x 270 mm
