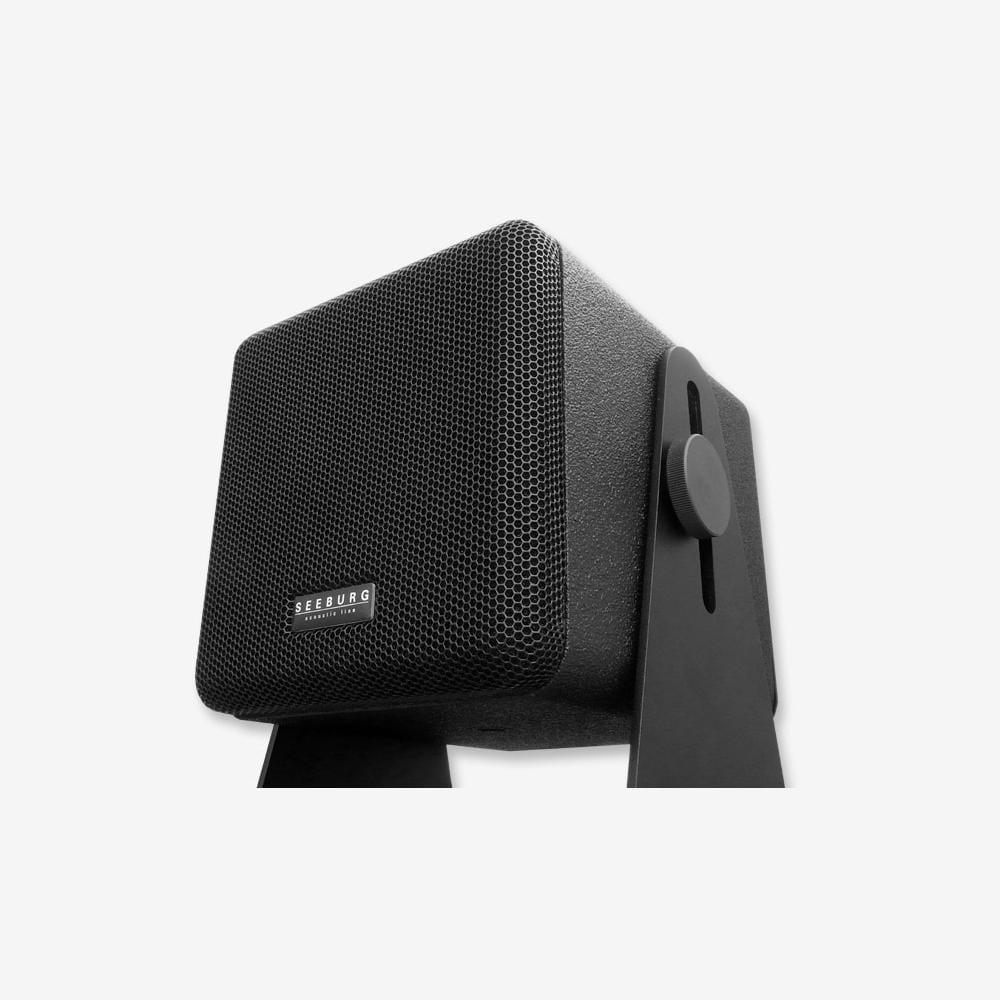

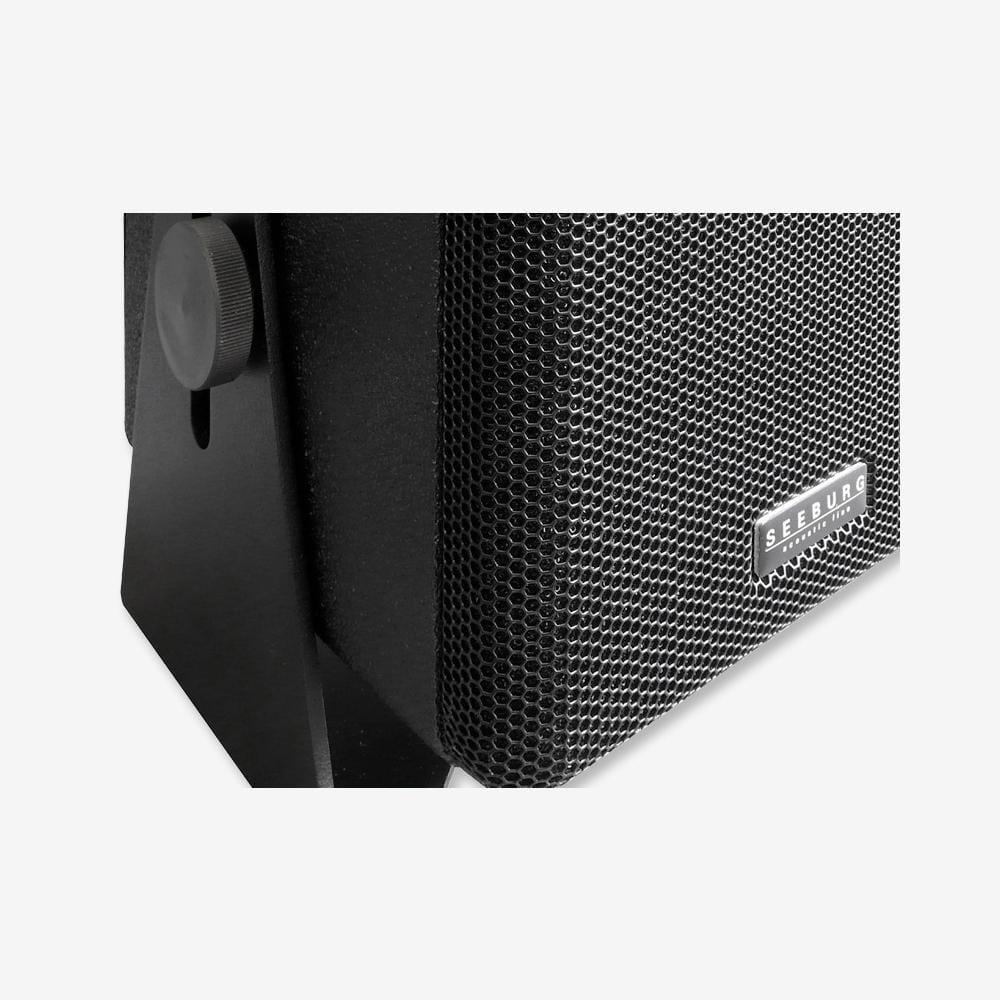

Ultra-compact loudspeaker system for applications requiring good acoustic and power handling characteristics in a particularly unobtrusive package. The powerful 5" Neodym coaxial driver provides very wide but precise coverage, distortion-free up to levels of over 115 dB.
Tech Specs
| Speaker Components | 5“ Nd (1,5“ VC) / 0,75“ coaxial |
| Description | Multi-Media Sound System |
| Power AES / Peak | 120 W / 360 W |
| Impedance nominal | 16 Ω |
| SPL 1 W / Peak | @ 1 m |
| 93 dB / 115 dB | |
| Usable Range | - 6 dB 110 Hz - 19 kHz |
| Tuning Frequency excursion minimum | 120 Hz |
| X-Overpoint acoustical | 3,0 kHz |
| Coverage horizontal / vertical | 100° - conical |
| Max. Splay Angle | |
| Connectors | 2 x Neutrik Speakon NL4MP in/out |
| Coding: | 1 +/- HiMid, 2 +/- loop thru |
| 1 x Phoenix | |
| Handles | - - - |
| Rigging / Fittings | 3 x M10 |
| Weight | 2,5 kg |
| Size height x width x depth | 15,0 x 15,0 x 17,6 cm |
