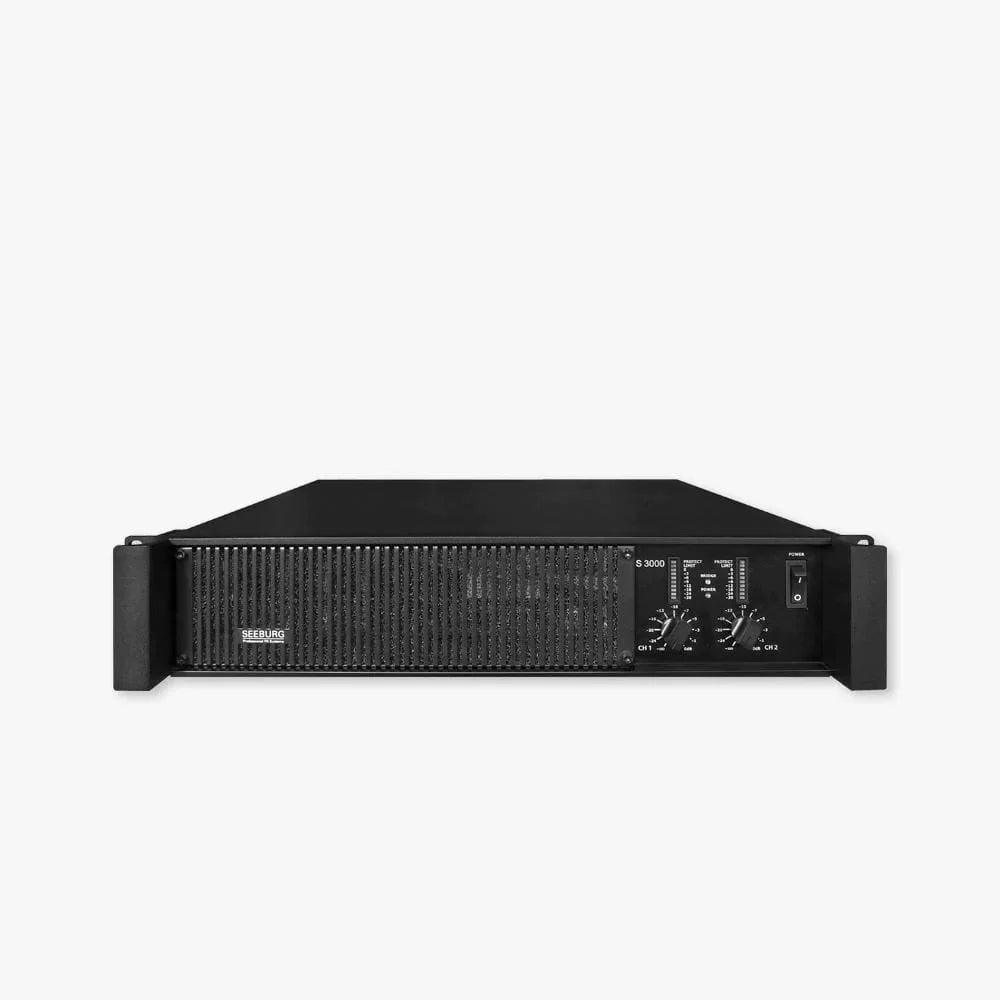

Modern electronics, classical design and excellent audio qualities are combined in the SEEBURG power amplifiers to provide a reliable work horse equally suited to installations and mobile systems. A 2 stage switching mode power supply ensures low weight and high efficiency. The highly effective copper heat sink cooling system and easily accessible high capacity air filters provide for easy and minimal maintenance.
Tech Specs
Weight| Description | 2-Channel Audioamp |
| Power EIA both channels driven (0.1% THD, 20 Hz - 20 kHz) | 2 x 550 Watt / 4 Ω 2 x 350 Watt / 8 Ω |
| Power EIA bridge mode | 1100 Watt / 8 Ω |
| Peak Output Voltage | bridge mode 250 V |
| Signal to noise ratio | 100 dp |
| Channel separation @ 1000 Hz | 60 dp |
| Input Impedance | 20 k |
| Slew Rate | 45 Volts / us |
| Damping Factor | 500 |
| Gain | 26 dp / 32 dB / 1.4 V |
| Cooling | 3 x fans, front to rear airflow, temperature controlled speed |
| Mode Switch | stereo / mono / bridge |

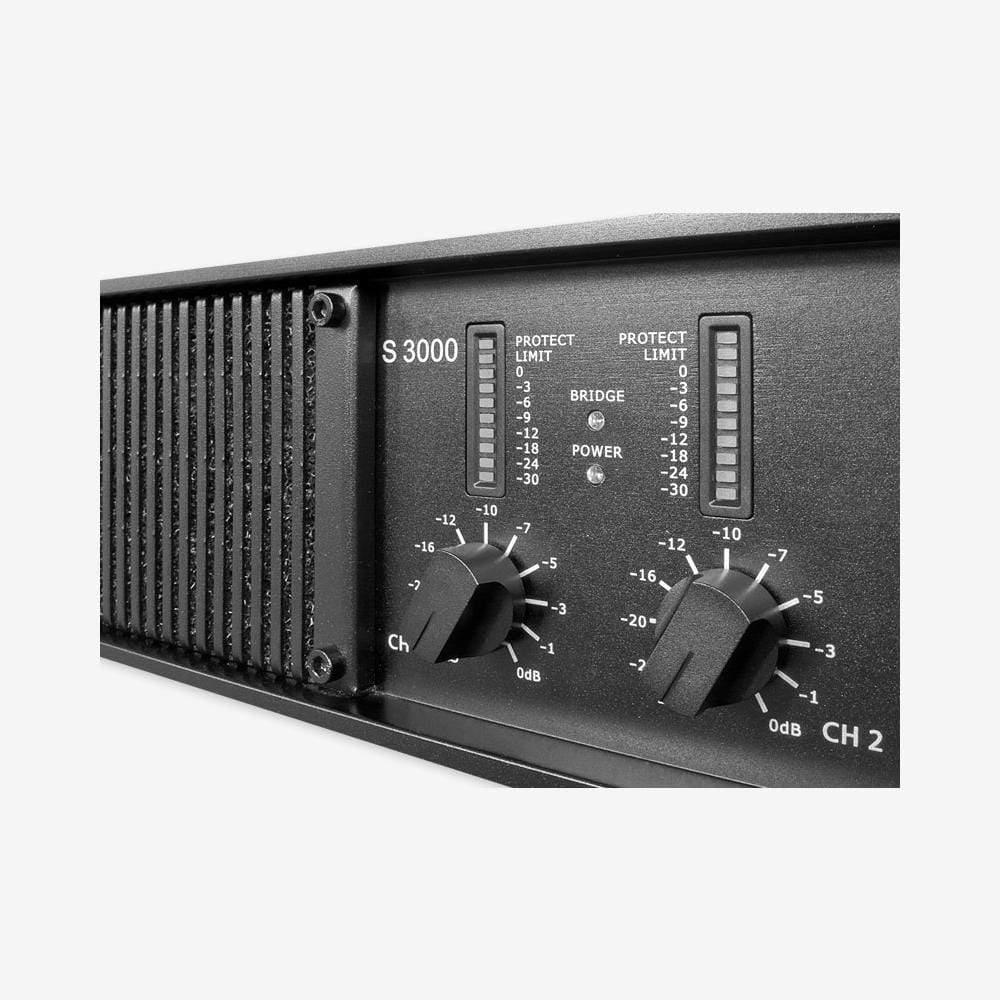

| Indicators | Power / Bridge / 8 x Gain / Limit / Protect |

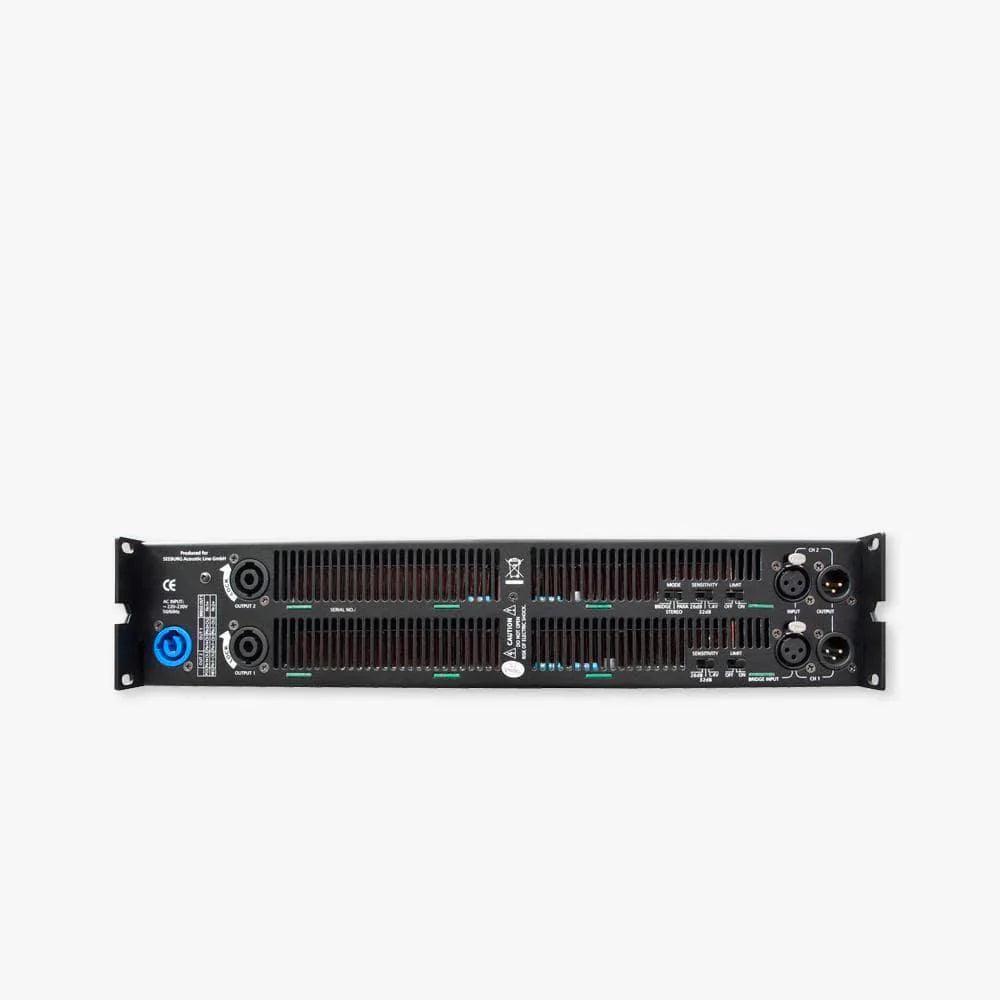

| Inputs | XLR in / loop thru |

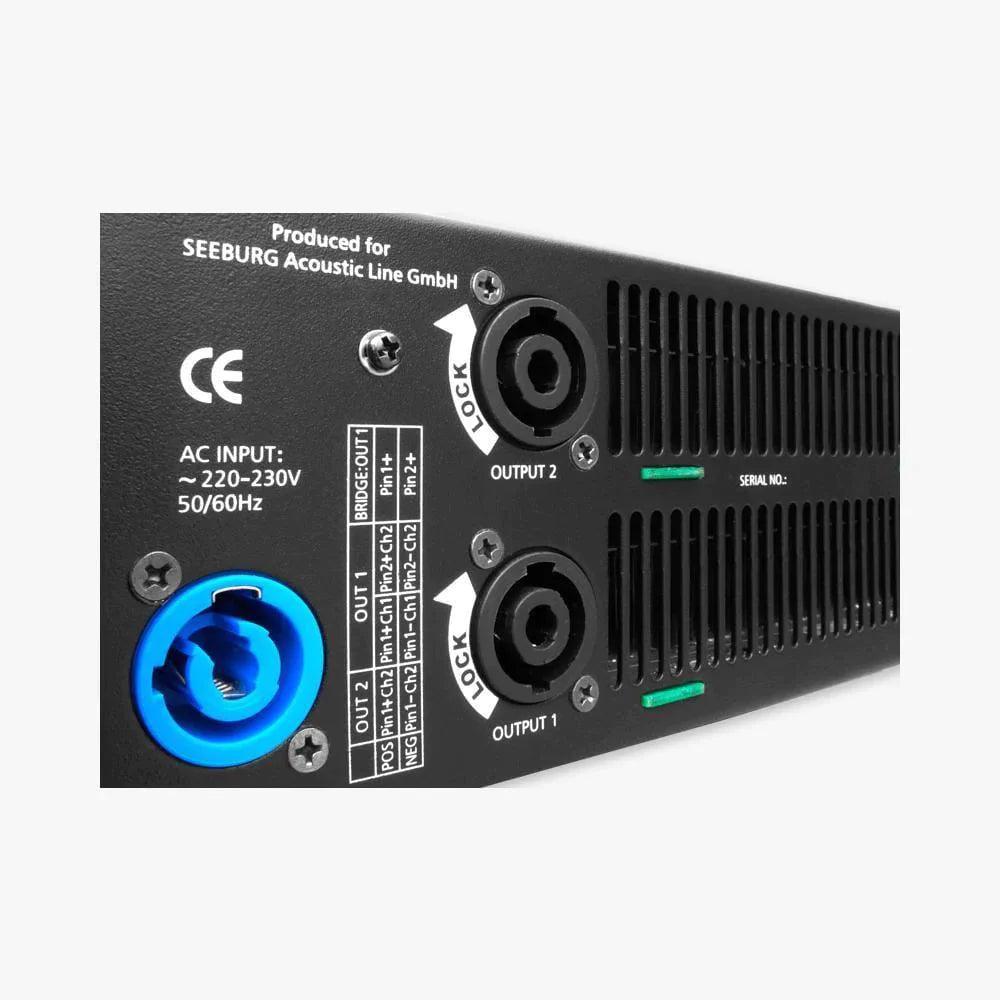

| Outputs | Speakon A: 1+/-A, 2+/-B |
| Speakon | B: 1+/-B |
| 11,4 kg | |
| Size | height x width x depth (mm) 88 (2 HE) x 483 (19") x 453 / 413 |
