STK LMS Line Series Line Array

SKU: STKLMS

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    LMS-62P line array

    2 Way Passive Full Range Bi System. Used double PCS of 12mm birch plywood materials to making a super-durable enclosure. High-quality components with an environmentally friendly, lightweight, and field-repairable waterborne polymer finished with scratchproof finished suspension materials. Have a dual 2 pairs of powerful 6.5‚" low-frequency drivers. Both have wide 110 horizontal coverage at the crossover with extends the mid-range. High frequencies handled by SK-70D HF drivers with a converging lens of SFG10 for ultimate sound reproduction.
    LMS-6015P subwoofer
    Passive single 15" Sub Woofer System, the systems can be readily integrated into arrays of full range LMS-62P line array elements. Ported + vented rectangular enclosure. SK 15600 15" high power transducers provide to solid sounding output.
    "Used 12mm birch plywood materials by double PCS to making a super-durable enclosure. High-quality components with an environmentally friendly, lightweight field-repairable waterborne polymer finished with scratchproof finished suspension materials.

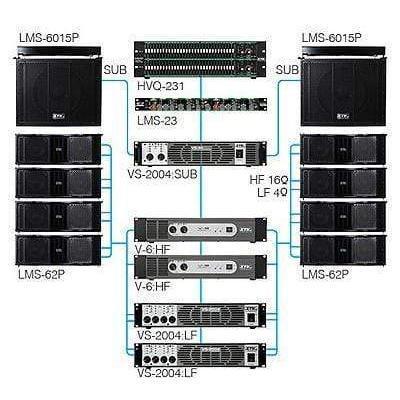

    Combined LMS-62 and LMS-6015 arrays making suspension with optinal array frame(B6015 LMH), can also be used to ground-sacked for extended range front of house system with optional U-FRAME(B62 LMU) with 2 of SPM-35150 speaker poles.





    Model LMS-62P
    Configuration 2-way Full-Range, Bi-amp
    High-frequency Transducer SK-70D HF Driver on SFG 10(Converging Lens)
    Low-frequency Transducer SK65200FP, 6.5"(162mm) woofer x 4.
    Frequency Response (3dB) 80 Hz - 20kHz
    Frequency Range (-10dB) 65Hz - 23kHz
    Nominal Impedance LF : 16 Selectable / HF : 16 Fixed
    Continuous Power Capacity HF : 70W/280W PEAK
    LF : 360W/1440WPEAK
    Sensitivity (SPL, 1 W at 1 m) HF : 105dB
    LF : 100dB
    Recommended Power HF : 140W
    LF : 720W
    Maximum Output, Continuous/Peak
    (dB SPL at 1 m)    		 HF: 123.47dB /129.47dB
    LF: 125.58dB /131.58dB
    Nominal Coverage H : 110
    V: Dependent on the number of elements used
    Enclosure Type Ported, trapezoidal
    Enclosure Material 2 x 12 mm birch plywood
    Finish Available in black or White(Option), paintable
    Grille Perforated, powder-coated 16AWG steel,
    Connectors For Amplifiers 2x Neutrik Speakon in parallel
    Pins: 1+/1- LF
    Pins: 2+/2- HF
    Controls for Select LF Impedance 4 ohm/off/16 ohm by up-down switch
    Controls for Select HF Sound Level Normal/off/-3dB by up-down switch
    Attachment Points Integral, "I" plate adjustable rigging system, vertical
    splay adjustable in 1 increment from 0-10



    Model LMS-6015P
    Configuration Sub Woofer: Line Array
    Transducer one SK15600 15"
    Frequency Response (± 3dB) 40Hz - 200Hz
    Frequency Range (-10dB) 35Hz - 500Hz
    Nominal Impedance 8
    Continuous Power Capacity 600W/2400W PEAK
    Sensitivity (SPL, 1 W at 1 m) 99 dB
    Recommended Power 1200W
    Maximum Output,Continuous/Peak(dB 126.80dB /132.80dB
    SPL at 1 m)
    Enclosure Type Ported + Vented subwoofer rectangular type
    Enclosure Material 2 x 12 mm birch plywood
    Finish Available in black or White(Option), paintable
    Grille Perforated, powder-coated 16AWG steel,
    Connectors For Amplifiers 2x Neutrik Speakon in parallel
    Pins: 1+/1- SUB
    Pins: 2+/2- NC
    Attachment Points Integral, non-adjustable.straight array on
