TC Electronic Clarity M Stereo

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

• Professional stereo and 5.1 audio meter for mixing, mastering and post production

• 7" high resolution LCD display for precision metering in all studio environments

• USB connection for hassle-free VST*, Audio Units and AAX* plug-in metering

• Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59

• 6 input channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering

• Legendary LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen

• State-of-the-art true peak meter identifies clipping in DACs, CODECs and downstream filters

• Downmix compliance meter based on TC Electronic's industry-standard loudness measurement algorithms

• Precision stereo/surround correlation meters

• High accuracy real time analyzer with 1/3 octave resolution

• Detailed statistics overview for all key loudness measuring parameters

• Provision for custom logo on LCD display

• RAM-mount compatible for wall or ceiling mounting (not included)

• Stereo Optical Input for TOSLink* source

• General purpose input (GPI) for meter reset

DESCRIPTION

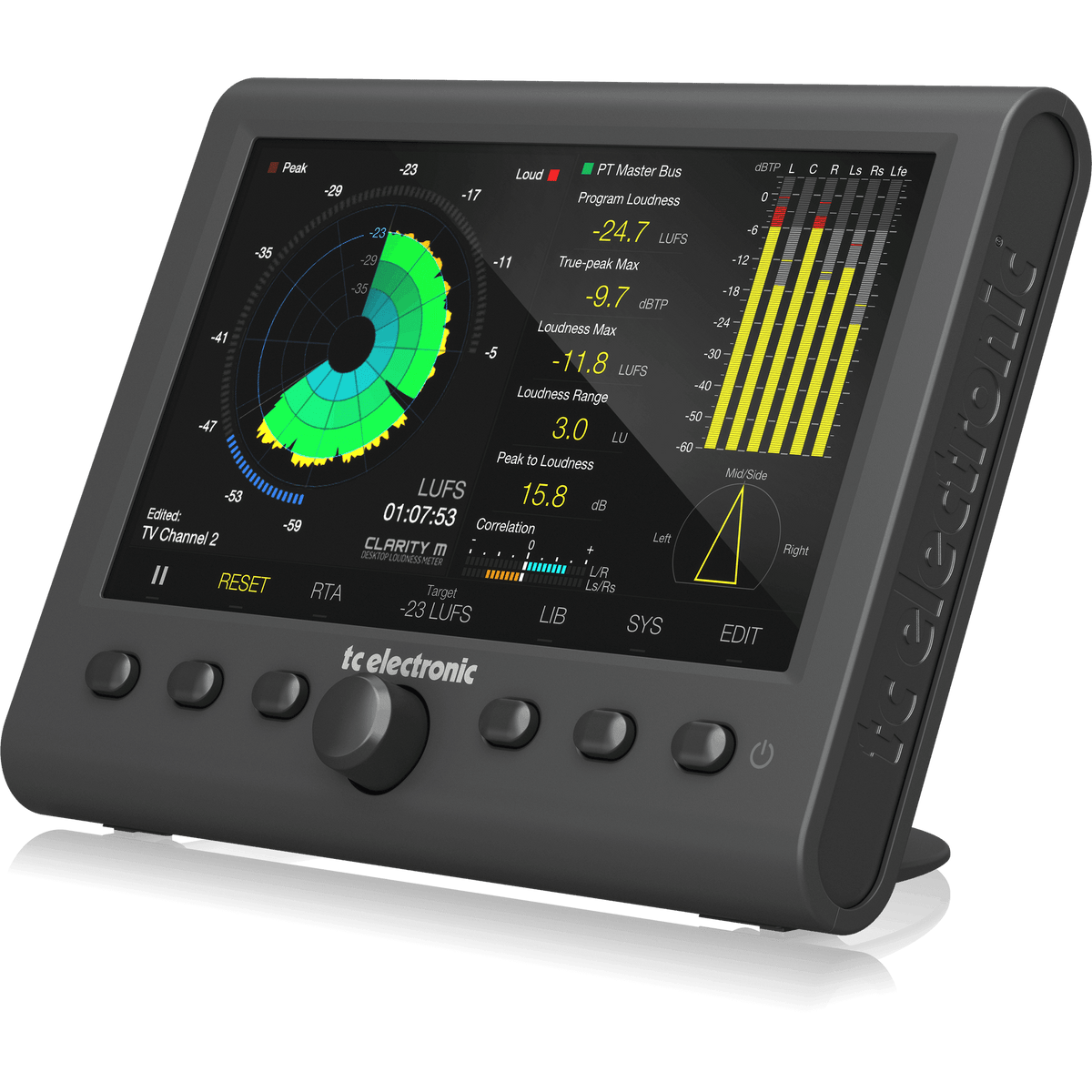

The CLARITY M provides a comprehensive set of precision tools essential to the success of any audio producer. Ideally suited to stereo and 5.1 mixing, mastering and post-production, CLARITY M’s 7" high-resolution LCD display provides a wealth of monitoring information at-a-glance via a single screen. Metering options include; the legendary LM6 Loudness Radar Meter; a state-of-the-art true peak meter; downmix compliance; stereo/surround correlation meters; and a RTA (Real Time Analyzer).

Source inputs come in a vast array of options including: USB for hassle-free VST*, Audio Units* and AAX* plug-in metering; 6 channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering; and stereo optical for maximum fl exibility. CLARITY M is fully compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59, and is recommended for all studio environments.
