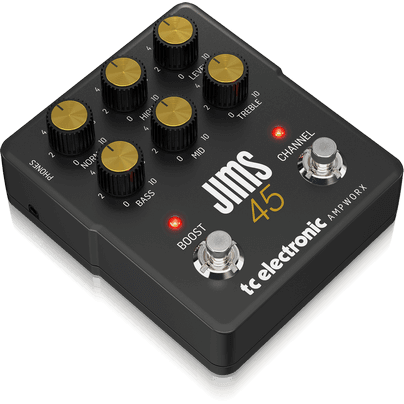

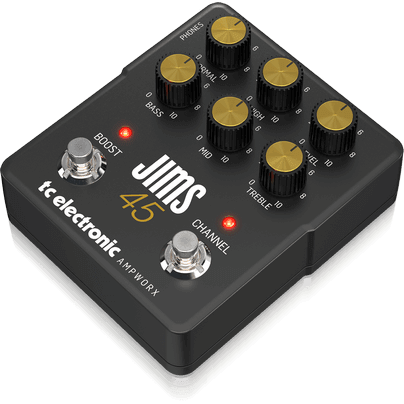

TC Electronic JIMS45PREAMP Dual-Channel Guitar Preamp Recreates the Sound of a 1965 JTM45 Tube Amp

SKU: JIMS45PREAMP

Log in to view price Trade pricing — AED / USD

In stock
  • Full Specifications

    FEATURES-

    • Guitar preamp pedal faithfully recreates the tone, touch and feel of a 1965 JTM45 tube amp

    • Two channels with independent gain, volume and EQ controls for classic British rock and blues tones

    • Independent gain controls for Normal and High inputs, just like the real amp with a jumper cable

    • Integrated booster activates 5 dB boost at the kick of a footswitch with Pre/Post option on the back panel

    • Pre boost dialed in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal

    • Dedicated DI output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording

    • Dedicated headphone output, equipped with official Celestion 4x12 G12M Creamback cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbors

    • Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms

    • Optional bypass or always on channel change footswitch modes

    • Groundbreaking TC AMPWORX modeling technology provides low latency, huge dynamic range and feels like the real deal

    • Perfect pedalboard-friendly pedal platform takes drive pedals like a champ.

    DESCRIPTION-

    The Original Guitar Hero

    Jimi Hendrix is widely accepted as one of the world’s most influential guitarists. Was he the best ever? We would make no such claim, as that is an extremely subjective matter, but he was certainly wildly inspiring and the first to truly define the sound of guitar-driven rock.

    First and foremost, thanks to his amazing talent, but that talent for playing as well as pushing the envelope of how gear available in the 60’s could be used.

    Obviously, his Strat was a key component of his sound, but so was his use of a certain tube amp and fuzz pedals.

    As Precise As It Gets

    Our passionate and guitar-playing team of engineers set out to faithfully recreate the original amp with the painstaking accuracy and attention to detail that only guitar players with actual hands-on experience with the original amp can achieve.

    At the heart of JIMS 45, our AMPWORX modeling technology works its magic, carefully recreating the classic guitar tone that’s the sum of each and every component from the circuit of the original.

    The result? The best and most precise digital amp modeling of this famous amp you have ever run your guitar through.

    SPECIFICATIONS-

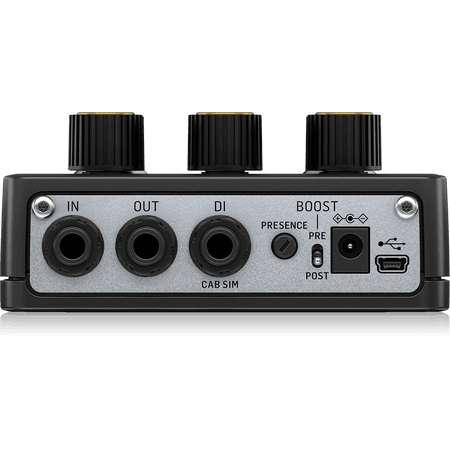

    Connectors
    Input 1 x ¼" TS, unbalanced
    Input Impedance >1 MΩ
    Output 1 x ¼" TRS, balanced with ground sensing*
    Direct Out (Cab Sim) 1 x ¼" TRS, balanced with ground sensing*
    Output Impedance 1 kΩ
    Headphones 1 x 1/8" TRS, stereo
    Headphones Impedance Range >32 Ω
    USB Port Mini-B USB connector
    Controls

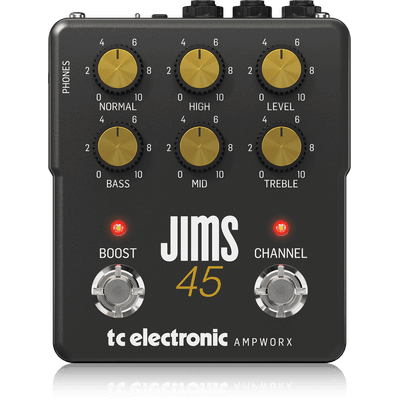

    Front Panel NORMAL, HIGH, LEVEL, BASS, MID, TREBLE
    Top Panel PRESENCE, BOOST switch (PRE / POST)
    Footswitches BOOST, CHANNEL (bypass)
    System
    Speaker and Cab Emulation IR Celestion G12M Creamback, 4 x 12" closed cabinet
    Bypass Buffered bypass
