  • TC Helicon Ditto Mic Looper
1 of 1

TC Helicon

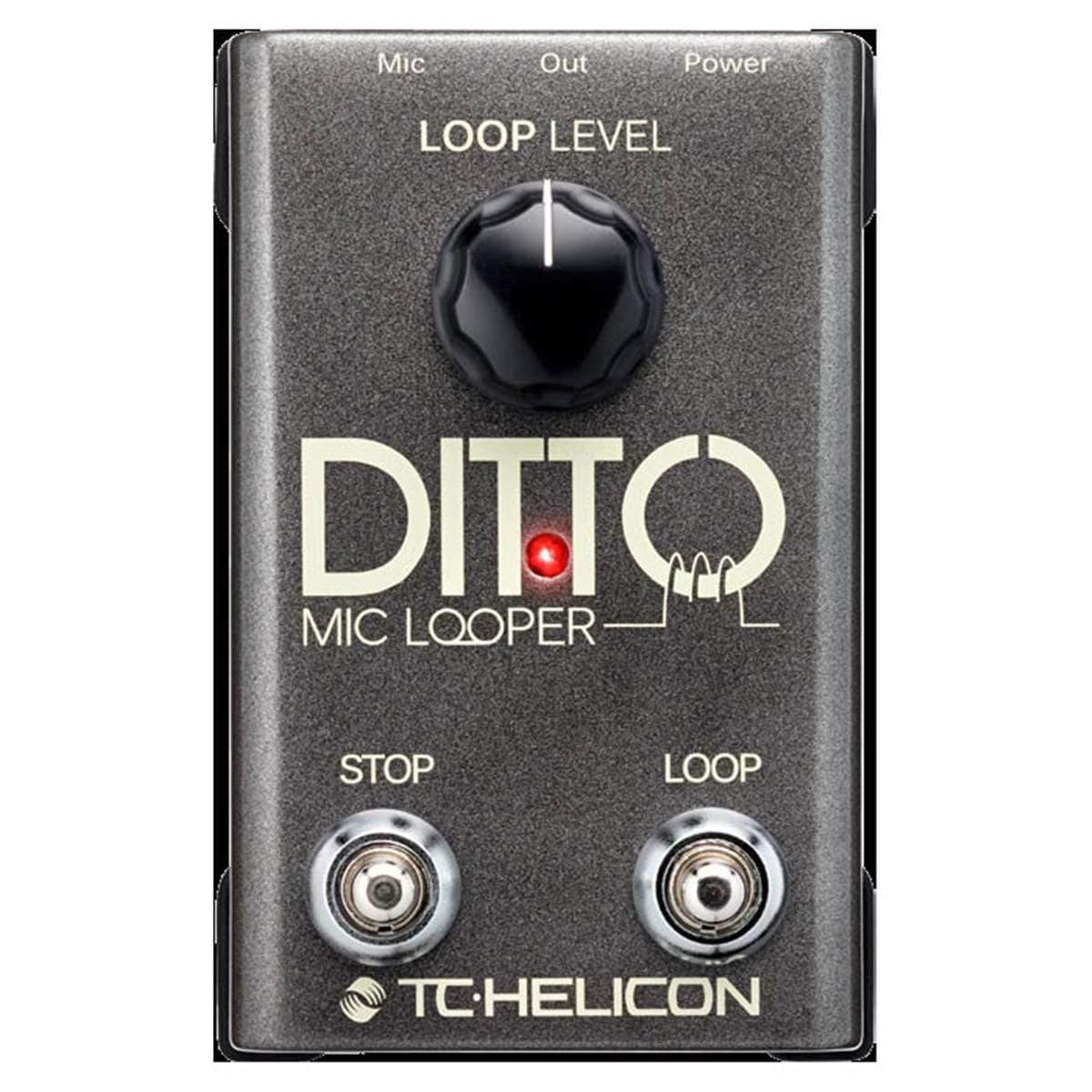

TC Helicon Ditto Mic Looper

Regular price
Regular price
Sale price

Easy to Use Two-Button Looper Pedal for Vocals and Acoustic Instruments

Analog Inputs

Input Connector: XLR Female, Balanced
Input Impedance: 2.7 kOhm balanced
Maximum Input Level: -1 dBu
Signal to Noise Ratio: 112 dB A-weighted
Phantom Power: 32V (always on)

Analog Outputs

Output Connector: XLR Male, balanced
Output Impedance: 250 Ohms balanced
Maximum Output Level: -1 dBu
Dynamic Range: >104 dB, 20 Hz to 20 kHz
Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

Control

USB for firmware and control
Mic Control using TC Helicon MP-75 Microphone or Sennheiser e835 FX mic

Safety And Regulations

Power

Power Supply (Supplied): 12V .4A
Power Consumption: 5.6W

Safety

EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Environment

Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -22°F to 167°F (-30°C to 70°C)
Humidity: Max. 90 % non-condensing

What's in the box?

Region specific power supply
USB cable
User guide
