TC Helicon HARMONY V100
TC Helicon HARMONY V100
Couldn't load pickup availability

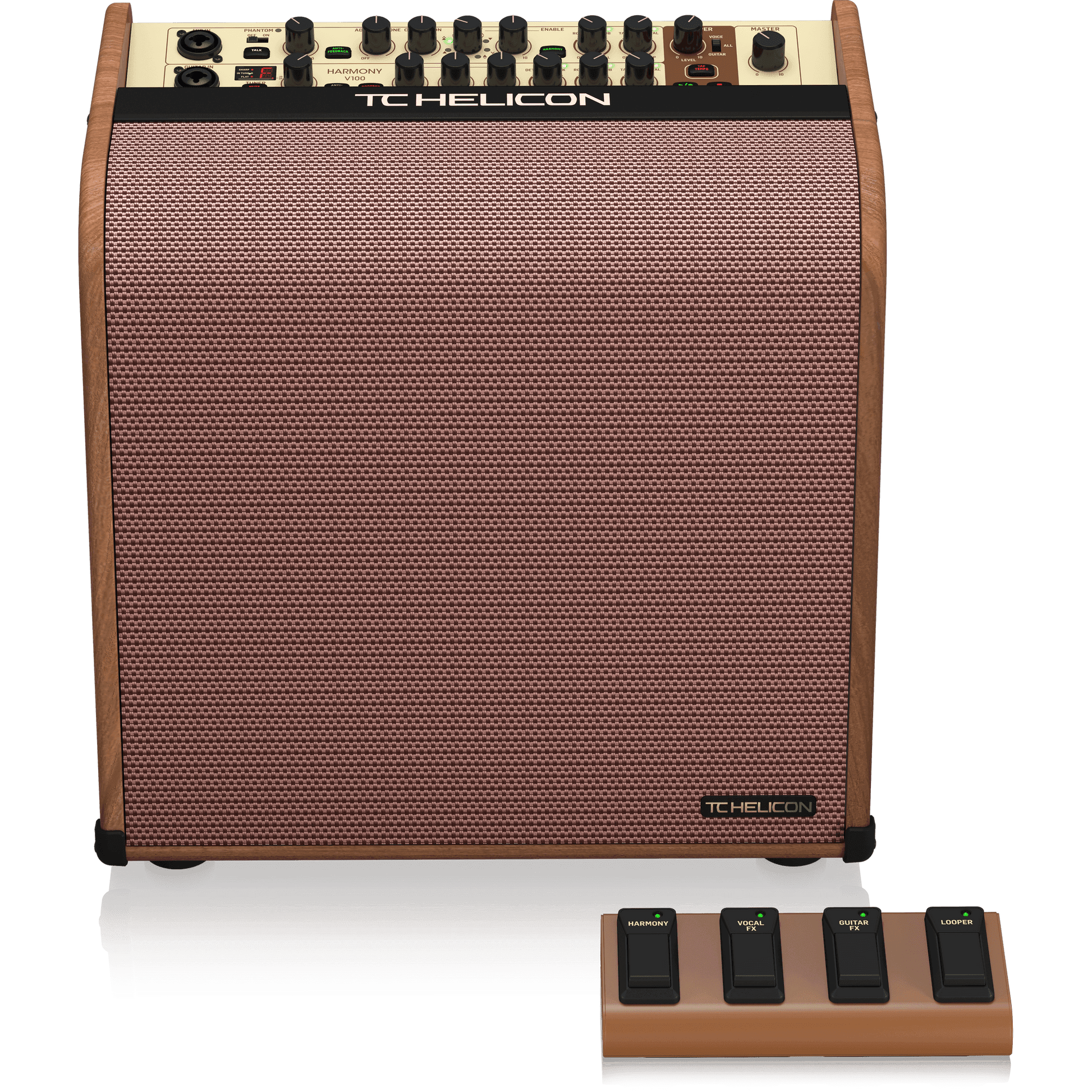

100 Watt 2 Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker and 4-Button Footswitch
Product Features
-
100 Watt 2-channel acoustic amplifier with amazing vocal processing
-
10" TannoyTM Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience
-
4-button customizable footswitch to control looper, harmony and effects included
-
Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay
-
Guitar channel with BodyRez, Intelligent Anti-feedback, Tuner, Reverb, Delay, Chorus and 3 band EQ
-
Built-in looper for practicing, developing ideas and enhancing live performances
-
Harmony function automatically creates up to 2 voices of smooth and accurate vocal harmonies
-
BodyRez restores natural tone to acoustic guitars when using piezo under-saddle pickups
-
Intelligent anti-feedback on each channel automatically stops feedback
-
Accurate integrated chromatic tuner with mute function
-
Dual XLR DI jacks with flexible routing for complete control of your sound
-
USB output for direct recording to a computer allows easy capture
-
Dedicated Aux input for playback of MP3 players, drum machines, etc
Audio inputs
| Guitar input |
¼" TRS balanced/XLR combo |
| Input impedance |
2 MΩ balanced/1 MΩ unbalanced |
| Microphone input |
¼ " TRS balanced/XLR combo |
| Input impedance |
XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced |
| Aux input |
3.5 mm TRS stereo |
| Input impedance |
19 kΩ |
Audio outputs
| Guitar/right out and Mic/left out |
XLR balanced, female |
| Output impedance |
400 Ω |
| Max. output level |
0 dBu |
| Switches |
DI, FX, Mix |
| Headphones out |
3.5 mm TRS stereo |
| Output impedance |
10 Ω |
| Max. output level |
8 dBu |
Vocal section controls
| Knobs |
Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Reverb (off, room, club, hall) Echo (off, tape, digital, slap) |
| Switches |
Phantom on/of Talk on/of Anti-feedback on/off Harmony enable/disable |
| LEDs |
Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections |
| Backlit switches |
Talk (green), anti-feedback (green, or blue when operating), harmony (green) |
Guitar section controls
| Knobs |
Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap) |
| Switches |
Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable |
| Display |
Tuner note 8-segment, red |
| LEDs |
Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red) |
| Backlit switches |
Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections) |
Footswitchable controls
| Microphone Section |
Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/off |
| Guitar section |
Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting |
| Looper section |
Tap Tempo Play/record Stop |
| LEDs |
Green when footswitch engaged, red when recording |
Looper controls
| Knobs |
Level (0 to 10) |
| Switches |
Voice/all/guitar Tap tempo Play/record Stop |
| Backlit switches |
Tap tempo (flash red at tempo), play/record (green play, red record), stop (red) |
Rear panel section
| Connections |
AC input IEC USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm |
| Switches |
AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio |
| Knobs |
Aux input level (0-10) |
USB
| Type |
Class compliant USB 2.0, type B |
| Supported Operating Systems |
Windows 7 or higher Mac OS X 10.6.8 or higher |
| Windows driver |
Required driver is supplied |
| Audio input and output |
2 channels, 24 bit, 48kHz |
Amplifier
| Output power |
100 W |
| Type |
Class- D |
| Protection |
Short circuit, thermal |
Loudspeakers
| Type |
10" dual-concentric, Tannoy |
| Impedance |
4 Ω |
| Power handling |
400 W |
| Top tweeter (switchable on/off) |
1" |
| Impedance |
4 Ω |
| Overall frequency response |
80 Hz - 20 kHz (+/- 3 dB) 46 Hz - 24 kHz (- 10 dB) |
| Maximum SPL |
118 dbSPL |
Footswitch (supplied) (any switch can operate any footswitch able control)
| Type |
FST4 |
| Switches |
Harmony on/off (with LED) Vocal FX on/off (with LED) Guitar FX on/off (with LED) Looper on/off (with LED) |
Power Supply
| Mains Voltage |
100-240 V~ 50/60 Hz |
| Power consumption |
40 W |
| Mains connection |
Standard IEC receptacle |
| Power Switch |
Rocker, rear panel |
Dimensions/Weight
| Dimensions (H x W x D) |
377 x 408 x 311 mm (14.8 x 16.1 x 12.2") |
| Weight |
13.3 kg (29.3 lbs) |
