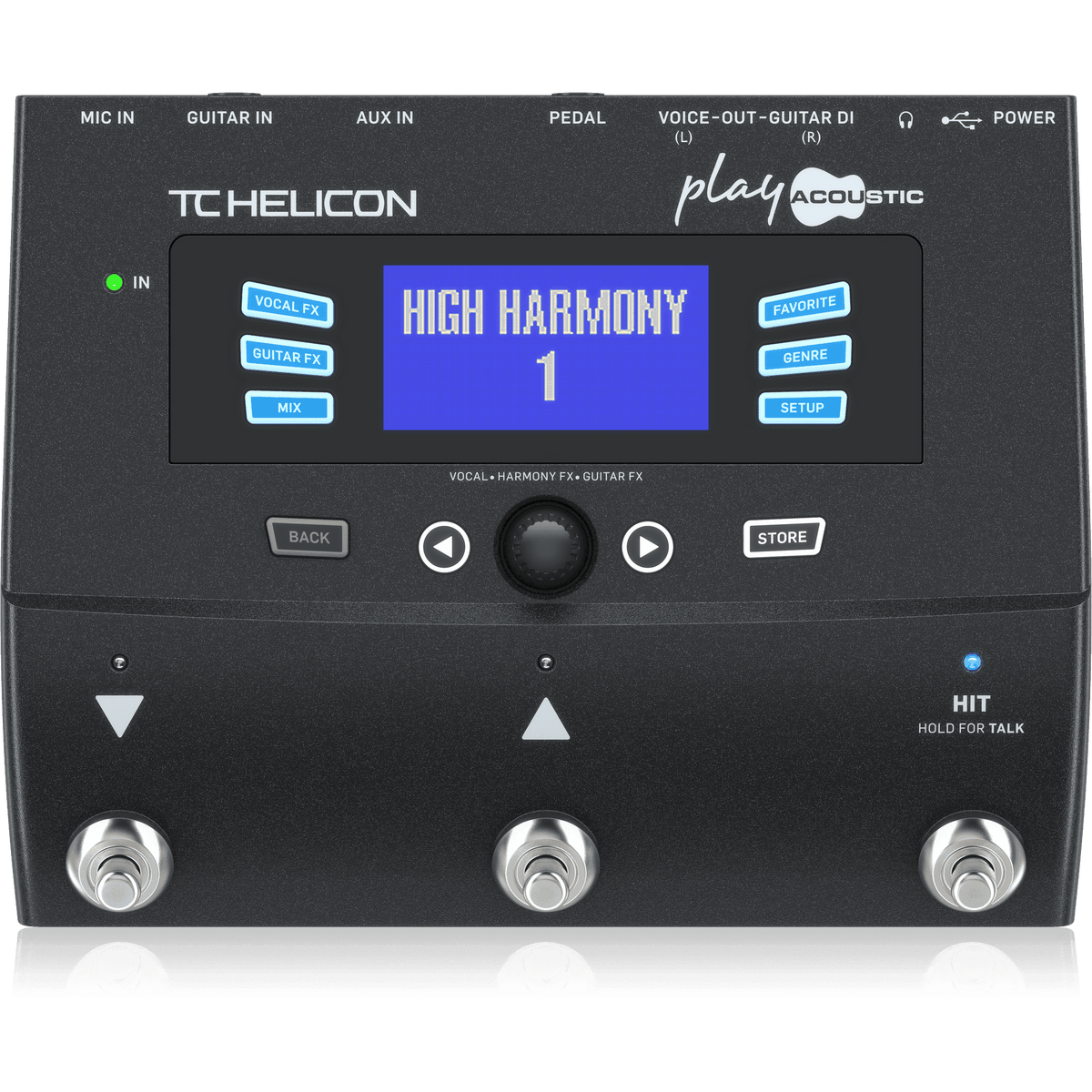

TC Helicon Play Acoustic
TC Helicon Play Acoustic
TC Helicon
Authorised Distributor

TC Helicon Play Acoustic

SKU: PLAY ACOUSTIC

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • 3-button stompbox combines studio quality vocals, pristine guitar sounds and creative looping

    • Seven professional vocal effects and tone processing with intuitive control

    • BodyRez filtering, on board EQ, and DI for impeccable acoustic guitar tone

    • Guitar FX styles from TC Electronic HALL OF FAME REVERB, FLASHBACK DELAY and CORONA CHORUS pedals

    • VLOOP performance looper with undo/redo and unlimited overdubs

    • More than 200 song- and artist-inspired vocal presets

    • High-quality, low-noise mic preamp for pristine vocals

    • USB for streaming audio, preset downloads and firmware updates

    • Compatible with remote Mic Control using the TC Helicon MP-75, MP-76 or Sennheiser* e835 FX microphones

    • Optional SWITCH-3 or SWITCH-6 foot switch for more performance control

    • Power supply included



    DESCRIPTION


    Play Acoustic combines all the things you need to make a live acoustic performance shine: lavish vocal sounds, perfect backing harmonies, best-selling guitar effects, and unique processing that makes your six-string sing – in perfect harmony with your voice.

    SPECIFICATIONS

    Included Effects

    Vocal FX

    µMod
    Delay
    Reverb
    Harmony
    Double
    Transducer
    Tone
    HardTune & Correctio
    Chorus
    BodyRez
    Guitar Anti-feedback
    Guitar FX

    Reverb
    Delay
    Chorus
    BodyRez
    Guitar Anti-feedback
    Tuner
    Control

    100+ Song & Artist Inspired Presets, Memory for 500
    Simple Vocal & Guitar FX Editing via Direct Access Buttons
    Direct Access to Favorite, Genre, Mix and Setup Menus
    Preset Up/Down and HIT Footswitch
    Graphics LCD Display
    Bump-Protected Mic Level
    Dual-Colour Backlit Buttons

    Design

    Size

    Height: 1.8 inches (45 mm)
    Width: 7.9 inches (200 mm)
    Depth: 6.1 inches (156 mm)
    Weight

    Weight: 2.2 lb. (1 kg)
    Construction

    Dual die-cast clamshell design
    Acrylic Lens
    Punch-cut Metal connection panel
    Rubberized footings
    Backlit Graphic LCD Display

    Connections

    Analog Inputs

    Connectors: Mic.: balanced XLR, Guitar: unbalanced 1/4? TS, Aux: 1/8? stereo mini jack
    Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm
    EIN @ Max Mic Gain Rg = 150 Ohm : -127 dBu
    Mic SNR: > 104 dB
    Phantom Power: +48V (on/off via Setup menu)
    Guitar Input impedance: 1 MOhm
    Guitar Input Level @ 0 dBFS: 12 dBu
    Guitar Input SNR: > 115dB
    Aux Input Level @ 0dBu: +2dBu
    A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted
    Analog Outputs

    D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
    Connectors, balanced: XLR
    Output Impedance Balanced/ Unbalanced: 80/40 Ohm
    XLR Output 0dBFS: +2 dBu
    Dynamic Range: > 109 dB, 20 Hz to 20 kHz
    Frequency Response: +0.30/-0 dB, 20 Hz to 20 kHz
    Headphone Out: 1/8? Mini stereo jack
    Control

    USB: USB-B (Preset Management, Firmware Updates and audio I/O)
    Pedal: 1/4? TRS phone jack
    Mic Control using TC Helicon MP-75 Microphone or Sennheiser e 835 FX mic.

    Safety And Regulations

    Power

    External Power Supply. Mains Voltage Input: 100 to 240 VAC, 50 to 60 Hz (auto-select)
    12V DC 0.4A max output
    Power Consumption: < 14 W
    Safety

    EMC – Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
    Safety – certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
    Environment

    Operating Temperature: 32° F to 122° F (0° C to 50° C)
    Storage Temperature: -22° F to 167° F (-30° C to 70° C)
    Humidity: Max. 90 % non-condensing
    What's in the box?

    Region specific power supply
    USB cable
    User guide
