Home / TC Helicon VOICETONE E1

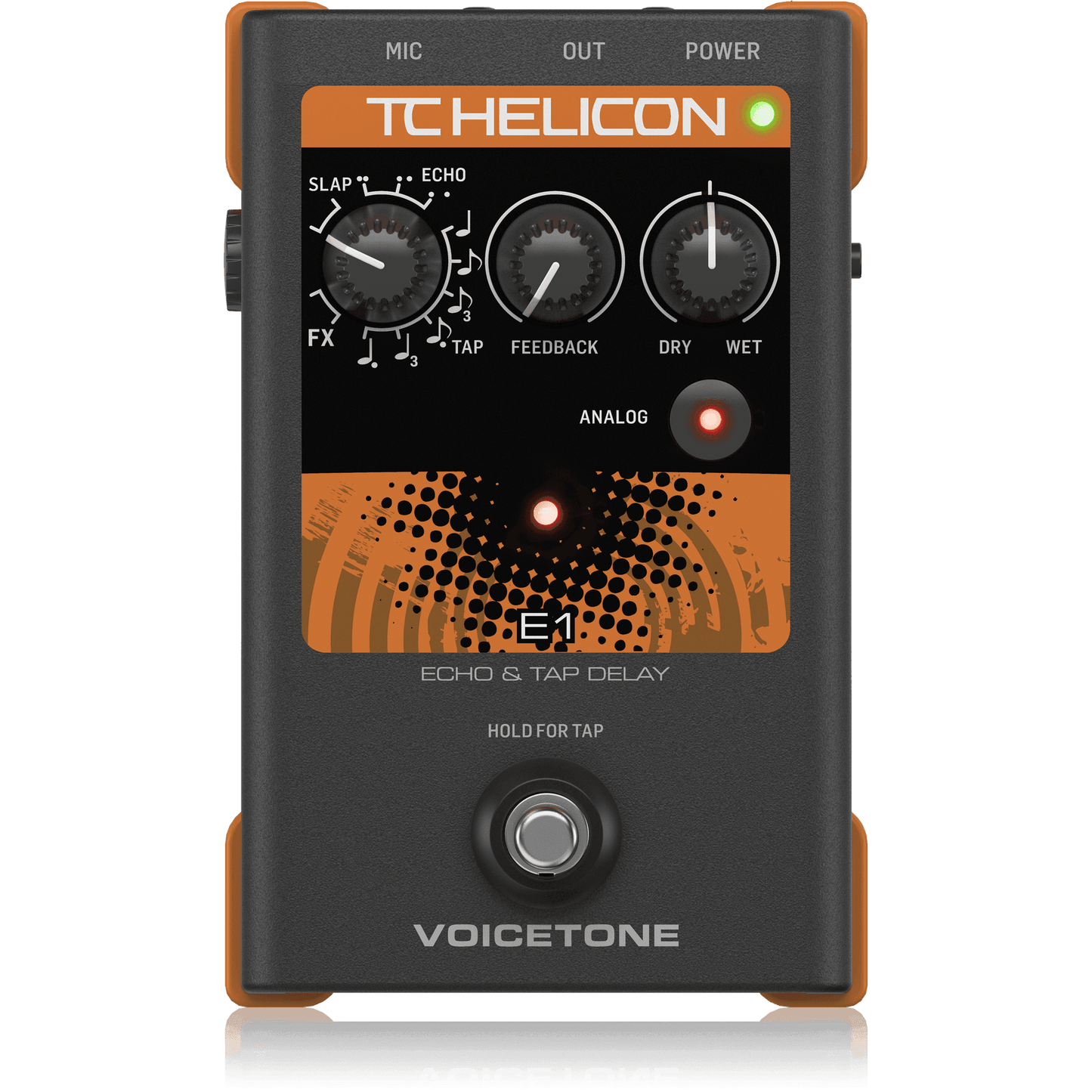

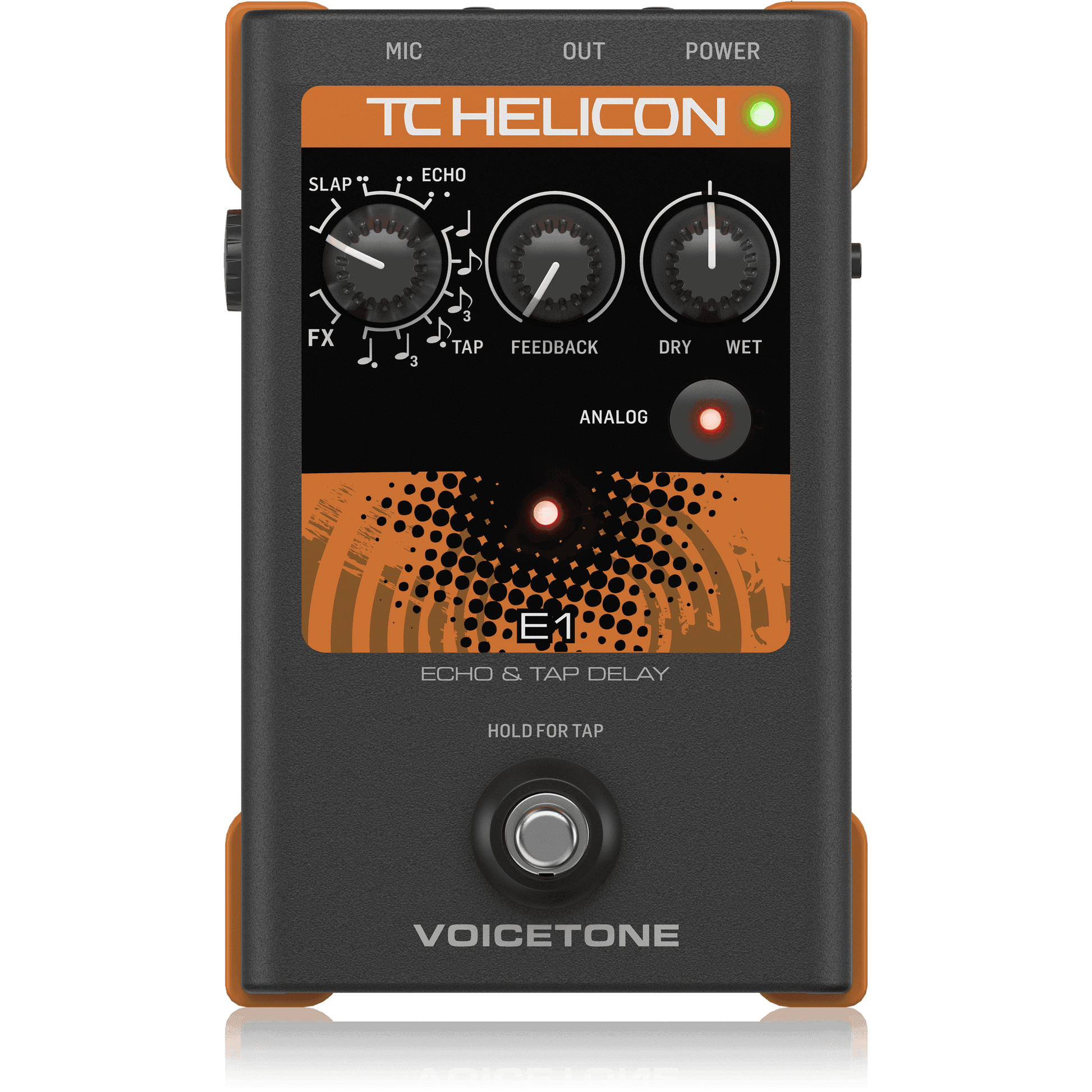

TC Helicon VOICETONE E1
TC Helicon VOICETONE E1
TC Helicon
Authorised Distributor

TC Helicon VOICETONE E1

SKU: VOICETONEE1

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • Single-button stompbox gives you a range of stage-ready vocal echo effects in vintage to modern flavors
    • Timed repeats of your vocal add interest at just the right moment
    • 13 wicked delay styles, including classic slap echo
    • Tap tempo control to keep your echoes right on the beat
    • Simple 3-knob interface gets you up and running in seconds
    • High-quality, low-noise mic preamp for pristine vocals
    • On/off foot switch for quick performance control
    • Analog button for an optional filtered echo sound from the days of tape recording
    • Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
    • Compatible with remote Mic Control using the TC Helicon MP-75 microphone
    • Rugged, road-worthy construction for years of dependable use
    • Power supply included



    DESCRIPTION

    VOICETONE E1 offers singers the signature echo and slapback effects that evoke classic songs, while putting effects control at their feet. High quality, immersive echo effects for the stage are no longer just for guitarists.



    SPECIFICATIONS

    Design



    Size

    Height: 5.4 inches (140 mm)
    Width: 3.5 inches (90 mm)
    Depth: 2.3 inches (60 mm)

    Weight

    Weight: 0.92 lb. (0.42 kg)

    Construction

    Two part dies cast metal
    Rubberized base

    Connections



    Analog Inputs

    Connectors, balanced: Mic.: XLR
    Mic Input Level @ 0 dBFS: -42dBu to +1dBu
    EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
    Mic input SNR: >104 dB
    Phantom Power: 24V (always on)

    Analog Outputs

    Output Impedance, Bal./Unbal.: 200/100 Ohm
    Output Full Scale: +1 dBu
    Dynamic Range: >104 dB, 20 Hz to 20 kHz
    Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

    Control

    USB for firmware and control
    Mic Control using TC Helicon MP-75

    Safety And Regulations



    Power

    Power Supply (Supplied): 12V / 400mA
    Power Consumption: 5.6W

    Safety

    EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
    Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

    Environment

    Operating Temperature: 32°F to 122°F (0°C to 50°C)
    Storage Temperature: -22°F to 167°F (-30°C to 70°C)
    Humidity: Max. 90 % non-condensing

    What's in the box?

    Region specific power supply
    USB cable
    User guide
