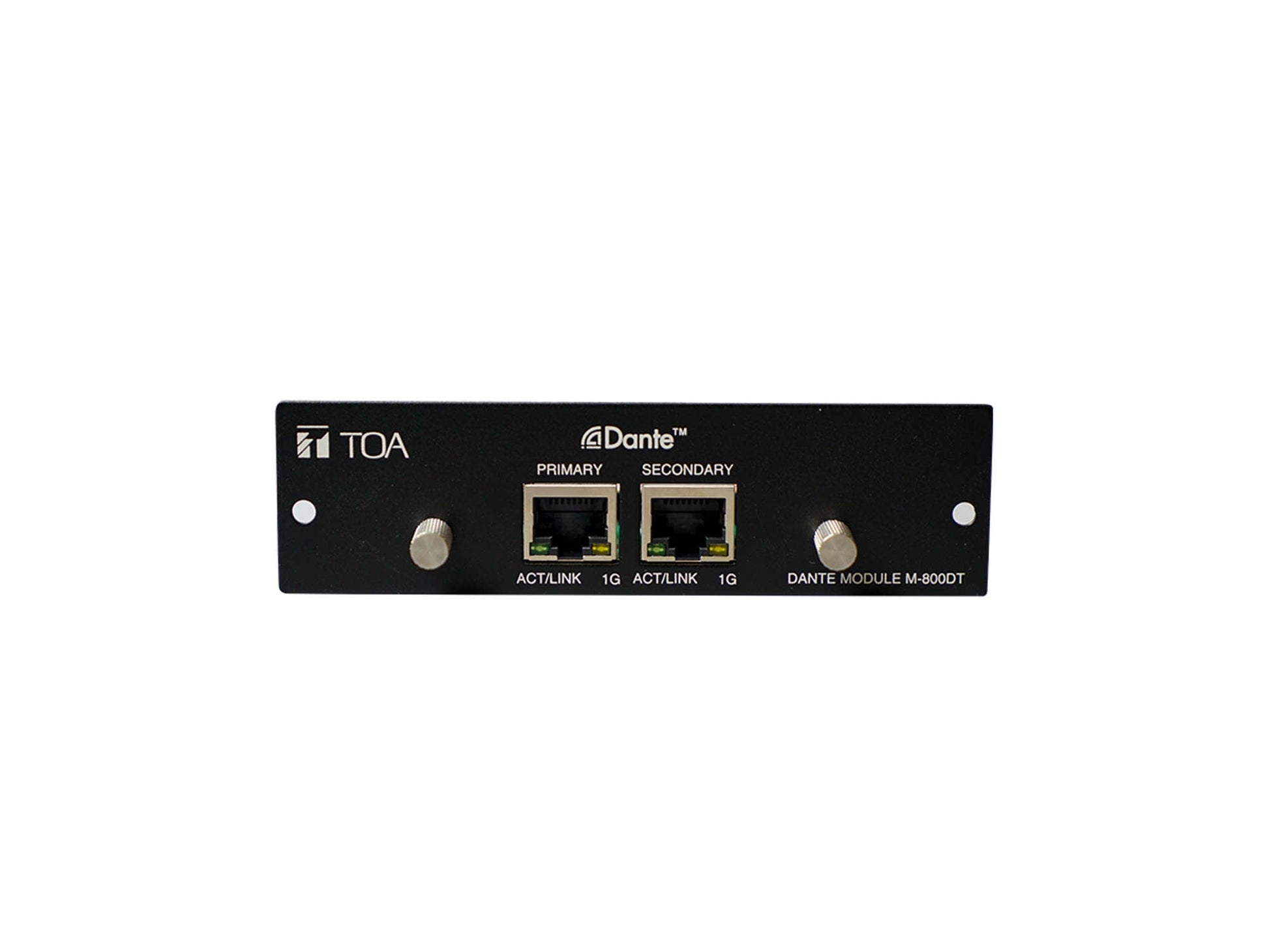

Dante Module
The module shall be insertable into the M-8080D matrix mixer by TOA Electronics. It shall support a port speed of 100/1000 Mbps with DHCP functionality. The module shall provide at least 8 Dante channels for bidirectional digital streaming. It shall feature multiple indicators to display the status.

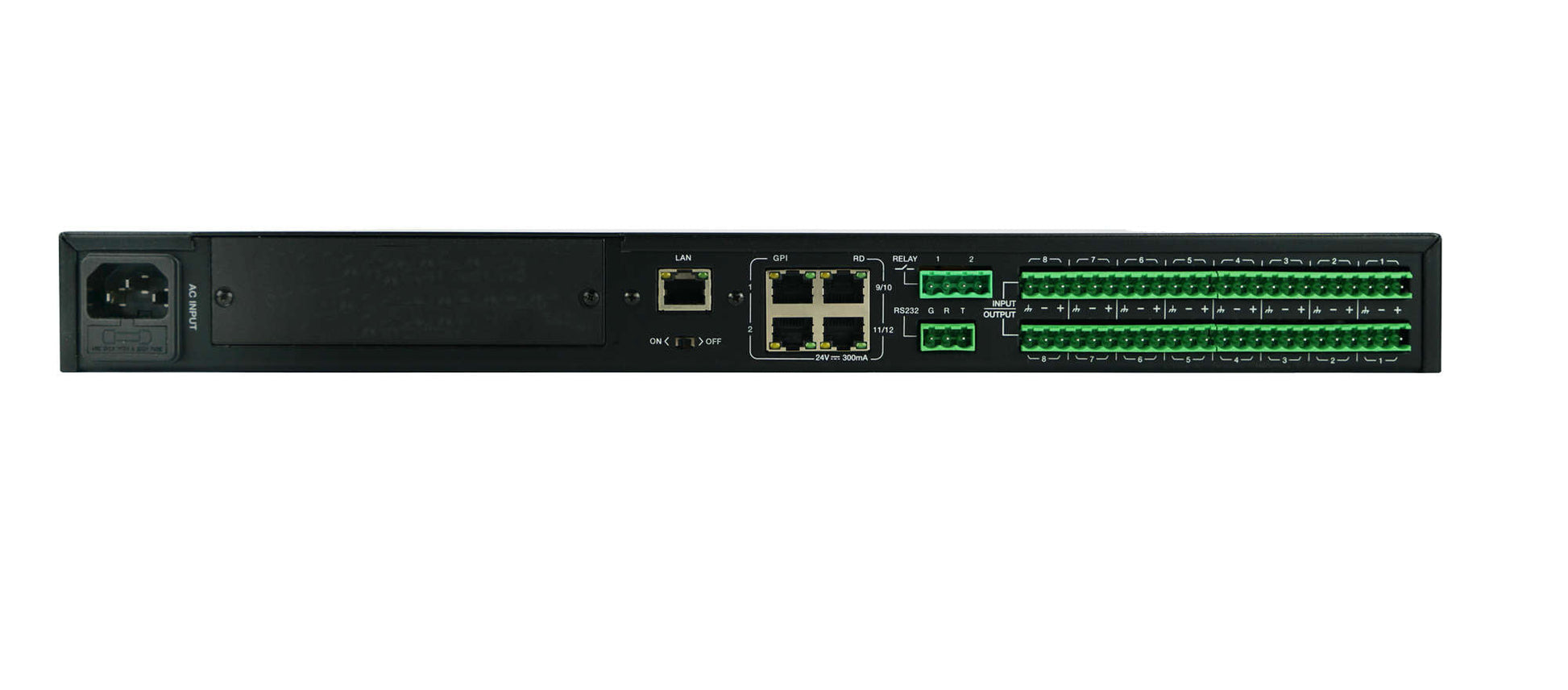

The M-800DT Dante module provides an easy-to-use audio over ethernet connection between up to 16 M-8080D Matrix Mixer Systems. It expands the possibilities of the M-8080D system to a total of 192 inputs and outputs.

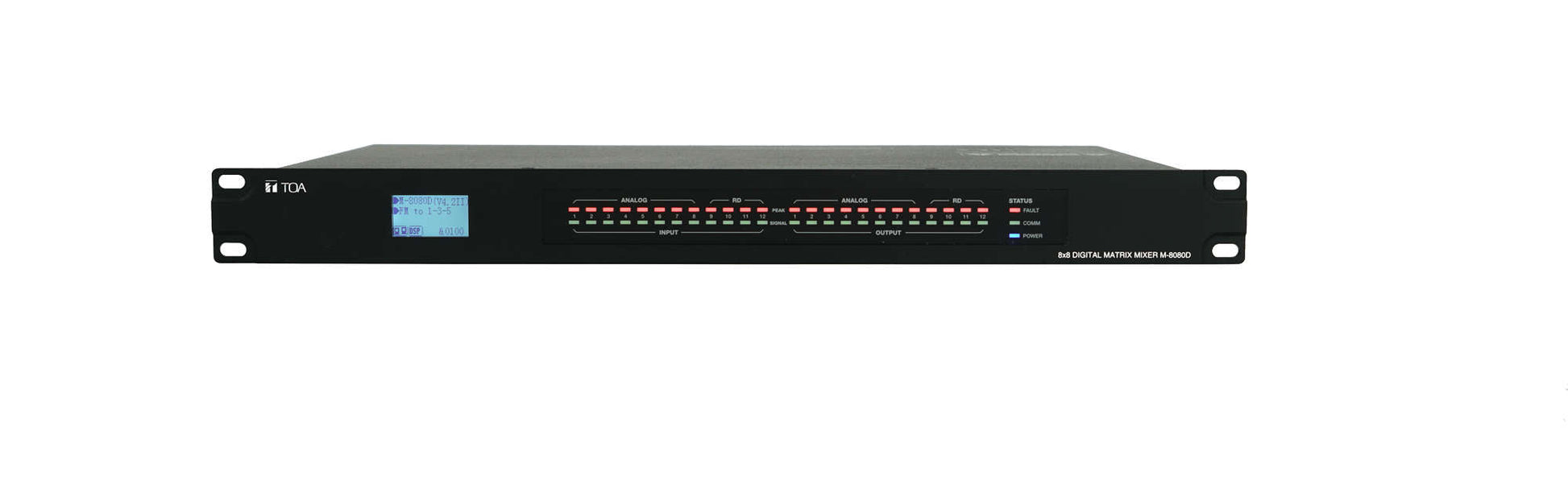

Designed for exclusive use with the M-8080D, the M-800DT Dante Module provides a complete, ready-to-use Dante interface with up to 8 channels of bidirectional digital streaming. The M-8080D Digital Mixer System is ideal for multi-zone paging, music distribution and now also for decentralized applications.
- Power Source: 5 V DV
- Digital Audio Formats: TDM
- Audio Transport Formats: Dante Audio over IP
- Operating Temperature: 0 °C or less to 40 °C or more
- Operating Humidity: 90 %RH or more
- Finish: Panel: Surface-treated steel plate, black, paint
- Dimensions: 122.2 (W) x 33.5 (H) x 119.5 (D) or less
- Weight: 118 g or less
| Specification | Details |
|---|---|
| Power Source | Supplied by main unit (Powered by M-8080D) |
| Data Interface (I/F) | RGMII / MII |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Finish | Steel plate, black |
| Dimensions (W x H x D) | 122.2 x 33.5 x 119.5 mm |
| Weight | 0.118 kg |
