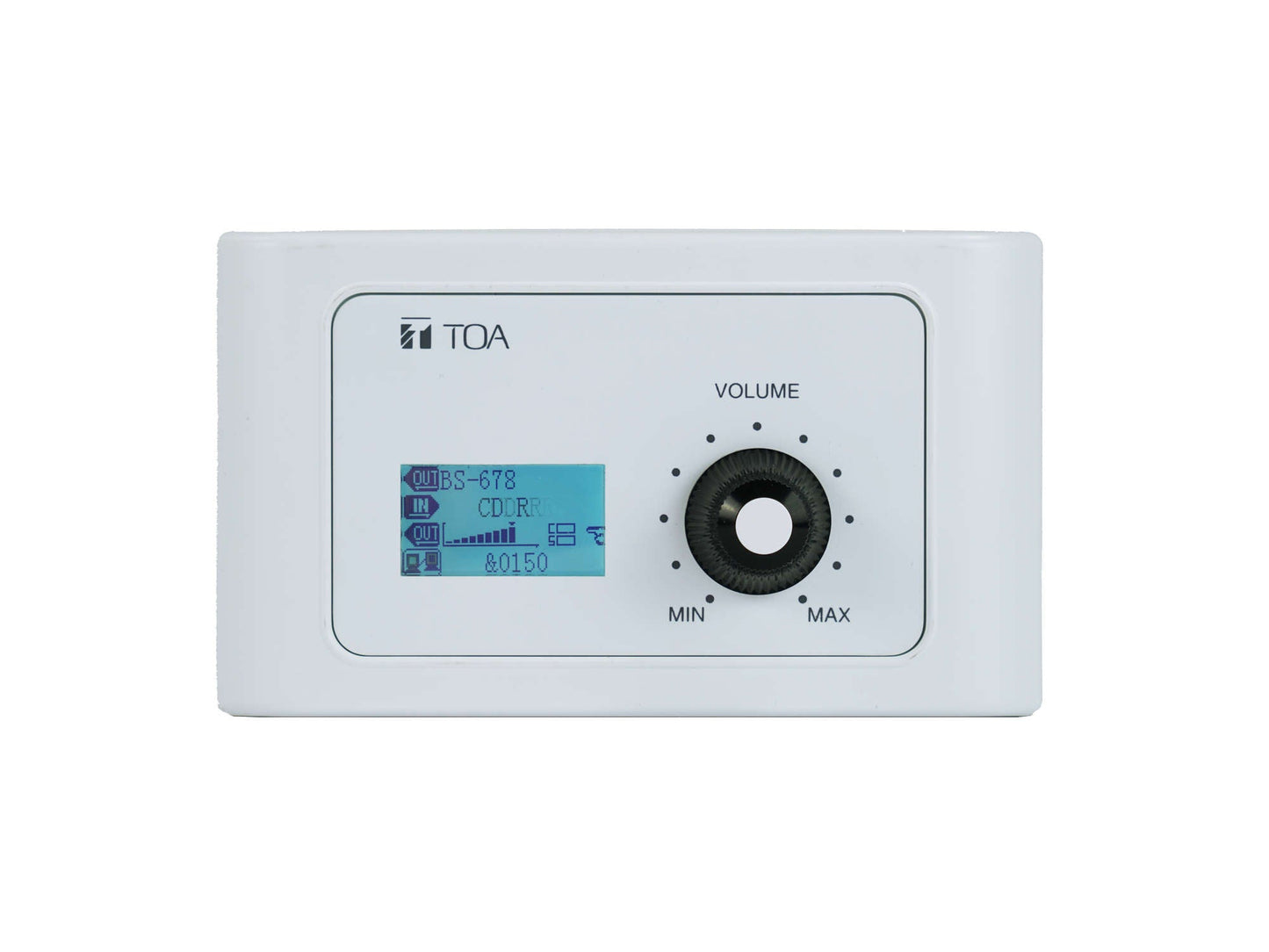

TOA M800RC Remote Control Panel
TOA M800RC Remote Control Panel
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
FEATURES
- Input/Output signal routing
- Volume control
- Direct power supply by network cable
- LCD screen with output level display
- RD port IN, for connection to M-8080D
- RD port LINK for daisy chain connection
- 100m CAT5e cable length
DESCRIPTION
Volume Controller
The volume controller shall be assignable to TOA’s M-8080D matrix mixer. It shall have the capability to adjust the output volume of different channels and route both input and output channels of the matrix mixer. The controller shall be equipped with an LCD display that shows the volume level, signal level for a designated output, ID, and communication status. Additionally, the device shall feature a rotary knob to set the volume and route the channels.
- Power Source: 24V DC
- Operating Temperature: 0°C or less to +40°C or more
- Operating Humidity: 90% RH or less
- Finish Panel: Polycarbonate + ABS, white
- Dimensions: 147 (W) x 86 (H) x 65 (D) mm or less
- Weight: 0.3 kg or less
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Model | M-800RC |
| Power Source | 24 V DC (Powered by M-8080D, M-804EX, or external) |
| Controls | Volume / Routing |
| Operating Temperature | 0°C to +40°C |
| Finish | PC resin, ABS resin, traffic white (RAL 9016 or equivalent) |
| Dimensions (W x H x D) | 147 x 86 x 65 mm |
| Weight | 0.3 kg |
| Indicator | LC-Display — Displays device information: ID, Volume, communication status |
| Inputs |
RD In: Transmits and receives AES3 digital audio plus control data Connect to M-8080D, M-804EX, or M-800RC/M-800RCT (RJ45 connector) |
| Outputs |
RD EXP: Transmits and receives control data Connect to M-800RC or M-800RCT (RJ45 connector) |
