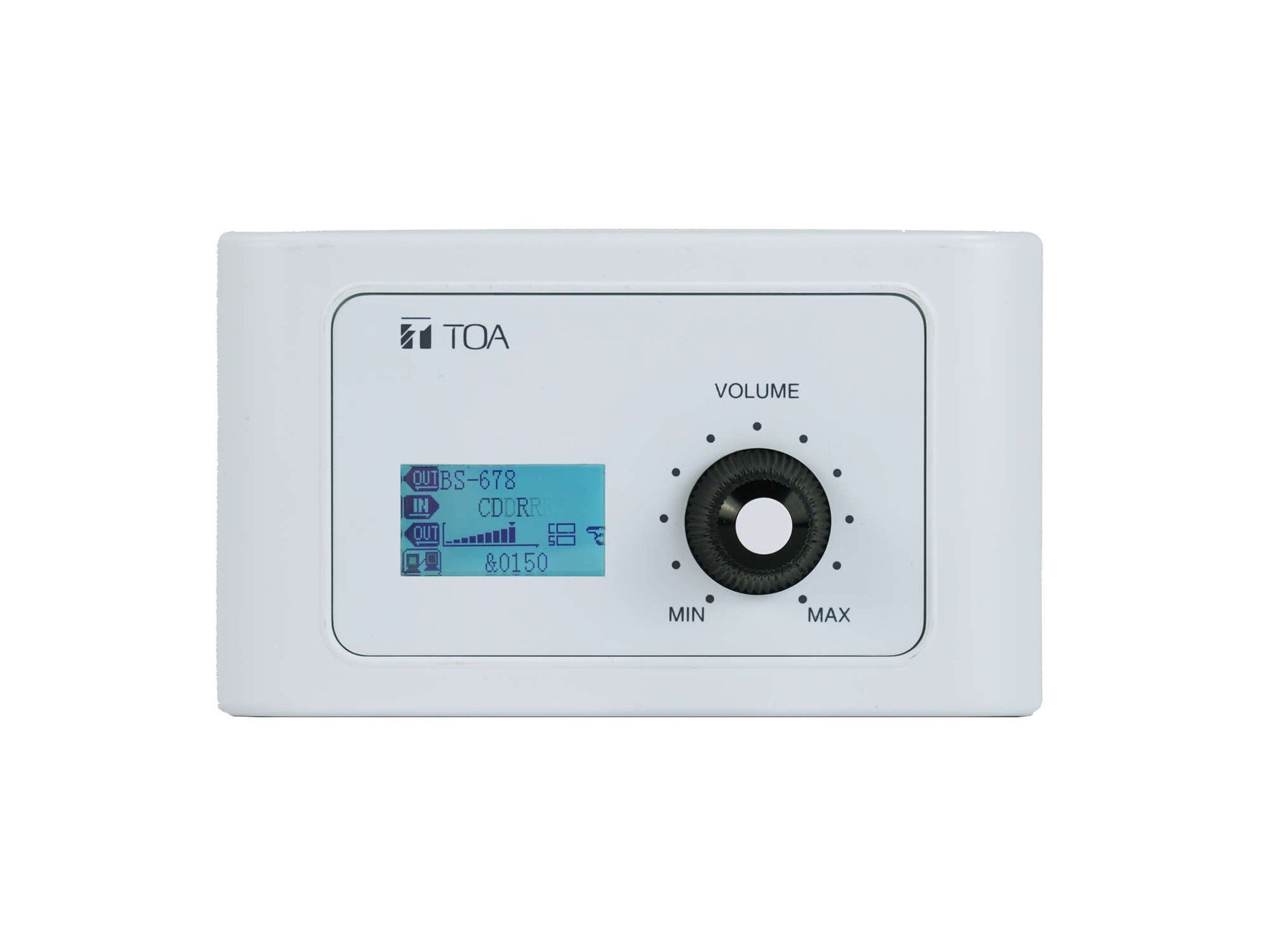

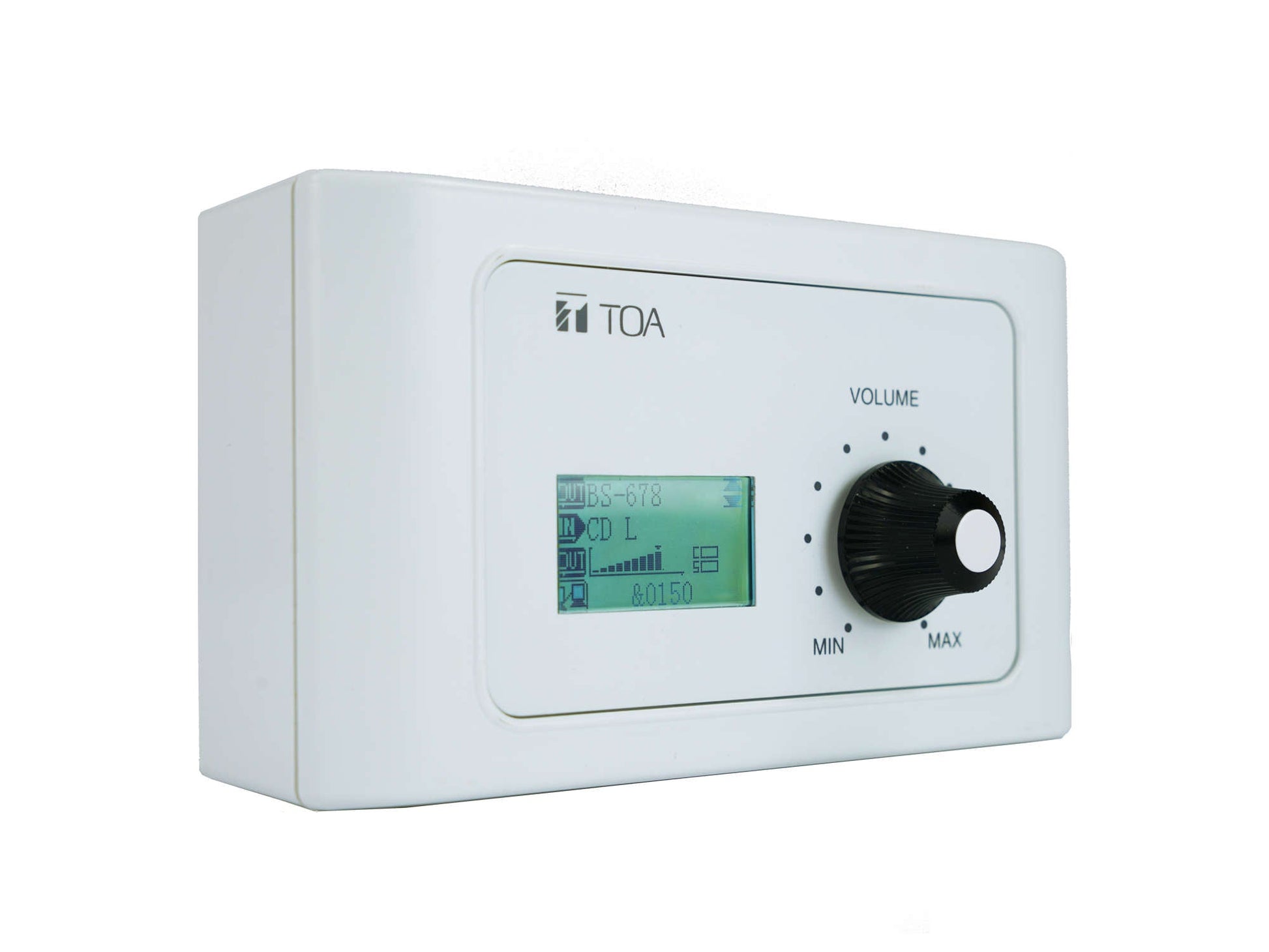

TOA M802RC Remote Audio Control Panel with Audio Out
TOA M802RC Remote Audio Control Panel with Audio Out
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
FEATURES
- Input/Output signal routing
- Volume control
- Direct power supply by network cable
- 2 analog outputs
- LCD screen with output level display
- RD port IN, for connection to M-8080D
- 100m CAT5e cable length
DESCRIPTION
Volume Controller
The volume controller shall be assignable to TOA’s M-8080D matrix mixer. It shall have the capability to adjust the output volume of different channels and route both input and output channels of the matrix mixer. The controller shall be equipped with an LCD display that shows the volume level, signal level for a designated output, ID, and communication status. Additionally, the device shall feature a rotary knob to set the volume and route the channels. The product shall have at least two analog outputs.
- Power Source: 24V DC
- Audio Output: Line output: 0 dBV, 20 dBu or more, electronic balanced, screw terminal (3 pins)
- Operating Temperature: 0°C or less to +40°C or more
- Operating Humidity: 90% RH or less
- Finish Panel: Polycarbonate + ABS, white
- Dimensions: 147 (W) x 86 (H) x 65 (D) mm or less
- Weight: 0.3 kg or less
SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Source | 24 V DC (Powered by M-8080D or M-804EX or external) |
| Frequency Response | 20 Hz – 20 kHz |
| Controls | Volume / Routing |
| Operating Temperature | 0°C to +40°C |
| Finish | PC resin, ABS resin, traffic white (RAL 9016 or equivalent) |
| Dimensions (W x H x D) | 147 x 86 x 65 mm |
| Weight | 0.3 kg |
| Distortion | < 0.01% |
| S/N Ratio | 105 dB(A) (A-weighted) |
| Indicator | LC-Display (Displays device information: ID, Volume, communication status) |
| Crosstalk | 79 dB |
| Inputs |
RD In: Transmits and receives AES3 digital audio plus control data Connect to M-8080D or M-804EX, RJ45 connector |
| Outputs | Line Output 1 - 2: 0 dBV, 1.8kΩ, Max output 20 dBu (7.75V), electronic balanced, screw terminal (3 pins x 2) |
| Sampling Frequency | 48 kHz, 24 bit |
