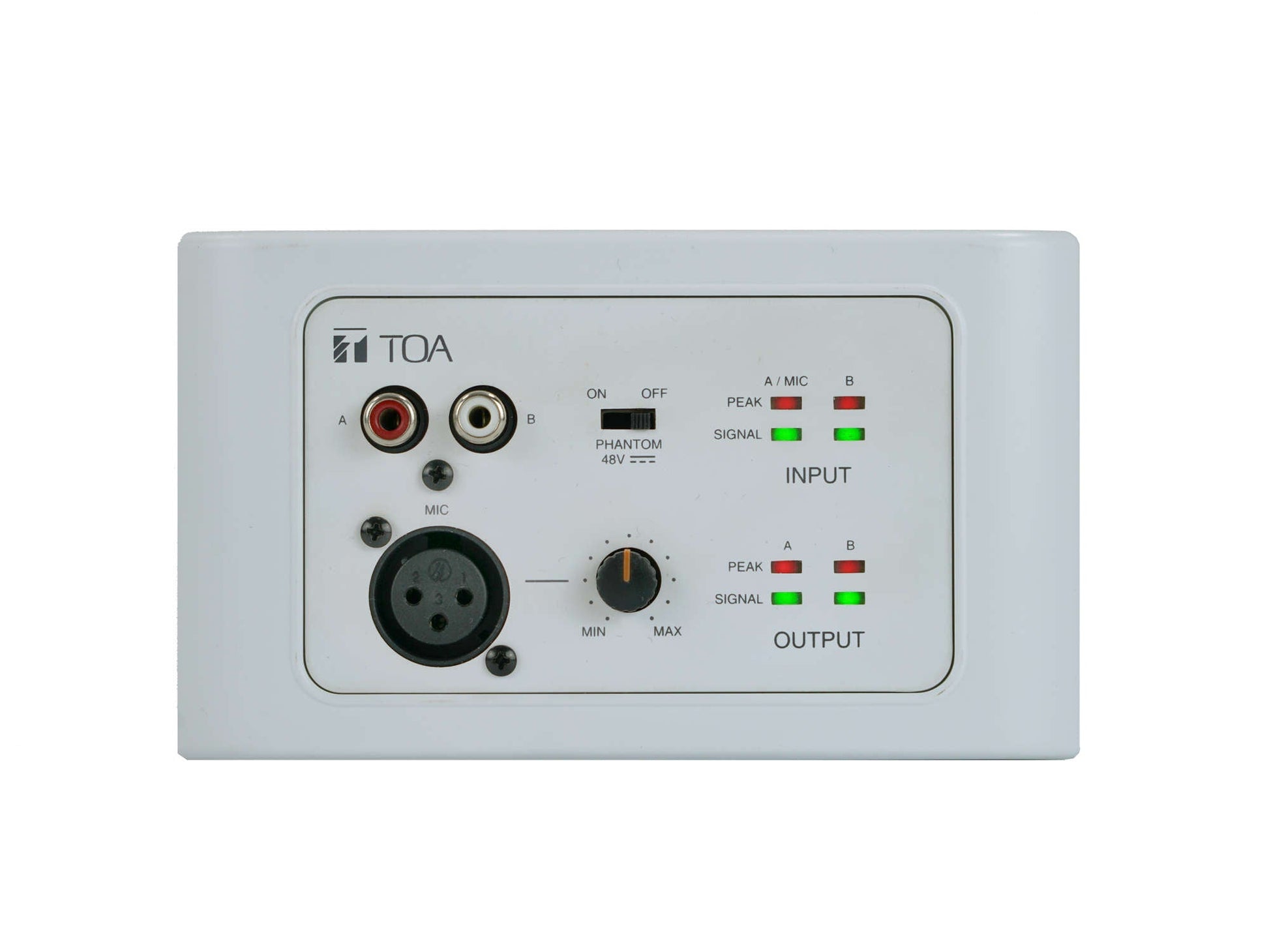

TOA M822IO Remote Audio Input Output Panel
TOA M822IO Remote Audio Input Output Panel
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
FEATURES
- Built-in A/D and D/A converter
- 2 analog inputs (MIC/ stereo line)
- 2 analog outputs
- Phantom Power
- Input Sensitivity
- Direct power supply by network cable
- RD port IN, for connection to M-8080D
- 100m CAT5e cable length
DESCRIPTION
Remote Audio Input and Output Controller
The remote controller shall be compatible with TOA's M-8080D matrix mixer. It shall provide 2 analog input channels and 2 analog output channels. The device shall include an XLR microphone input. The input level of the microphone shall be adjustable via a knob. The device shall be equipped with a switch to enable or disable the phantom power function (48V) for an electret microphone. Indicators shall display the status for signal presence and clipping.
- Power Source: 24 V DC
- Audio Input: Mic Input: - 48dB, electronic balanced, XLR Connector
- Audio Output: Line output: 0 dBV, output 20 dBu or more, electronic balanced, screw terminal (3 pins)
- Frequency Response: 20 or less to 20.0000 Hz or more
- Total Harmonic Distortion: 0.01 %
- S/N Ratio: 105 dB or more
- Crosstalk: 79 dB or more
- Operating Temperature: 0 °C or less to 40 °C or more
- Operating Humidity: 90 % RH or less
- Finish: Panel: Polycarbonate + ABS, white
- Dimensions: 147 (W) x 86 (H) x 63 (D) mm or less
- Weight: 0.3 kg or less
SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Source | 24 V DC (Powered by M-8080D or M-804EX or external) |
| Frequency Response | 20 Hz – 20 kHz |
| Controls | Volume / Routing |
| Operating Temperature | 0°C to +40°C |
| Finish | PC resin, ABS resin, traffic white (RAL 9016 or equivalent) |
| Dimensions (W x H x D) | 147 x 86 x 52 mm |
| Weight | 0.3 kg |
| Distortion | < 0.01% |
| S/N Ratio | 105 dB(A) (A-weighted) |
| Indicator |
LED Audio Input: 2x Signal (Green), 2x Peak (Red) LED Audio Output: 2x Signal (Green), 2x Peak (Red) |
| Crosstalk | 79 dB |
| Inputs |
RD In: Transmits and receives AES3 digital audio plus control data (RJ45 connector) MIC Input: -48 dBV, 5.1 kΩ, electronic balanced, XLR Line Input A-B: 0 dBV, 5.1 kΩ, unbalanced, RCA pin jack |
| Outputs | Line Output 1 - 2: 0 dBV, 1.8 kΩ, Max output 20 dBu (7.75V), electronic balanced, screw terminal (3 pins x 2) |
| Sampling Frequency | 48 kHz, 24 bit |
