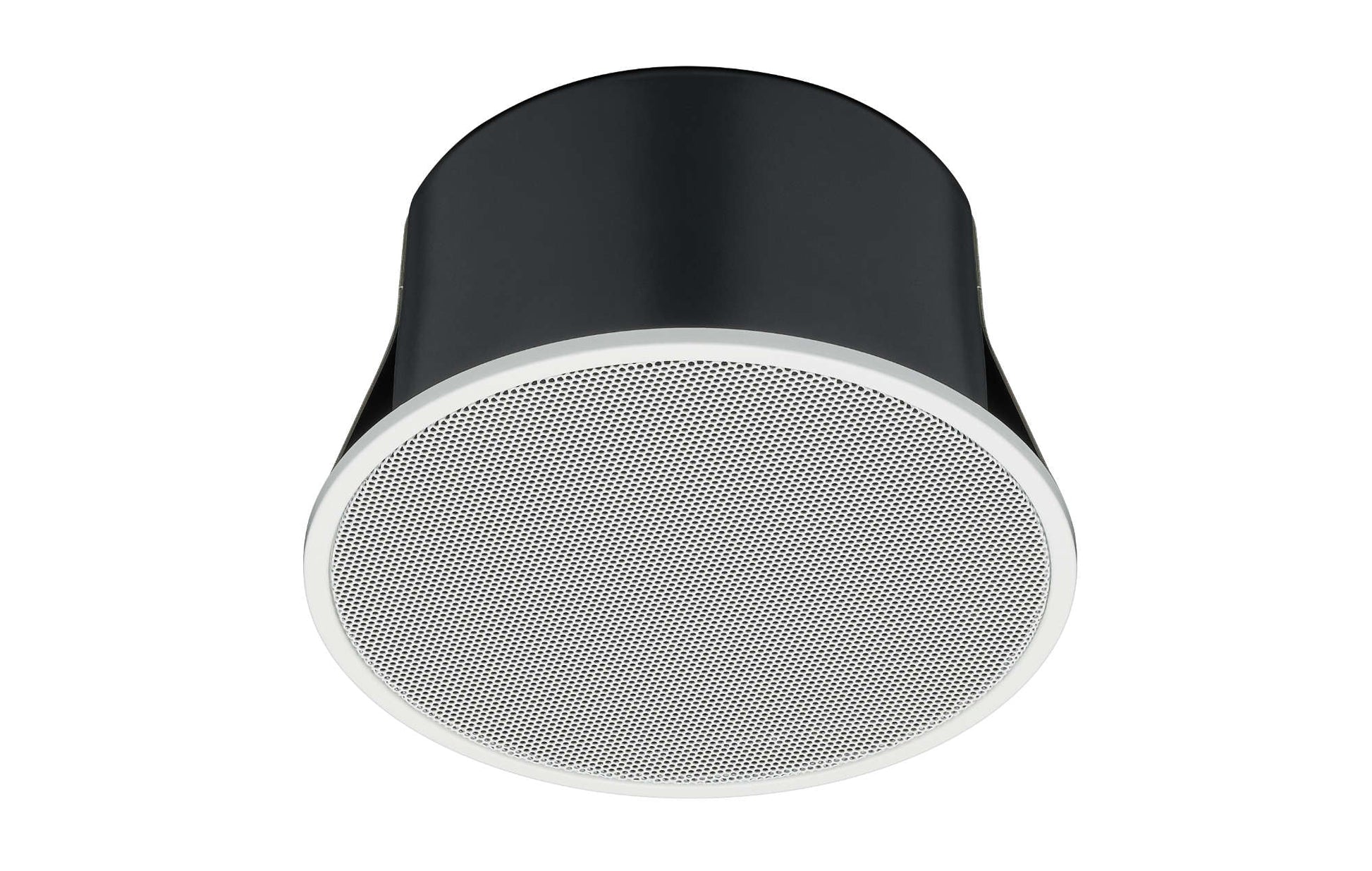

TOA PC1860BS Ceiling Speaker

TOA PC1860BS Ceiling Speaker

Dhs.157.00 AED
Dhs.157.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

FEATURES

    • Flat front panel
    • Quick and easy installation
    • Fire dome made of steel
    • Ceramic screw terminal block and thermal fuse
    • 6 W rated input
    • 12 cm speaker

    DESCRIPTION

    The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor. The PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24.

      SPECIFICATIONS

      Parameter Details
      Rated Input 6 W (100 V line), 3 W (70 V line)
      Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
      Sensitivity 95 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) 93 dB (1 W, 1 m) (100 Hz – 10 kHz, pink noise) 81 dB (1 W, 4 m) (100 Hz – 10 kHz, pink noise)
      Max. Sound Pressure Level 100 dB (6 W, 1 m) (100 Hz – 10 kHz, pink noise) 88 dB (6 W, 4 m) (100 Hz – 10 kHz, pink noise)
      Frequency Response 170 Hz – 20 kHz (peak –20 dB)
      Coverage Angle Horizontal & Vertical: 165° (500 Hz), 175° (1 kHz), 165° (2 kHz), 70° (4 kHz) per EN 54-24
      Environmental Type A (Indoor applications)
      Speaker Component 12 cm (5") cone-type
      Mounting Hole Ø156±3 mm (6.14"±0.12") Ceiling thickness: 5 – 25 mm (0.2" – 0.98")
      Speaker Mounting Method Spring catch
      Cable Requirements Solid wire: 0.8 – 6 mm² (AWG 18 – 10)
      Connection 2-Steatite connector (3 pole)
      Operating Temperature –10 °C to +50 °C (14 °F to 122 °F)
      Finish Frame: Steel plate, white (RAL 9016 equivalent), painted Grille: Steel net, white (RAL 9016 equivalent), painted Fire dome: Steel plate, black, painted
