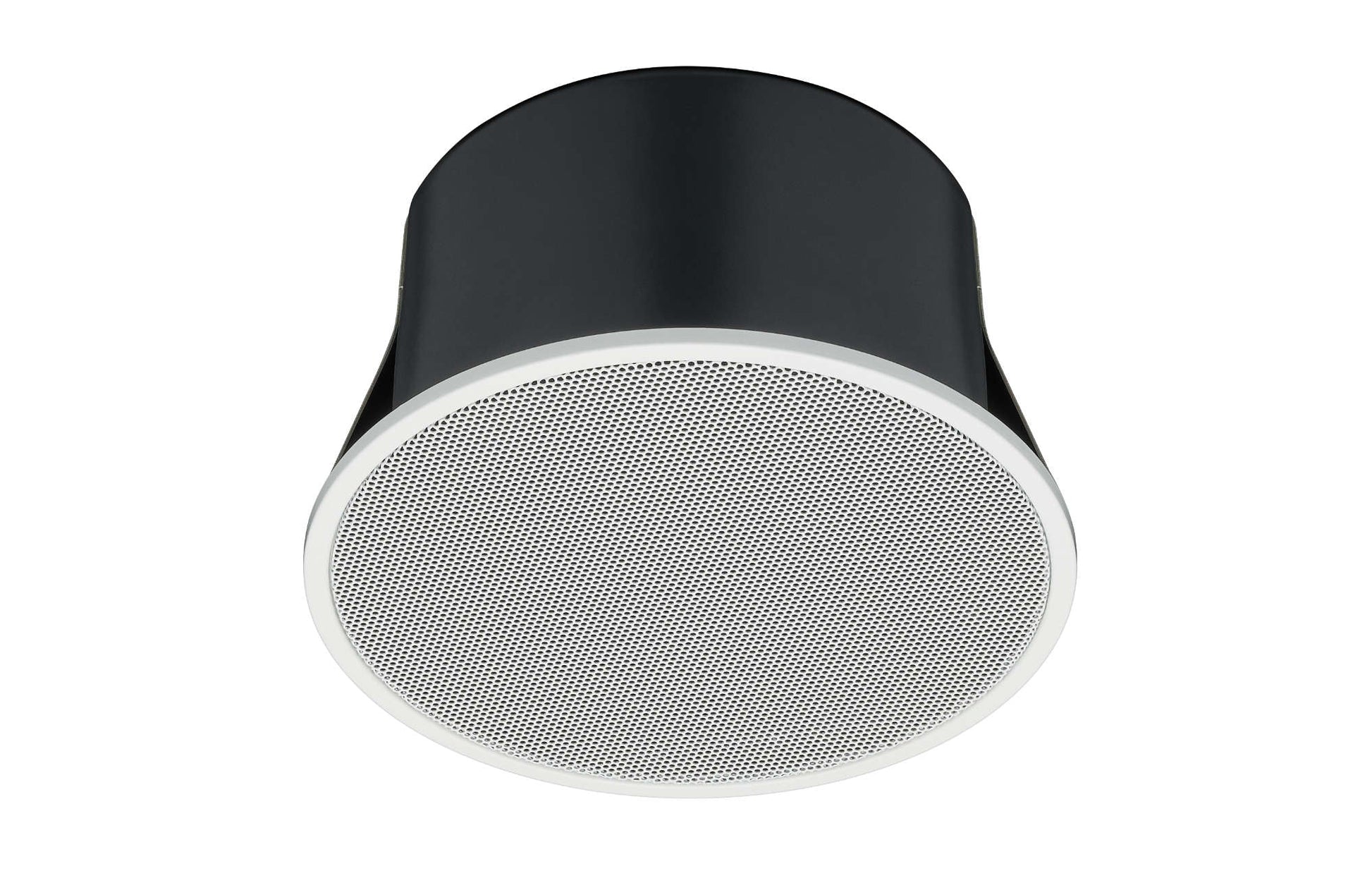

TOA PC1860F Ceiling Speaker
TOA PC1860F Ceiling Speaker
Regular price
Dhs.147.00 AED
Regular price
Sale price
Dhs.147.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
FEATURES
- Flat front panel
- Quick and easy installation
- Fire dome made of steel
- Snap in cable terminal
- 6 W rated input
- 12 cm speaker
DESCRIPTION
The PC-1860F is suitable for announcements and BGM system use in high sound quality. The speaker’s design harmonizes with modern architecture and decor. The PC-1860F speaker is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling.
SPECIFICATIONS
| Parameter | Details |
|---|---|
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 95 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) |
| Frequency Response | 170 Hz – 20 kHz (peak −20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Mounting Hole | Ø156±3 mm (6.14±0.12") Ceiling thickness: 5 – 25 mm (0.2" – 0.98") |
| Speaker Mounting Method | Spring catch |
| Cable Requirements | Solid wire: 0.5 – 3 mm² (AWG 20 – 12) |
| Connection | Push wire connection (Bridging terminal, 2-branch type) |
| Operating Temperature | −10 °C to +50 °C (14 °F to 122 °F) |
| Finish | Frame: Steel plate, white (RAL 9016 equivalent), painted Grille: Steel net, white (RAL 9016 equivalent), painted Fire Dome: Steel plate, black, painted |
